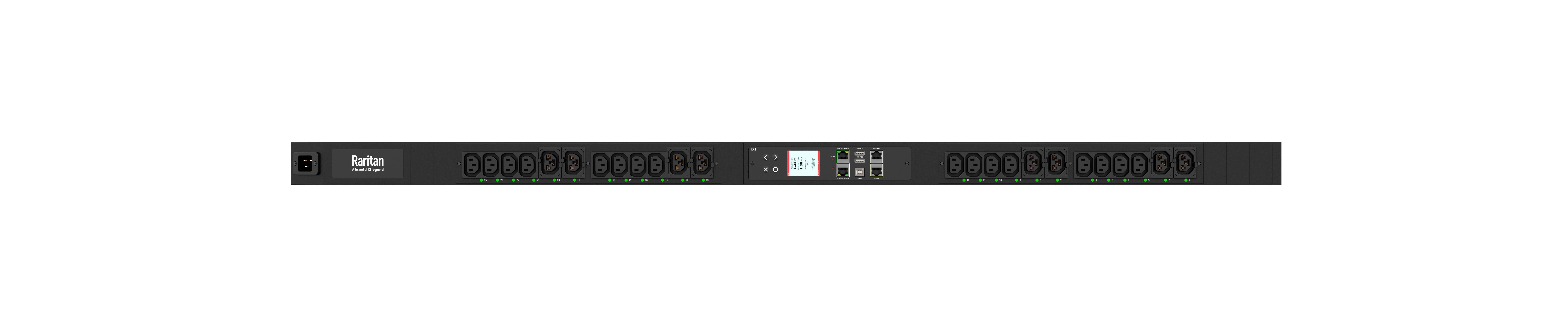

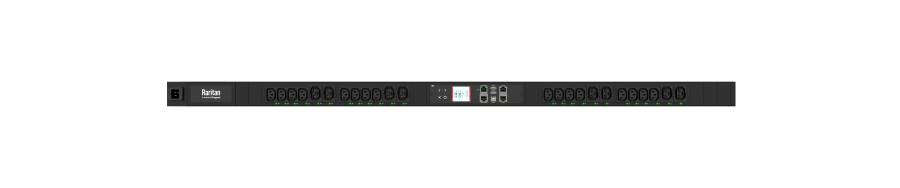

24-Port schaltbare Rack-PDU mit Messfunktion, 230V, 1-Phase, 3.7kVA, 16A, Raritan PX4-559A-E8

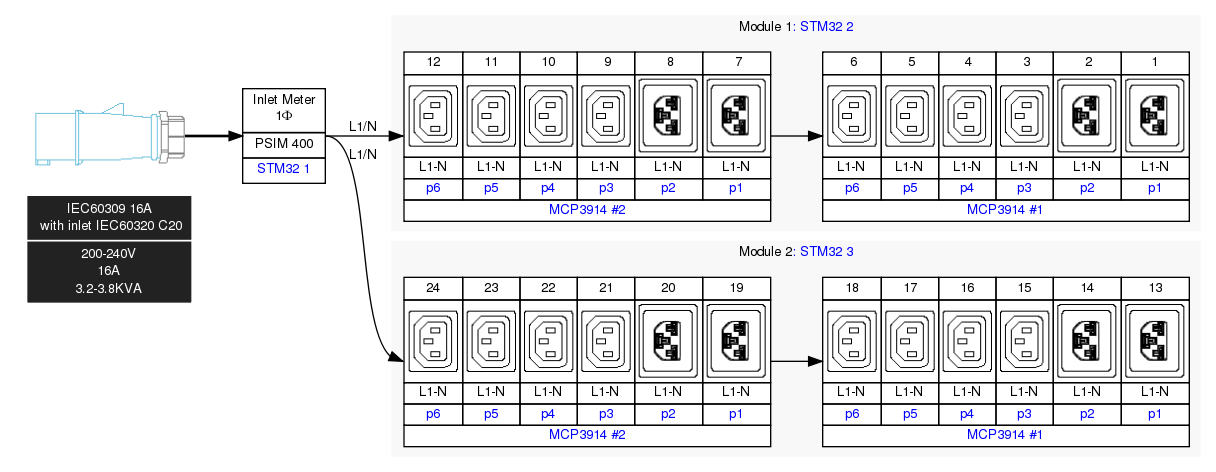

Output Connections: 16 x C13, 8 x C19
Input Plug: 3m 230V 16A IEC C20 200-240V Inlet
Remote Outlet Switching: Yes
Metering per input line: Yes
Metering per Branch Circuit Breaker: No
Power Configuration
230V, 1-Phase (L-N), 3.7kVA, 16A
Features
Energy Metering: Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy: ISO/IEC 62053-21 1%
Remote Outlet Switching: Yes
Metering per input line: Yes
Metering per Branch Circuit Breaker: No
Environmental Sensor Ready: Yes
Compatible Sensors:Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
Cascading: Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.
Networking: (10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).
Onboard Display: Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation
Specifications: Input
Input Plug: IEC C20 200-240V Inlet
Maximum Input Current: 16A
Rated Input Current: 16A
Power Capacity: 3.7kVA
Cord Length: 3m
Output
Receptacles (Output Connections): (16) C13, (8) Cx
Overload Protection: 0
Physical

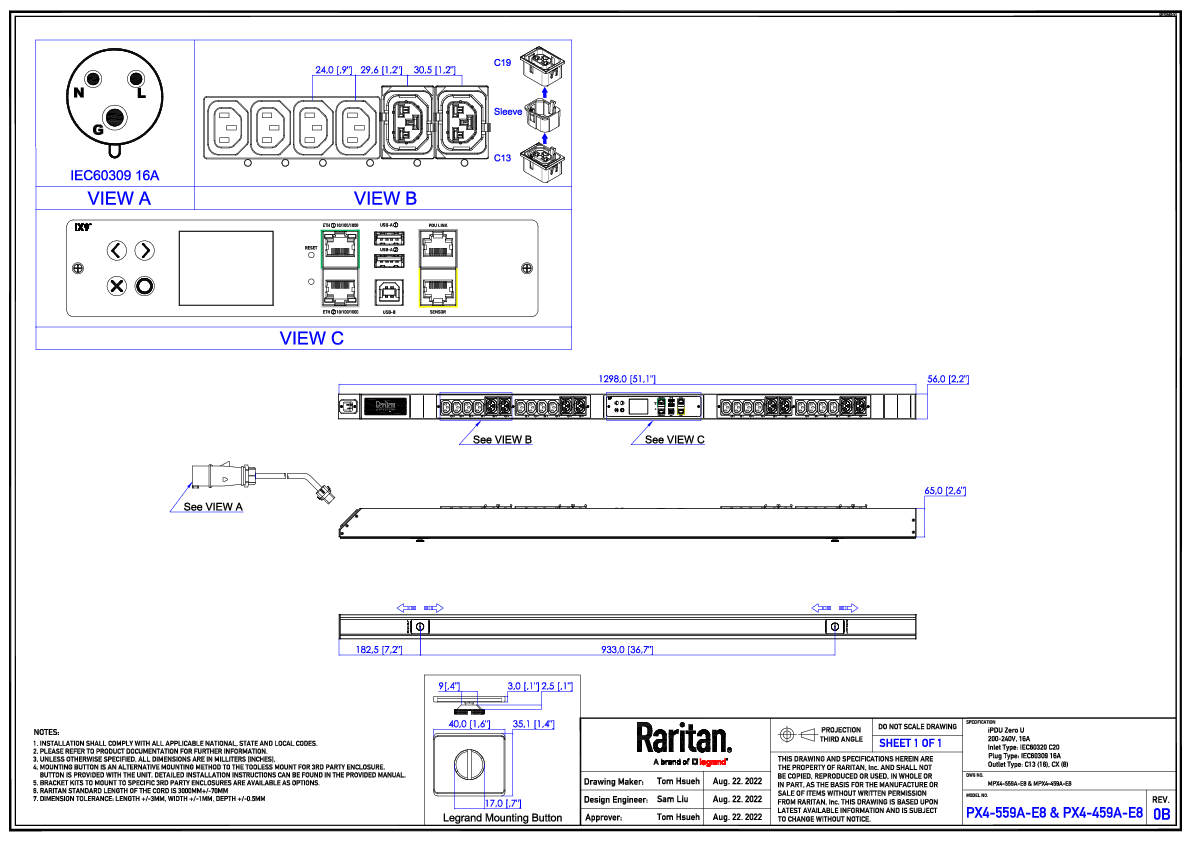

Dimensions (WxDxH): 56mm x 65mm x 1298mm
Unit Weight: 7kg
Shipping Weight: 11kg
Mounting: G4-HOLDER-FOR-ZU
Environmental
Operating Temperature/Environment: 60° C
Operating Relative Humidity: 85%
Operating Elevation: 0-6000ft
Conformance
Warranty: Standard 2 years manufacturer warranty
Tender Text/Bid Submittal Text
Vendor: Raritan; Part Number: PX4-559A-E8
