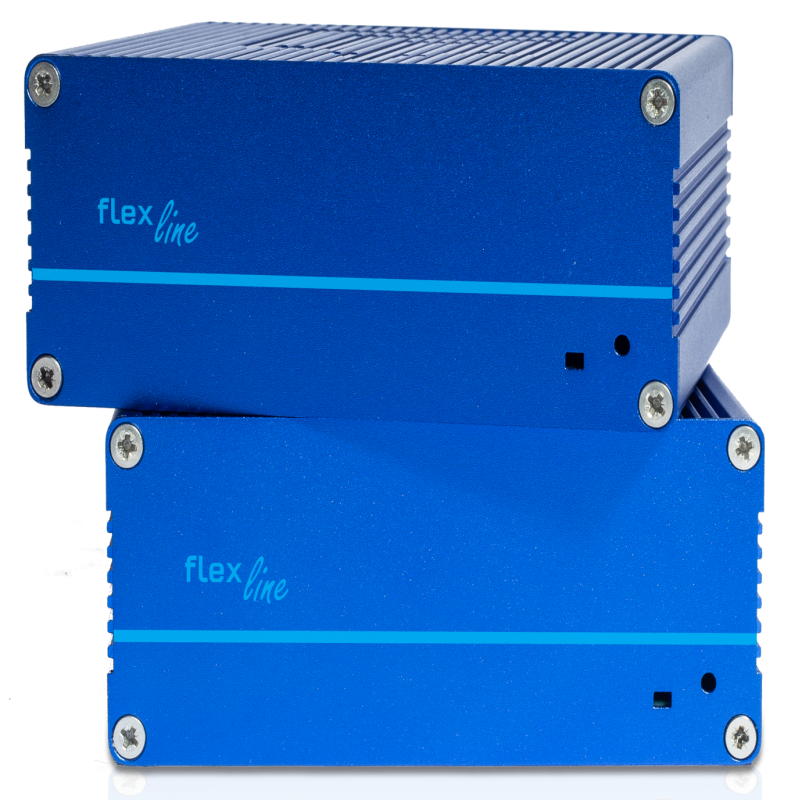

SMARTflex Dual DVI/USB CAT KVM-Extender Set, kvm-tec 6021-SET
- consists of 1x SV2L (6021L) and 1x SV2R (6021R)
KVM Extender DVI, KVM Extender DVI-D & KVM Extender USB in CAT
SMARTflex KVM Extender dual is a highly optimized KVM Extender over IP and covers a range of 150m/492ft at a resolution of 1920x1200@60Hz and is available in copper as dual version
For point to point connection or in Matrix Switching Systems up to 100 endpoints.
Also suitable for 24 V systems
SMARTflex dual is a highly optimized KVM Extender over IP and covers a range of 150m/492ft at a resolution of 1920x1200@60Hz and is available in copper as dual version
The perfect tuning of kvm-tec video compression with a low latency allows signals to be transmitted without delay. USB and video are transmitted via one CAT5e/6/7 cable.
The in-house developed transparent USB 2.0 interface supports USB devices like tablets, touch sceens, sound modules, printers. The USB upgrade supports USB sticks and USB hard drives. The kvm-tec „USB save“ function prevents virus intrusion via the USB interface by disabling mass storage devices. USB memory upgrade is preinstalled and unlockable.
Kvm-tec upgrades for SMARTFLEX DUAL
(already installed and unlockable with code)
... more smart connections
- USB transmission rate max 480Mbit/s
- firmware flash upgrade without cable
- DVI extension without loss of quality

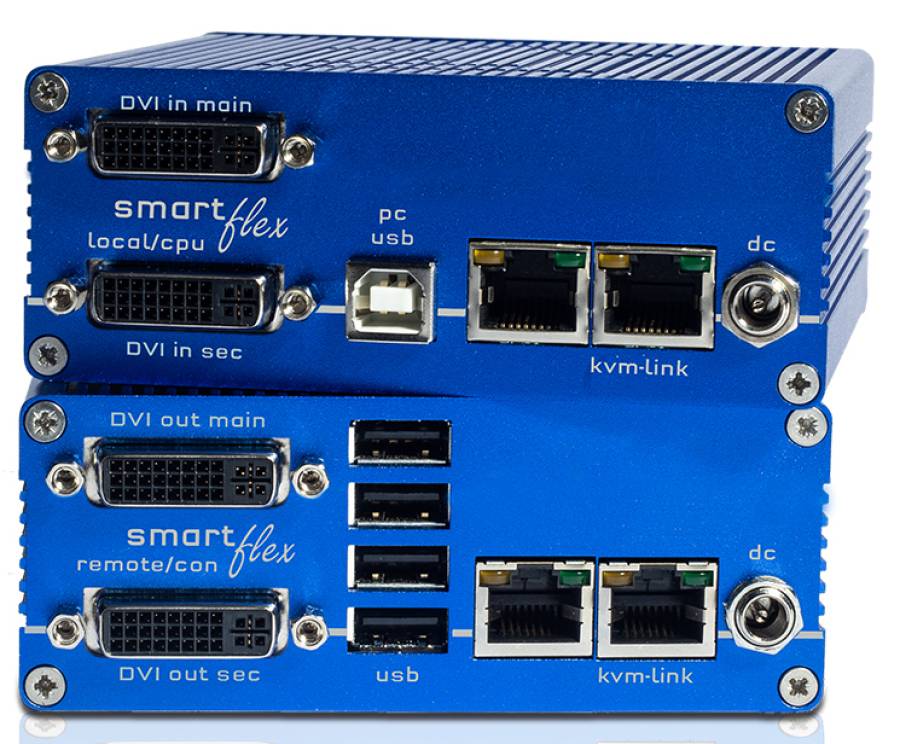

- local/CPU - remote/CON Monitor Output
- 4 dual SMARTflex in 1 RU
- warranty 2 years, warranty extension to 5 years possible
- automatic Plug & Play installation
We continue to stay transparent – kvm- tec Diagnosis menu
In the diagnosis menu, the runtimes of the individual connected channels are displayed. Both Remote Unit and Partner Local Unit are listed. Additionally the information of the temperature in the FPGA of both units is displayed. Another feature is the cable test. In addition to the main data stream, test datas is transmitted and checked for errors. This process can be done during operation ( Main Link )
In the OSD menu, select the Features menu and press "C" to enter the diagnosis menu
Delivery Content - Weight- Dimension
Delivery Content - Local (CPU)
1 x SV2 local (CPU)
1 x wall power supply unit l 12V 1A (EU-plug or INT plug)
2 x DVI - DVI cable 1,8m/5.9ft
1 x USB cable 1,8m/5.9ft
4 x rubber feet
Quick Instruction
Delivery Content - Remote (CON)
1 x SV2 remote (CON)
1 x wall power supply unit l 12V 1A (EU-plug or INT. plug)
4 x rubber feet
Weight & Dimension
Local (CPU)
108 x 43 x 107,5 mm
4.25 x 1.69 x 4,23 inch
295 g/ 0.65 lb
Remote (CON):
108 x 43 x 107,5 mm
4.25 x 1.69 x 4.29 inch
295 g/ 0.65 lb
Shipment weight
SET 1895 g /4.17 lb
(SV2-R 1005g/2.21 lb / SV2-L 890g/1.96lb).
