With this IP box for "matching" LanBe LCD KVM consoles with DVI or HDMI you can mirror the operation into the LAN / WAN. If the console is opened, IP users and operators see and operate the identical image in front of the console. Even if the console is folded in and pushed in, the KVM switch and IP module remain active and the IP users can continue to operate and also remotely switch.

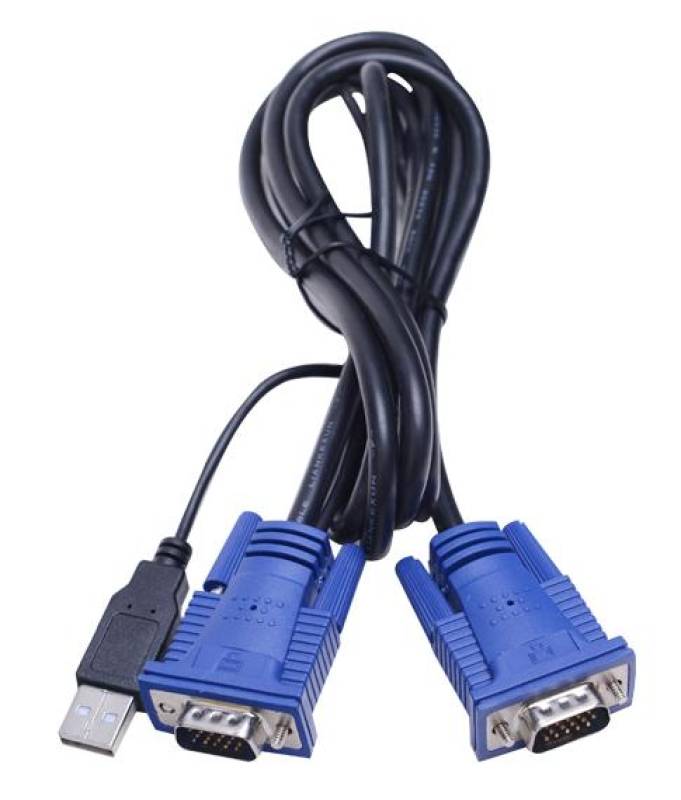

- Der Anschluss an die LanBe DVI oder HDMI Konsolen erfolgt über ein spezielles Kabel mit rundem Stecker zum Konsolen-KVM, welches im Lieferumfang der Konsole enthalten ist.
- IP Remote access to all KVM features from the BIOS level
- Access / operation on all servers connected to the LanBe
- System requirement on the client computer (remote operator PC): Windows upwards from XP
- A Windows client comes on CD
- The servers can of course have any operating system
- Nothing has to be installed on the servers either
- 1 x RJ45 LAN socket
| Product number |
KI-4101 |
Control Port |
Keyboard |
RJ45 port x 1 |
| Mouse |
| Video |
Input Port |
Keyboard |
HD15F/integration port x 1
(VGA video，USB mouse/keyboard, PS/2mouse/keyboard) |
| Mouse |
| Video |
| Power Supply Port |
DC-5.5*2.1 |
| Reset |
Network Re-connect |
| Default |
Initialize IP module default IP address, administrator name and initial password |
| LED Indicator |
Power indicator |
| Max Resolution |
1920 x 1080@60Hz |
| Power Supply |
DC 12V 1000mA |
| Operating Temperature |
0-50˚C |
| Storage Temperature |
-20℃-60℃ |
| Housing |
metal |
| Weight |
0.5KG |
| Dimensions(L x W x H ) |
162*78*30mm |
Hersteller Informationen
LanBe
LANBE, No. 86 Wusong South Road, Wuzhong District, Suzhou City, China
Importeur / EU-Wirtschaftsakteur
HAITWIN-DELPHIN Technologie GmbH, Kieselstrasse 15, DE-41472 Neuss
