LANBE AS-9100DLS - short 19" DVI KVM-Console with 18,5" Widescreen LED

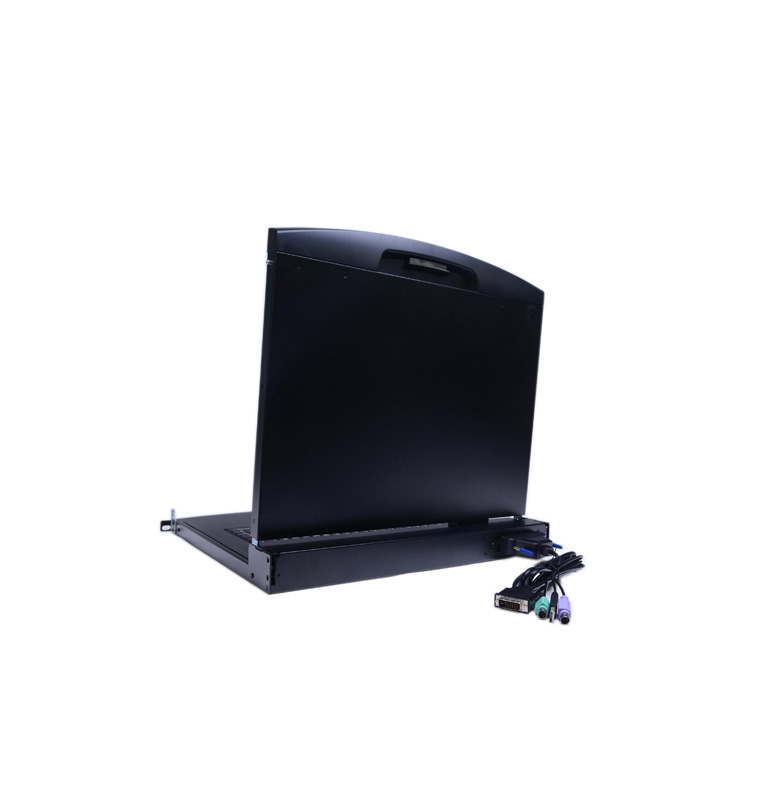

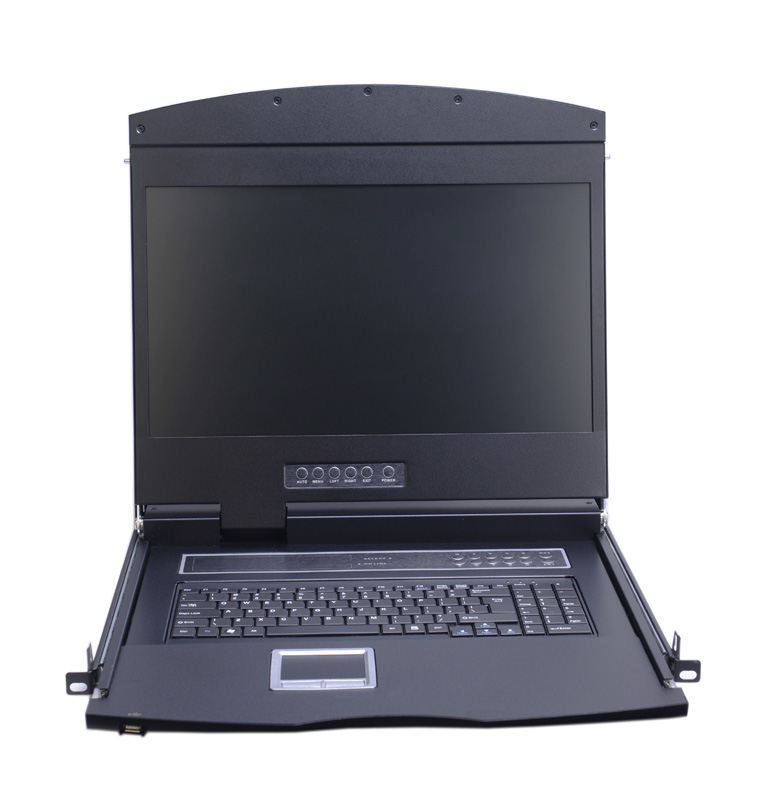

AS-9100DLS is a single rail 18.5“ Monitor, Keyboard-Drawer with LED Backlight. It integrates a single port DVI KVM switch, monitor, keyboard & mouse into 1U height and is used to control one computer. A value keyboard with number block and the integrated touchpad are completing the external design. The housing conforms the 1U standard, is easily installed and mountable with the included mounting kit. Depth: 462.6mm (with handle)
FEATURES

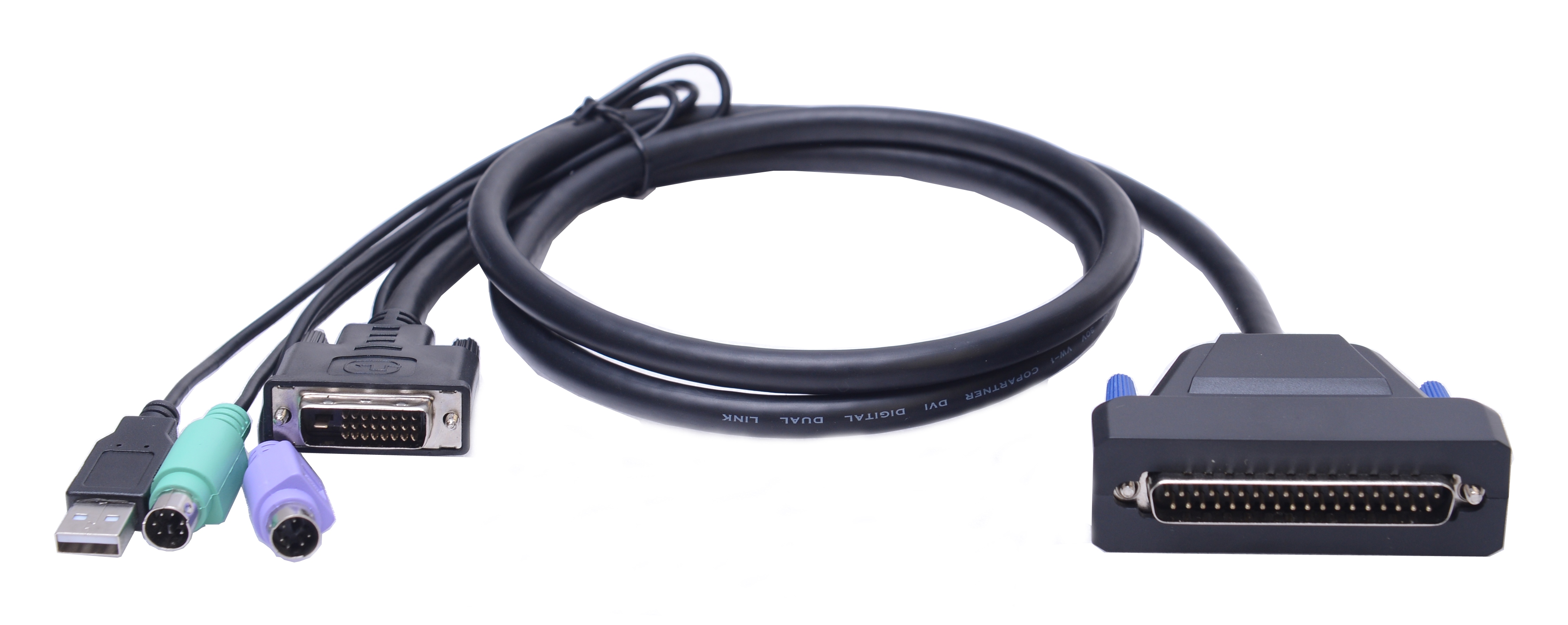

* Front LCD Console + DB 37pins cable in short total depth 410mm, supports PS.2/USB
* Adjustable depth from 600 mm up to 1000 mm tread depth
* DVI Input, PS/2 or USB for Keyboard und Touchpad/Mouse
* Can be connected with different KVM modules, for example with 4/8/16 ports (VGA/CAT5)
* Support friendly external power supply
* Support DOS, Windows Series /Server 2008 / Server 2013, Linux, MacOS, etc.
* Perfect keyboard / mouse emulation for safe function on all computers and operating systems
* high and clear resolution 1366 x 768 (60Hz)
Keyboard Versions
The product is equipped with german (DE) keyboard as standard. Other keyboard versions are available. Please state in your Order Comments, if you need one of the following Keyboard layouts. These layouts usually are on stock:
US-English (US), French (FR), Spanish (SP), Italian (IT), Swedish/Finnish (SWE/FI), Swiss (CH).
These Layouts are available with longer lead time (by request):
UK-English (UK), Russian (RU) and Turkish (TK).
| Specifications |
|
|
|
| |
|
|
|
| Type |
AS-9100DLS |
| Computer Connection (direct/max) |
1 |
| CPU Port Selection |
- - |
| IP Remote Control |
No |
- - |
| LCD monitor |
Monitor type |
18.5 inch SXGA color TFT-LCD |
|
| Ratio |
16:9 |
|
| Visible square |
409.8(H) x 230.4(V)mm |
|
| Resolution(max) |
1366 x 768 (native) 60Hz |
|
| Support Color |
16.7M colors (RGB 6-bit +Hi-FRC) |
|
| White Luminance |
250 cd/m2 (Typ.) |
|
| contrast |
1000:1 (Typ) |
|
| Back light |
LED |
|
| Pixel Pitch |
0.3 (per one triad) x 0.3 |
|
| LCD MTBF |
50,000 hours |
|
| Input power |
DC 12 V |
|

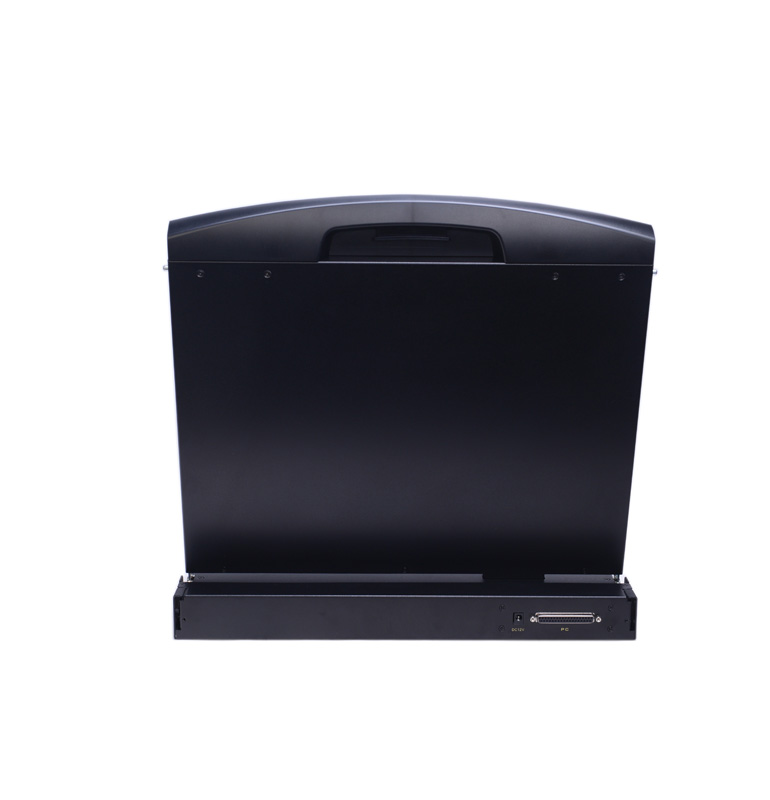

| Connectors |
PC connectors |
1x DVI-D |
|
| 1 x PS/2 female (purple), 1 x Kombi-USB |
|
| 1 x PS/2 female (green), 1 x Kombi-USB |
|
| 1 x USB (front) for external mouse or keyboard |
|
| Keyboard |
Keyboard |
Standard 100keys (10 different languages for choose) |
| Compatible IBM/AT |
Win Series/Server 2008/Server 2013/Linux, MacOS, etc. |
| Using life |
>1,000,000 times |
| Mouse |
Type |
Touch Pad |
| X/Y resolution |
>1000dots/inch (40x40/mm) |
| Using life |
>1,000,000 times |
| Power |
Power (AC) |
~100V-240V |
| Using life |
MTBF >60,000hours 25 °C |
| Housing |
Metal ( black ) |
| Rail system |
Single Rail |
| Gross weight |
15.0 kg |
| Dimensions (installation depth) |
407.5 x 450 x 44.5mm |
| Dimensions (with handle) |
462.6 x 450 x 44.5mm |
| Rack installation depth |
410mm - 900mm (min/max adjustable) |
|
| Operating / Storage Temp |
-10 - 50°C / -20 - 60°C |
Note:
For Business and Industrial users. only.
Not suitable for consumer users.
No sale to consumer.
