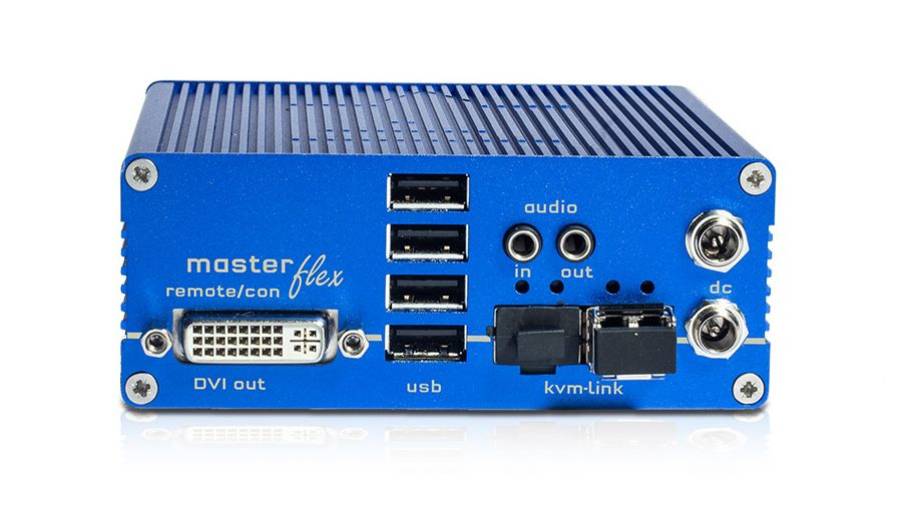

DVI + USB 2.0 Masterflex Single Redundant Fiber Extender-Receiver, KVM-TEC 6013R MV1-FR

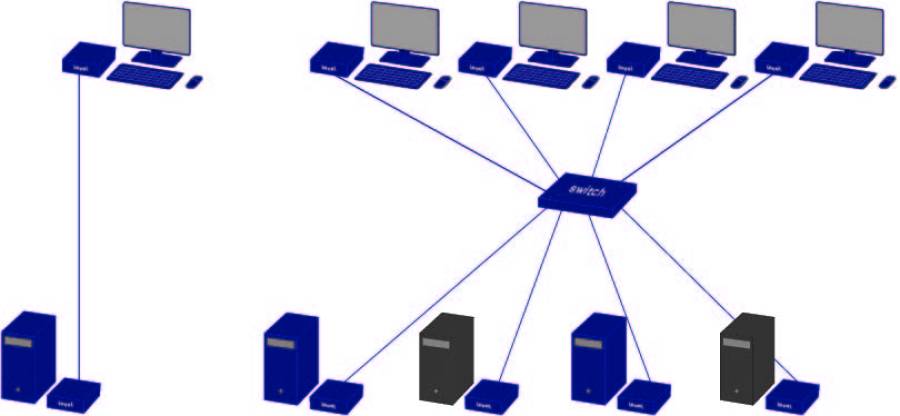

MASTERflex single redundant is a highly optimized KVM Extender over IP and covers a range of 500m/1640ft, 20km/12mi, 160km/99mi at a resolution of 1920x1200@60Hz and is available in fiber as single redundant version.
Redundant for high security in critical applications
The perfect tuning of kvm-tec video compression with a low latency allows signals to be transmitted without delay. USB and video are transmitted via one duplex LC fibercable The in-house developed transparent USB 2.0 interface supports supports USB devices like tablets, touch sceens, sound modules, printers. The USB upgrade supports USB sticks and USB hard drives. The kvm-tec „USB save“ function prevents virus intrusion via the USB interface by disabling mass storage devices. Sound analog, VGA and  USB memory upgrade are preinstalled and unlockable

Kvm-tec upgrades for MASTERFLEX Fiber

(Pre-installed and unlockable)

• USB memory
• Analog VGA - transmitted as DVI
• Sound analog in both directions in CD quality

• Automatic Plug & Play installation
• USB transmission rate max 480Mbit/s
• firmware flash upgrade without cable
• VGA in - DVI out
• DVI extension without loss of quality
• 4 single extender in 1RU
• Warranty 2 years, warranty extension to 5 years possible

We continue to stay transparent - diagnosis menu

In the diagnosis menu, the runtimes of the individual connected channels are displayed. Both Remote Unit and Partner Local Unit are listed. Additionally the information of the temperature in the FPGA of both units is displayed. Another feature is the cable test. In addition to the main data stream, test datas is transmitted and checked for errors. This process can be done during operation ( Main Link )

In the OSD menu, select the Features menu and press "C" to enter the diagnosis menu
