Rackmount Dual LCD Display Pivot Drawer mit 2 x 23,8" FHD Monitoren, ANNSO RMD-24W-D2
Features
• 2U foldable dual 23.8 inch widescreen LCD display Drawer
• Dual DVI & VGA Port
• 1920 x 1080 Ultra high resolution
• Support FHD with 1080p resolution.
• Build in 2x 2 watts speakers
• Independent front osd control buttons to optimized display
User Controls Interface
Power ON / OFF via Front Button
Power Mode Status LED indicator
OSD ( On Screen Display ) Buttons
LCD Characteristics
Screen Size: Dual 23.8 inch widescreen
Backlight Type: LED
Resolution: 1920x1080
Contrast Ratio: 1000:1
Brightness ( cd/m2 ): 250
View Angles ( H/V ): 178/178
Pixel Size ( HxV ) mm: 0.2745x0.2745
Max. Color: 16.7M
MTBF ( Hrs. ): 50,000
Input Signals
DVI-D: Dual DVI-D 24Pin Connector (Female)
VGA: Dual D-SUB 15Pin Connector (Female)
Audio: 1x 3.5” Jack
Power Input: Standard IEC Inlet
Power Specifications
AC Power Input: Standard IEC Type Power Cord with Internal Power adapter, 100-240V AC Input
Mechanical and Environment
Height: 2U Foldable
Rack Depth: 27” to 42” ( cabinet front rail to rear rail )
Construction: Metal Housing
Operating Temperature: 0 - 50 deg. C
Operating Humidity: 10% - 90% ( non -condensing )
Anti-Vibration: 5 - 500 Hz / 1 Grms PTP
Anti-Shock: 15G / Peak ( 11 ms )

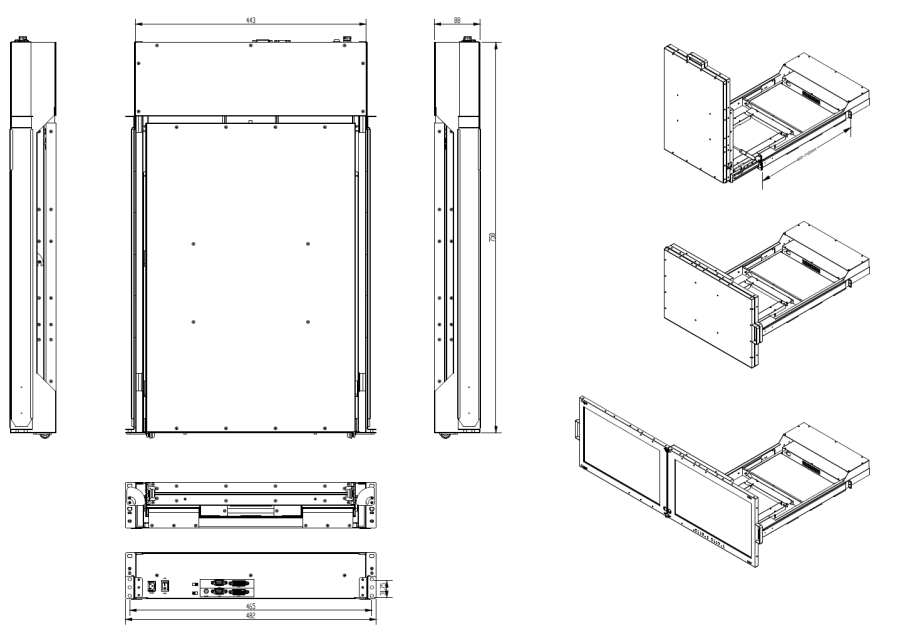

Physical Dimension (WxHxD): 443 x 88 x 750 (mm)
Packing Dimension (WxHxD): 550 x 220 x 900 (mm)
Net Weight / Gross Weight: 22 / 28 (KGs)
Certification and Approvals: CE / FCC / RoHs
Note: only for Business Customers and no cancel of order or return of product possible.
