DisplayPort USB KVM DigiProcessor, Aten KG9900T only for KG0016 and KG0032
The KG9900T USB DisplayPort KVM DigiProcessor can centrally connect from the KVM over IP OmniBus Gateway to the target computer. Its digital signal delivers superior signal compensation for greatly enhanced video quality up to 1920 x 1200 @ 60 Hz, 24-bit color depth and raises the data transfer rate faster than traditional KVM solutions. This plug and play KVM DigiProcessor is built with a powerful SoC that provides excellent video compression performance. Its zero-U and light weight design allows for an efficient and tidy installation, providing an ideal space-saving solution. The KVM DigiProcessor is perfectly suited to data center, server room, control room and high tech production line applications.

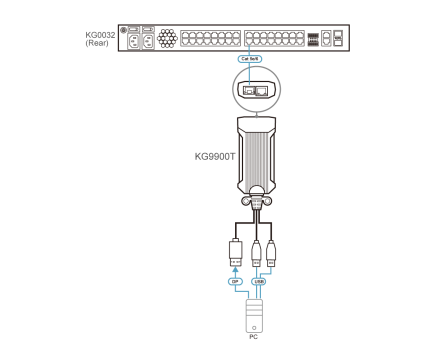

Note: The ATEN KVM DigiProcessor is only compatible with KG0016 / KG0032. Make sure the KG0016 / KG0032 and the KVM DigiProcessor are connected directly with each other and there is no network switch in between. The SP port on the ATEN DigiProcessor is reserved for future expansion
- Superior video quality – supports resolutions up to 1920 x 1200 @ 60 Hz; 24-bit color depth
- Distortion-free dynamic video performance up to 100m via a Cat 5e/6 cable
- Virtual Media supports fast transmission speeds up to Read 265Mbps / Write 188Mbps
- Space saving – 0U and compact design with SR mounting hanger for organized server rack installation
- Light-weight aluminum die casting shroud – enhanced passive cooling design with streamlining stripe all around the shroud to help quick radiation
- Bus-powered – no external power adapter required with ultra-low power consumption*
- Firmware upgradable
Note: Make sure to connect both USB connectors to the server's USB ports to ensure sufficient power supply.
Specifications
| Connectors |
| Link |
1 x RJ-45 Female (KVM)
1 x RJ-45 Female (SP) (Reserved for future expansion) |
| Computer |
2 x USB Type A Male
1 x DisplayPort Male |
| Switches |
| Reset |
1 x Semi-recessed Pushbutton |
| LEDs |
| Link |
1 (Green)- On: Active / Blinking: Transmit/Receive) |
| 10/100/1000 Mbps |
1 (Off / Orange / Green) |
| Power |
1 (Green) |
| Power Consumption |
DC5V:4.16W:20BTU |
| Environmental |
| Operating Temperature |
0–40°C |
| Storage Temperature |
-20–60°C |
| Humidity |
0–95% RH, Non-condensing |
| Physical Properties |
| Housing |
Aluminum Die-casting Housing |
| Weight |
0.27 kg ( 0.59 lb ) |
| Dimensions (L x W x H) |
12.20 x 5.80 x 2.58 cm
(4.8 x 2.28 x 1.02 in.) |
| Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Product Comparison
| Option |
KG1900T
USB VGA KVM DigiProcessor
|
KG6900T
USB DVI KVM DigiProcessor
|
KG8900T
USB HDMI KVM DigiProcessor
|
KG9900T
USB DisplayPort KVM DigiProcessor
|
| Computer Connector |
VGA
|
DVI-D
|
HDMI
|
DisplayPort
|
| Computer Interface |
USB
VGA
|
USB
DVI-D
|
USB
HDMI
|
USB
DisplayPort
|
| Max. Resolution |
1920 x 1200
|
1920 x 1200
|
1920 x 1200
|
1920 x 1200
|
| Firmware Upgradable |
✔ |
✔ |
✔ |
✔ |
| Adapter ID™ Support |
✔ |
✔ |
✔ |
✔ |
| Virtual Media Support |
✔ |
✔ |
✔ |
✔ |
| Audio |
N/A
|
N/A
|
✔ |
✔ |
| Multi-Platform Support |
Windows
Mac
Sun
Linux
|
Windows
Mac
Sun
Linux
|
Windows
Mac
Sun
Linux
|
Windows
Mac
Sun
Linux
|
Package Contents
- 1 x KG9900T USB DisplayPort KVM DigiProcessor
