16-Port "same time" OmniBus-Gateway with 16 KVM-over-IP-Anschlüsse, Aten KG0016

16-Port "same time" OmniBus-Gateway with 16 KVM-over-IP-Anschlüsse, Aten KG0016

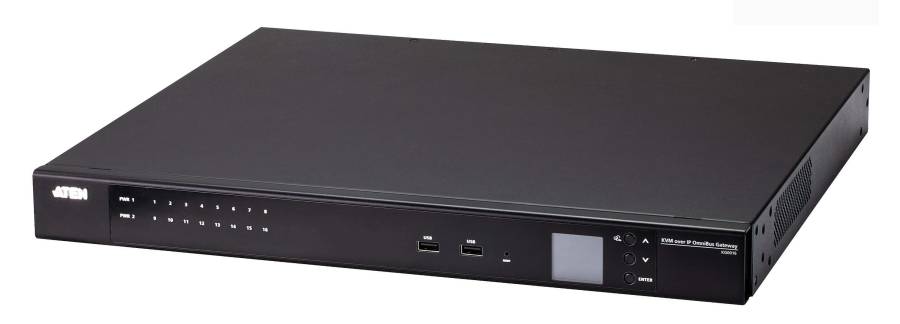

The KG0016 16-Port KVM over IP OmniBus Gateway provides remote over IP access, allowing users to access, monitor, and control up to 16 servers over a network. With KG0016 independent remote connections, it ensures higher operation efficiency and optimizes the user experience by eliminating waiting time and bus sharing. This single management platform connects servers through a single secure portal, simplifying access and control for efficient administration. With its all digital KVM over IP architecture, the KG0016 prevents video lagging and freezing, ensuring stable and smooth video display, particularly in long-distance extension application. Equipped with dual on-board 10G NICs for redundancy, this series is built to guarantee reliability and availability of remote access to all servers. The virtual media transmissions are faster than traditional KVM over IP switches, allowing for the completion of a 1GB file transmission in just one minute. When the KG series works with the KVM DigiProcessor series (KG1900T / KG6900T / KG8900T / KG9900T), it delivers superior video resolutions up to 1920 x 1200 @ 60 Hz, for distances up to 100 meters over a single Cat 5e/6 cable.

The KG series can be remotely accessed via WinClient AP or HTML5 WebClient* at a console from a separate location for management and operation. The WinClient AP comes with complete KVM functions and provides users with continuous, reliable connections. It can help users to simultaneously monitor the status of all connected servers on Array View and control a specific server through Control View. For basic KVM functions, users can directly access and control one of the ports through the HTML5 WebClient by simply launching a client viewer from a browser, without the need for pre-installed software. Additionally, it allows users to easily separate the client viewer from the browser and drag it to a second monitor for control while monitoring the status of all ports on the Port View from Web GUI.

This KVM over IP OmniBus Gateway allows out-of-band access to connected servers from remote consoles via the management network for BIOS-level troubleshooting when the production network is down. It enables IT administrators to manage servers via management networks that are separated from the main / production networks. If there’s difficulty in accessing the servers through the production network, administrators can still access servers via KG series. To provide stringent security, the KG series offers TLS 1.3 and an embedded FIPS 140-2 certified OpenSSL cryptographic module. Security features of the KG series include 256-bit AES encryption for secured data transmissions, as well as RADIUS, LDAP, LDAPS, and MS Active Directory for 3rd-party authentication services.

Additional exclusive features of KG series include a Message Board, Panel Array Mode™ Live+, Mouse DynaSync™, and a front panel LCD display. ATEN KVM over IP OmniBus Gateway saves users time and money by enabling administrators to manage their servers from virtually anywhere – minimizing travel and MTTR (Mean Time to Repair) costs, ensuring the highest availability for data center services.

Note:
We recommend using the WinClient app for more robust management and control. Performance and usage may vary depending on the user’s hardware configuration. A minimum of 8 GB RAM, dual core CPU, and a graphics card that supports OpenGL are required. Please also make sure that the browser used is up to date.




Sustainability is pivotal in modern business, with IT/OT convergence at the forefront of innovation. This union not only heightens competitiveness but also enhances responsiveness to market demands, particularly concerning data security and network uptime. With the rise of digitalization in industry, cybersecurity's role in bolstering IT-OT synergy is crucial.

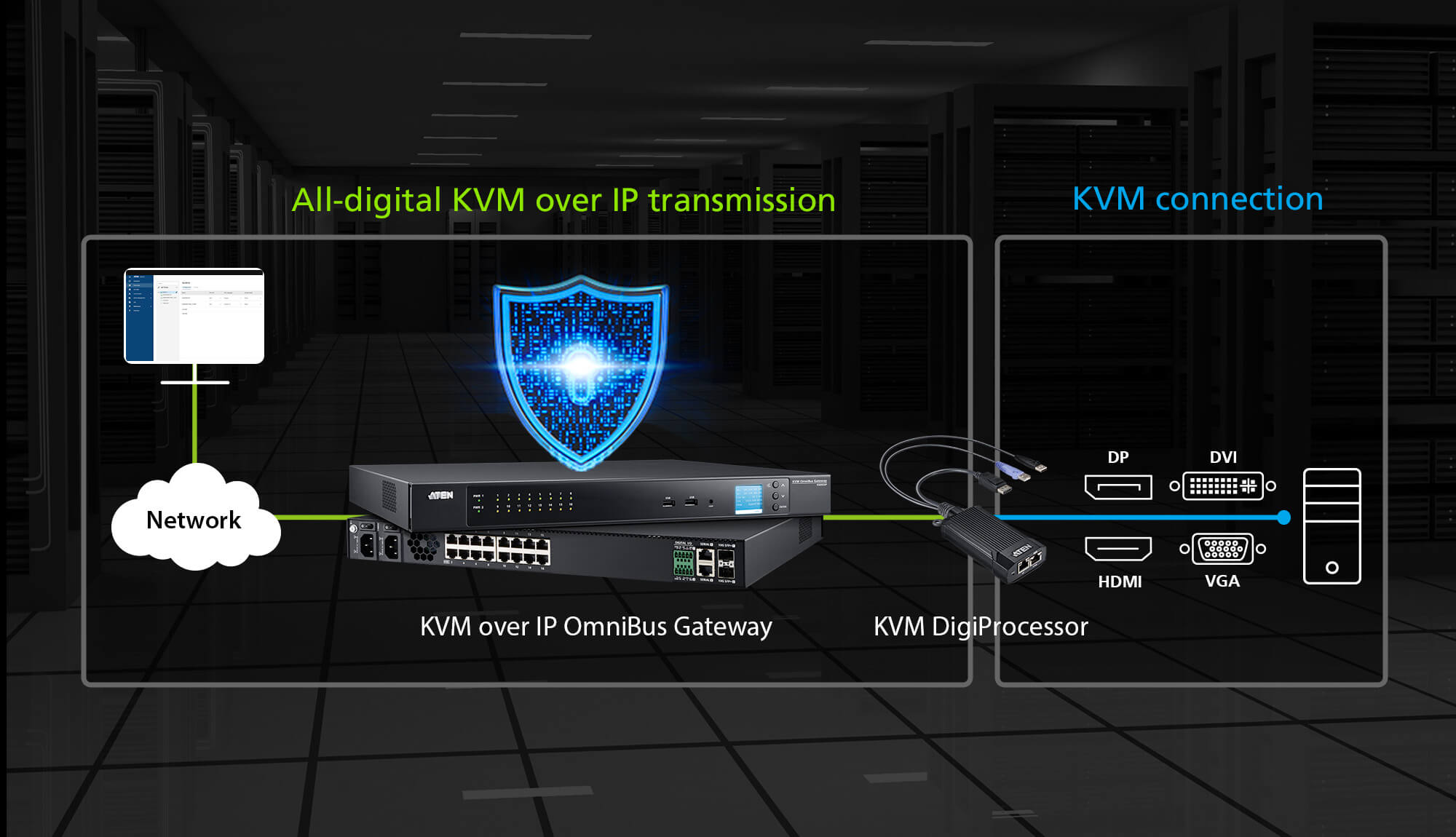

The DigiKVM™ – KG0016/KG0032 exemplifies this digital shift. This all-digital KVM over IP OmniBus Gateway champions digital transformation in spaces like server rooms and data centers. Through a secure portal, it offers centralized management and real-time remote server access. Regardless of the data signal type from the linked KVM DigiProcessor, all transmissions are digitized and protected, ensuring fast, clear video monitoring with remarkable visual accuracy.

The all-digital KVM over IP solution stands out for its robust security and versatile OS compatibility. It also presents a reliable way to manage remote IT access with out-of-band (OOBM) connection, especially when the in-band connectivity is compromised. For geographically spread businesses, it's a boon, enabling IT to quickly reinstate services and minimize business downtime.





Panel Array Mode™ Live+ for Multi-View Monitoring in Clarity

  Hardware

• High port density – RJ-45 connectors and Cat 5e / 6 cable for up to 16 ports in 1U housing
• All-digital KVM over IP optimum transmission – offers reliable transmission over long distances with noise immunity, signal quality preservation, and efficient compression and storage
• Extends 1920 x 1200 @ 60 Hz resolutions up to 100m via Cat 5e/6 without signal interference and close-to-zero latency
• Up to 16 independent connections for remote KVM over IP access
• Dual 10G NICs for redundant LAN or two IP operation
• LCD display – provides real-time connection status, notifications, and system alert message
• LED indication of connection and hardware status
• Multi-platform server environments: Windows, Mac, and Linux
• All-around ventilation chassis design improves airflow efficiency – induces cold air suction on both sides at the front panel and dissipates heat via ventilation holes on the back panel
• Dual power supply with power redundancy

Management

• Simultaneously shares 16 independent connections to the attached servers
• Out-of-Band access
• Green IT Fan – auto-fan-speed adjustment corresponding to temperature
• Event logging and Windows-based log server
• Event notification – supports notification of SMTP email, SNMP Trap, and SMS (with additional mobile devices)
• Event destination – event logs will be saved to Log server, Syslog server, and USB drive
• Firmware upgradeable
• Port share mode – allows multiple users to gain access to a server simultaneously
• Supports IPv4, IPv6

Easy-to-Use Interface

• The intuitive WinClient AP's supports of an Array View and a Control View – enables users to monitor all servers and control a specific server concurrently
• Panel Array Mode™ Live+ – real-time monitoring of livestreamed video feeds from all ports in a configurable multiscreen layout
• Browser-based, and AP GUIs offer a unified multi-language interface to minimize user training time and increase productivity
• Multiplatform client support (Windows, Mac OS X, and Linux) via WebClient
• Multi-browser support – Edge, Chrome, Firefox, Safari, and Opera
• Supports web-friendly KVM-over-IP access with HTML5 WebClient viewer – users can remotely access all the connected servers and PCs without Java or browser plug-in installation
• Full-screen or sizable and scalable virtual remote desktop
• Keyboard / mouse broadcast – keyboard and mouse signals can be duplicated across all servers simultaneously

Security

• High-grade security – supports an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #4282)
• Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
• Supports TLS 1.3 data encryption and RSA 2048-bit certificates to secure user logins in from browser
• Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or random for video, and virtual media data encryption
• Support for IP / MAC filter
• Configurable user and group permissions for server access and control
• Automated CSR creation utility and third party CA certificate authentication

Virtual Media

• Virtual media transmission rate is approximately 10 times faster than traditional KVM, ideally for file transfers, OS patching, software installation, and diagnostic testing
• Works with USB-enabled servers in operating system and at the BIOS level
• Supports USB2.0 DVD / CD drives, USB mass storage devices, PC hard drives, and ISO images

Virtual Remote Desktop

• Video quality such as monochrome color depth and bandwidth’s increment / decrement can be adjusted for optimizing data transfer speed
• Mouse DynaSync™ – automatically synchronizes remote mouse movements
• On-screen keyboard with multi-language support
• BIOS-level access for troubleshooting



		IT Infrastructure Management BIOS level access Superb Virtual Media read/write data transfer rate TLS 1.3 & FIPS140-2 encryption
Information Visualization Up to 16 concurrent remote user access to any connected server Real-time remote monitoring and control Panel Array Mode Live+ with livestreamed video feed
		Production Automation Delay-free Remote Control Real-time remote monitoring and equipment access Panel Array Mode Live+ with livestreamed visuals from production line equipment
Remote Monitoring & Control Up to 16 concurrent remote user access to any connected server Panel Array Mode Live+ with livestreamed video feed Superb Virtual Media read/write data transfer rate



Package Contents

• 1x KG0016 16-Port KVM over IP OmniBus Gateway
• 1x footpad set (4 pcs)
• 1x mounting kit
• 2x control terminal blocks
• 2x power cords
• 2x Lok-U-Plugs
• 1x Lok-U-Plug installation tool
• 1x user instructions

Product Comparison

Specifications:

Console Connections
Local	N/A
Remote	16
Computer Connections
Direct	16
Port Selection	GUI
Connectors
USB Port	2 x USB Type-A Female (Reserved for futuer expansion)
KVM Ports	16 x RJ-45 Female
SFP+ Uplink Ports	2 x SFP+ Slots
Serial	2 x RJ-45 Female (Reserved for future expansion)
Power	2 x IEC 60320/C14
Input	2 x 2-pin DI (Reserved for future expansion)
Relay	2 x 3-pin Relay (Reserved for future expansion)
Switches
Reset	1 x Semi-recessed Pushbutton
Power	2 x Rocker Switches
LEDs
KVM Ports	16 (Green)
Power	2 (Green)
Panel Spec
Size	1.6"
Resolution	128x64
Pushbuttons
Select	3 x Pushbuttons (Up, Down, Enter)
Emulation
Keyboard / Mouse	USB
Video
Remote	1920 x 1200 @ 60Hz
Maximum Input Power Rating	100–240V~, 2.5A max, 50-60Hz
Power Consumption	AC110V:34.1W:117BTU AC220V:34.6W:118BTU
Environmental
Operating Temperature	0 - 40˚C
Storage Temperature	-20 - 60˚C
Humidity	10 - 80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	6.43 kg ( 14.16 lb )
Dimensions (L x W x H)	43.36 x 37.90 x 4.40 cm (17.07 x 14.92 x 1.73 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
