Aten CL5716M 16-Port Slideaway™ LCD KVMP Switch with 17" LCD

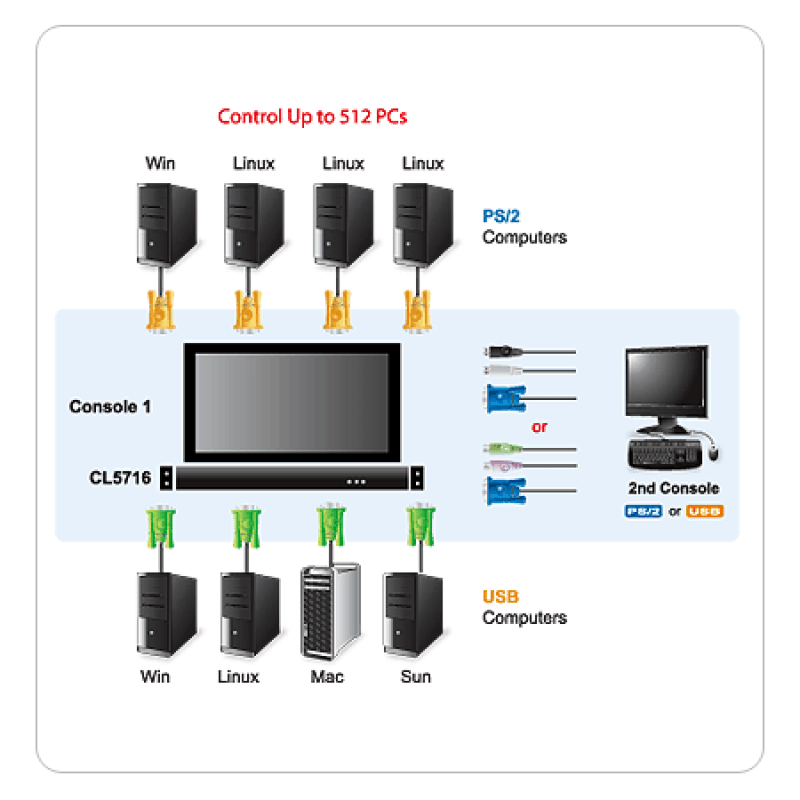

The CL5716 Slideaway™ LCD KVMP Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716 can control up to 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, so that up to 512 computers can all be controlled from a single KVM console.
The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
|
|
 |
| |
Integrated KVM console with 17" LCD monitor in a Slideaway™ housing |
| |
Space saving technology – up to two consoles (one bus) control up to 16 computers |
| |
Daisy-chain up to 31 additional units – control up to 512 computers from a single console (With compatible KVM Swithces: ACS1208A, ACS1216A, CS1708A,CS1716A) |
| |
Dual Interface - supports computers and console with PS/2 or USB keyboards and mice |
| |
LCD module USB port allows each computer to access USB peripherals* |
| |
LCD module rotates up to 115 degrees for a more comfortable viewing angle |
| |
Multiplatform support – Windows 2000/XP/Vista, Linux, Mac, and Sun |
| |
Supports multimedia USB keyboards for PC, Mac and Sun |
| |
Auto PS/2 and USB interface detection |
| |
Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere |
| |
Supports external USB mouse |
| |
Superior video quality – supports resolutions up to 1280 x 1024 @ 75 Hz |
| |
No software required – convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus |
| |
Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position |
| |
Port names automatically reconfigured when station sequence is changed |
| |
Two level password security – only authorized users can view and control computers |
| |
Supports one administrator and four user accounts with separate profiles |
| |
Auto Scan mode enables continuous monitoring of user-selected computers |
| |
Broadcast support – commands from the keyboard can be broadcast to all available computers on the installation |
| |
Hot pluggable – add or remove computers without having to power down the switch |
| |
Beeper on/off via hotkey and OSD |
| |
Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
* The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.
| Rack Mount Kit |
Rack Depth |
| 2X-010G (Long/Optional) |
68 - 110 cm |
| Short (Standard) |
42 - 82 cm |
|
Easy Installation
Rack Mount Kit |
Rack Depth |
| 2X-012G (Long/Optional) |
68 - 110 cm |
| 2X-011G(Short/Optional) |
52 - 70 cm |
|
|
|
|
|
|
|
| |
1x CL5716 KVMP Switch with standard Rack Mount Kit |
| |
2x Custom KVM Cable Sets |
| |
1x 5-in-1 USB / PS/2 Console Cable |
| |
1x Firmware Upgrade Cable |
| |
1x Power Cord (AC Power Models) |
| |
1x Grounding Wire |
| |
1x User Manual |
| |
1x Quick Start Guide |
|
|
|
|
|
|
| Computer Connections |
Direct |
16 |
| Max. |
512 (via Daisy-chain) |
| Port Selection |
OSD, Hotkey, Pushbutton |
| Connectors |
External Console Port |
1 x SPHD-18 Male (Yellow) |
| External Mouse Port |
1 x USB Type-A Female (White) |
| KVM Ports |
16 x SPHD-15 Female (Yellow) |
| Daisy-chain Port |
1 x DB-25 Male (Black) |
| FW Upgrade |
1 x RJ-11 Female |
| Power |
1 x 3-prong AC Socket |
| USB Port |
1 x USB Type-A Female (White) |
| Switches |
Reset |
1 x Semi-recessed Pushbutton |
| Power |
1 x Rocker Switch |
| Firmware Upgrade |
1 x Switch |
| LCD Adjust |
4 x Pushbutton |
| LCD On/Off |
1 x LED Pushbutton (Orange) |
| Port Selection |
2 x Pushbutton |
| Station Selection |
2 x Pushbutton |
| LEDs |
On Line |
16 (Orange) |
| Port ID |
2 x 7-segment LED Display (Yellow) |
| Station ID |
2 x 7-segment LED Display (Yellow) |
| Power |
1 (Dark Green) |
| Lock |
Num Lock |
1 (Green) |
| Caps Lock |
1 (Green) |
| Scroll Lock |
1 (Green) |
| Emulation |
Keyboard / Mouse |
PS/2, USB |
| Video |
1280 x 1024 @ 75 Hz; DDC2B |
| Scan Interval (OSD Select) |
1–255 sec. |
| I/P Rating |
100–240 V AC, 50/60 Hz, 1 A |
| Power Consumption |
17" LCD |
120V, 27.5W/230V, 28W |
| |
|
| Environment |
Operating Temp. |
0–40°C (17") |
| Storage Temp. |
-20–60°C |
| Humidity |
0–80% RH, Noncondensing |
| Physical Properties |
Housing |
Metal + Plastic |
| Weight |
17" LCD |
14.00 kg
|
| |
|
Dimensions
( D x W x H ) |
63.40 x 48.00 x 4.40 cm (17") |
|
|
|
|
* The specification and pictures are subject to change without notice.
