4-PC, Triple-Monitor (1x HDMI 2x DP) 4K up to 144Hz KVM-Switch with 4-Port USB 3.0, KC-KVM403DH
.jpg "4-PC, Triple-Monitor (1x HDMI 2x DP) 4K up to 144Hz KVM-Switch with 4-Port USB 3.0, KC-KVM403DH")
4-PC, Triple-Monitor (1x HDMI 2x DP) 4K up to 144Hz KVM-Switch with 4-Port USB 3.0, KC-KVM403DH

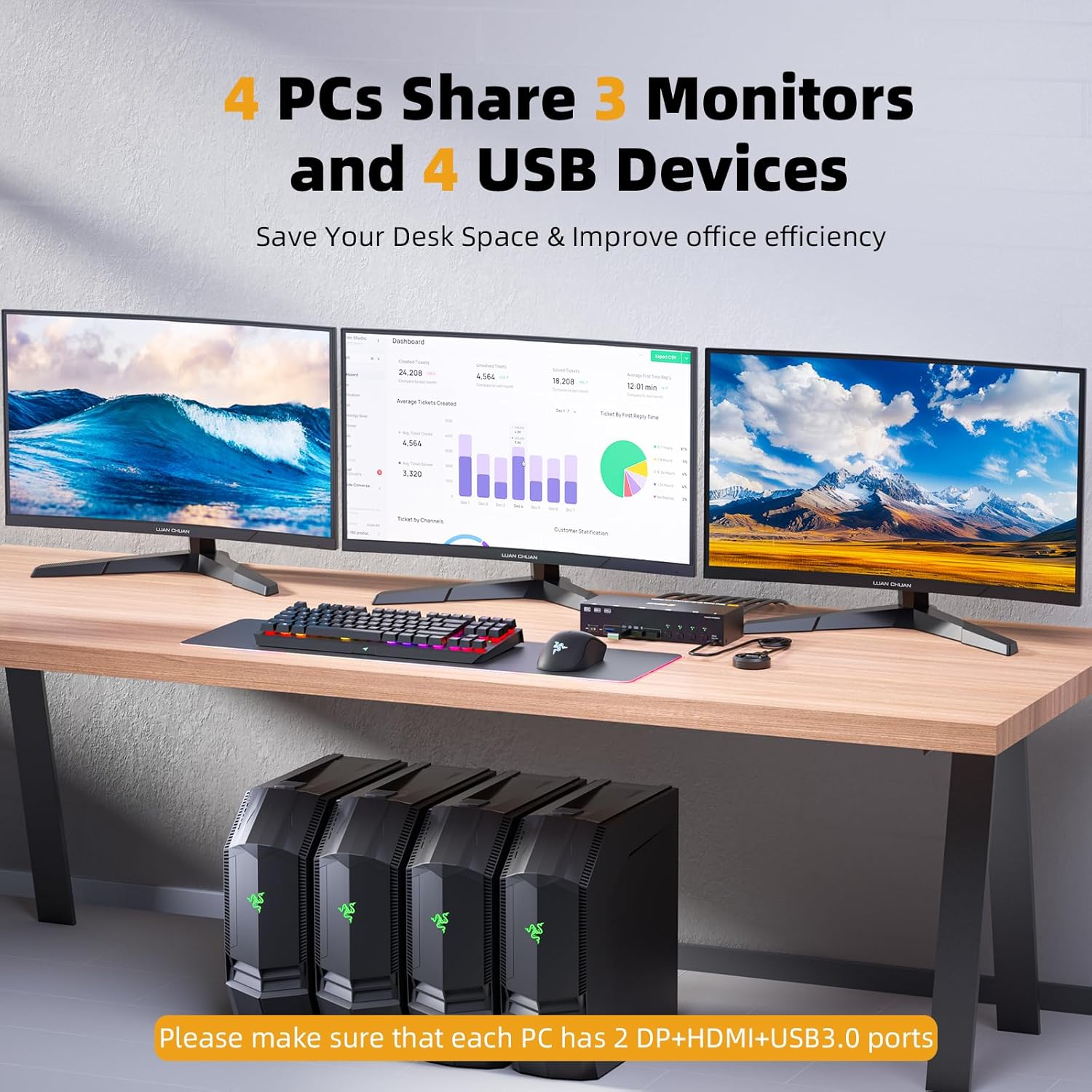

This is a perfect KVM-Switch for computers or docking stations with 2x DP and 1x HDMI connections for the joint use of keyboard, mouse and three monitors.
In extension mode of the computers, the windows can be distributed to all three monitors.
You can use it to change the operation between up to four computers or laptops with suitable docking stations.
With the 4x USB 3.0 ports, you not only switch on any keyboard/mouse, but also other USB devices such as USB headset, camera, printer, etc.
With the cable remote control you can switch comfortably and do not have to stretch to the switch or can also place the KVM-Switch out of the arms.
In extension mode of the computers, the windows can be distributed to all three monitors.
You can use it to change the operation between up to four computers or laptops with suitable docking stations.
With the 4x USB 3.0 ports, you not only switch on any keyboard/mouse, but also other USB devices such as USB headset, camera, printer, etc.
With the cable remote control you can switch comfortably and do not have to stretch to the switch or can also place the KVM-Switch out of the arms.

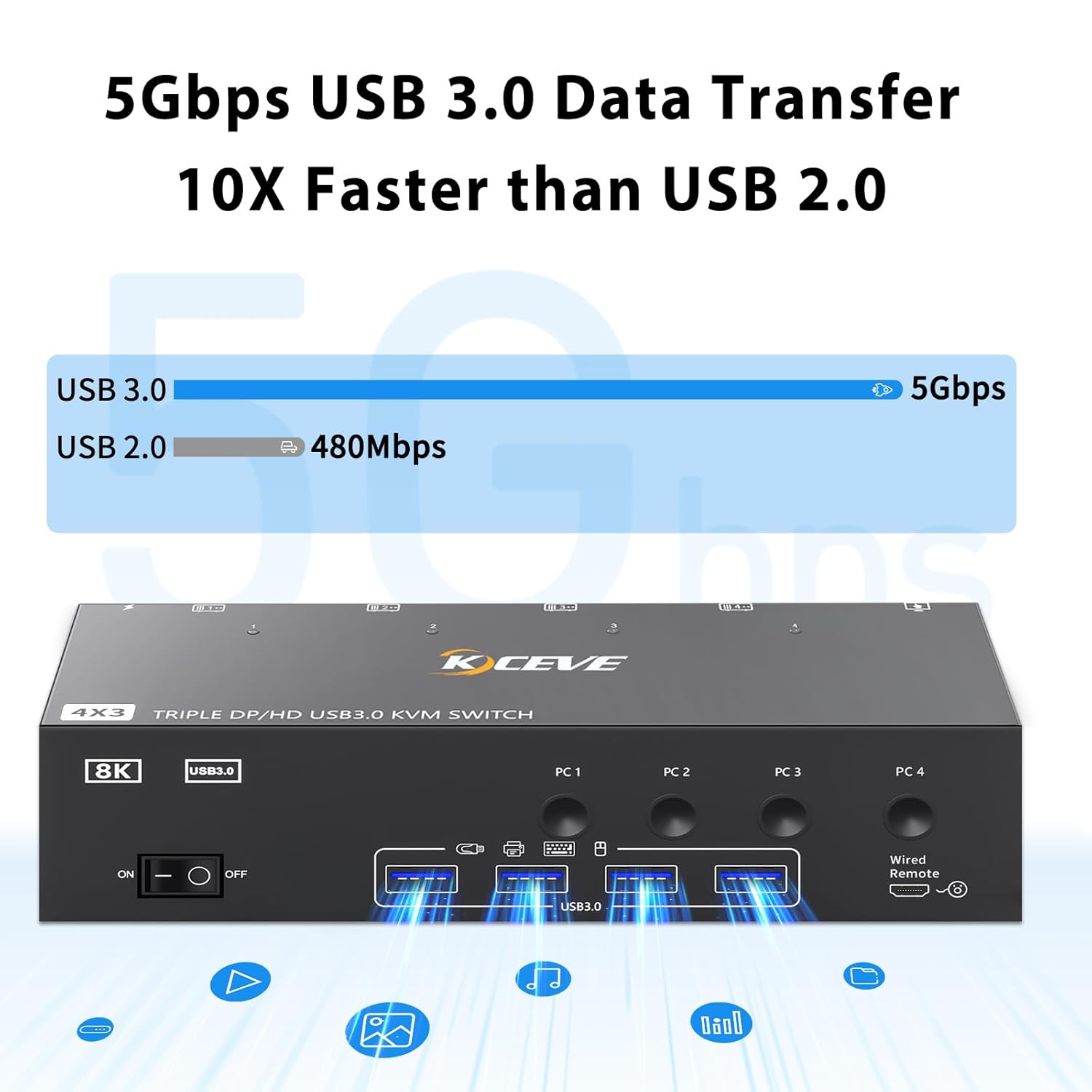

- With 4x USB 3.0 USB connections: This USB 3.0 KVM-Switch for 3 monitors with 4 computer inputs is equipped with 4 USB 3.0 connections for mouse, keyboard, USB printer and scanner. The USB 3.0 transmission is stable and fast.
- Supports wired gaming or wireless keyboard and mouse.

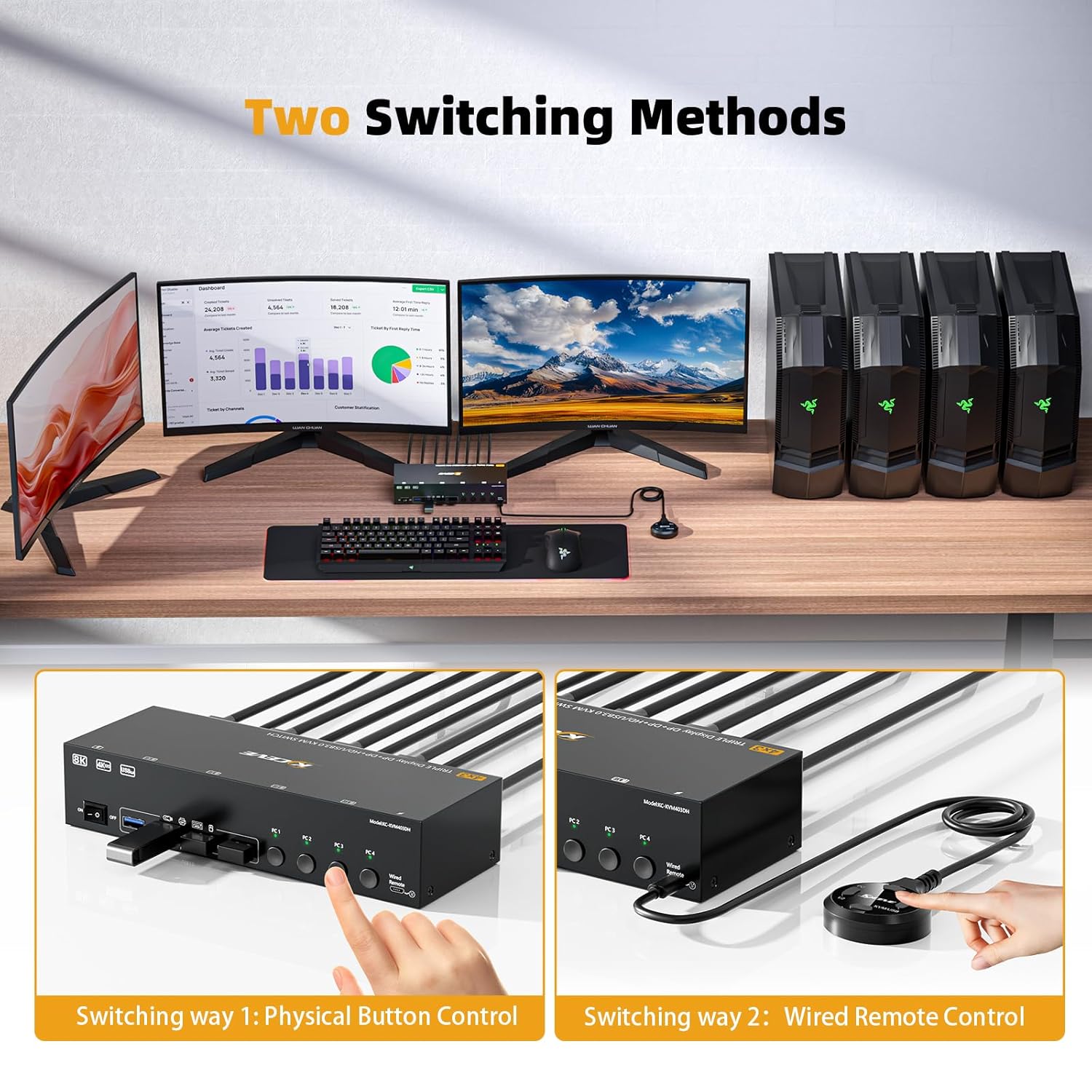

- Switch mode: button switch and cable remote control.
- All three monitors and the 4x USB 3.0 are always connected to the selected computer.
- Possible input adaptations: Supported by the computer MiniDP-to-DP cable, USB-C-to-DP adapter, USB-C-Dual-DP+HDMI docking stations. HDMI to DP and DVI/VGA will not be supported by general technologically.
- Visual Ultra HD 4K pleasure: This KVM-Switch for 3 monitors and up to 4 PC supports a high resolution of up to 8k at 30 Hz or 4K at up to 144 Hz. Please use DP 1.4 cable to achieve a resolution of 8K at 30 Hz and 4K at 144 Hz. 4x USB cables are included. The DP-and HDMI cables must be ordered separately.
- On the DP1.4 connections up to UHD 8K@30Hz, provided the cables and monitors also support this.
- Maximum DP resolutions: 5K@100Hz, 4K 3840x2160@144Hz, 3440x1440@144Hz, 2K@144Hz, The final resolution depends on the monitor, the graphics card and the cables. Note: With high resolutions and/or refreshment frequencies, the use of max. 1.5m long DP 1.4 cables solves the problem of flickering and black screen.
- On the HDMI 2.1 connection a video resolution with up to 8k@30Hz, 4K 3840x2160@120Hz or 2K@144Hz. At least HDMI 2.1 cables are a prerequisite for this.
- To lower resolutions downwards. With 4K use, please ensure that your computer, monitor and all cables 8K or 4K with the Gew. Support frequency.
- HDCP 2.3 Support.
- The switchover time for all KVM-Switches is a few seconds, although the electronic switching takes place within milliseconds. This has to do with the fact that the monitors recognize a new signal, switch the image away, check and release it again. The larger the monitor, the longer this time. Usually between 3 and 5 seconds.
- This KVM-Switch has an Edid Pass-Trough and automatically supports the correct monitor resolutions. Since the KVM-Switch also switches DP, which cannot be pretended as available (edid emulation), there is no monitor advantage.
- Plug-and-play. Driver-free for Windows, Mac, Linux, Unix, Ubuntu.
- Product dimensions: approx. 30 x 20 x 10 cm; complete approx 900 g

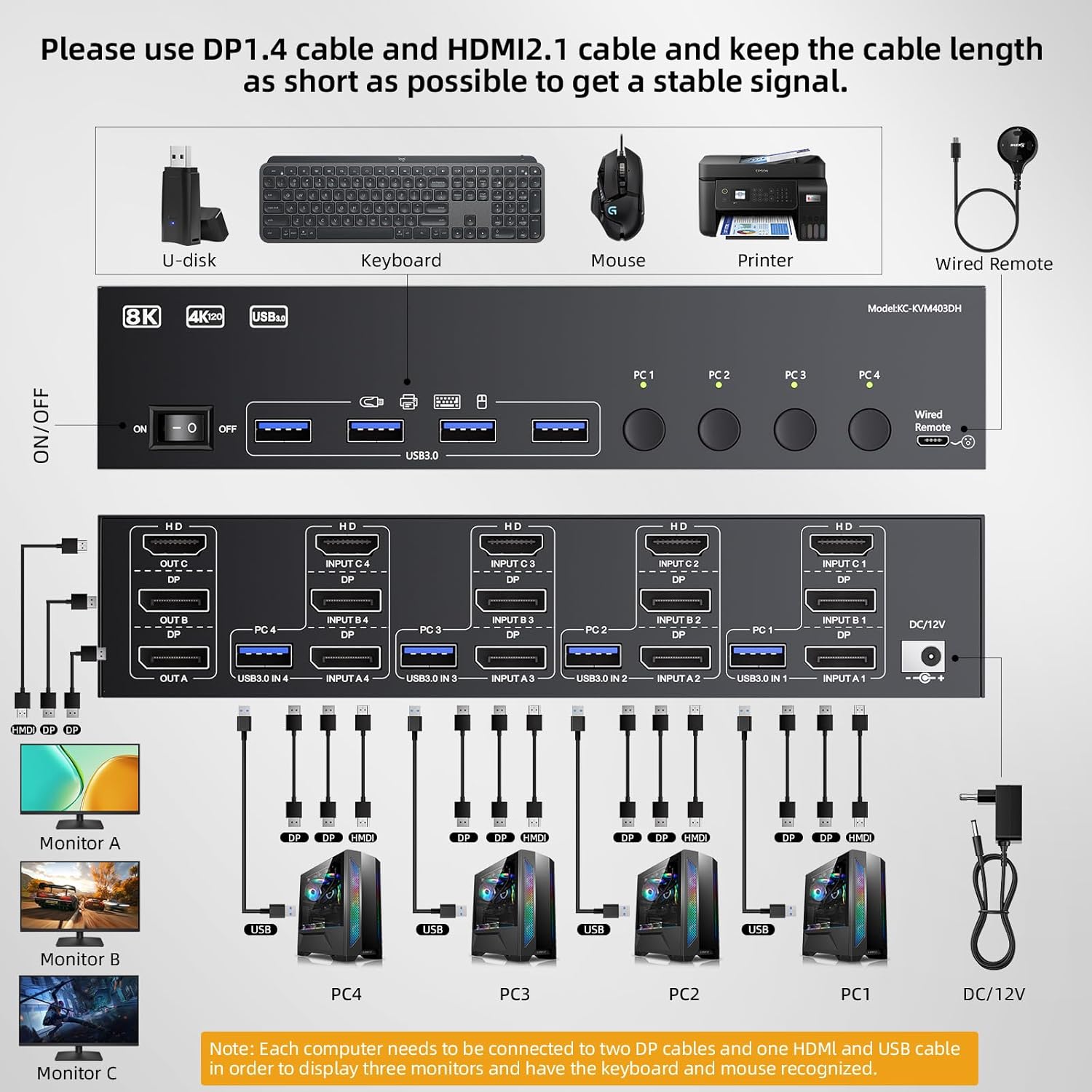

Connection diagram of triple monitor KVM-Switch
Each computer requires 1*HDMI+2*Displayport +1* USB cable to connect the 3 monitor KVM-Switch, Supports DP to HDMI, USB-C to HDMI, USB-C to DP converter and USB-C docking station with 2x DP and 1x HDMI out. Please confirm whether your computer's graphics card supports 1*HDMI + 2*Displayport before placing an order. |
 |

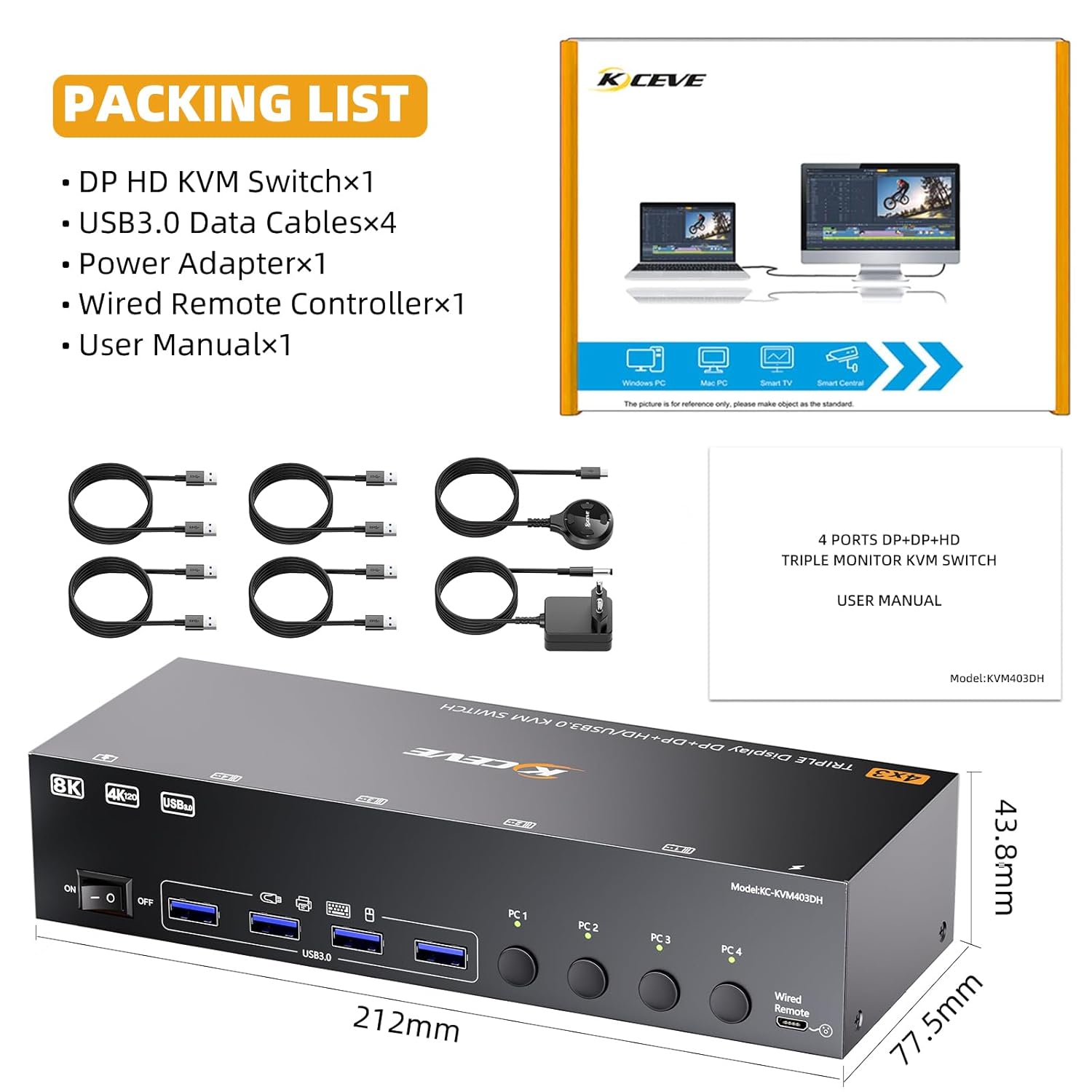

In the scope of delivery,
1x 4 port dual-DP + HDMI KVM-Switch
4x USB 3.0 cable (approx. 1m)
1x wired control (approx. 1.5 m)
1x 12 V EU power adapter
Note: You need two DP cables and an HDMI cable per computer.
