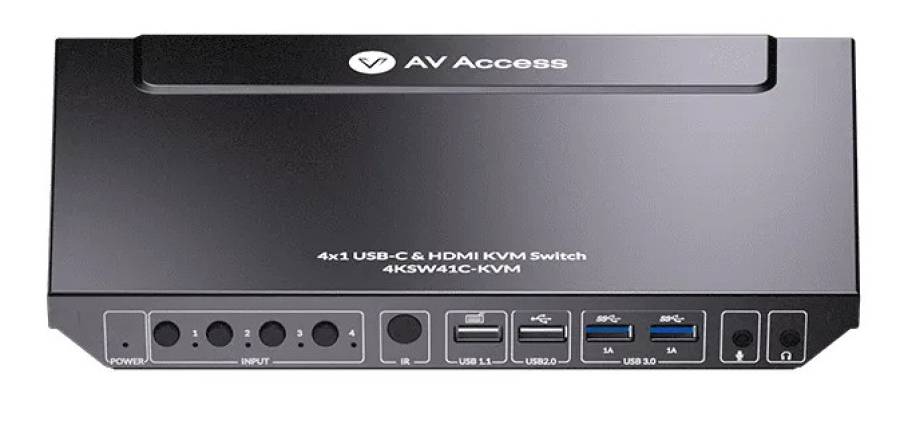

1x Notebook USB-C and 3x PC 4K60Hz HDMI KVM-Switch with USB 3.0 and Hotkey-Switching, AV Access 4KSW41C-KVM
Premium 4×1 4K USB-C & HDMI KVM Switch w/ USB 3.0,
Supports 60W Charging for Laptop, 1080P@240/165hz & 2560×1440@144/120hz, Ideal for Home Office & Gaming.
Control 4x PCs with one set of monitor, keyboard and mouse, whether they have a USB-C or HDMI input port. Also function as a USB-C docking station for laptops.
● Full-Featured USB-C: Transfer data, audio, video, and power with just a single USB-C cable. Control 4x PCs easily with one set of monitor, keyboard, and mouse, whether they have a USB-C or HDMI input port. Also function as a USB-C docking station for laptops.
● Ultra-High Refresh Rate: HDMI 2.0 & HDCP 2.2 compliant, with up to 4K@60hz 4:4:4 video resolution. Also supports 1080P@240Hz/165Hz/144Hz/120Hz, and 2560×1440@144Hz/120Hz, ensuring wonderful gaming experiences.
● Built-in USB 3.0 Hub: Your four PCs/game consoles can share up to 2x USB 3.0, 1x USB 2.0, and 1x USB 1.1 (Hotkey-Port) peripherals, like a 4K webcam, speakerphone, keyboard, mouse, game controller, etc.
● Flexible and Fast Switching: Supports switching via the front buttons, keyboard hotkey or IR remote. Switch faster with the automatic PC wake-up and EDID emulation functions.
● Plug & Play, Universal Compatibility: No extra driver or software required. Works perfectly with different operating systems and game consoles like PS4/5, Xbox Series X/S, etc. Comes with all cables you need for installation
Technical notes:
The
notebook must be able to transfer graphics via USB-C (not just charging and data).
This is the case with the DP Alt Mode (DP Mode).
Or simply put: If a USB-C to HDMI or DP adapter cable or a USB-C docking station works on the notebook, this KVM switch also works with the notebook.
Each
PC must be connected to the KVM switch via an HDMI cable (included) and a USB cable. If necessary, a DP graphics output can be adapted to a KVM switch with HDMI. DVI and HDMI can be adapted (then only 1920x1080) on both sides of the KVM switch.
Premium 4×1 4K USB-C & HDMI KVM Switch
Switch Easily Between Work and Gaming
Control 4x PCs with one set of monitor, keyboard and mouse, whether they have a USB-C or HDMI input port. Also function as a USB-C docking station for laptops.
|
|
 |
Typical Applications
AV Access 4K USB-C HDMI KVM switch is plug-n-play and easy-to-use. It boasts a full-featured USB-C input port, ultra-high refresh rates, and a built-in USB 3.0 hub. Some of its applications are as follows:
 |
|
 |
| |
|
|
Home Office
Connect your workstation PC, Macbook and other laptops to this 4K KVM switch. You can control them with only one set of USB devices, like a 4K webcam, speakerphone, keyboard, mouse, printer, scanner, removable hard disk, etc. Whether you are a software programmer or engineering designer, you can set up a perfect home office.
|
|
Gaming
Switch to your PS5, Xbox Series X, or Nintendo Switch in your leisure time. Control them easily with a set of keyboard, mouse or game controller. Also, connect a headphone to add external commentary in your game live broadcast. With high refresh rates like 1080P@240/165hz and 2560×1440@144hz/120hz, this KVM switch allows you to enjoy an ultra-smooth and amazing gaming experience.
|

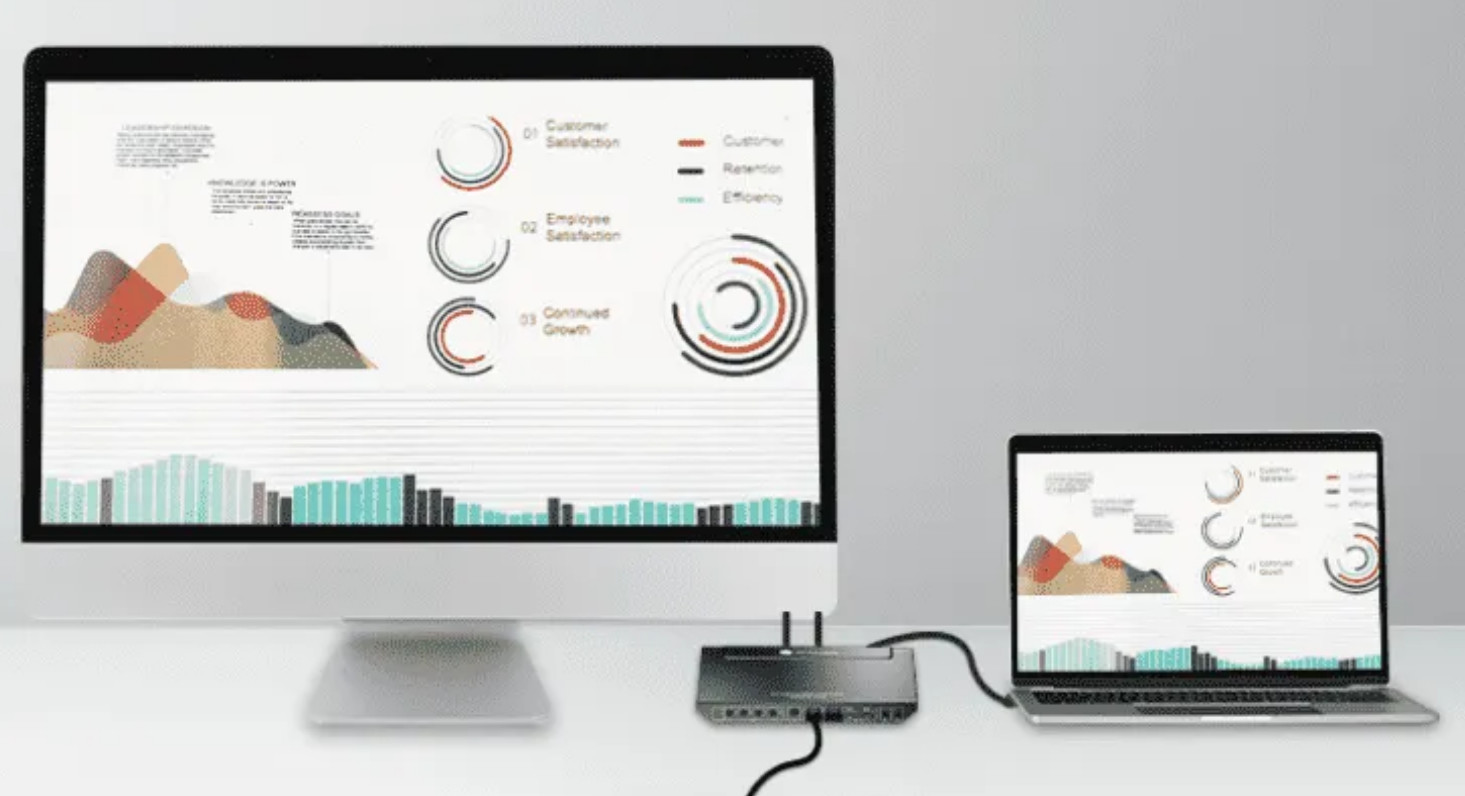

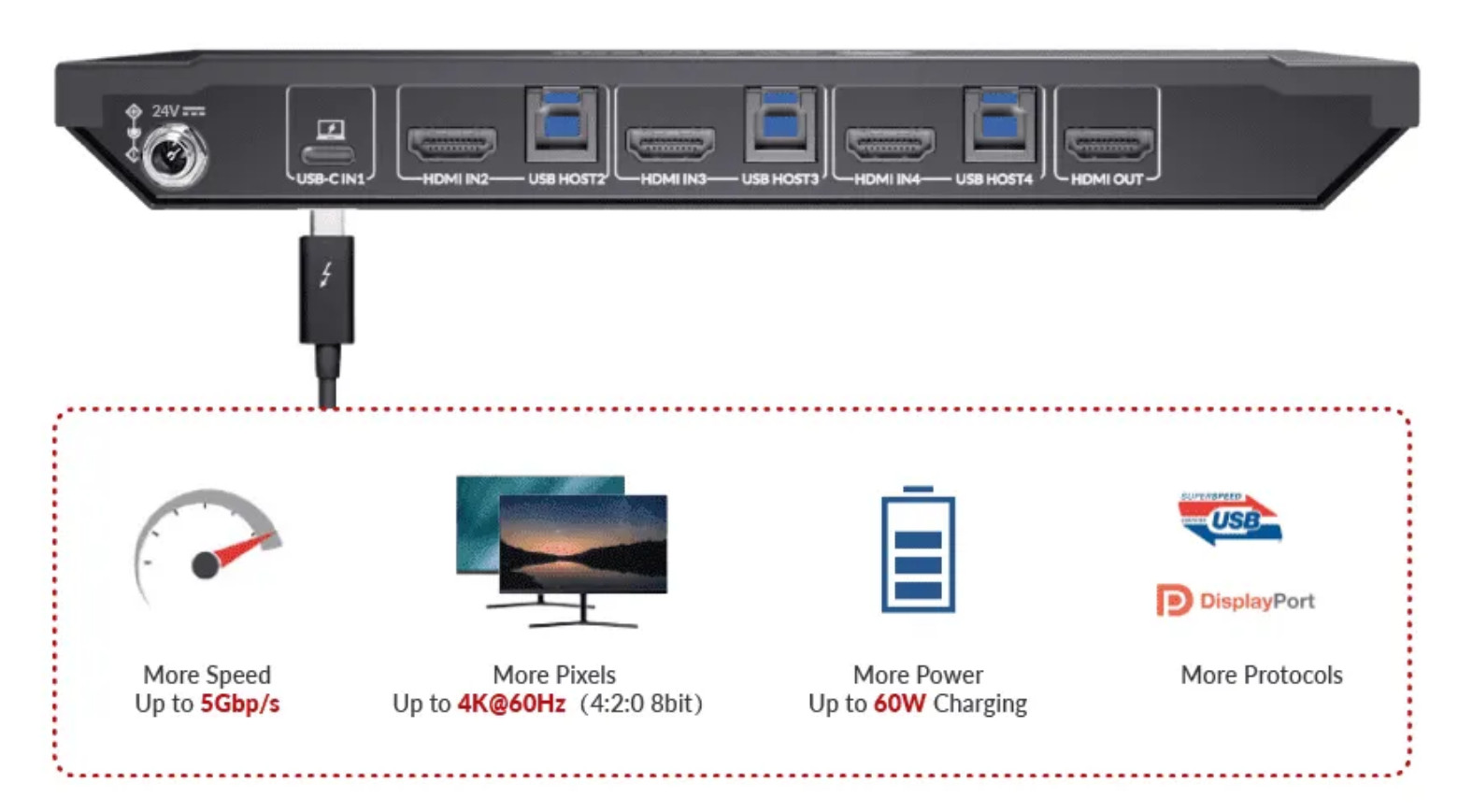

Unique Full-Featured USB-C Port
Designed with a full-featured USB-C port, this powerful KVM switch allows you to transfer data, audio, video and power, with just a single USB-C cable! You can input 4K ultra HD video and transmit a large amount of data (up to 5Gbp/s), while charging your laptop with up to 60W.
Note: The USB-C input port supports video resolution up to 4K@60Hz 4:2:0 8bit.
High Refresh Rates, Amazing Gaming Experience
This KVM switch is HDMI 2.0 and HDCP 2.2 compliant, with up to 4K@60Hz 4:4:4 video resolution. Also, it supports 1080P@240Hz/165Hz/144Hz/120Hz and 2560×1440@144Hz/120Hz, ensuring your high-speed racing game sources can be effectively switched. Now it is easier than ever to obtain an unprecedentedly enjoyable gaming experience.
|
|
 |
| |
|
|
 |
|

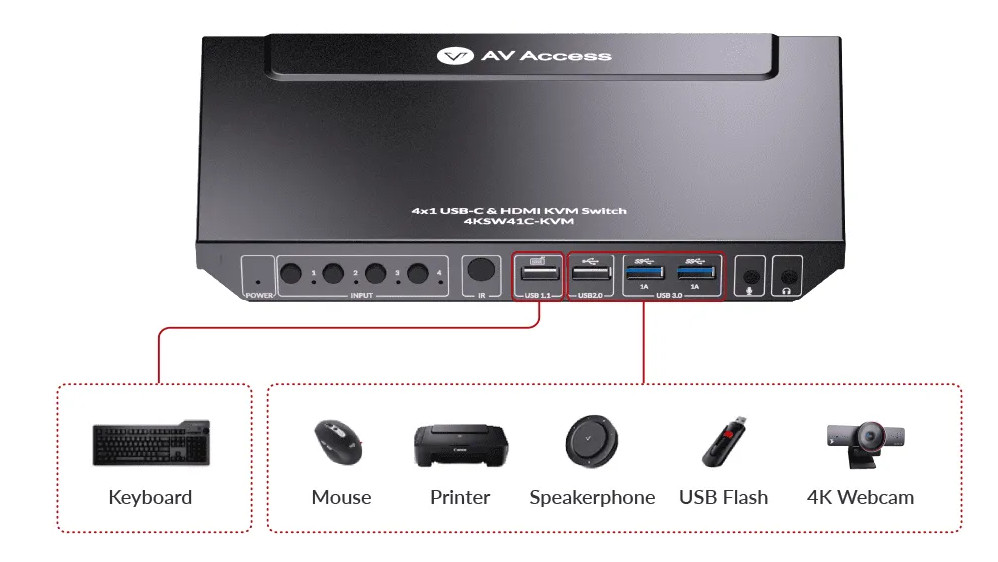

4x PCs Share 2x USB 3.0 Peripherals
This 4K USB-C HDMI switch is built with 4x USB type-A port (2x USB 3.0, 1x USB 2.0, 1x USB 1.1), so you can control four PCs/game consoles with only one set of USB devices, like mouse, keyboard, USB flash, 4K webcam, speakerphone, printer, scanner, etc. Stay confident that all peripherals connect to this KVM switch perfectly, as it supports up to 24V/5A power consumption.
|
| |
|
|

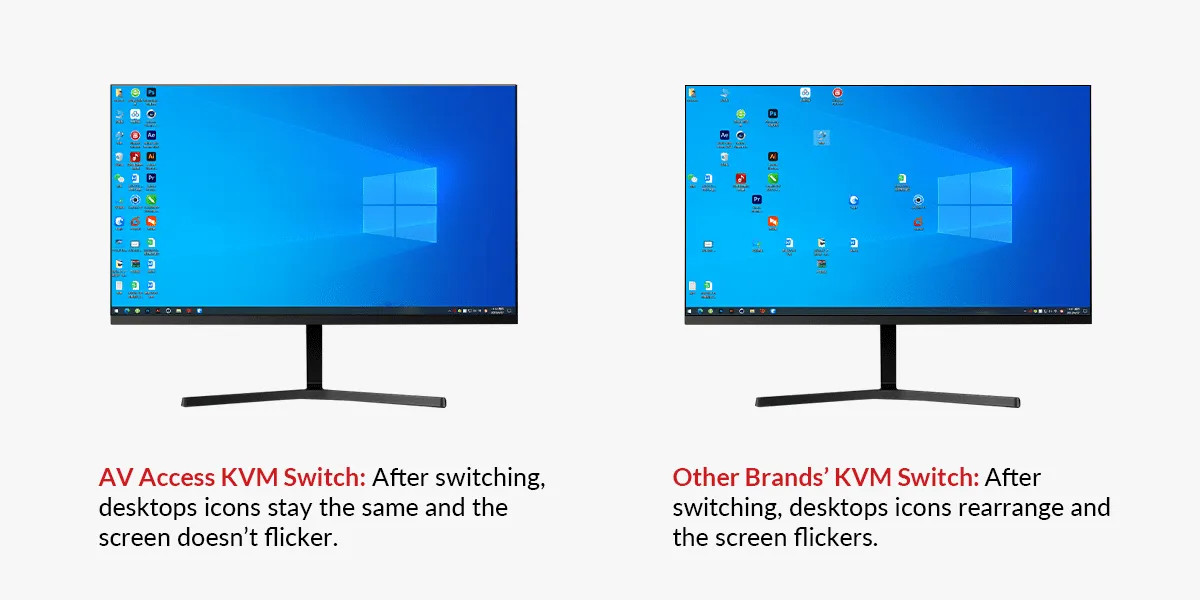

Switch Faster with EDID Emulation
AV Access’s new KVM switches are all built with an EDID emulator in each input port. Whenever you switch between different sources, it ensures stable communications between the video sources and the display device. No screen flickering, no desktop icon rearrangement. It only takes you 2-3 seconds to complete switching!
|
|
 |
| |
|
|
 |
|
Wake up Your “Sleeping” PC
You might set your personal PC to sleep mode when it is not in use. When you switch to the PC, you don’t have to move your mouse or type on the keyboard to wake it up. This 4K KVM switch is designed with a new-generation wake-up engine, so it can automatically wake up your PC with no manual operation required.
|
| |
|
|

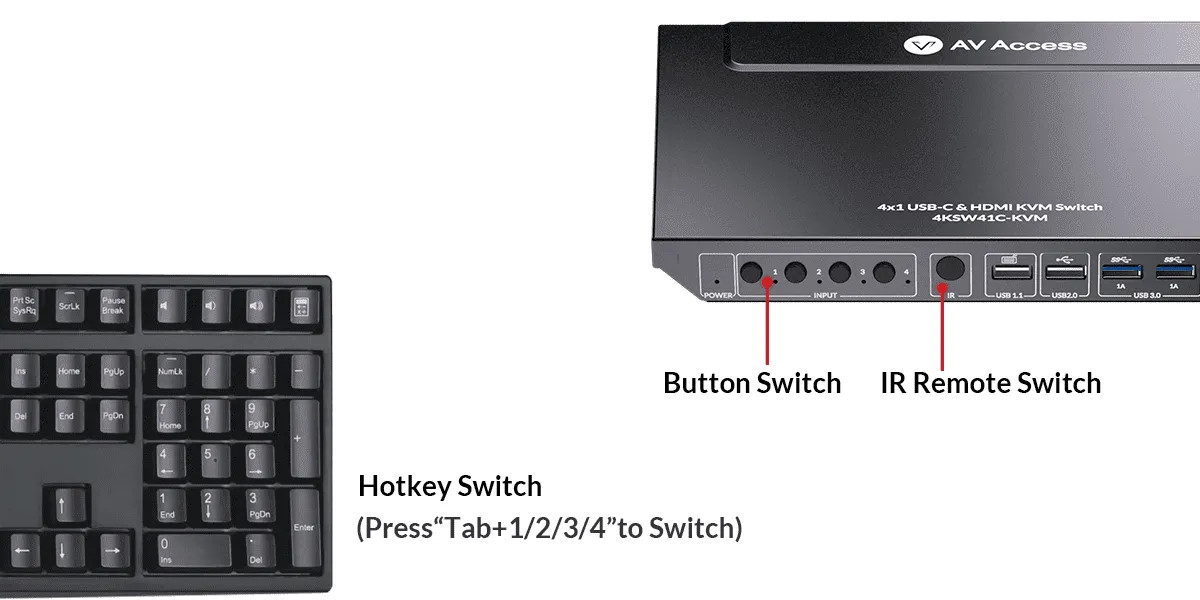

3 Ways to Switch, As You Like
Apart from switching via the front panel buttons and the included IR remote, keyboard hotkey switching is also supported on this 4K USB-C HDMI switch, so you can enjoy a simple, fast and convenient user experience. Just connect a keyboard to its dedicated USB 1.1 port and press “hotkey+1/2/3/4” (default hotkey: Tab) to switch to the desired source.
|
|
 |
Specifications
| Technical |
| Input/Output Port |

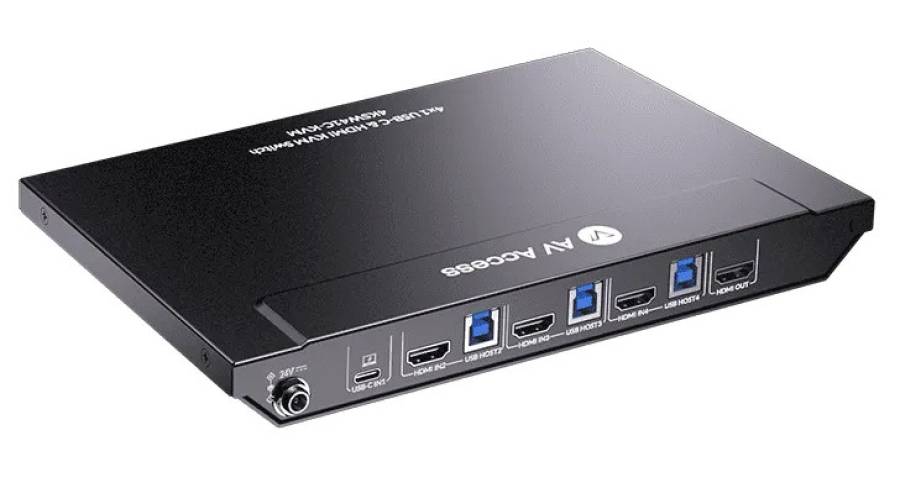

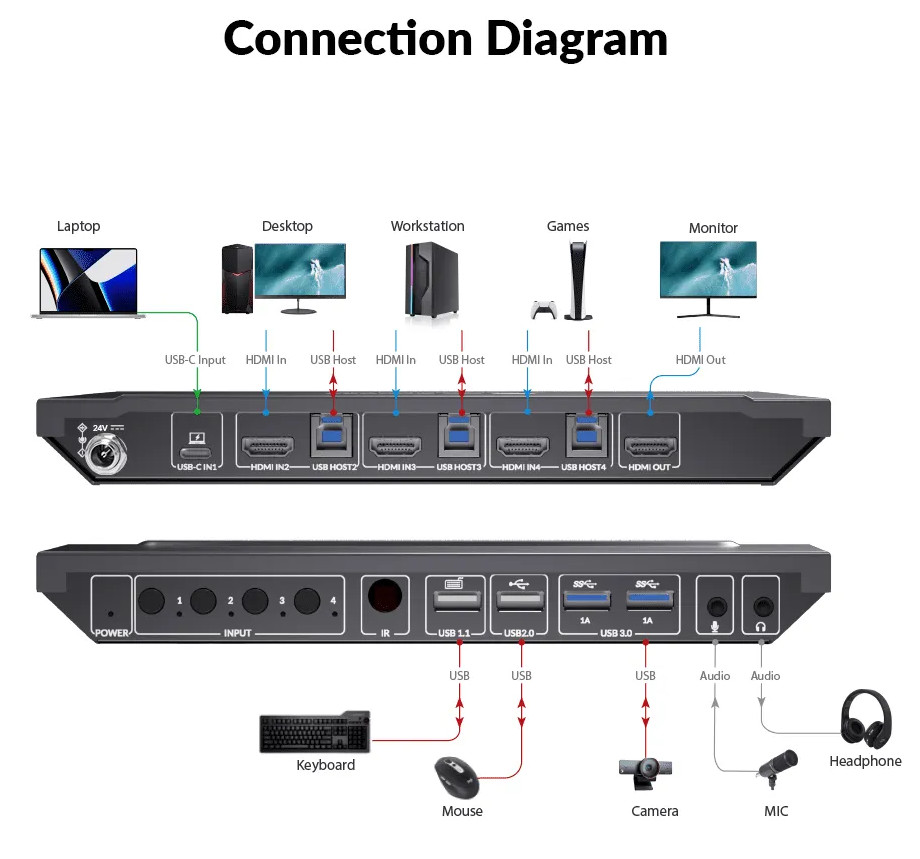

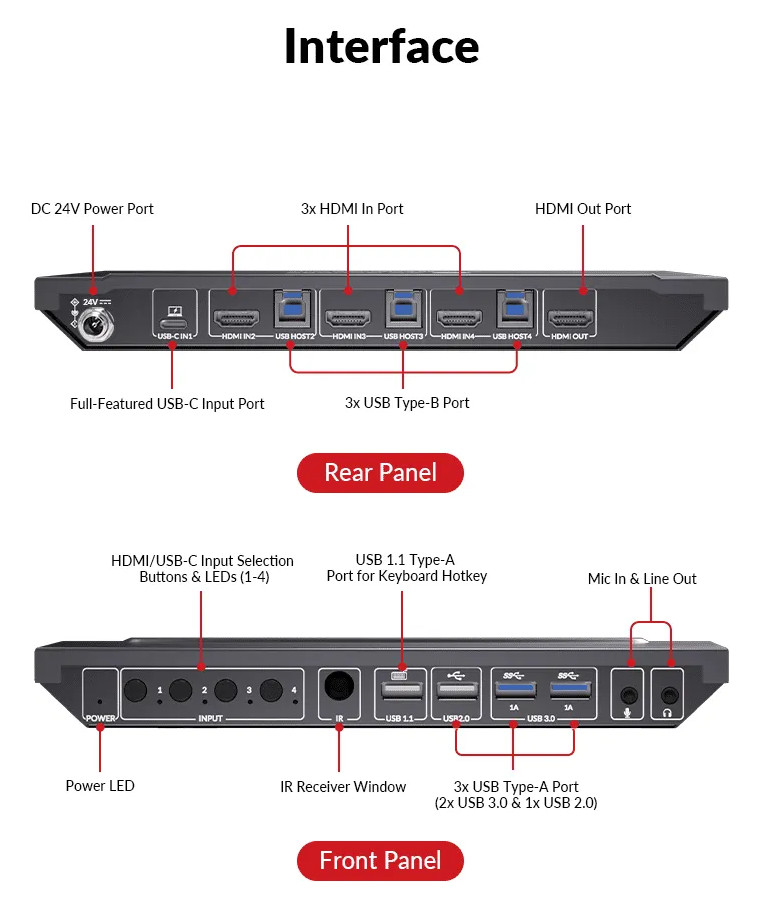

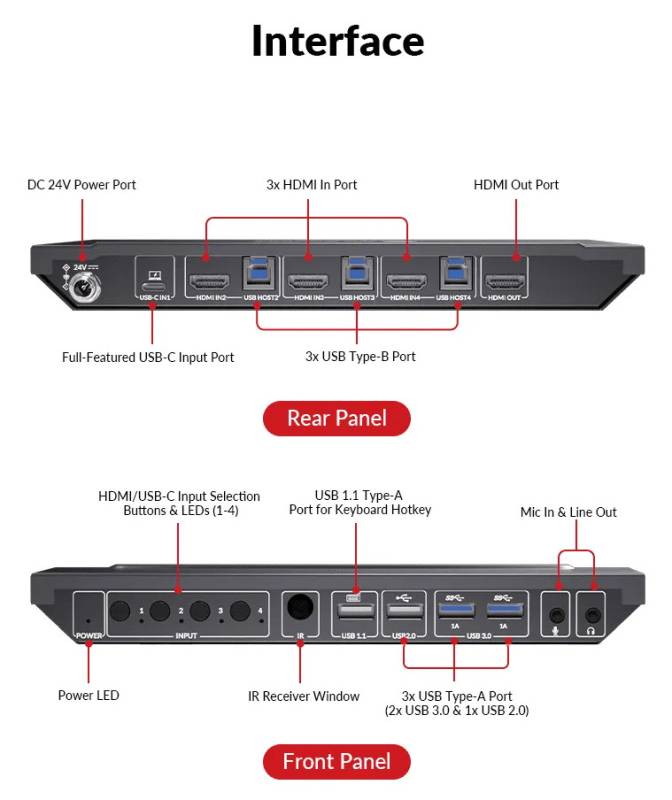

1 x USB-C IN; 3 x HDMI IN; 1 x HDMI OUT; 3 x USB HOST (Type-B);1 x USB 1.1(Type-A); 1 x USB 2.0 (Type-A); 2 x USB 3.0 (Type-A); 1 x MIC IN (3.5mm TRS Connector); 1 x LINE OUT (3.5mm TRS Connector); 1 x HDMI OUT; 1 x DC 20V IN |
| Input/Output Signal Type |
HDMI Input/Output: HDMI 2.0b with 4K@60Hz 4:4:4, HDCP 2.2
USB-C Input: USB 3.1, supports DP alt mode, and up to 4K@60Hz 4:2:0 8bit and 4K@30Hz 4:4:4 8bit
|
| Input/Output Resolution Supported |
SMPTE:
1280x720P1,2,3,4,5,6,7,8, 1920x1080I6,8, 1920x1080P1,2,3,4,5,6,7,8,9,10,11,12, 2560×10809, 3840×10809, 3840×21602,3,5,6,8, 4096×21602,3,5,6,8
VESA:
800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×9608, 1280×10248, 1360×7688, 1366×7688, 1400×10508, 1440×9008, 1600×9008, 1600×12008, 1680×10508, 1920×12008, 2560×14408,9,10
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = 120Hz, 10 = 144Hz, 11 = 165Hz, 12 = 240Hz.
Note: USB-C only supports up to 4K@60Hz 4:2:0 8bit or 4K@30Hz 4:4:4 8bit.
|
| Audio Format |
HDMI: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X
MIC IN: Stereo
LINE OUT: Stereo
|
| Maximum Data Rate |
HDMI: Up to 18Gbps
USB-C: 5Gbps
|
| Maximum Pixel Clock |
HDMI: 600MHz |
| Control Method |
Front panel buttons, IR remote, hotkey switching |
| General |
| Operating Temperature |
0°C to 45°C (32°F to 113°F) |
| Storage Temperature |
-20°C to 70°C (-4°F to 158°F) |
| Humidity |
10% to 90%, non-condensing |
| ESD Protection |
Human-body Model:
±8kV (Air-gap discharge)/
±4kV (Contact discharge)
|
| Power Supply |
DC 24V 5A |
| Power Consumption (Max) |
72.74W |
| Device Dimension
(W x H x D)
|
230mm x 26.2mm x 142.6mm/9.06” x 1.03” x 5.61” |
| Product Weight |
0.86kg/1.90lbs |

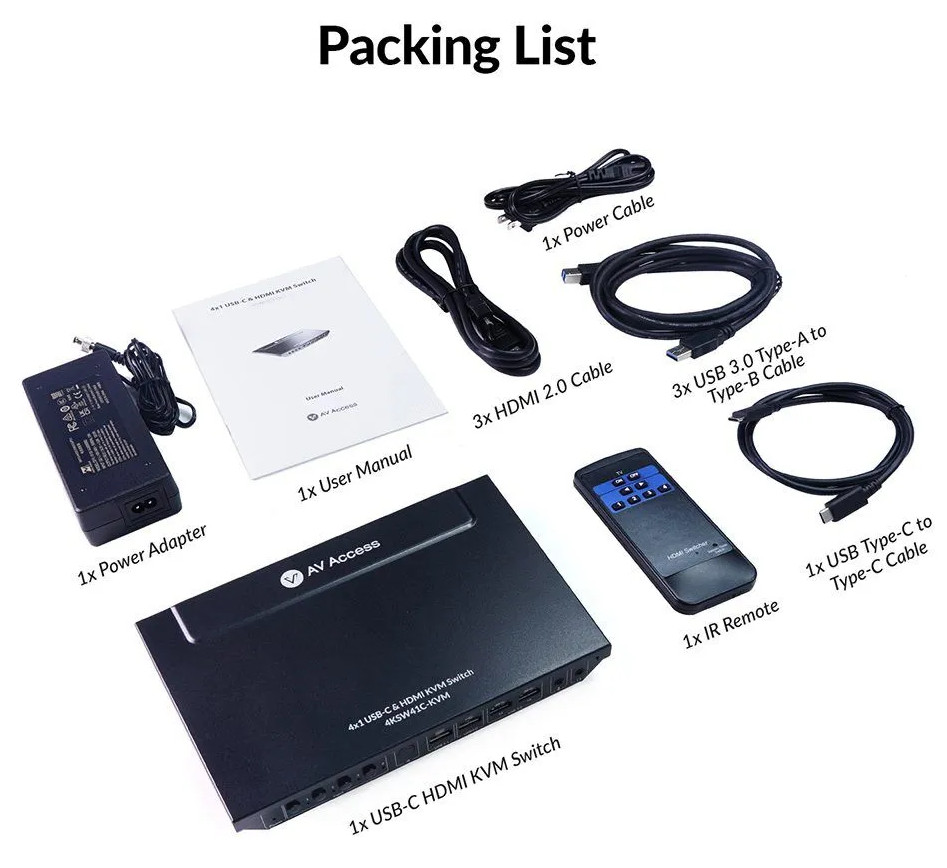

In the Box
- 1x 4K USB-C HDMI KVM Switch
- 3x HDMI 2.0 Cable
- 1x USB Type-C to Type-C Cable
- 3x USB 3.0 Type-A to Type-B Cable
- 1x Power Adapter (DC 24V, 5A)
- 1x IR Remote
- 1x User Manual
Documents & Softwares
Frequently Asked Questions
1. What is an USB-C HDMI KVM-Switch?
A KVM switch is a device that allows you to control multiple computers with a single set of keyboard, monitor and mouse. Whether your PC is built with an HDMI or USB-C input port, you can use this 4K KVM switch to control four PCs with one set of USB devices and one monitor.
2. What are the main features of this 4K KVM-Switch?
This 4K USB-C HDMI switch is plug-n-play and easy-to-use. It is built with 1x full-featured USB-C input port, 3x HDMI input port, and 1x HDMI output port. It features a built-in USB 3.0 hub, and high refresh rates like 1080P@240/165Hz and 2560×1440@144Hz/120Hz. You can effortlessly control four PCs with one set of monitor, keyboard, mouse, etc.
3. What makes this USB-C HDMI switch different from other similar products?
The distinctive features of this 4K KVM switch are a full-featured USB-C input port, high fresh rates, and a built-in USB 3.0 hub. Also, it supports EDID emulation and automatic PC wake-up functions.
4. Does this USB-C HDMI switch support 120Hz and 144Hz?
Yes, this 4K KVM switch supports 1080P@240Hz/165Hz/144Hz/120Hz/60Hz, and 2560×1440@144Hz/120Hz/60Hz. It ensures your game sources can be effectively switched.
5. Where can I use this 4K USB-C KVM-Switch?
This 4×1 USB-C HDMI switch is ideal for home office and gaming. You can effortlessly control four PCs with one set of monitor, keyboard, mouse, etc.
