Zero-Latency DisplayPort KVM-Extender Set with 2x USB 2.0, RS232, Audio, PoC, up to 100m, AV Access 4KEX100-DP-KVM
4KEX100-DP-KVM is AV Access’s newest 4K DisplayPort extender with KVM. It offers the distribution of 4K@30Hz UHD video, analog stereo, power, RS232 and USB 2.0 up to 100m/330ft over a single CAT6 or above cable. It also supports 1080P@120hz, ideal for PC control. Additional features include bi-directional 3.5mm stereo pass-through, automatic EDID management, one-way PoC, etc..
4K UHD & Zero Latency:
Transmits 4K@30hz DisplayPort signal up to 100m/330ft over single CAT6/7 cable, along with stereo audio and USB 2.0 extension. Also supports 1080P@120hz, ideal for PC control.
USB 2.0 up to 480Mbps:
1x USB host port on the transmitter, 2x USB device port on the receiver; easily control remote PC/NVR with keyboard, mouse or other USB 2.0 peripherals.
Bi-Directional Stereo/RS232:
Supports bi-directional 3.5mm stereo pass-through and RS232 pass-through; also supports one-way PoC and automatic EDID management.
Highly Reliable:
Certificated by CE, FCC. Built-in surge/lightning protection. Superior ESD protection.
Comes with mounting ear for easy installation.
Main Features:
- One way PoC, transmitter supplies the power for receiver
- Via Cat 6a/7 cable, 4Kx2K@30Hz or 1080P@60Hz output up to 100m.
- Via Cat 5e/6 cable, 4Kx2K@30Hz output up to 90m, 1080P@60Hz up to 100m
- DP 1.2 supported, up to 4k@30Hz and HDCP 1.4 compliance
- Supports Bi-directional stereo audio, RS232 and EDID pass through over HDBaseT
- USB 2.0 pass through over HDBaseT, with USB-HOST built in transmitter and USB-DEVICE built in receiver.
- All connectors in one side for easy installation
 |
4K@30 Ultra HD ImageThis newest HDBaseT KVM extender is designed with DisplayPort 1.2 interface. Supporting up to 4K@30Hz (4:4:4) resolution, it can extend ultra HD image up to 100m/330ft with zero signal loss or delay. It also supports 1080P@120hz, ideal for PC control. |
Effortless KVM ExtensionThis DisplayPort KVM extender provides remote source PC control with keyboard and mouse, interactive display operation, data transmission and USB streaming over distances up to 330ft / 100m. High-speed USB 2.0 up to 480Mbps passes through over HDBaseT with zero delay. |
 |
 |
High refresh rate with 1080P @ 120HzThe DisplayPort KVM extender supports 1080P@120Hz video input, ensuring your sources can be effectively extended. Thus, you can have an unprecedentedly smooth and seamless gaming experience. |

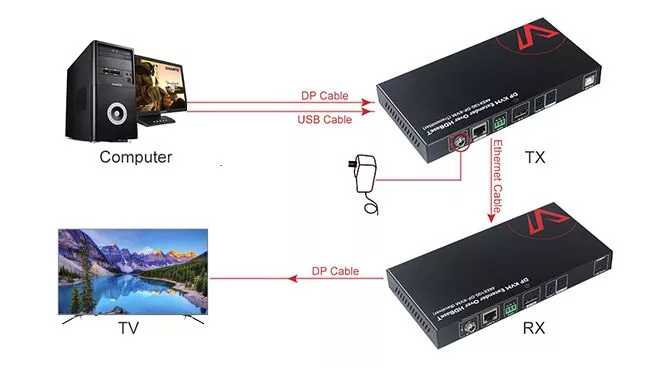

One-Way PoCWith 48V PoC integrated inside, this DisplayPort KVM extender only requires one power supply connected to the transmitter to power both units. Its 12V power supply is secured with a screw-on connector to prevent the power from being accidentally disconnected. |
 |
Download User Manual (english)
In the Box
- Transmitter 4KEX100-DP-KVM x 1
- Receiver 4KEX100-DP-KVM x 1
- Power Adapter (DC 12V 2A) x 1
- Phoenix Male Connector (3.5mm 3 Pin) x 2
- USB 2.0 Type-B to Type-A Cable (L=1.5m) x 1
- Mounting Bracket (with Mounting Screws) x 4
- User Manual x 1
Specification
| Technical | |
| Video Signal Type | DP1.2 with HDCP1.4 |
| Audio Format | L/R channel PCM 2.0 |
| Input/Output Resolution Support | 640×4808, 800×6008, 1024×7688, 1280×7208, 1280×7688, 1280×8008, 1280×9608, 1280×10248, 1360×7688, 1366×7688, 1440×9008, 1600×9008, 1600×12008, 1680×10508, 1920×12008, 1920×12008, 2560×14408, 2560×16008, 3840x2160P5, 1920×10809
Note: 5 = at 30 Hz, 8 = at 60 Hz, 9 = 120Hz |
| General | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 10% to 90%, non-condensing |
| ESD Protection | ±8kV (Air-gap discharge)/
±4kV (Contact discharge) |
| Surge Protection | Voltage: ±1 kV |
| Power Consumption
(Maximum) |
≤14.2W (Pair) |
| DP Cable length | 3m (max.) |
| Device Dimensions
(W x H x D) |
200 mm × 25 mm × 100 mm
7.91” x 0.99” x 3.95” |
| Product Weight | Transmitter: 0.5kg / 1.10lb
Receiver: 0.5kg / 1.10lb |
B2B Product - Designed for use in a commercial environment.
