Zero-Latency 4K60Hz KVM-Extender with USB 2.0, up to 40m, AV Access 4KEX40-KVM

Product No.:
4KEX40-KVM
Shipping time:
in stock (1 up to 2 days) in stock (1 up to 2 days) (abroad may vary)
price netto:
152,00 EUR
180,88 EUR

incl. 19% tax excl. Shipping costs

Description

Zero-Latency 4K60Hz KVM-Extender with USB 2.0, up to 40m, AV Access 4KEX40-KVM

● HDMI 2.0 & HDCP 2.3: Supports resolutions up to 4K@60Hz 4:4:4 with HDMI 2.0 and HDCP 2.3 for crystal-clear, secure video transmission.
● USB 2.0 Extension: Extends up to four USB 2.0 devices—including keyboards, mice, webcams, and flash drives—for responsive remote PC control.
● Audio De-embedding: Routes audio directly to sound systems or amplifiers for stereo sound.
● Bi-Directional PoC: Power both the transmitter and receiver using a single power adapter connected to either unit.
● Bi-Directional RS-232: Enables reliable bi-directional RS-232 pass-through for remote control of displays, AV receivers, and other serial devices.

In the Box
  • Transmitter and Receiver Kit x 1
  • Power Adapter (DC 20V 2A) x 1
  • 3.5mm 3-pin Phoenix Male Connectors x 2
  • 3.5mm 5-pin Phoenix Male Connector x 1
  • USB 2.0 Type-A to Type-B Cable (1.5m) x 1
  • Mounting Brackets (with Screws) x 8
  • User Manual x 1 (only english)

External Downloads from AV Access
Specifiacations

Technical
Input/Output Signal Type HDMI 2.0, HDCP 2.3
Input/Output Resolutions CEA:

4096 x 2160P1,2,3,4, 3840 x 2160P1,2,3,4,5, 1920 x 1080P1,2,3,4,5,6,7,8,9,10, 1280 x 720P4,5,6,7

VESA:

5120 x 21603, 5120 x 14405, 3840 x 10805,6,7, 2560 x 14405, 2048 x 11525, 1920 x 12005, 1680 x 10505, 1600 x 12005, 1600 x 9005, 1440 x 9005, 1400 x 10505, 1366 x 7685, 1360 x 7685, 1280 x 10245, 1280 x 9605, 1280 x 8005, 1280 x 7685, 1024 x 7685, 800 x 6005, 640 x 4805

1 = 24Hz, 2 = 25Hz, 3 = 30Hz, 4 = 50Hz, 5,7 = 120Hz, 6 = 100Hz, 8 = 144Hz, 9 = 165Hz, 10 = 240Hz

Maximum Data Rate HDMI: 18Gbps; USB 2.0: 480Mbps
Audio Formats ‐ HDMI IN/OUT: Supports multichannel audio up to PCM 7.1, including PCM 2.0/5.1/7.1ch, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio and DTS:X

‐ Audio Out: PCM 2ch

General
Operating Temperature & RH 0–45°C (32–113°F), 10%–90% RH, non-condensing
Storage Temperature & RH -20–70°C (-4–158°F), 10%–90% RH, non-condensing
ESD Protection Human-body Model:

±8kV (Air-gap discharge) / ±4kV (Contact discharge)

Power Supply DC 20V 2A; PoC
Power (Max) 24.4W per pair (via PoC)
Dimensions

(W × H × D)

5.71” × 0.98” × 3.55” (145.0mm × 25mm × 90.2mm) per unit
Net Weight 0.77lb (0.35kg) per unit


Transmission Distance

Note: A T568B straight-through Category cable is recommended.

Cable Type Range Supported Video
Cat 6/6A/7 131ft (40m) 4K@60Hz 4:4:4
Cat 5e 115ft (35m) 4K@60Hz 4:4:4
HDMI Input/Output: 33ft (10m) 4K@30Hz, 1080P@60Hz
Input/Output: 16ft (5m) 4K@60Hz 4:4:4




4KEX40-KVM

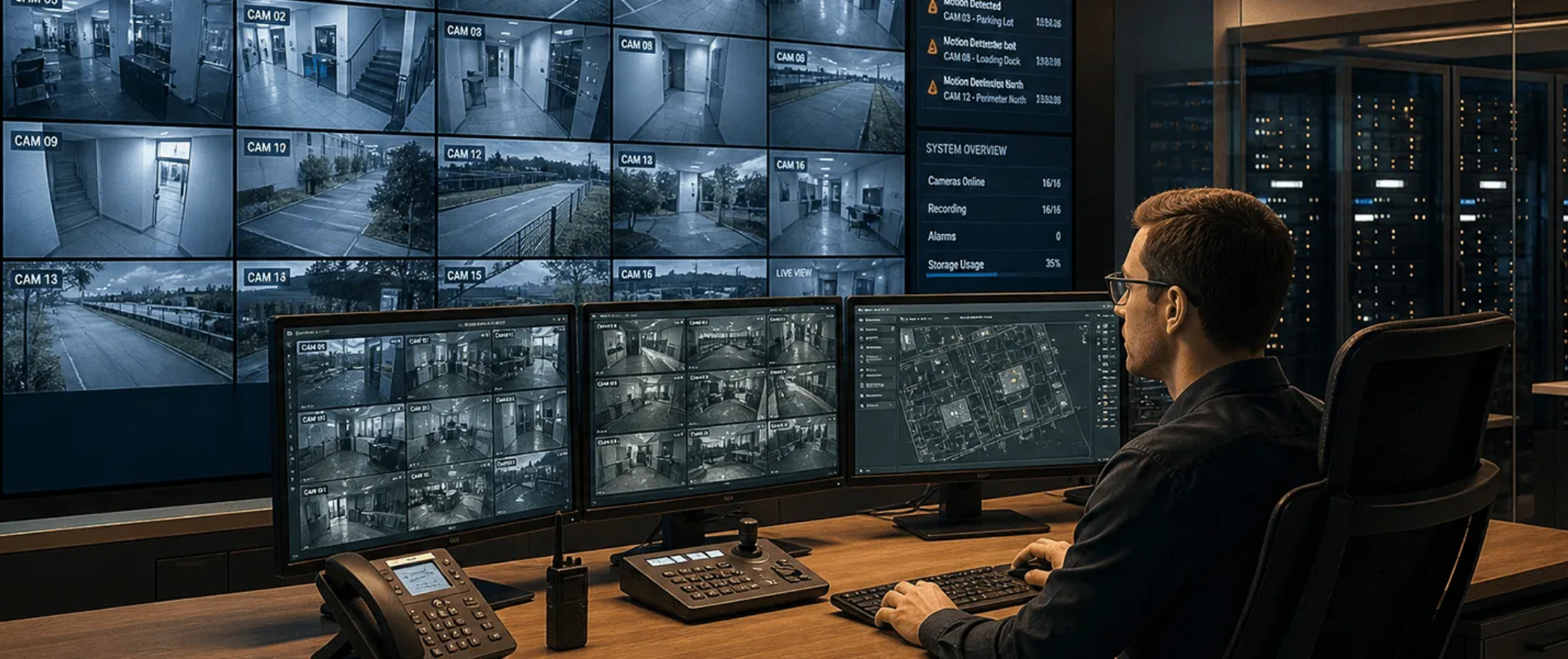

Reliable KVM Extension for Mission-Critical Control
Designed for control rooms, command centers, server rooms, and industrial workstations, the 4KEX40-KVM extends 4K HDMI and USB signals up to 40m/131ft with zero latency. It enables centralized KVM management with responsive control and stable, real-time signal transmission for mission-critical environments.




4K@60Hz 4:4:4
See Every Detail in True 4K Clarity
Experience stunning 4K@60Hz 4:4:4 clarity that keeps fine text, complex graphics, and live video ultra-sharp. Every detail remains crisp and easy to read—even across the full 40m/131ft extension distance.



Zero Latency
Keep Every Frame in Perfect Sync
Experience zero-latency 4K video transmission that keeps every action instantly responsive. Ideal for live monitoring, control, and other time-sensitive applications.



USB 2.0
Effortless KVM Control
Equipped with four USB 2.0 ports, the extender delivers responsive USB extension for keyboards, mice, webcams, and storage devices, ensuring smooth remote operation with virtually no input delay.




Bi-directional PoC
Simple Single-Power Installation
Reduce cable clutter and simplify installation by powering both the transmitter and receiver with a single power adapter connected to either unit.

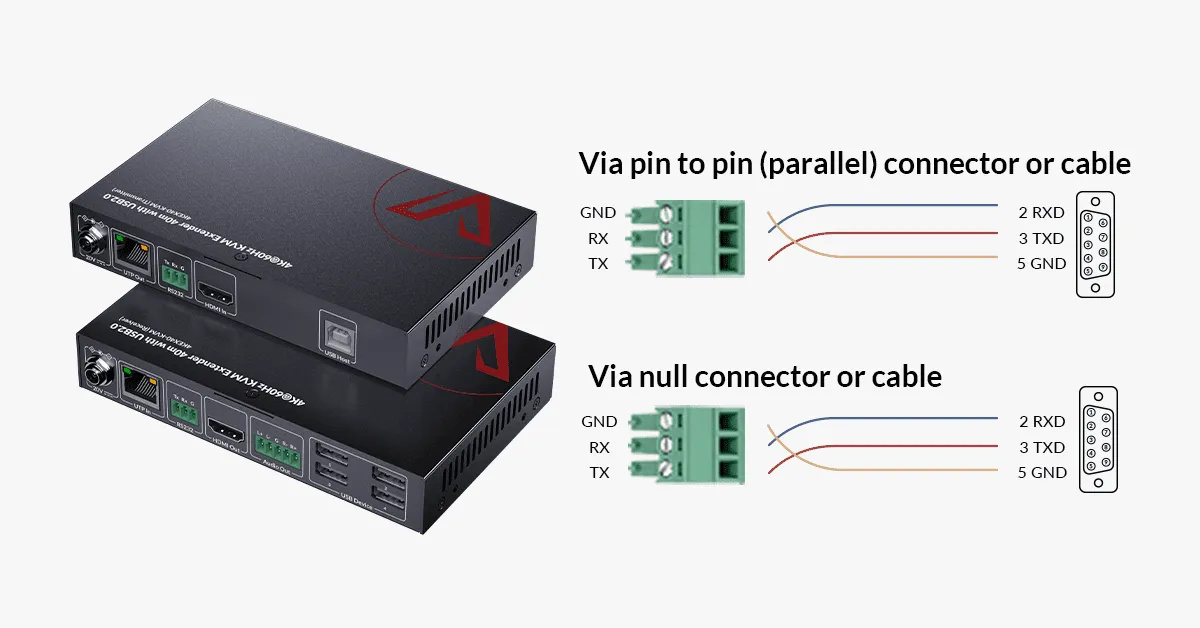

Bi-directional RS232
Reliable Control for Centralized Management
Enable reliable bi-directional RS-232 control with displays, switchers, and other serial devices. Easily integrate with control systems for centralized management and streamlined operations.




Audio De-embedding
Flexible Audio Integration
Extract audio from HDMI and route it independently to an AV receiver, amplifier, or sound system for flexible audio distribution and centralized management.
