Zero Latency 1080P-120Hz or 4K2K-30Hz HDMI KVM-Extender-Set with 3x USB 2.0 up to 120m
Zero Latency 1080P-120Hz or 4K2K-30Hz HDMI KVM-Extender-Set with 3x USB 2.0 up to 120m
With the support of up to 1080p@120Hz update rates, this KVM-Extender offers an almost latency-free graphic.Perfect for any applications and even gaming setups that require high responsiveness and fluid movement.
● High Refresh Rate: At 1080P up to 120Hz for a pleasant presentation of all applications and games.
● 4K UHD & Zero Latency: Transmits 4K video and USB 2.0 signals over a single Cat5e/6/7/7a cable up to 120m/394ft with zero latency. Perfect for home and business applications requiring ultra-high-definition and real-time interaction.
● High-Quality Audio & Video Performance: Supports 4K@30Hz video resolution and high-definition audio formats like PCM 7.1ch, DTS-HD Master, and Dolby TrueHD for an immersive viewing and listening experience.
● Easy Remote PC Control: Equipped with 3x USB 2.0 Ports on the receiver, allowing seamless control of your remote PC using a keyboard, mouse, touchscreen, or other peripherals, with speeds up to 480Mbps.
● Plug & Play with Wide Compatibility: Compact and portable, no larger than a smartphone. Seamlessly works with PCs, DVDs, DVRs, NVRs, and most HDMI-enabled devices. No software or drivers needed—just plug and play for effortless setup.
120m HDMI USB 2.0 KVM Extender
Enjoy 4K Video with Zero Latency
This HDMI USB 2.0 KVM Extender is engineered to deliver seamless, high-quality 4K transmission across diverse professional and gaming environments. Here’s how it enhances your setup:
 |
 |
 |
 |
|||
GamingSupport high refresh rates up to 1080P@120Hz, delivering smooth, lag-free gameplay with responsive visuals. Enhance the gaming experience with precise control and exceptional performance, ensuring a seamless and immersive session for competitive players. |
EducationEnable educators to access servers seamlessly from multimedia classrooms, facilitating smooth control of content. With high-definition visuals and zero-latency transmission, this KVM extender enhances interactive learning with crisp imagery and reliable performance for all users. |
Enterprise Server RoomSimplify your server management with 4K video and USB 2.0 peripheral support. Control server operations remotely without any delay, maintaining operational efficiency and reliability in critical enterprise environments. |
Data Control CenterMonitor real-time data with long-distance, high-resolution 4K transmission and zero latency. Ideal for your control room in military, traffic, and industrial sectors, it ensures precise data visualization with uninterrupted performance. |
Zero Latency, 4K High-Resolution Clarity
Enjoy seamless 4K@30Hz transmission with zero-latency performance, ensuring smooth transmission of high-quality video and audio signals over extended distances. Ideal for professional setups where precision, clarity, and real-time performance are essential.

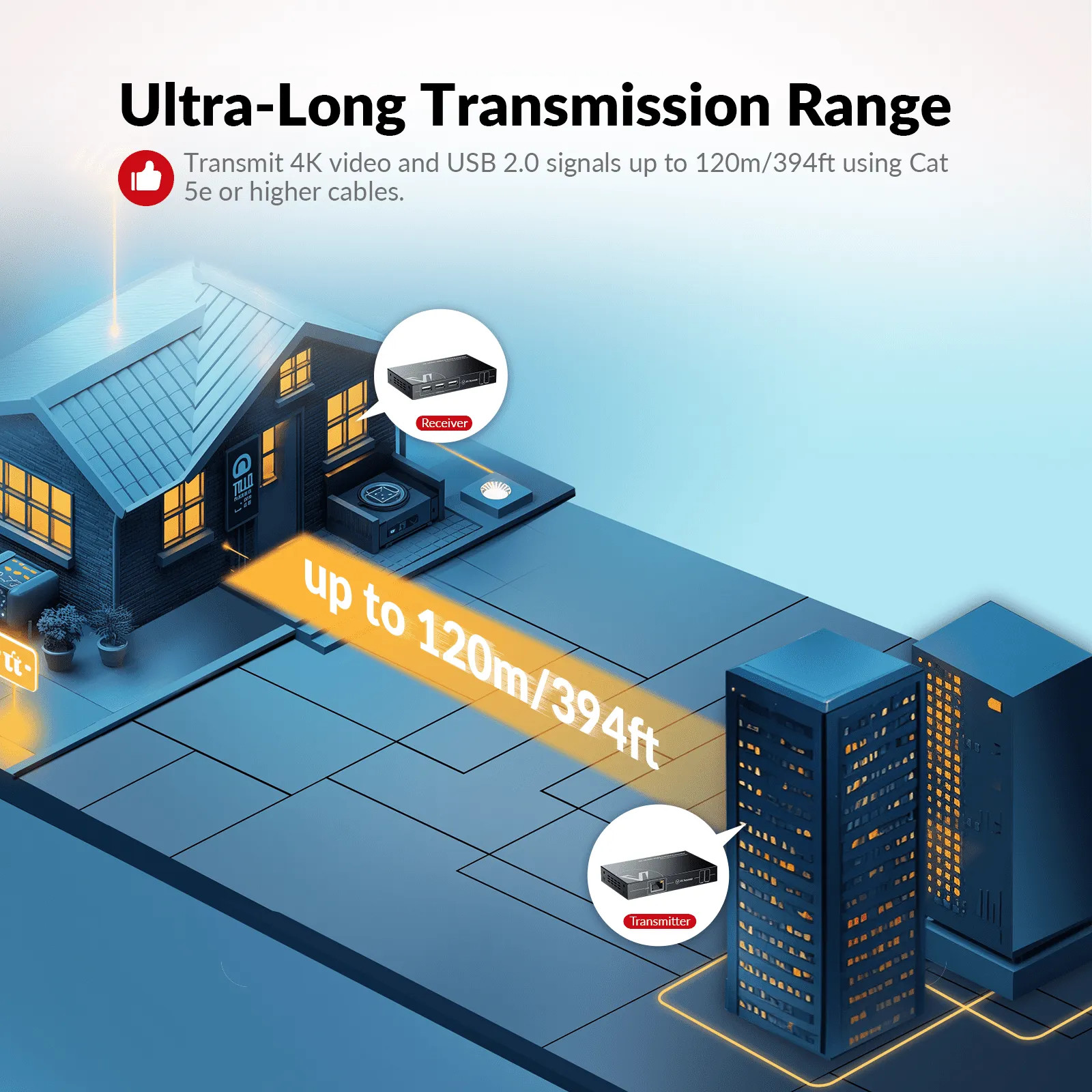

120m/394ft Long-Distance Transmission

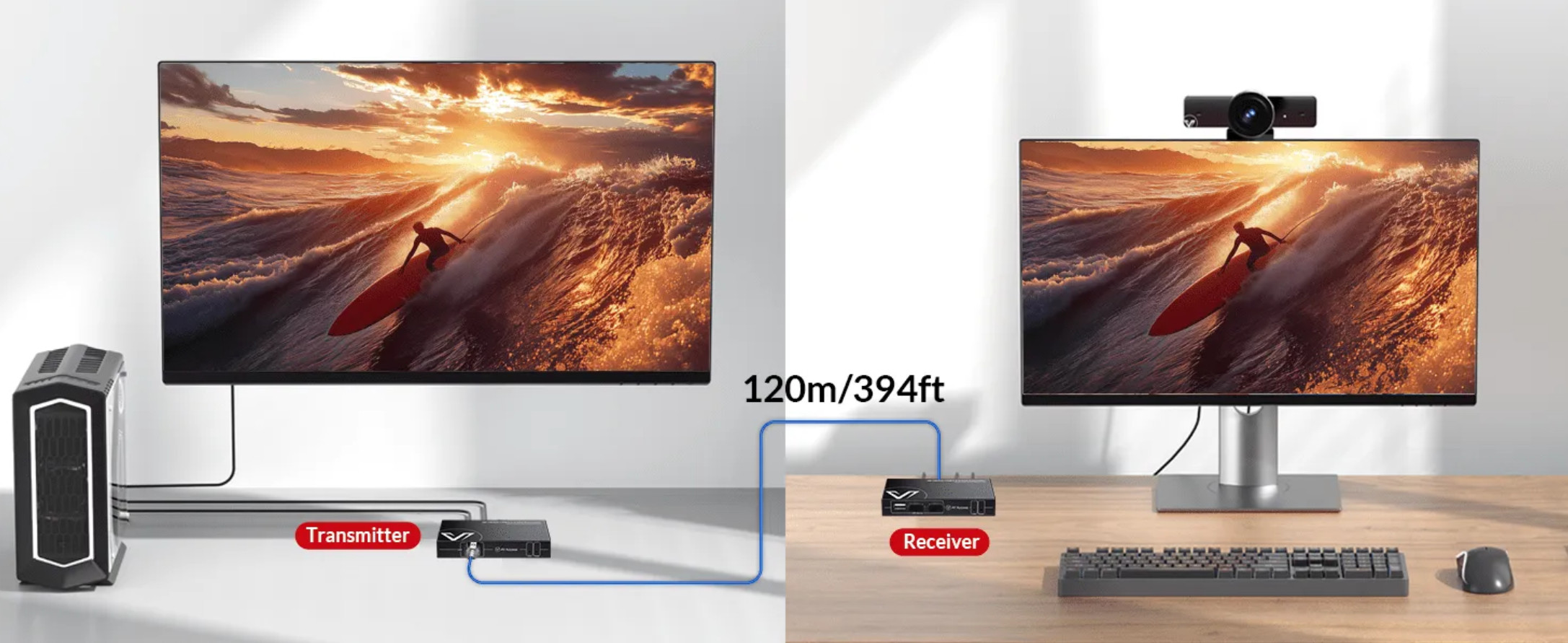

Easily transmit high-quality 4K HDMI signal up to 120m/394ft using a single Cat 5e or higher cable. This extended range ensures reliable signal performance, making it perfect for large spaces like data control centers and video surveillance networks.
 |
High Refresh Rate for Fluid GameplaySupporting 1080P@120Hz, this extender delivers ultra-smooth visuals, perfect for gaming, live broadcasting, and high-performance applications. It ensures fluid motion with no stuttering or lag, offering users a truly immersive and responsive experience. |
|

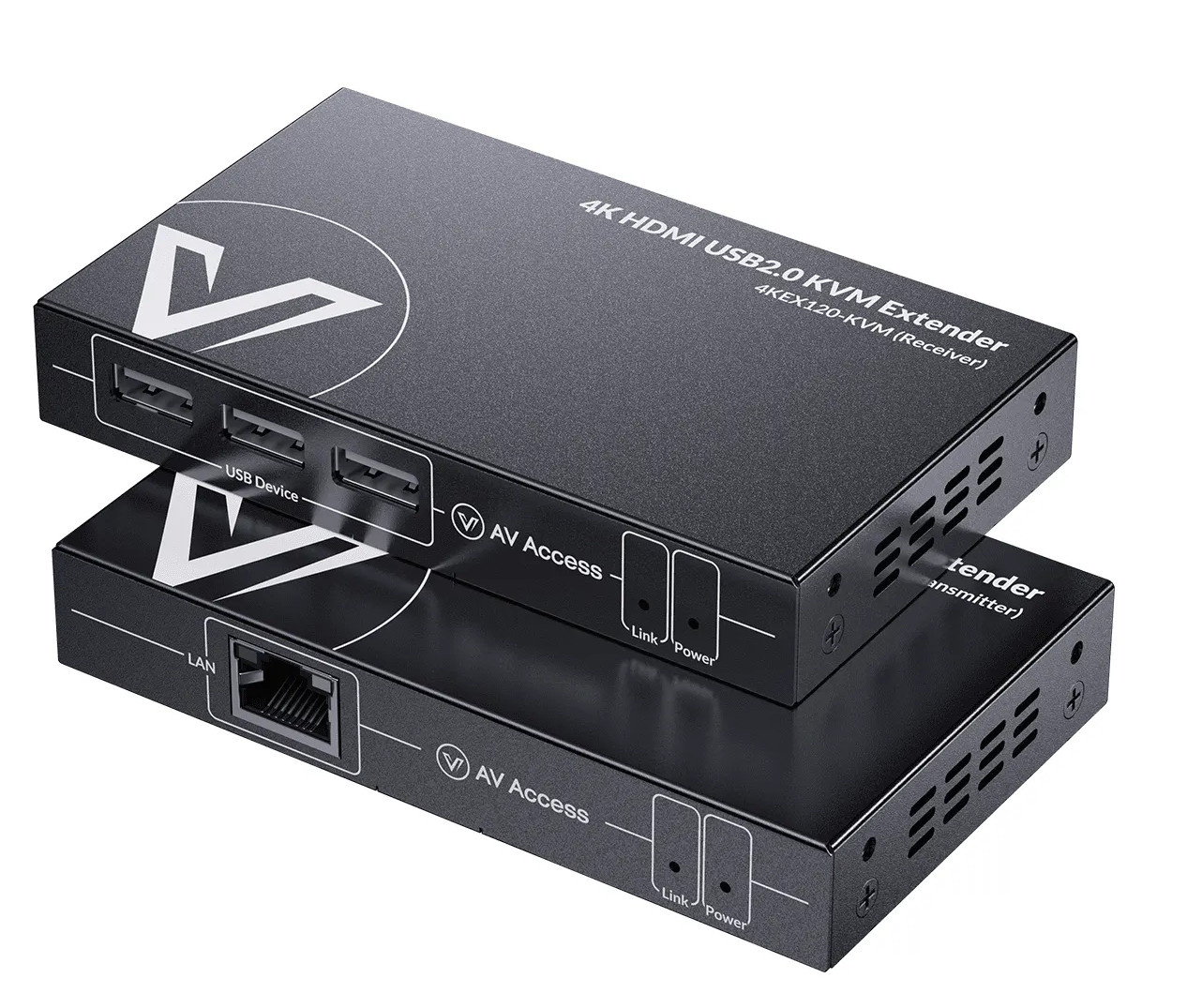

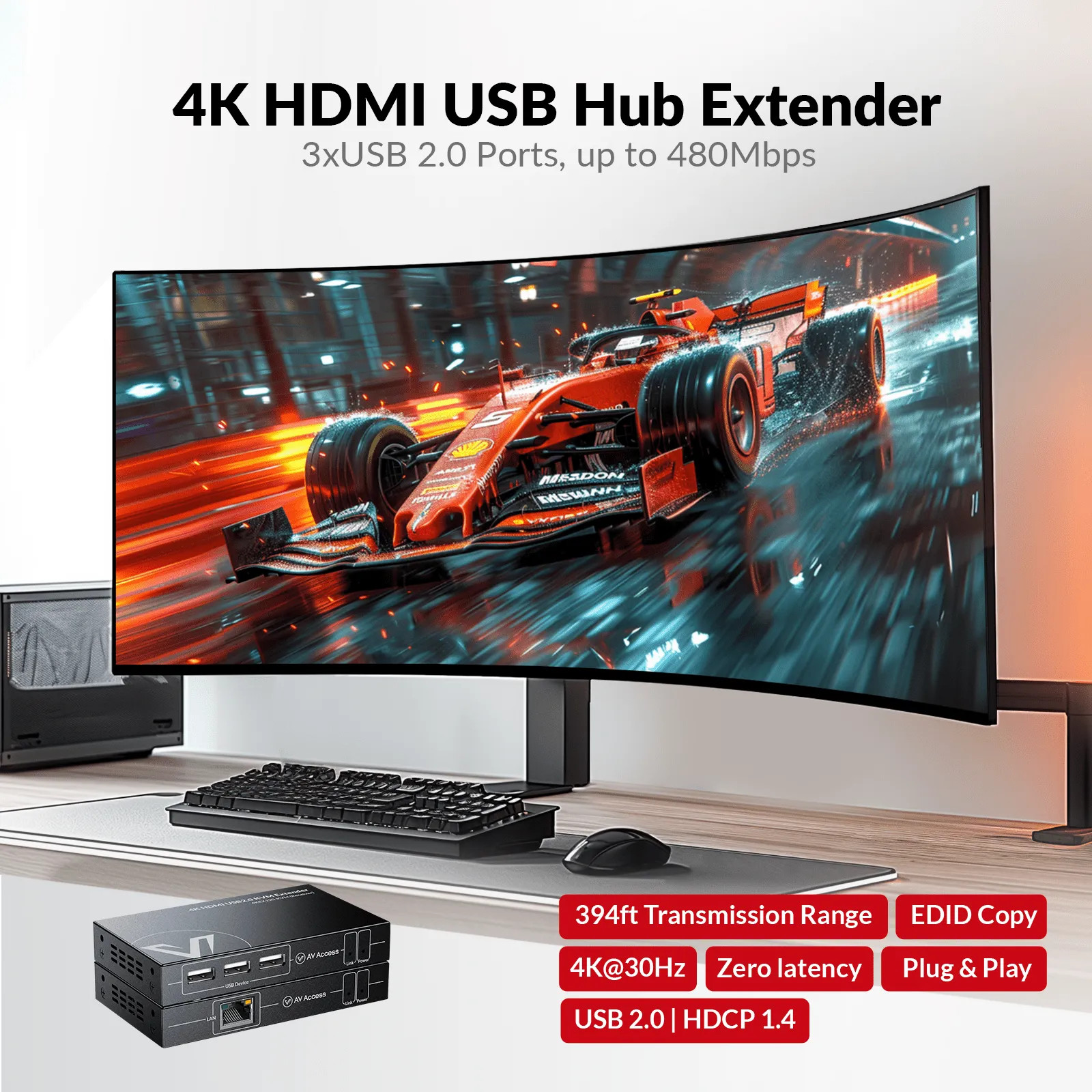

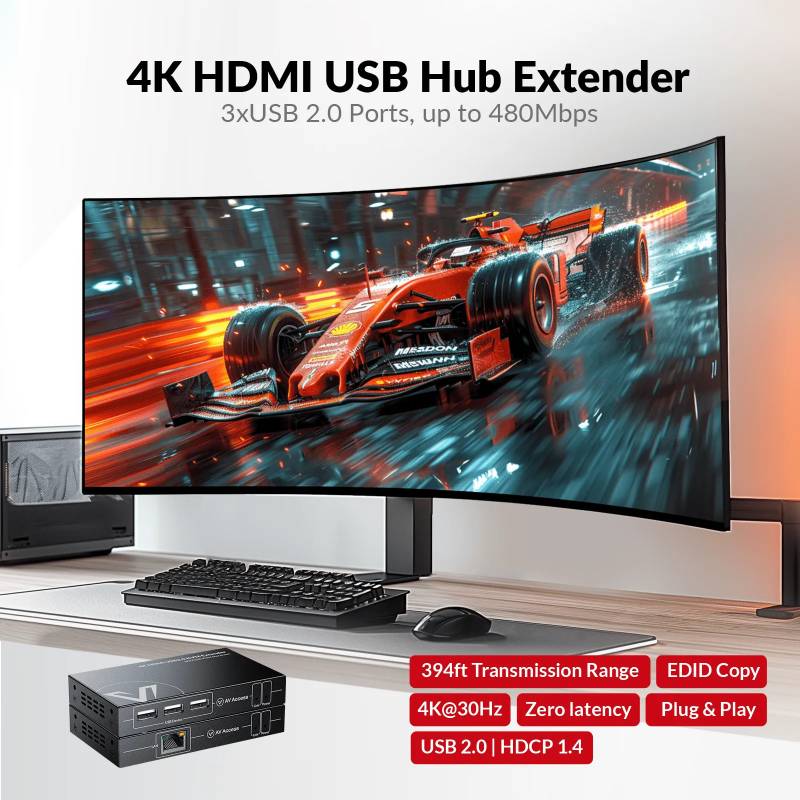

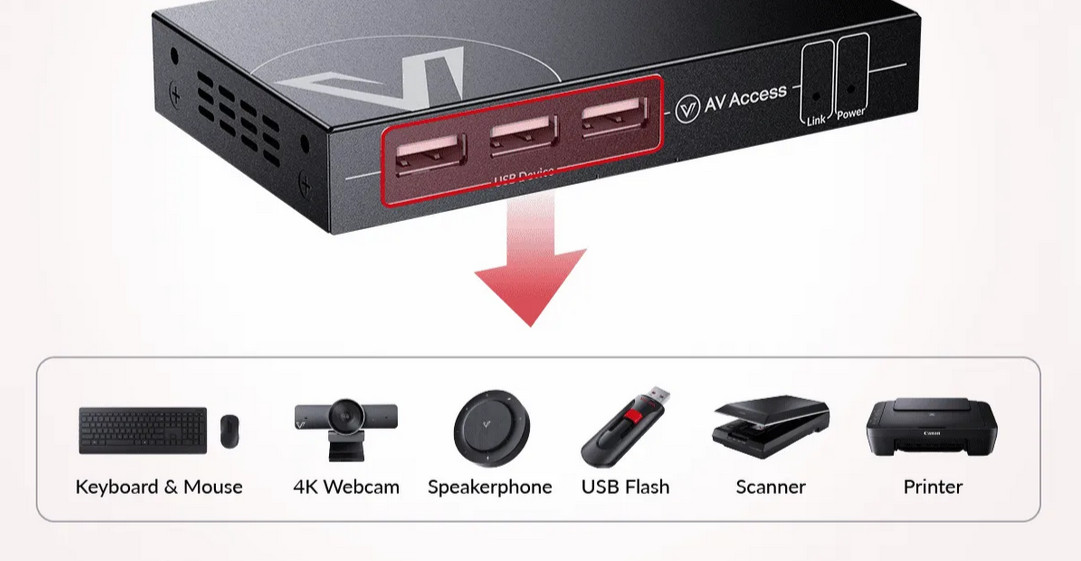

Seamless Remote Control with 3x USB 2.0 PortsAllow control of up to 3x USB 2.0 peripherals. This extender enables easy control of keyboards, mice, webcams, and more. It is ideal for scenarios where managing multiple devices is needed, such as in server rooms or data control centers. |
 |
|
 |

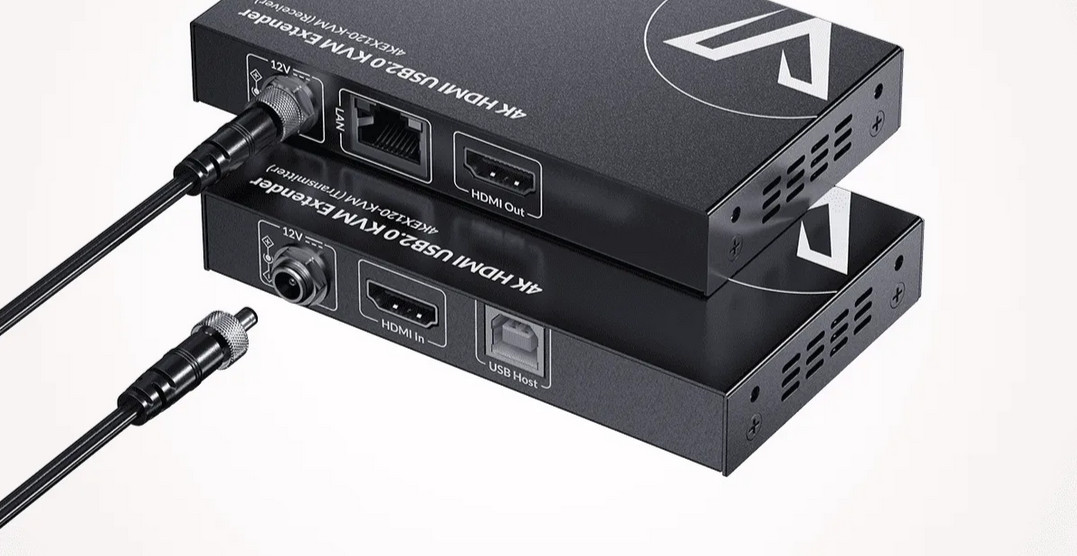

Plug and Play, No Configuration RequiredCompact and portable, roughly the size of a smartphone. Seamlessly compatible with PCs, DVDs, DVRs, NVRs, and most HDMI display devices. No software or drivers needed—simply plug in and begin using. |

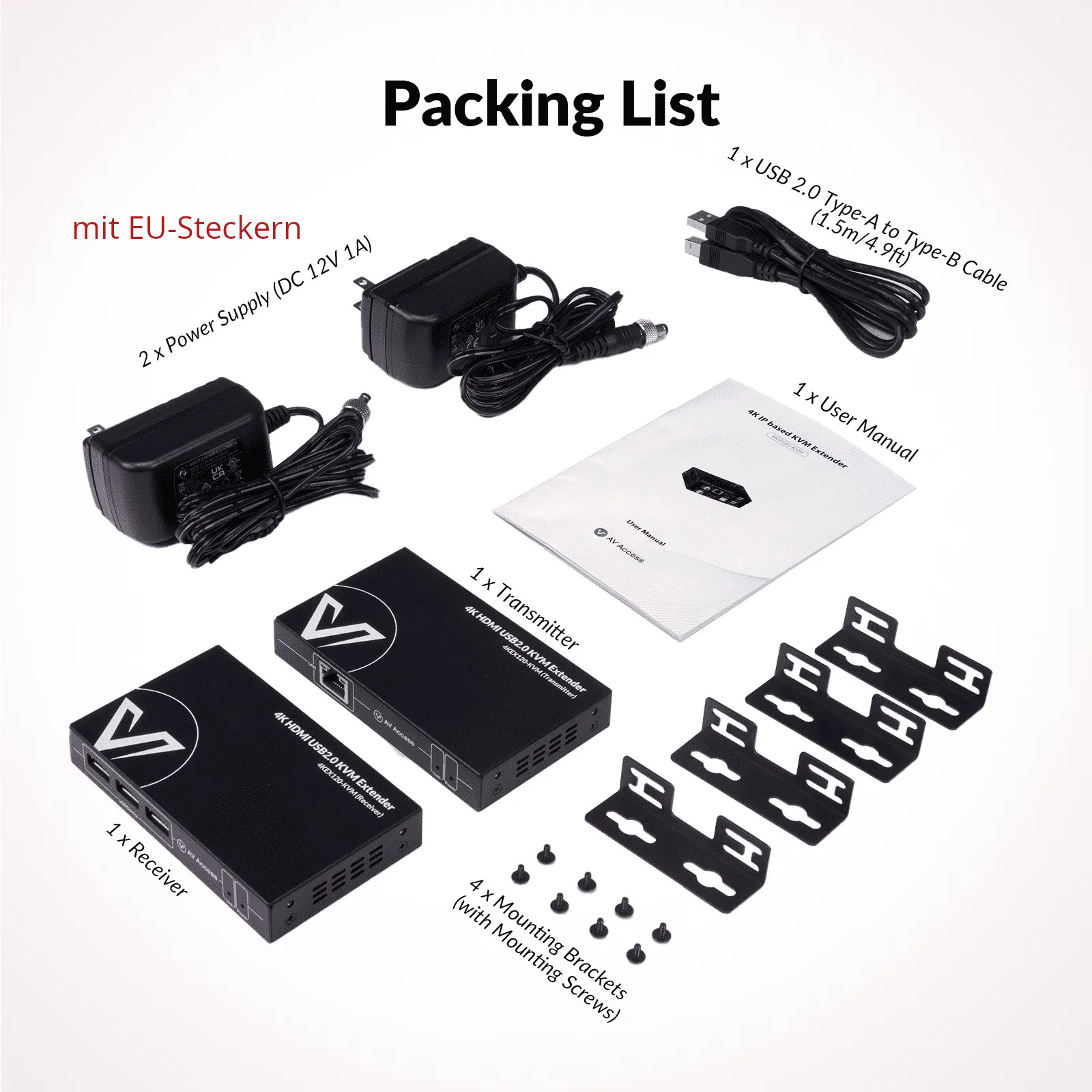

In the box
- 1x Transmitter
- 1x Receiver
- 2x Power Supply (DC 12V 1A)
- 1x USB 2.0 Type-A to Type-B Cable (1.5m/4.92ft)
- 4x Mounting Brackets (with Mounting Screws)
- 1x User Manual
Specification

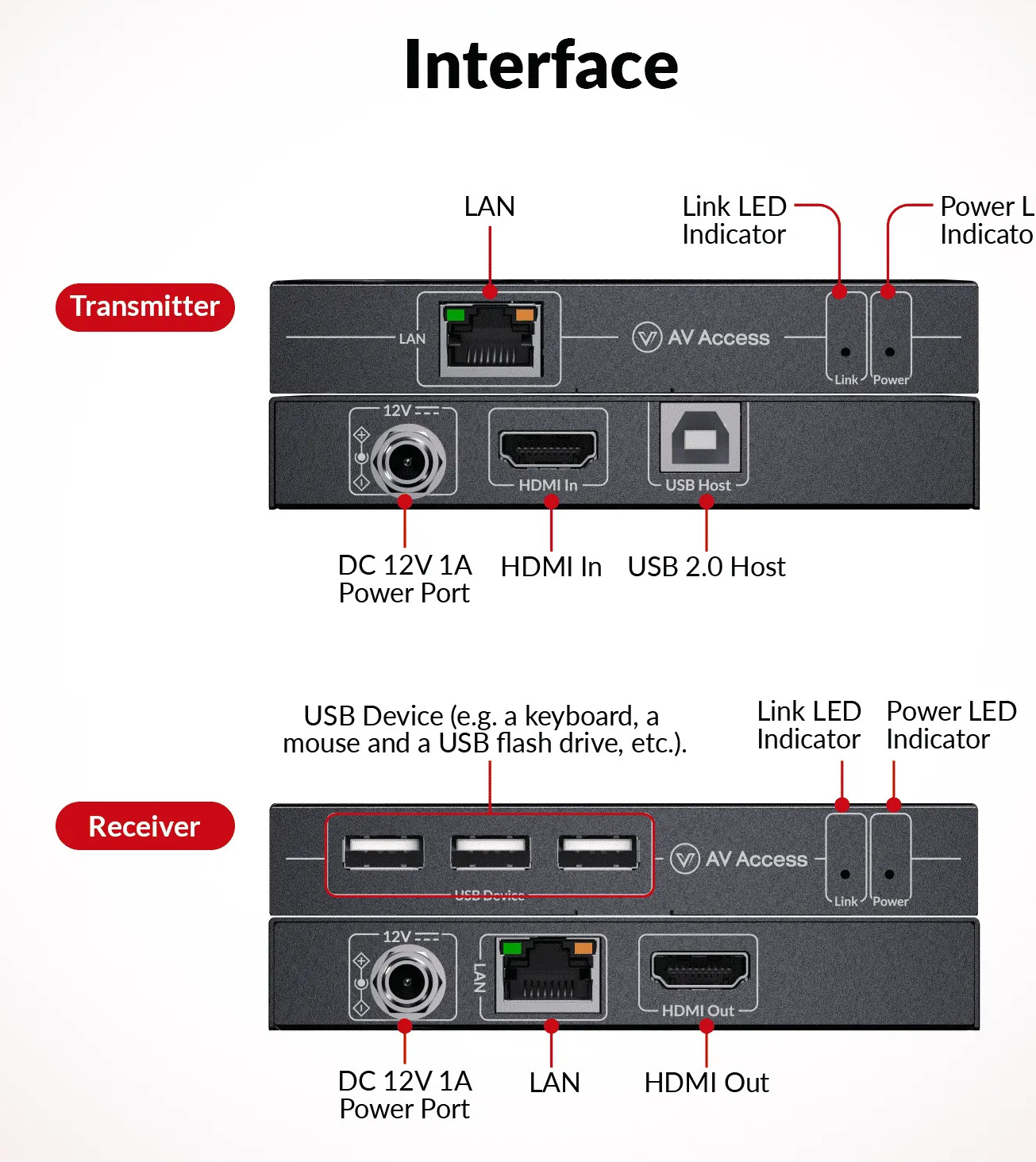

Transmitter
|
Technical |
|
|
Input/Output |
1 x HDMI IN (19-pin female HDMI Type-A), 1 x USB HOST (female USB Type-B), 1 x DC 12V connector, 1 x LAN (RJ45) |
|
Input Signal Type |
HDMI 1.4b |
|
Input Resolutions Supported |
640×4808, 800×6008,10, 1024×7688,10, 1280×7206,7,8,9,10, 1280×7688,10, 1280×8008,10, 1280×9608,10, 1280×10248,10, 1360×7688, 1366×7688, 1440×9008,10, 1600×9008, 1600×12008, 1680×10508,10, 1920×10801,2,3,4,5,6,7,8,9,10, 1920×12008, 3840x2160P2,3,5, 4096x2160P2,3,5 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = at 100 Hz, 10 = at 120 Hz |
|
Input Audio Format Supported |
PCM 2.0/2.1/5.1/7.1, Dolby Digital 5.1ch, Dolby Digital Plus, Dolby TrueHD, DTS 5.1ch, DTS-HD High Resolution Audio, DTS-HD Master Audio Resolution Audio, DTS-HD Master Audio |
|
Maximum Transmission Distance |
Cat 5e or above: 120m/394ft HDMI supplements: max. 1.5m recommended |
|
General |
|
|
Operating Temperature |
0°C to 45°C (32°F to 113°F) |
|
Storage Temperature |
-20°C to 70°C (-4°F to 158°F) |
|
Humidity |
10% to 90%, non-condensing |
|
ESD Protection |
Human-body Model: ±8kV (Air-gap discharge)/ ±4kV (Contact discharge) |
|
Power Supply |
DC 12V 3A |
|
Power Consumption |
< 2.5W |
|
Device Dimensions (W x H x D) |
112mm × 17.8mm × 65.2mm / 4.41’’ × 0.70’’ × 2.57’’ |
|
Unit Net Weight (without accessories) |
0.18kg/0.401b |
Receiver
|
Technical |
|
|
Input/Output |
1 x LAN (RJ45), 1 x HDMI OUT (19-pin female HDMI Type-A), 3 x USB DEVICE (female USB Type-A), 1 x DC 12V connector |
|
Output Signal Type |
HDMI 1.4b |
|
Output Resolutions Supported |
640×4808, 800×6008,10, 1024×7688,10, 1280×7206,7,8,9,10, 1280×7688,10, 1280×8008,10, 1280×9608,10, 1280×10248,10, 1360×7688, 1366×7688, 1440×9008,10, 1600×9008, 1600×12008, 1680×10508,10, 1920×10801,2,3,4,5,6,7,8,9,10, 1920×12008, 3840x2160P2,3,5, 4096x2160P2,3,5 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = at 100 Hz, 10 = at 120 Hz |
|
Output Audio Format Supported |
PCM 2.0/2.1/5.1/7.1, Dolby Digital 5.1ch, Dolby Digital Plus, Dolby TrueHD, DTS 5.1ch, DTS-HD High Resolution Audio, DTS-HD Master Audio Resolution Audio, DTS-HD Master Audio |
|
Maximum Transmission Distance |
Cat 5e or above: 120m/394ft HDMI: 15m/49ft |
|
USB Current |
Not more than 0.5A per USB port is recommended |
|
General |
|
|
Operating Temperature |
0°C to 45°C (32°F to 113°F) |
|
Storage Temperature |
-20°C to 70°C (-4°F to 158°F) |
|
Humidity |
10% to 90%, non-condensing |
|
ESD Protection |
Human-body Model: ±8kV (Air-gap discharge)/ ±4kV (Contact discharge) |
|
Power Supply |
DC 12V 3A |
|
Power Consumption |
< 4W (USB Consumption not included) |
|
Device Dimensions (W x H x D) |
112mm × 17.8mm × 65.2mm / 4.41’’ × 0.70’’ × 2.57’’ |
|
Unit Net Weight (without accessories) |
0.18kg/0.401b |
Downloads
● Download User Maunal

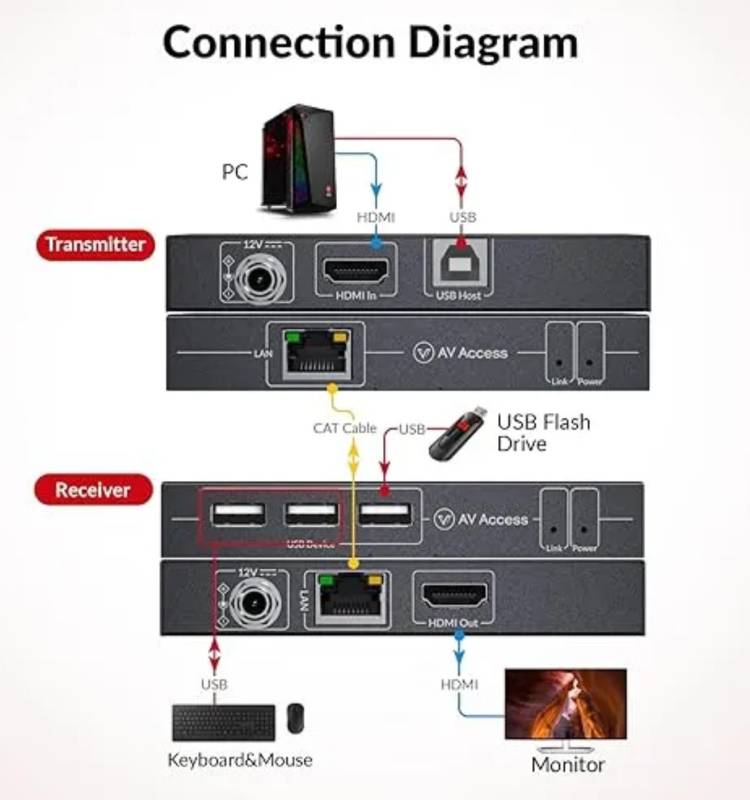

● Download Connection Diagram
--
B2B Product - Designed for use in a commercial environment.
