2-Port HDMI-Splitter 4K2K 30Hz / 1080p 60 Hz, Aten VS182A
2-Port HDMI-Splitter 4K2K 30Hz / 1080p 60 Hz, Aten VS182A
2-Port HDMI-Splitter 4K2K 30Hz / 1080p 60 Hz, Aten VS182A

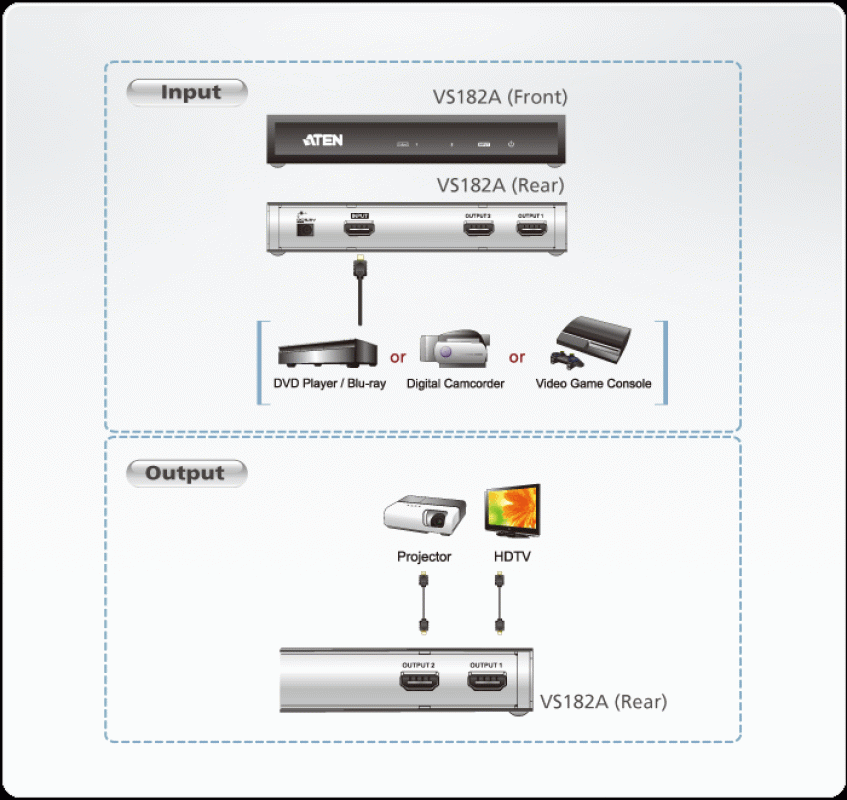

The VS182A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.
The VS182A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
Package Contents:
- 1x VS182A 2-Port HDMI Splitter
- 1x Power Adapter
- 1x HDMI Cable
- 1x User Instructions
Specifications:
Video Input |
Interfaces |
1 x HDMI Type A Female (Black) |
Impedance |
100 Ώ |
Max. Distance |
1.8 m |
Video Output |
Interfaces |
2 x HDMI Type A Female (Black) |
Impedance |
100 Ώ |
Video |
Max. Data Rate |
10.2 Gbps (3.4 Gbps Per Lane) |
Max. Pixel Clock |
340 MHz |
Compliance |
HDMI (3D, Deep Color, 4K);
HDCP Compatible |
Max. Resolution |
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
Max. Distance |
Up to 15 m |
Audio |
Input |
1 x HDMI Type A Female (Black) |
Output |
2 x HDMI Type A Female (Black) |
Connectors |
Power |
1 x DC Jack |
Power Consumption |
DC5.3V:3.12W:15BTU |
Environmental |
Operating Temperature |
0-50 °C |
Storage Temperature |
-20 - 60 °C |
Humidity |
0 - 80% RH, Non-Condensing |
Physical Properties |
Housing |
Metal |
Weight |
0.31 kg ( 0.68 lb ) |
Dimensions (L x W x H) |
12.50 x 8.00 x 2.50 cm
(4.92 x 3.15 x 0.98 in.) |
Carton Lot |
20 pcs |
Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
