USB3.2 Gen1 CAT6a/7-Extender-Set with up to 5Gbps and 70m 1x Typ-C in-out, 3x USB3, SC&T UE03H
UE03H is a USB3 Gen1 extender designed to carry USB3 signal up to 100m using Cat6a/7 Ethernet cable. It is totally backward compatible with USB2 & USB1 devices. It is perfect for multiple applications including devices such as USB cameras, touch panels, and any other USB3, USB2 or USB1 devices.Experience the Speed and Power of USB 3.2 Gen 3.1 (5Gbit/s)
ATTENTION: Function only with AWG24 or smaller AWG number.The smaller the AWG number, the larger the wire cross section.
USB has featured numerous interfaces and versions since its introduction. As USB versions advance, specifications also undergo great enhancements.
However, mismatched versions between your USB transmission gadget and the connected USB devices can lead to diminished transmission rates and charging efficiency. That's why you need the UE03H, the ultimate USB 3.2 Gen 3.1 Extender for high-performance transmission.
SC&T's UE03H not only offers a surpassing USB 3.2 Gen 3.1 (5Gbit/s) transmission performance but comes at a competitive price.
UE03H USB-C Extender
UE03H is SC&T's first USB 3.2 Gen 1 (USB3.0) extender, utilizing a USB-C interface on Tx. It extends USB signals through Cat6a/7 network cables for up to 100m and supports all devices below USB 3.2 Gen 1 version, including USB cameras, touchscreens, keyboards, and mice.
UE03H USB Extender Features
USB-C Interface on the Host
With the rising prevalence of USB-C in various devices, Tx of UE03H utilizes a USB-C interface for USB-C devices to extend signals rapidly. It can be paired with newer and newly installed USB-C devices and equipment, guaranteeing optimal transmission performance.
High Transmission Speed
Thanks to the adoption of USB 3.2 Gen 1, a high transfer speed of up to 5Gbps ensures smooth data transfer. In addition to mice, keyboards, and touchscreens, network cameras demanding high bandwidth can also achieve optimal performance.
Flexible USB 4-Port Extender

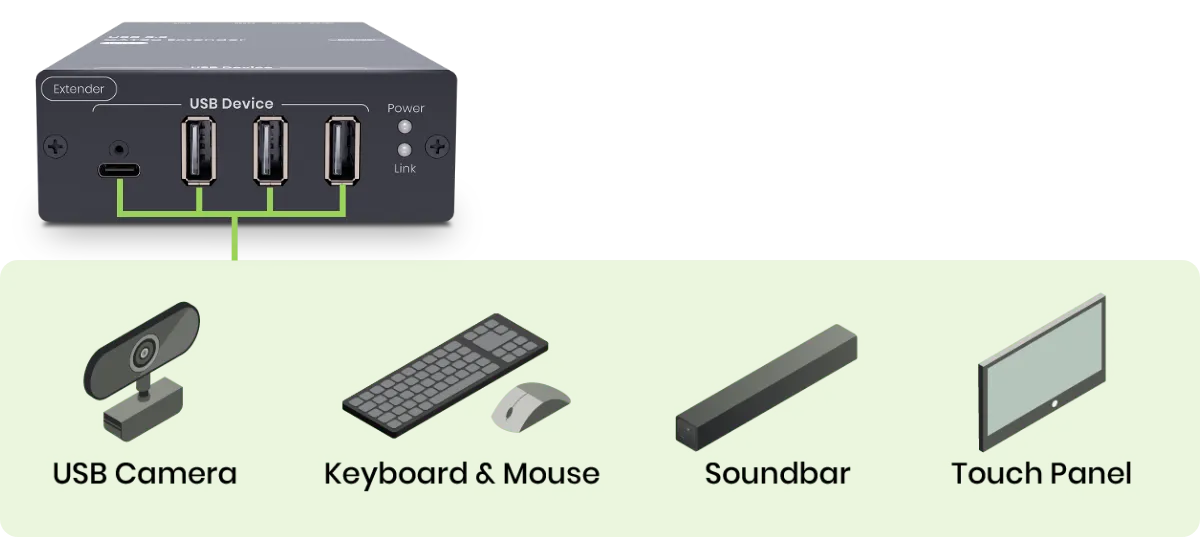

UE03H features 1 USB-C interface and 3 USB-A interfaces at the RX, allowing integration with new and old USB devices.
Scope of delivery
UE03H transmitter x1
UE03H receiver x1
Fastening tabs x2
Power supply for receiver x1
Upward/Downward Compatibility
UE03H is compatible with all USB versions below USB 3.2 Gen 1 and can operate with lower device versions. It can also transmit data to higher versions of USB devices. The transmission speed and other specifications depend on the lowest USB version involved.
Caution
Please note that UE03H does not support DP Alt Mode and cannot directly transmit DisplayPort signals.
Neither an adapter for a graphics output nor a docking station can be connected.
