This 3×1 KVM switch is built with 1x USB-C (multi stream transport) input port for laptop, and 4x HDMI input ports (2 ports in 1 group) for desktop computers. Thus, you can easily switch between three source devices, like a workstation, gaming PC, or game console, and view two monitor screens simultaneously. No matter office work, gaming or learning, it allows you to view extra screens and maximize your productivity.

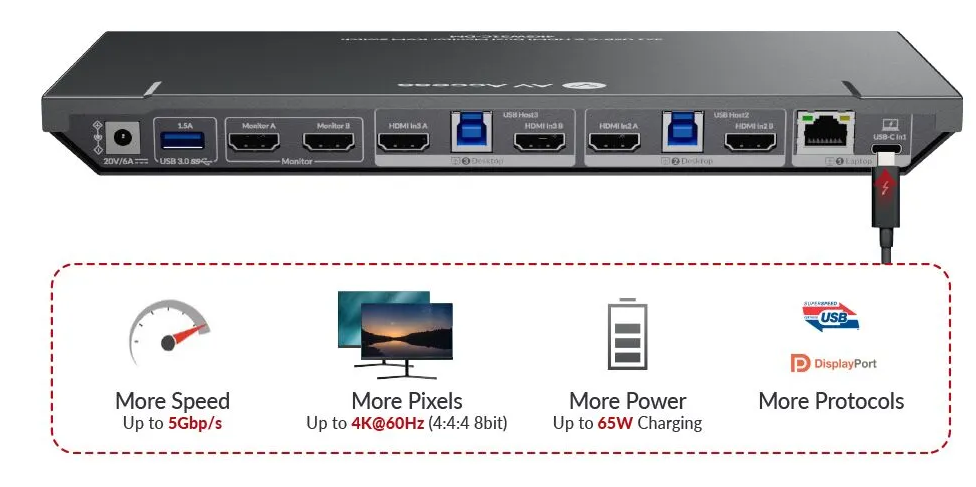

Designed with a full-featured USB-C port, this powerful dual monitor KVM switch can serve as a USB-C docking station for your laptop. With just a single USB-C cable, you can input dual 4K UHD videos and transmit a large amount of data (up to 5Gbp/s), while charging your laptop with up to 65W. What’s more, the adjacent LAN port can provide Internet access for your laptop.
Technical note: A USB 3.2 Gen 2 is required to transfer images from the USB-C.
Only this supports the necessary DP Alt Mode and works with USB-C docking stations.
Attention: not suitable for Mac.
Important Notes before Using:
1. If you use the USB-C port as video input, please make sure to use the USB-C to USB-C cable provided in the package.
2. To ensure dual outputs of 4K@60Hz video via the USB-C port, please use a USB-C laptop that supports both DP 1.4a standard and MST output. The latest Mac computer with an ARM processor can only support DP SST mode, so two duplicate contents will be displayed.
3. For high-performance notebooks that need to be charged with more than 60W, the notebook's original power supply must be used in addition to the iDock. Then connect the C10 to the other USB-C port.
This dual monitor KVM switch is HDMI 2.0, DisplayPort 1.4a, and HDCP 2.2 compliant, with up to 4K@60Hz 4:4:4 video resolution. Also, it supports 1080P@240Hz/165Hz/144Hz/120Hz, and 2560×1440@144Hz/120Hz, ensuring your high-speed racing game sources can be effectively switched. Now it is easier than ever to obtain an unprecedentedly enjoyable gaming experience.

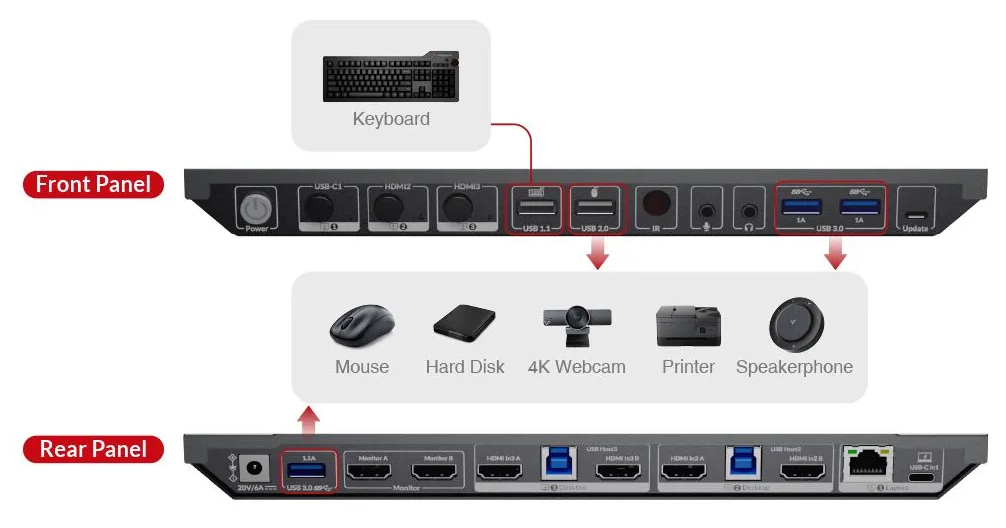

This 4K USB-C & HDMI KVM switch is built with 5x USB type-A port (3x USB 3.0, 1x USB 2.0, 1x USB 1.1), so you can control 3x PCs with only one set of USB devices, like mouse, keyboard, USB flash, 4K webcam, speakerphone, printer, scanner, etc. Stay confident that all peripherals connect to this KVM switch perfectly, as it supports up to 20V/6A power consumption.

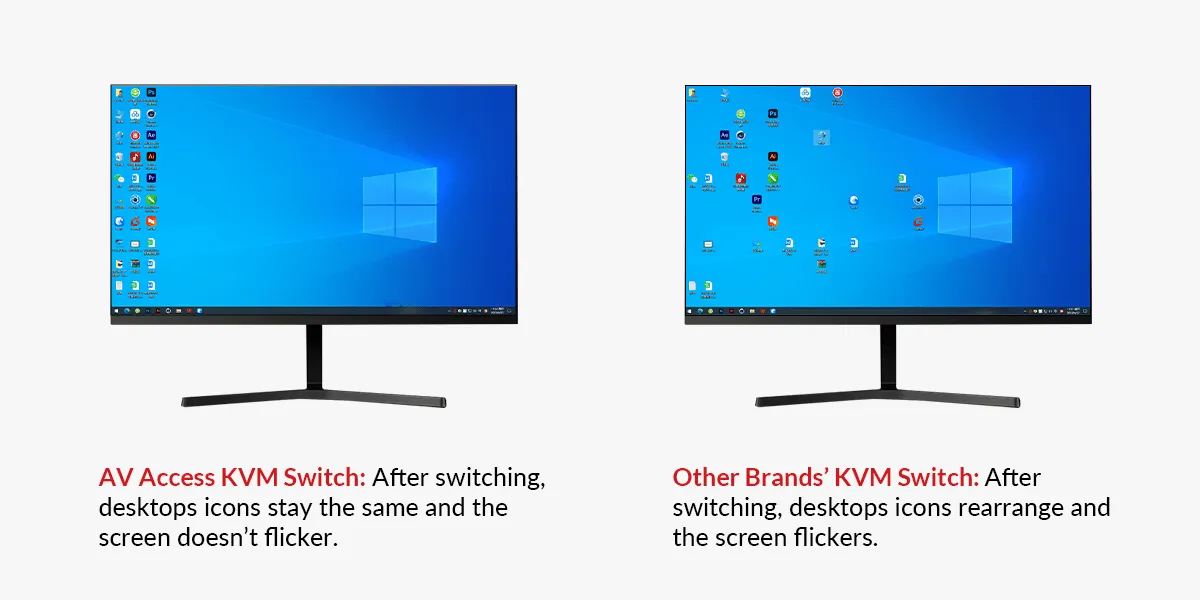

AV Access’s new KVM switches are all built with an EDID emulator in each input port. Whenever you switch between different sources, it ensures stable communications between the video sources and the display device. No screen flickering, no desktop icon rearrangement. It only takes you about 3 seconds to complete switching!

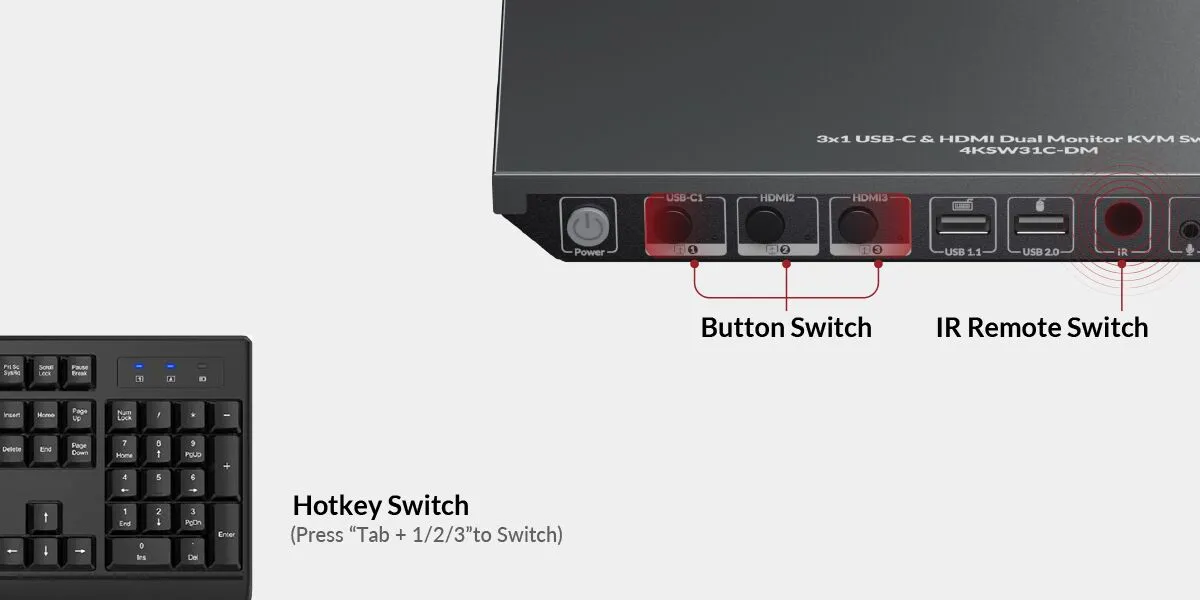

Apart from switching via the front panel buttons and the included IR remote, keyboard hotkey switching is also supported on this 4K KVM switch, so you can enjoy a simple, fast and convenient user experience. Just connect a keyboard to its dedicated USB 1.1 port and press “hotkey+1/2/3” (default hotkey: Tab) to switch to the desired source.
Notes:
1. The hotkey function is enabled by default. It can also be disabled by pressing the combined 4 keys (“Left Ctrl” + “Alt” + “Shift” + “]” ) if you don’t need the function.
2. You can also change the hotkey from “Tab” to “Caps Lock” if you need. Please refer to the “Hotkey Function” part in the user manual to learn more.
| Technical | |
| Input & Output Ports | 1 x USB-C In (USB 3.2 Gen 1); 4 x HDMI In; 2 x USB Host (USB 3.0 Type-B port); 1 x LAN; 3 x USB Device (USB 3.0 Type-A port); 1 x USB 1.1 (USB 1.1 Type-A port); 1 x USB 2.0 (USB 2.0 Type-A port); 1 x Line Out; 1 x Mic In; 1 x DC 20V/6A |
| Input/Output Signals | USB-C Input: USB 3.2, supports DP MST mode, can output two videos (resolutions up to 4K@60Hz 4:4:4 8bit) at the same time
HDMI Input/Output: HDMI 2.0 with resolutions up to 4K@60Hz 4:4:4 8bit / 4K@60 4:2:0 12bit with HDCP 2.2 compatibility |
| Input/Output Resolution Supported | SMPTE:
1280x720P1,2,3,4,5,6,7,8, 1920x1080I6,8, 1920x1080P1,2,3,4,5,6,7,8,9,10,11,12, 2560×10809, 3840×10809, 3840×21602,3,5,6,8, 4096×21602,3,5,6,8 VESA: 800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×9608, 1280×10248, 1360×7688, 1366×7688, 1400×10508, 1440×9008, 1600×9008, 1600×12008, 1680×10508, 1920×12008, 2560×14401,2,3,4,5,6,7,8,9,10 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = 120Hz, 10 = 144Hz, 11 = 165Hz, 12 = 240Hz |
| HDR Format Supported | All HDR formats, including HDR 10, HLG, HDR 10+ and Dolby Vision |
| Audio Format Supported | HDMI: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X
MIC IN: Stereo LINE OUT: Stereo |
| Max Data Rate | HDMI: Up to 18Gbps
USB-C: 5Gbps |
| Maximum Pixel Clock | HDMI: 600MHz |
| Control Method | Front panel buttons, IR Remote, Hotkeys |
| General | |
| Operating Temperature | 0°C to + 45°C (32 to + 113 °F) |
| Storage Temperature | -20 to +70°C (-4 to + 158 °F) |
| Humidity | 20% to 90%, non-condensing |
| Power Consumption | 85W (Max) |
| Device Dimensions
(W x H x D) |
269.6mm x 27.5mm x 142.6mm/ 10.61’’ x 1.08’’ x 5.61’’ |
| Product Weight | 0.92kg/2.03lbs |
|
Compatibility Check Simple Check for Seamless Use
In case of any compatibility problem, please confirm if the USB-C port on your laptop supports video output and data transfer. |
