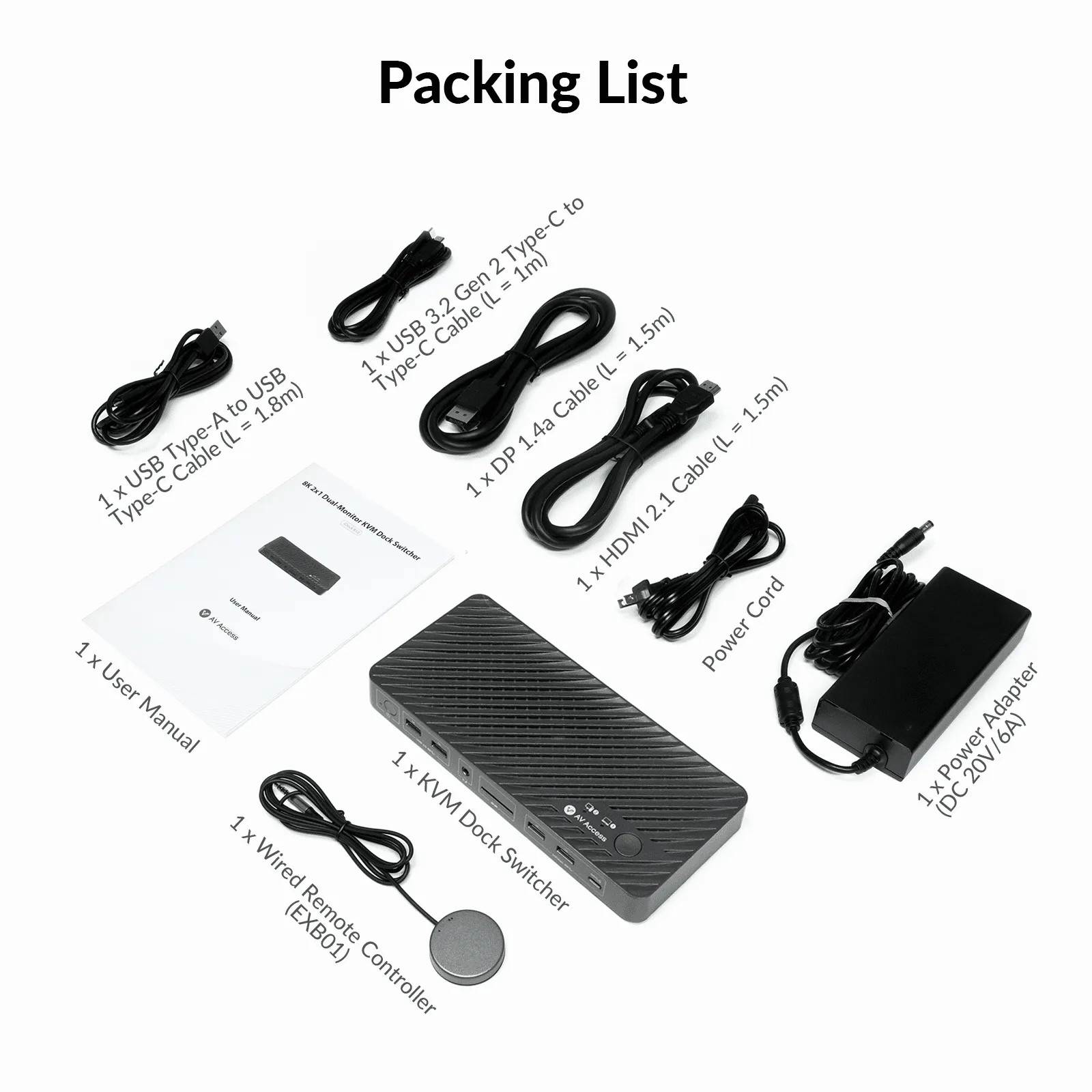

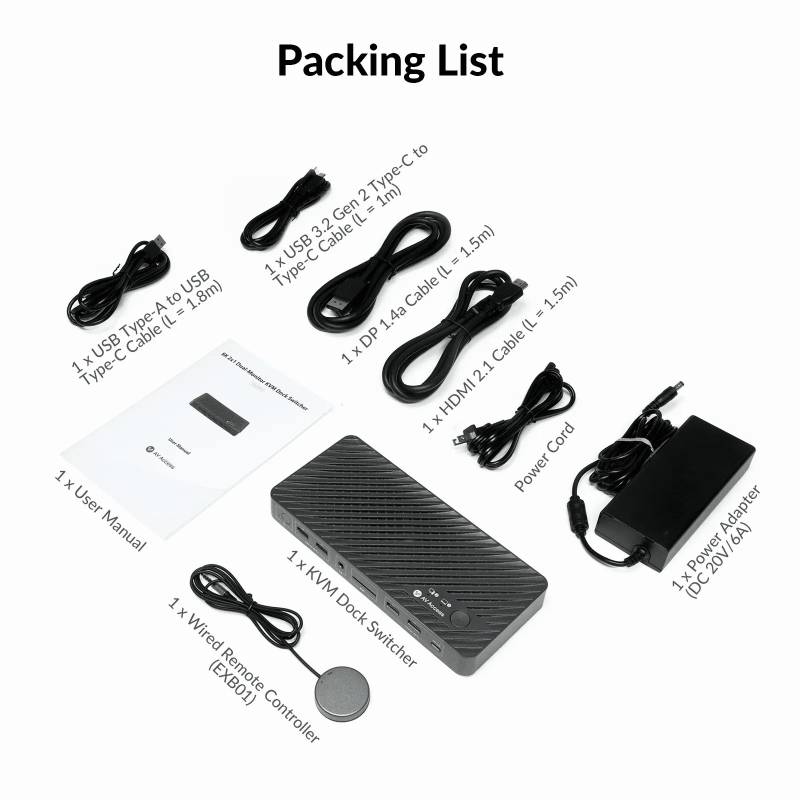

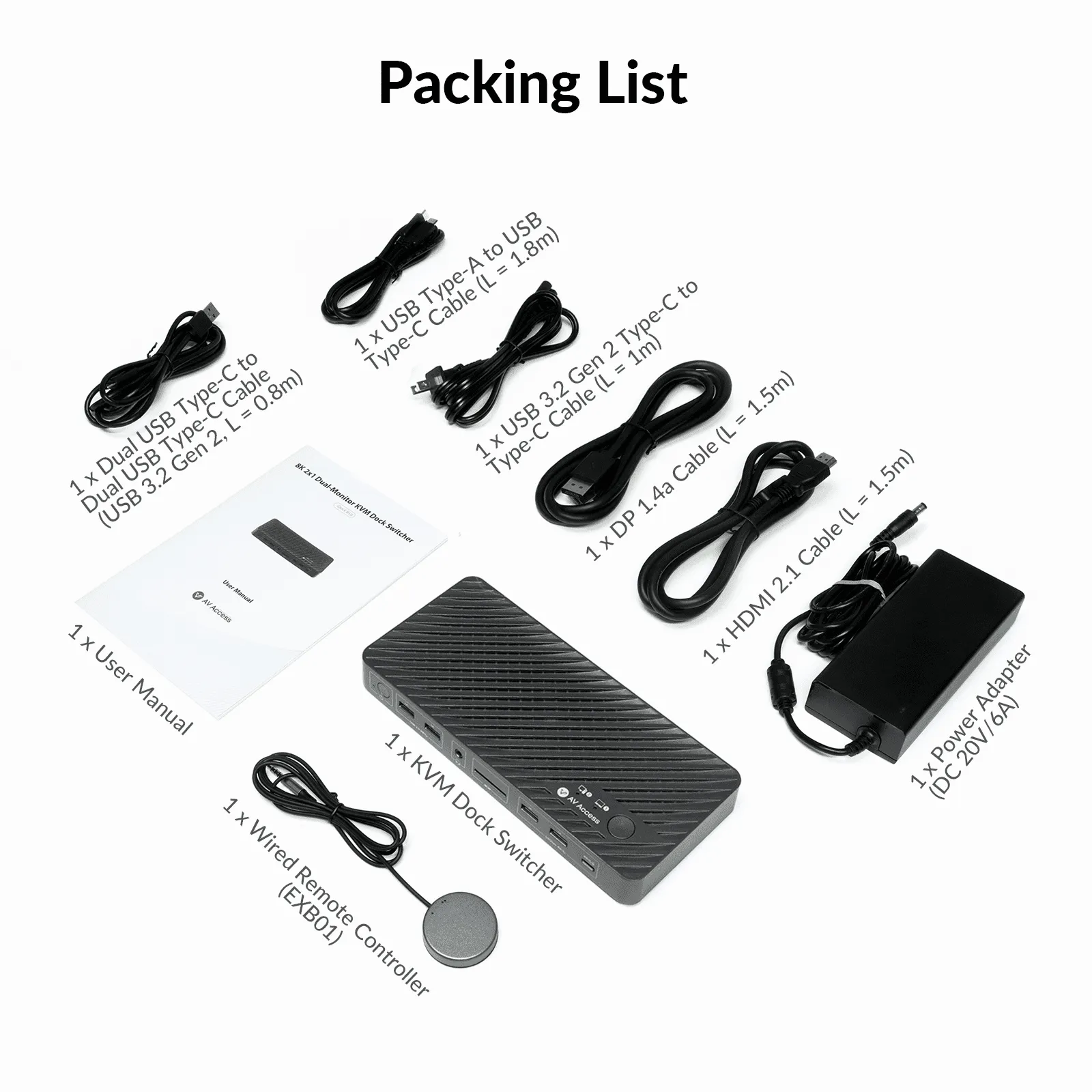

- 1 x KVM Dock Switcher
- 1 x Power Adapter (DC 20V/6A)
- 1 x HDMI 2.1 Cable (L = 1.5m)
- 1 x DP 1.4a Cable (L = 1.5m)
- 1 x USB 3.2 Gen 2 Type-C to Type-C Cable (L = 1m)
- 1 x USB Type-A to USB Type-C Cable (L = 1.8m)
- 1 x Wired Remote Controller (EXB01)
- 1 x User Manual
USB-C Notebook + Gamer-PC 8K60 4K120Hz Dual-Monitor Docking-Station KVM-Switch with 1x DP and 1x HDMI, iDock-B10
USB-C Notebook + Gamer-PC 8K60 4K120Hz Dual-Monitor Docking-Station KVM-Switch with 1x DP and 1x HDMI, AV Access iDock-B10

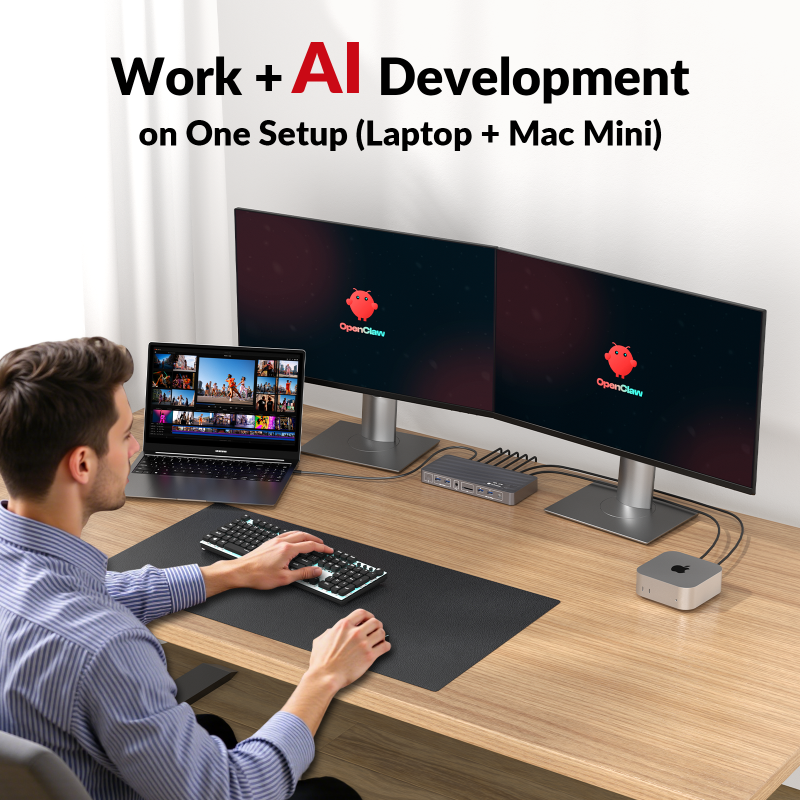

This is a perfect combination of a gaming-ready KVM switch and a docking station and allows you to build a powerful workstation with up to two gaming monitors in the office or home office.
In addition to the two monitors, your two computers can share numerous peripherals such as mouse, keyboard, 4K webcam, speakerphone, printer, scanner, SD card, headset, AV receiver, etc.
The notebook is connected with just 1x USB-C and is also automatically charged up to 100W via the power supply of the KVM switch.
If a LAN cable is plugged into the iDock-B10, the computers are also “in parallel” (at any time) on the LAN/Internet via the LAN cable.
Operation is easily and completely changed using the button in the switch or the included cable remote control.
Features:
● 1 Laptop + 1 Desktop Switching: Connect 1 laptop and 1 desktop, and switch between them with ease using one button.● Dual Monitor Outputs: Support dual displays for both sources — perfect for multitasking (MacOS doesn’t support extended dual screens).

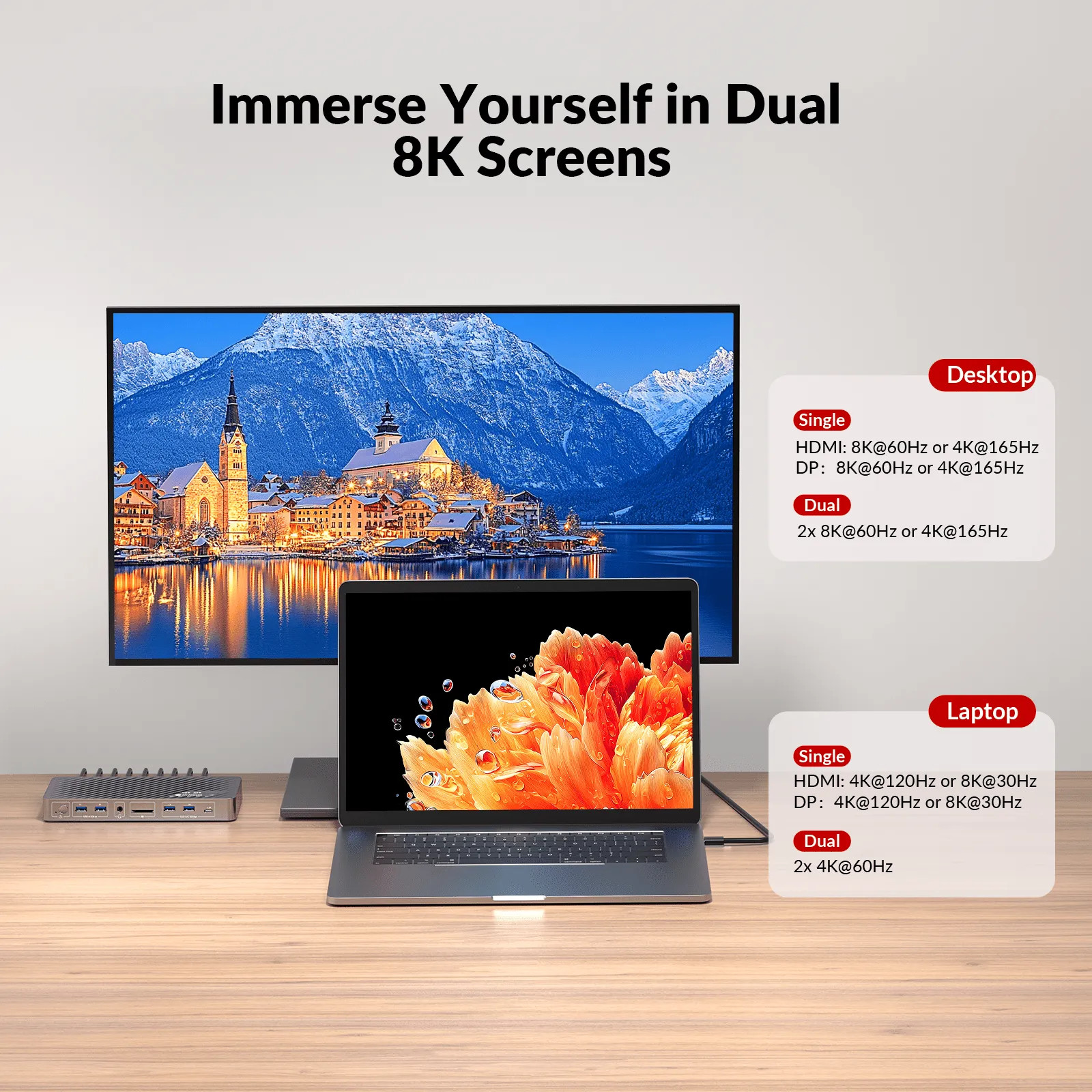

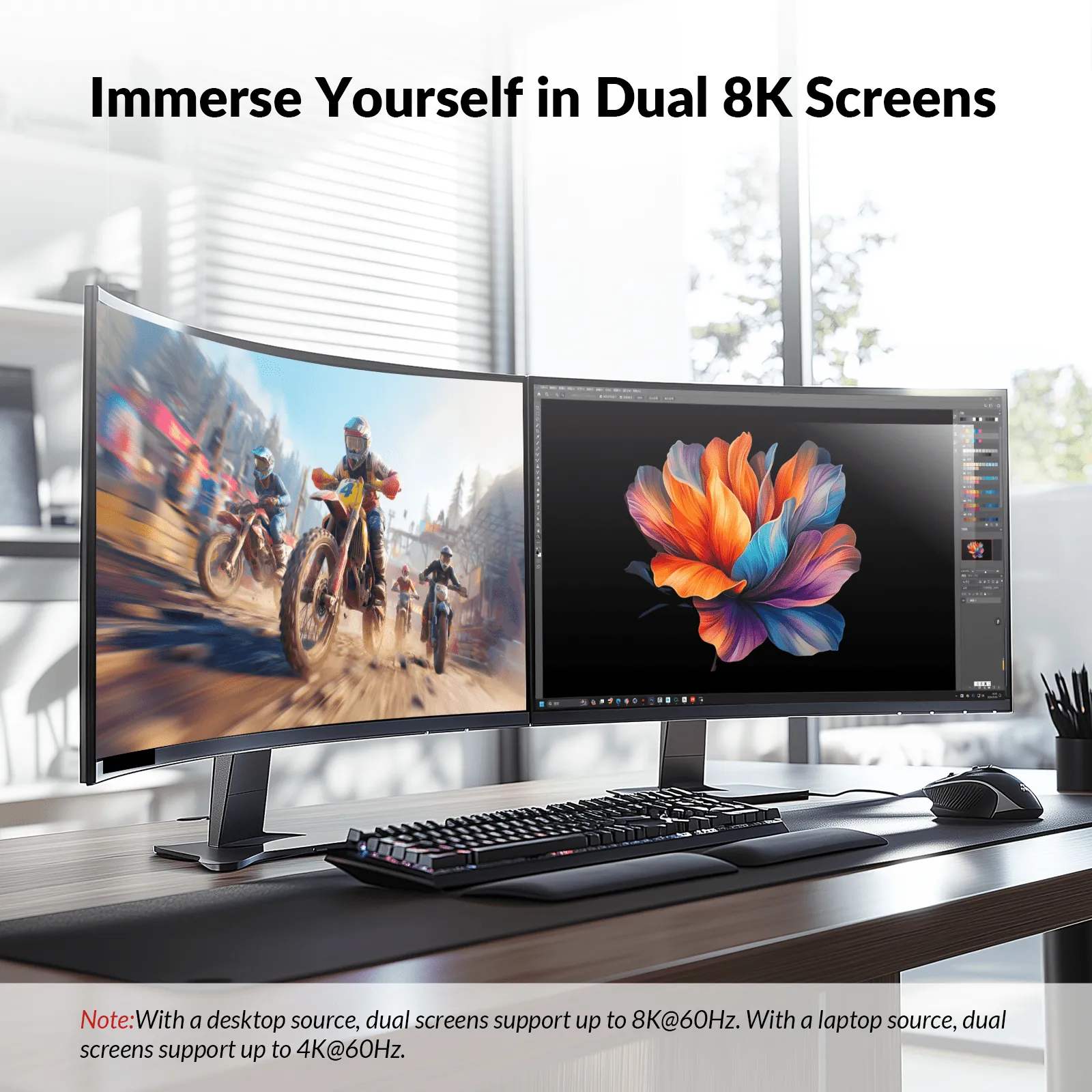

● Dual 8K@60Hz Outputs: Support two 8K@60Hz monitors simultaneously for ultra-crisp visuals and ultimate productivity.
● High Refresh Rates for Gaming: Smooth visuals on the gaming PC side with up to 4K@165Hz/144Hz, 1440P@144Hz or 1080p@240Hz/165Hz on both sources.
● Up to 8K60Hz and 5K120Hz are also supported on the gaming PC side of the KVM switch.
● The iDock-B10 supports FreeSync and G-SYNC on the DP connection.
● Notebook connection: Via just one (included) USB-C 3.2 Gen.2 cable (graphics capable) or higher.
● Note for Laptop input: iDock B10 can support 4K@60Hz to each monitor, if you connect two monitors. 4K@120Hz or 8K@30Hz for laptop input, but only for situation that only one monitor is connected.
● PC connection: The PC will be connected to the KVM switch via (cable included) 1x DP (DisplayPort), 1x HDMI and 1x USB (Type-C on the switch to Type-A on the PC).
If the PC only has 2x DP, the HDMI can only be adapted to the KVM switch there.
● Monitor connections: One monitor must be connected via DP and one monitor via HDMI.
● 11-in-1 Docking Station: Expand your setup with HDMI, DP, USB-C/A, LAN, SDXC card reader, audio jack and more.
● Full Speed 100W Charging: One USB-C cable does it all — dual 4K video, blazing-fast data, wired internet, and up to 100W laptop charging.
● Stable Internet Connection for Both PCs: Enjoy fast, stable network access for both your desktop and laptop.
● Easy Switching Methods: Toggle sources via top panel button or EXB01 remote controller (Included in the package).
* Important Notes:
● MacOS devices do not support extended dual displays. Incompatibilities are also possible. For Mac devices, we recommend the iDock-M10.
● EDID emulation is not supported.
● The maximum resolution for the laptop (via USB-C In) will be at 4K@60hz for a dual monitor setup, and at 4K@120hz for a single monitor setup.
Technical note: A USB-C 3.2 Gen 2 connection is required for image transmission from USB-C.
Only this type supports the necessary DisplayPort Alt Mode and works with USB-C docking stations on two monitors with resolutions higher than 1080p.
The DP PC input side was successfully tested with a Samsung Odyssey OLED G9 49" gaming monitor with 5140x1140@144Hz.
Work, Game & Switch Without Limits
Designed for High-refresh Rates Gaming
Enjoy ultra-clear visuals and ultra-smooth gameplay with dual 8K displays and high refresh rate support. Perfect for both creators and gamers.
 |
|

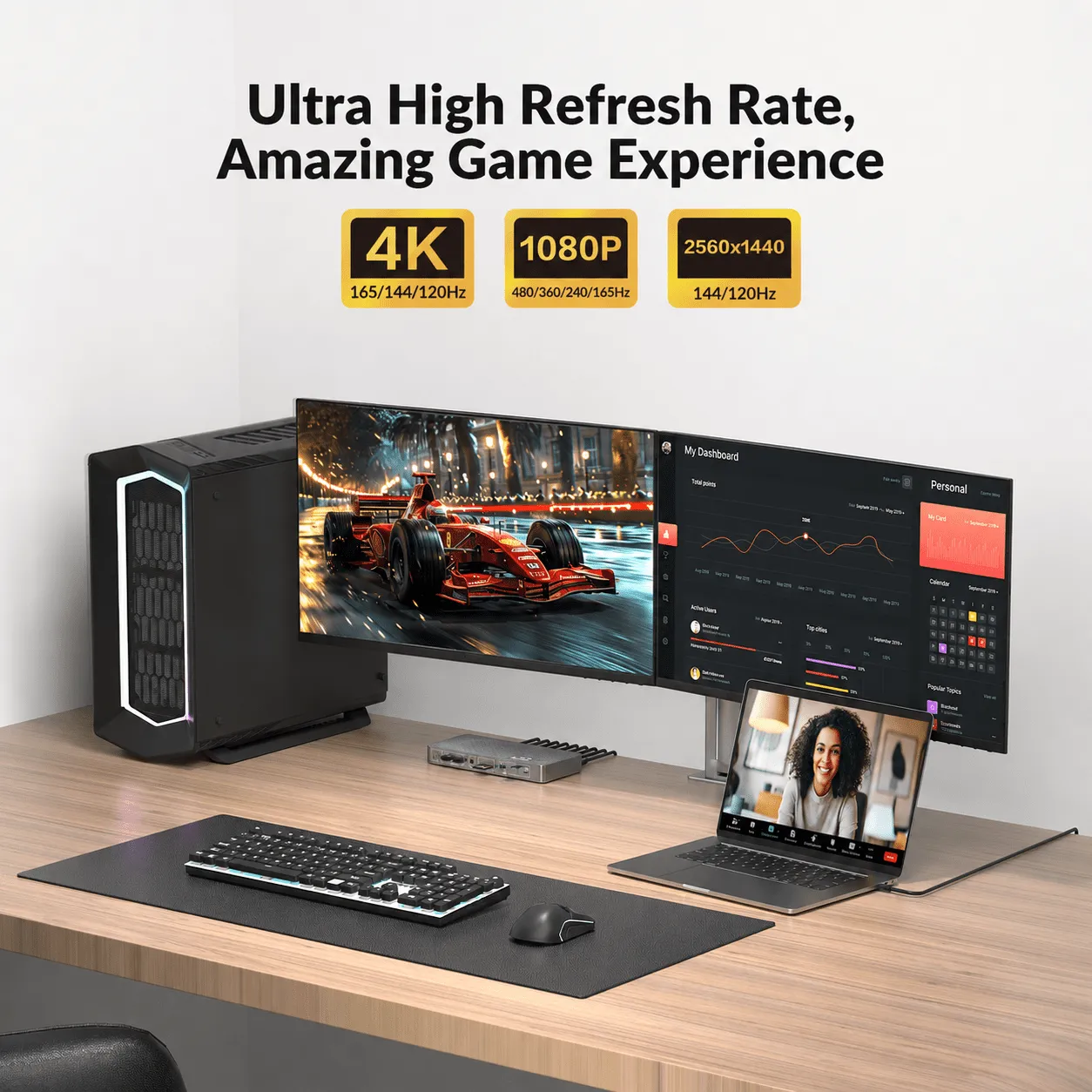

Enjoy Your Gaming Setup at Full Potential
Game like a pro with support for up to 4K@165Hz, 1440P@144Hz and 1080P@240Hz, plus up to 8K@60Hz on desktop. The iDock B10 also supports G-Sync,
FreeSync, and VRR, perfect for competitive gaming and high-speed video playback.
Share Your Whole PC Setup with A Laptop
Just one connection turns your laptop into a complete productivity hub. Transfer files in seconds, keep your devices charged,
and stay focused with everything you need seamlessly connected.
 |
|
|
Transfer Files at A Higher Speed |
 |

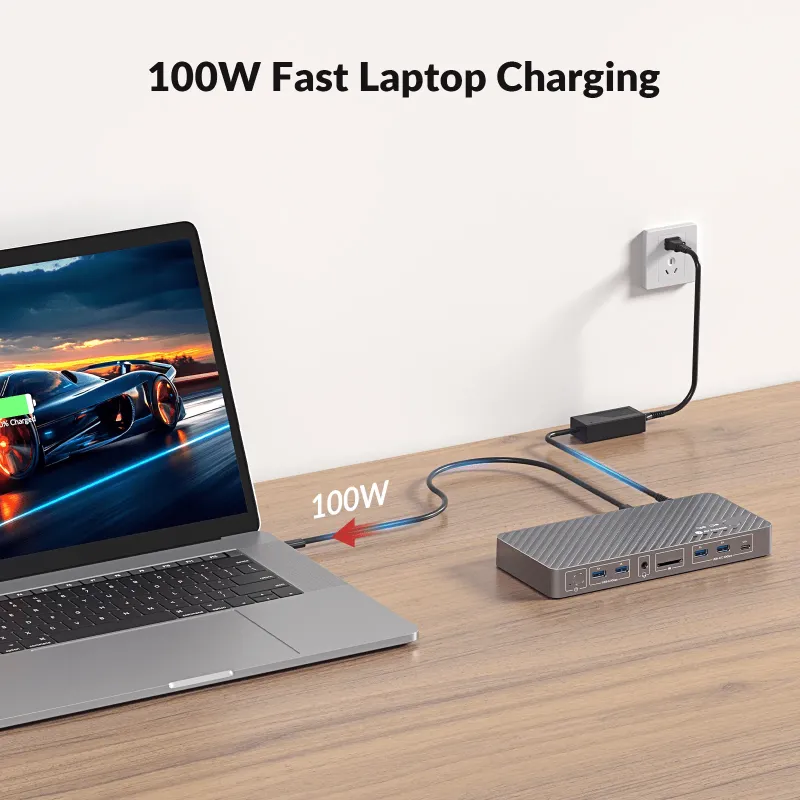

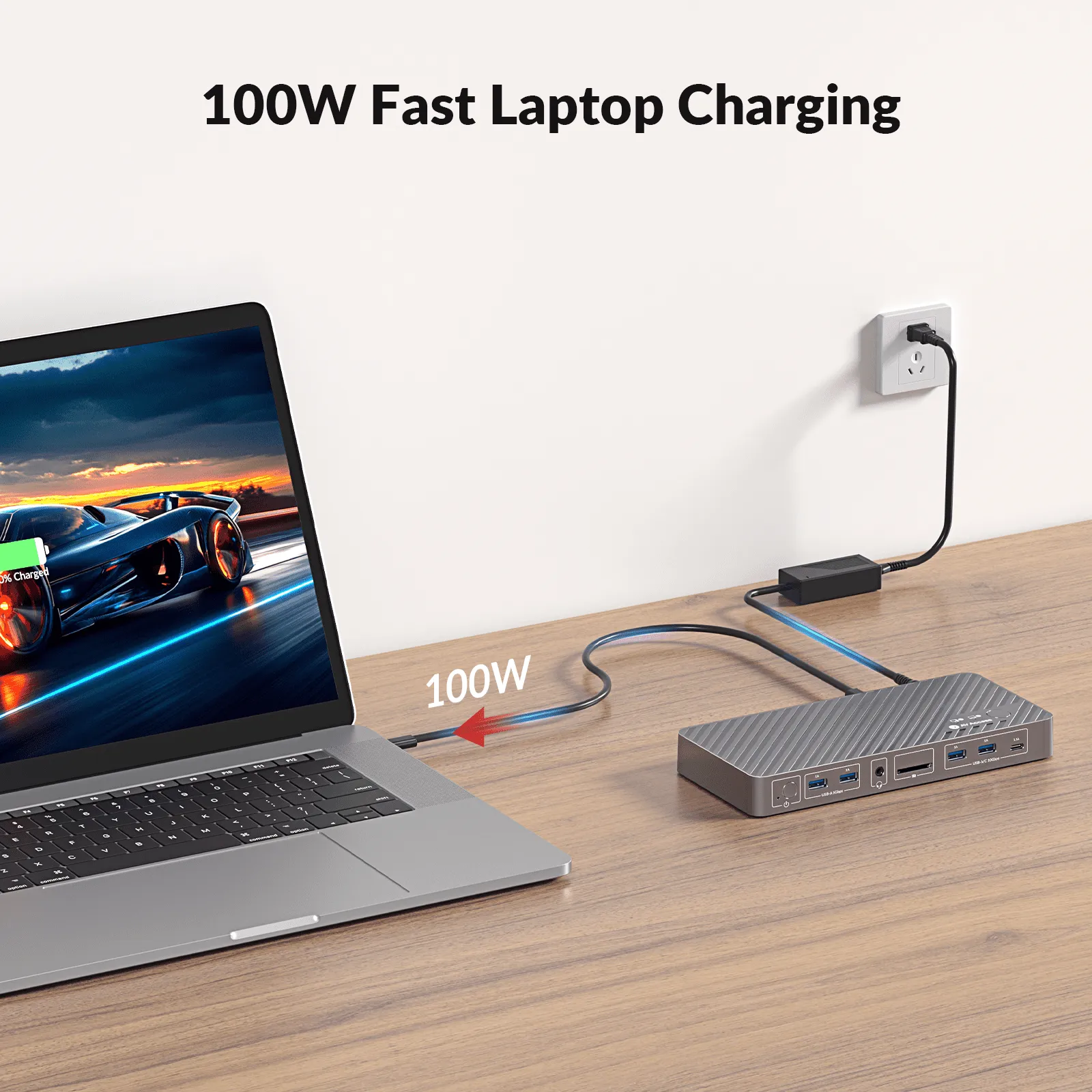

100W Power, Zero Downtime
Charge your laptop up to 100W while sending video and data — all through a single full-featured USB-C cable.
One connection, less clutter.

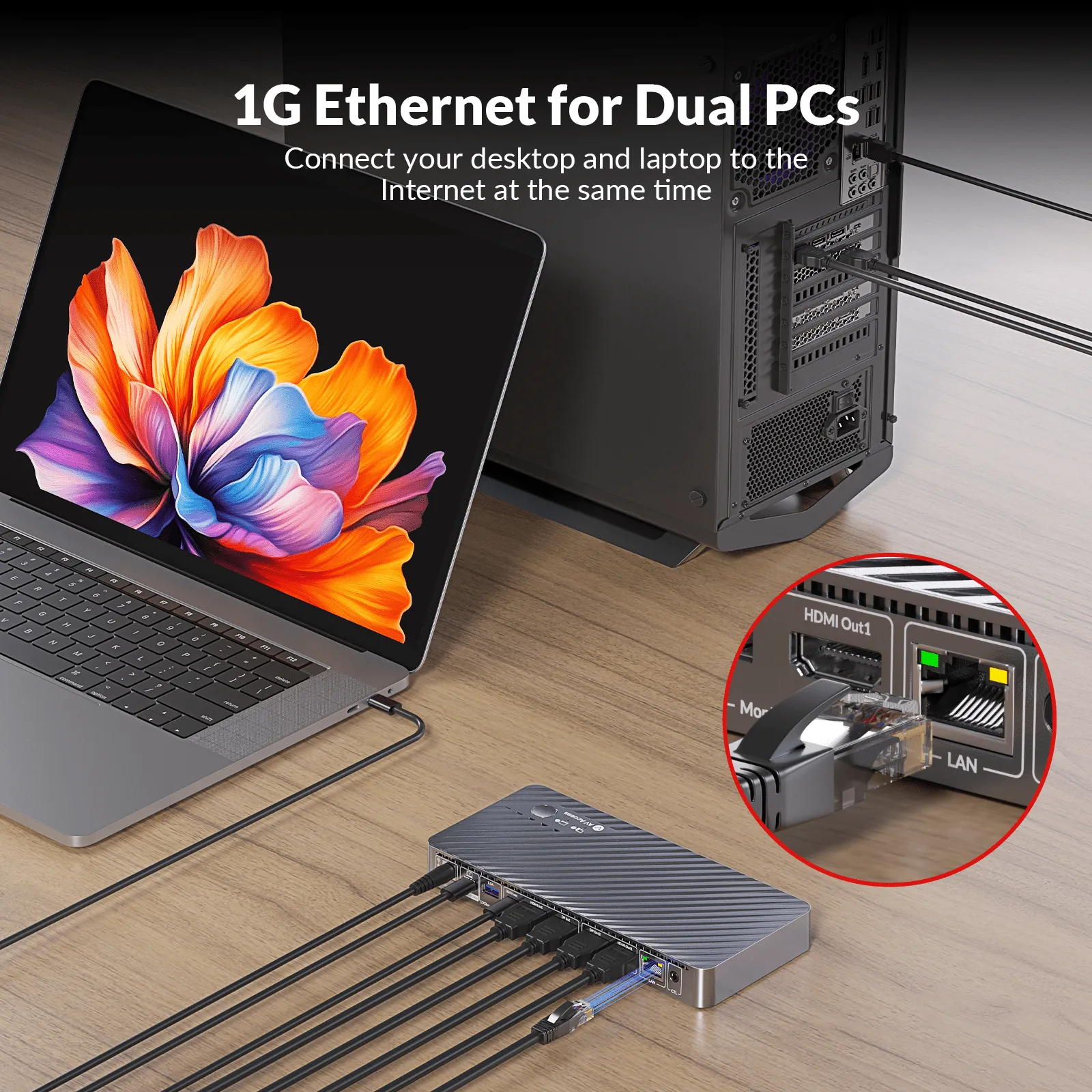

Wired Internet, Shared Between Two PCs
One Tap to Wake
|
Switch Everything in One PressEasily switch both screens and all connected devices using the top panel button or the EXB01 wired remote controller (Included in the package). Ideal for those who work on both computers and need to juggle between two systems. |
|
 |
 |
Designed for Home Office & Gaming
Whether you’re working, gaming, editing, or relaxing with movies, iDock B10 adapts to your setup — offering smooth visuals, powerful connectivity, and seamless control across all your devices.
In the Box:
|
Technical |
|
|
Input |
· USB-C In: 100W Charging; USB 3.2 Gen 2 (up to 10Gbps); 8K@30Hz or 4K@120Hz video signal transfer · HDMI In: HDMI 2.1, up to 8K@60Hz or 4K@165Hz · DP In: DP 2.0, up to 8K@60Hz or 4K@165Hz Note: DP input supports UHBR 13.5 (13.5 Gbit/s per lane) standard in DP 2.0. |
|
Output |
· HDMI: HDMI 2.1, up to 8K@60Hz or 4K@165Hz · DP: DP 2.0, up to 8K@60Hz or 4K@165Hz Note: DP output supports UHBR 13.5 (13.5 Gbit/s per lane) standard in DP 2.0. |
|
Peripheral and Expansion |
USB-C x1: Up to 10Gbps, 1.5A power output. USB-A x5: · Two USB 3.2 type-A ports on front panel, supports 1A power output, and 10Gbps data transfer; · Two USB 3.2 type-A ports, supports 1A power output, and 5Gbps data transfer; · One USB 3.2 type-A port on rear panel, supports 1.5A power output, 10Gbps data transfer; SDXC card: Up to 104MB/s, maximum support 2TB. LAN: RJ-45 connector, supports for 1Gb Ethernet performance. |
|
Input/Output Resolution Supported |
SMPTE: 1280x720P1,2,3,4,5,6,7,8,1920x1080I6,8, 1920x1080P1,2,3,4,5,6,7,8,9,10,11,12, 3840×21602,3,5,6,8,9,10,11, 4096×21602,3,5,6,8,9,10,11, 5120×28802,3,5,6,8,9, 7680×43202,3,5,6,8 VESA: 800×6008, 1024×7688, 1280×768, 1280×8008, 1280×9608, 1280×10248, 1360×7688, 1366×7688, 1400×10508, 1440×9008, 1600×9008, 1600×12008, 1680×10508, 1920×12008, 2560×14401,2,3,4,5,6,7,8,9, 3440×14402,3,5,6,8,9,10,11, 840×10802,3,5,6,8,9,10,11, 3840x 14402,3,5,6,8,9,10,11, 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = 120Hz, 10 = 144Hz, 11 = 165Hz, 12 = 240Hz |
|
Audio Format Supported |
HDMI/DP Out: Fully supports audio formats in DP 1.4/HDMI 2.1 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X USB-C In: Fully supports multiple channel audio formats, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X Headset: Stereo |
|
General |
|
|
Operating Temperature |
0°C to + 45°C (32 to + 113 °F) |
|
Storage Temperature |
-20 to +70°C (-4 to + 158 °F) |
|
Humidity |
20% to 90%, non-condensing |
|
Power Consumption |
120W (Max) |
|
Device Dimensions (W x H x D) |
220mm x 25.2mm x 100mm / 8.66” x 0.99” x 3.94” |
|
Product Weight |
0.33kg/0.73lb |
Q: How does the 100W charging feature wotk on the iDock-B10?
A: The iDock B10 provides up to 100W charging for your laptop through a USB-C port. This feature ensures your device stays powered while in use, even during intensive tasks, and is compatible with most USB-C laptops, ensuring fast and efficient charging.
Q: Can I connect both my laptop and desktop to the iDock-B10 using different prts (USB-C, HDMI, DisplayPort)?
A: Yes, the iDock B10 supports a combination of USB-C, HDMI, and DisplayPort inputs, offering flexible connectivity for both laptops and desktops. You can use the HDMI or DisplayPort for high-quality video output and USB-C for charging and data transfer, ensuring versatile connection options across devices.
Q: What are the USB 3.2 Gen.2 ports on the iDock-B10 used for?
A: The iDock B10 features high-speed USB 3.2 Gen 2 ports, which provide up to 10Gbps data transfer rate. These ports allow for fast data access, file transfers, and peripheral connections, ensuring smooth productivity for professionals who rely on high-speed storage devices or external accessories.
Q: Why is there no video output when my laptop is connected via USB-C?
A: Please check whether the USB-C port on your laptop supports video output. If the port only supports charging and data transfer but not video transmission, it will not be able to output any display signal.
Additionally, please make sure to use the included USB-C 3.2 Gen.2 cable or a "USB-C 4" cable. Normal USB-C cables only support charging and data and cannot transmit video signals.
Q: Why the device getting hot during use?
A: Thermal Conductivity Through the Enclosure: AV Access has designed the product such that the internal heat is conducted to the outer casing, utilizing the entire enclosure as a heat dissipation system. As a result, the surface temperature of the casing may be slightly higher.
Temperature and Durability: The product is engineered to industrial standards, ensuring that the surface temperature remains below 113°F, which is well within safe limits. Additionally, the product has undergone prolonged high-temperature aging tests for its stability and longevity. This means that the performance and lifespan of the product will not be adversely affected.
Normal Operation: It’s normal for docking stations to generate some heat, especially when multiple devices are connected or if they’re performing high-bandwidth tasks. This is due to the power being used to drive the connected peripherals and maintain stable connections.
Heavy Loads: Connecting multiple high-power devices or using high-resolution outputs can increase the amount of heat generated.
If the temperature seems excessively high or if you have any specific concerns, please let us know. We are committed to ensuring that our products meet your expectations and will be happy to assist further if needed.
--
B2B product - designed for use in commercial environments.
