- 1x eShare D30 Dongle
- 1x User Manual

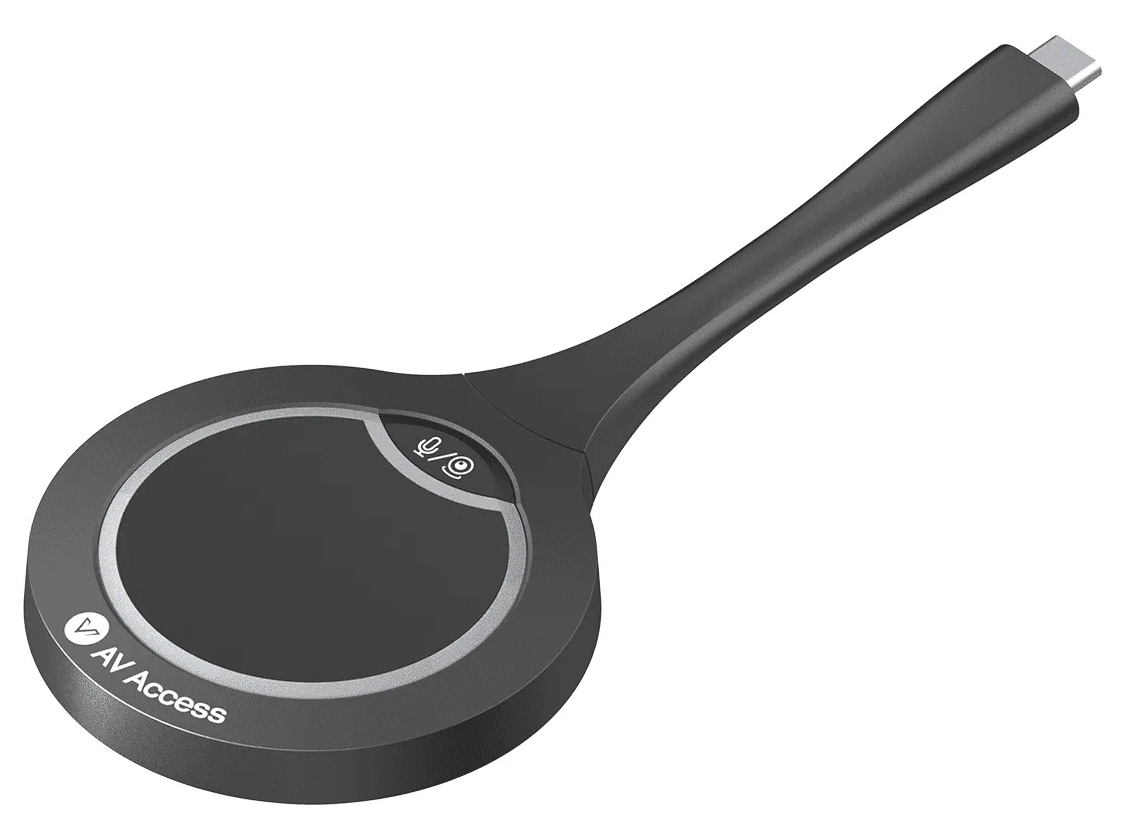

eShare D30 USB-C Dongle for Wireless Conferencing

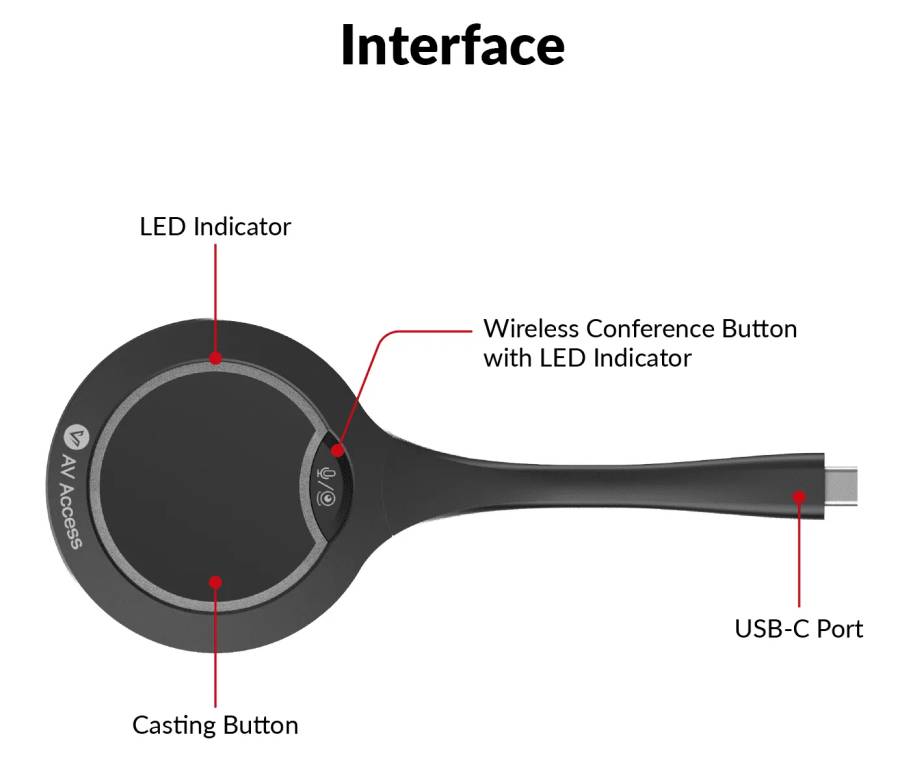

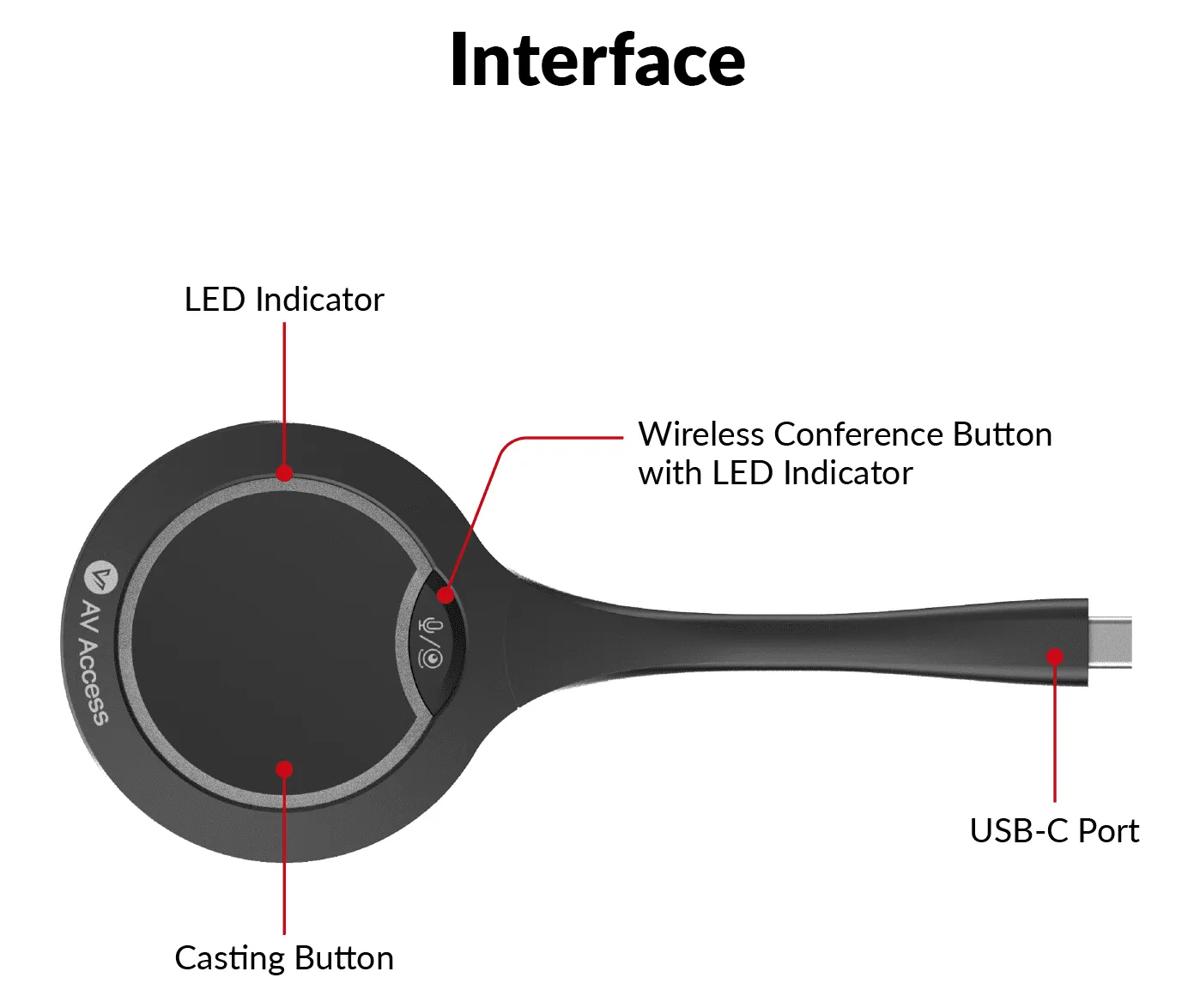

The eShare D30 USB-C dongle is designed with two control buttons: the casting button (the big one) and the “wireless conference” button (the small one with webcam/speaker icons).

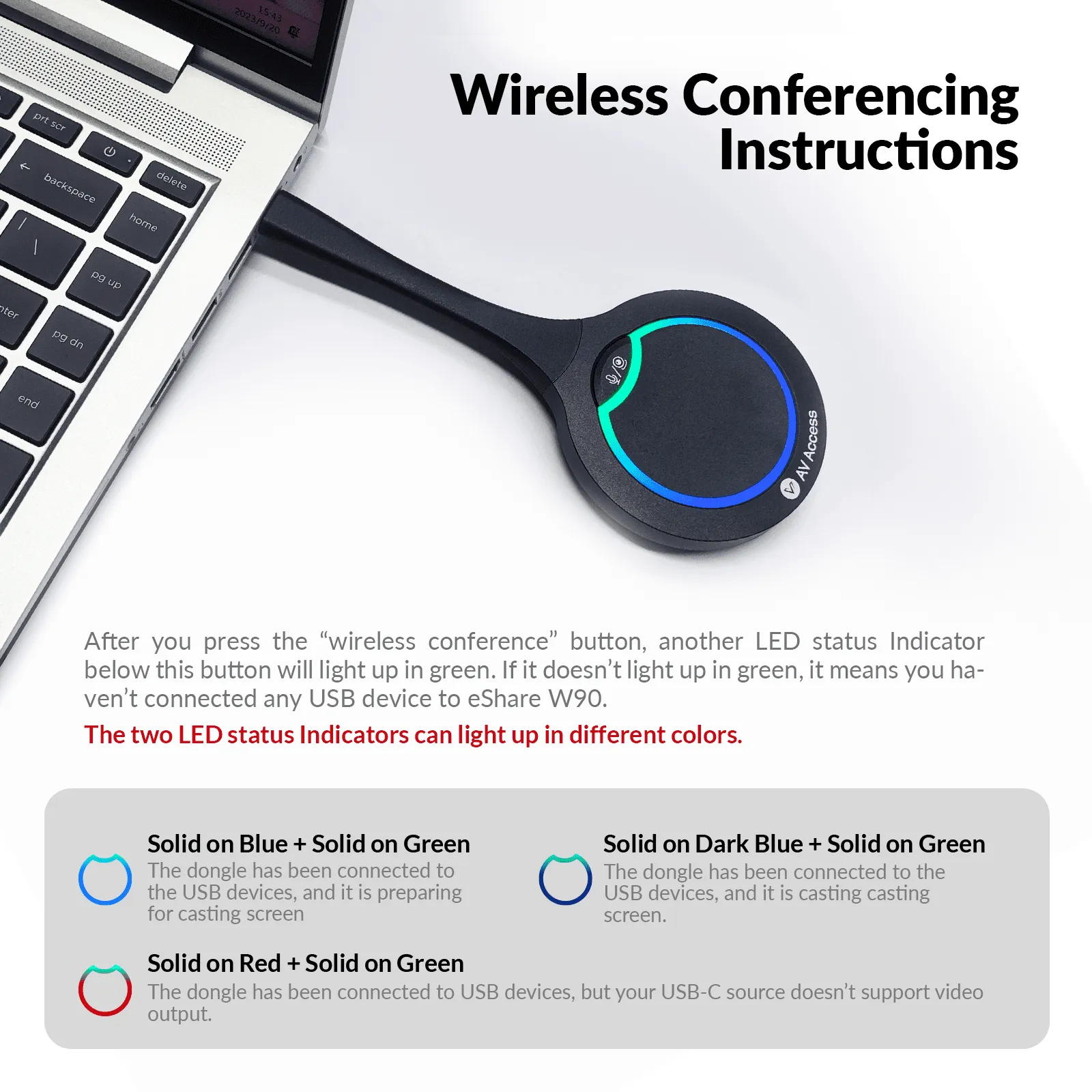

It supports one-click wireless conferencing. Once your USB conferencing devices are connected to the eShare W90 presentation system, you can control them wirelessly with the “wireless conference” button on the dongle. Please note that the eShare app is required for wireless conferencing.
Additionally, it allows you to wirelessly cast your laptop, smartphone, or tablet screen to the TV connected to the eShare W90 system. One or more dongles can be automatically paired with eShare W90 via its front USB-C port. After pairing, simply plug it into your laptop, tap the casting button, and your screen will be instantly mirrored on the TV.
Important Notes before Using:
- This USB-C dongle must be used with the eShare W90 presentation system.
- Plug the dongle into eShare W90 via the front USB-C port for automatic pairing. Once paired successfully, the message “Pairing Successful” will appear on the TV.
- Please ensure your laptop’s USB-C port supports video output before using the dongle for wireless casting.

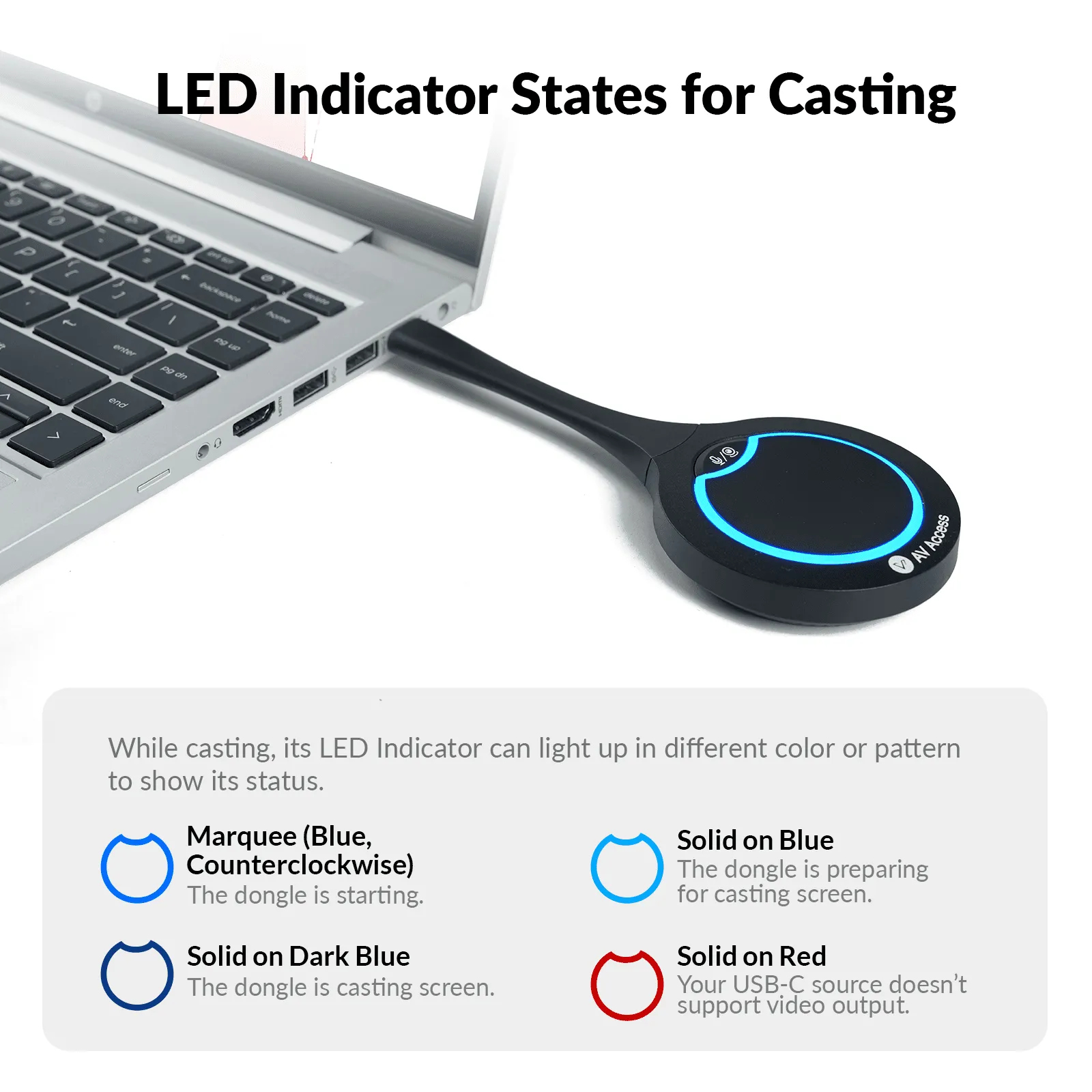

- When inserting the dongle into your laptop’s USB-C port, wait a few seconds until its LED indicator stops blinking and stays solid. Then, you can start casting.

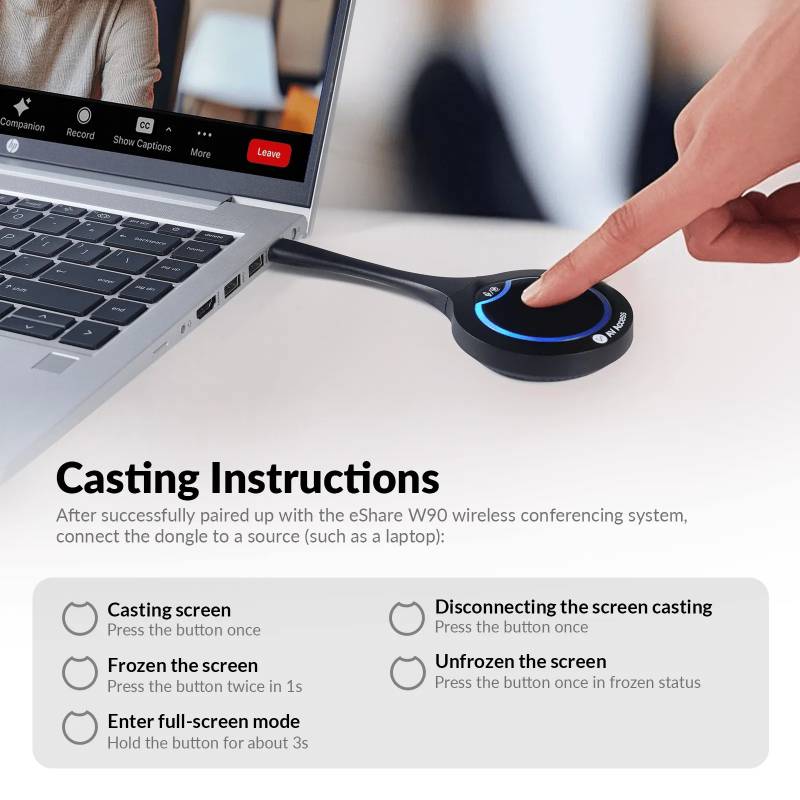

- Short press the casting button once to start or stop casting. To pause casting, short press the button twice.
- When connecting a computer to eShare D30 for the first time, a prompt will appear to install the eShare app. The app is required for wireless conferencing.
Main Features:
- Supports wireless casting with up to 4K@30Hz resolution
- Supports wireless conferencing (requires eShare app)
- Works with laptops, smartphones, and tablets—no cable hassles
- No software required for screen casting, truly plug and play
- Compatible with Windows 10/11, macOS, and Android OS
- Start/stop mirroring with just one button press
- Supports both duplicate and extended screen modes
- Compact and lightweight, easy to carry
In the Box
| Technical | |
| Max Resolution | 4K @ 30fps |
| Output | 1 x USB Type-C |
| Frequency | 5GHz (default) and 2.4GHz |
| Wireless transmission protocol | IEEE 802.11 a/b/g/n, IEEE 802.11ac |
| Authentication protocol | WPA2-PSK or IEEE 802.1X |
| USB | |
| Operate System | Windows 10/11, Mac OS |
| USB Port | USB Type-C Port |
| General | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 10% to 90%, non-condensing |
| ESD Protection | Human-body Model:
±8kV (Air-gap discharge)/±4kV (Contact discharge) |
| Input Voltage | 5V (Power over USB) |
| Power Consumption (Max) | 3.023W |
| Product size (φ x h x l) | 69mm x 15.34mm x 165.2mm/2.72” x 0.60” x 6.50” |
| Product Weight | 60g/0.13lb (net weight) |
