Uniclass K5DS-RC - 2-Port DSNet CAT5/6 Multimedia-Receiver
Is a long haul 300m receiver able to connect two monitors. Thanks to their chaining port, the receivers can be wired in series. The two RS232 ports can exchange bidirectional data with the broadcaster at data rates up to 115200 bps.
For each monitor you can tune the following settings in a few mouse clicks:
- Cable compensation
- Cable RGB deskew
- Video contrast
- Video brightness
- Audio volume
- Audio balance
- RS232 settings
- Unidirectional or bidirectional RS232
Note : All settings are sent by K5DS-BR to the receivers and splitters across the Cat5 cables. K5DS-RC
and K5DS-SP don't have any archaic setscrews that require you to risk your life climbing a ladder with a
screw driver, and that are deregulated the next day.
The video and audio settings can be set easily in a few seconds looking at the display panels and moving the
sliders of DSNet Management until the result is perfect. All settings are digital and saved into EEPROMs.
If this is a large installation, and if the display panels are far from an Ethernet access, we recommend
you run DSNet Management on a laptop featuring a wireless interface or 3G key. By this way you can
access to the broadcaster Management Server over the local network or over the Internet.
| Model No. |
K5DS-RC |
K5DS-SP |
| Cable |
Recommended cable: UTP Cat5
Supported cable: UTP Cat5, UTP Cat5e,
UTP Cat6
Max delay skew between pairs: 60ns
Max attenuation: 52 dB at 50MHz |
Recommended cable: UTP Cat5
Supported cable: UTP Cat5, UTP
Cat5e, UTP Cat6
Max delay skew between pairs: 60ns
Max attenuation: 52 dB at 50MHz |
| Front Panel |
|
Indicators:
1. Power
2. System In: Lights on if the splitter is
enabled.
3. For each System Out Port: Lights
on if the output port is enabled.
Note: Disabled ports receive and drive
no stream. |

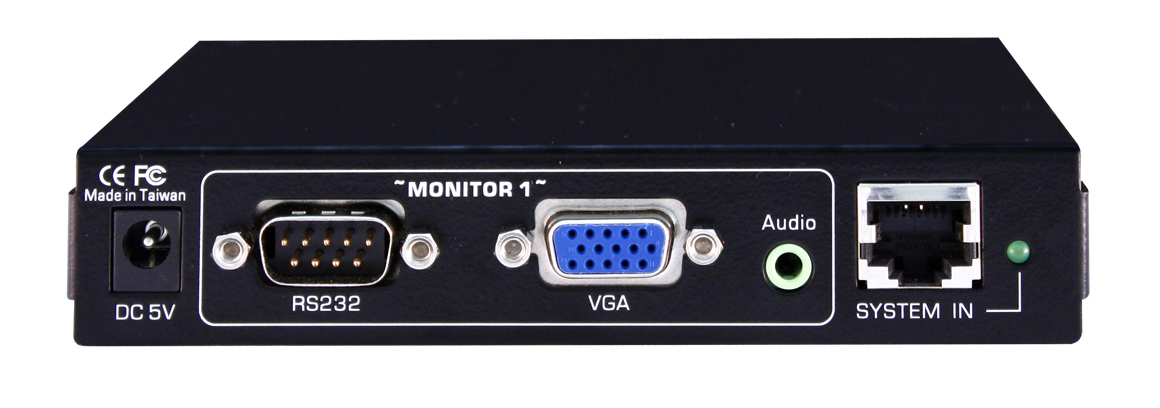

| Front Panel Connectors |
Systeme In: Connection to broadcaster,
splitter or previous receiver.
Audio: Stereo audio port to monitor 1
VGA: Full VGA interface to monotor 1
RS232: to monitor 1. Up t0 115200 bps,
RTS/CTS, DSR/DTR |
|
| Front Panel Indicator |
System In: Lights on if the receiver is
enabled. |
|

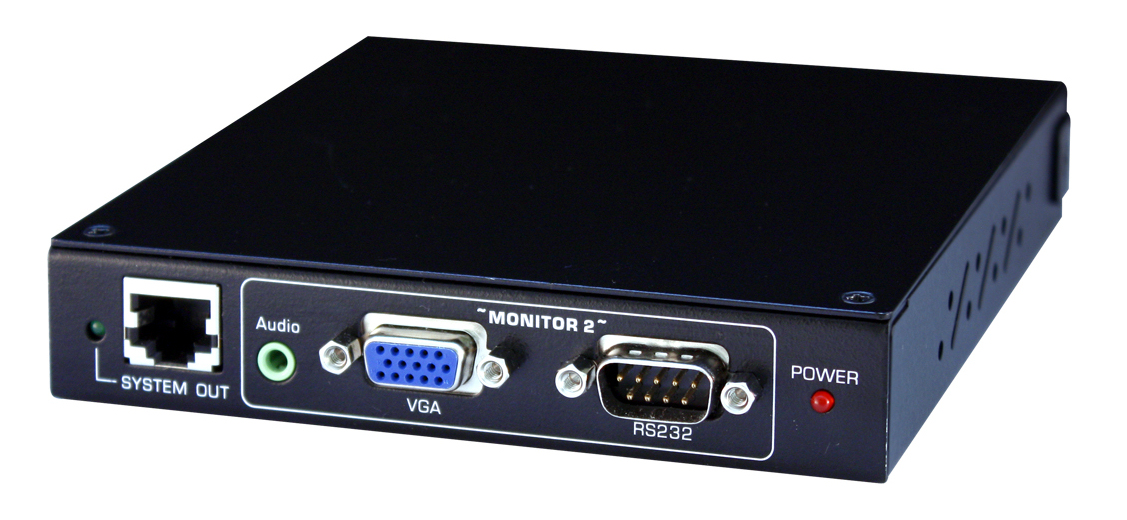

| Back Panel Connectors |
Systeme Out: Chaining port for serial
wiring.
Audio: Stereo audio port to monitor 2
VGA: Full VGA interface to monotor 2
RS232: to monitor 2. Up t0 115200 bps,
RTS/CTS, DSR/DTR |
|
| Back Panel Indicators |
Power
System Out: Lights on if the chaining port
is enabled, i.e. indicate if next receivers
can receive the video, audio and data
streams. |
|
| Video Resolution |
|
1920 × 1080 @ 60HZ over 300m.
Higher resolutions are possible with
shorter cables. |
| Management |
Via the broadcaster with DSNet Manager
software. |
|
| Management |
Via the broadcaster with DSNet Manager
software. |
Via the broadcaster with DSNet
Manager software. |
| Power Supply |
External 5V 2A power adapter |
External 5V 2A power adapter |
| Working temperature |
0 to 50°C |
0 to 50°C |
| Stocking Temperature |
-20 to 60°C |
-20 to 60°C |
| Humidity |
0 to 90%, not condensing |
0 to 90%, not condensing |
| Housing |
Metal case |
Metal case |
| Dimension (L x l x H) |
130 x 135 x 26 mm |
130 x 135 x 40 mm |
| Weight |
520 g |
600 g |
| Standards |
FCC, CE |
FCC, CE |
Secifications
| Model No. |
K5DS-RC |
| Product Description |
2-port DSNet Receiver |
| Number of Ports |
2 |
| Number of Console |
2 |
| Console Video Connector |
2 x HDB15 |
| Console Audio/Mic connector |
2 x 3.5mm Audio/Mic Jack Female |
| Serial Port |
2 x DB9 Male |
| Daisychain |
Daisy-Chain |
| Daisy-chain port connector |
2 x RJ45 |
| Daisy-chain level |
5 |
| Video Input Port |
Via RX RJ45 |
| Video Output Port |
2 x HDB15 |
| Audio Input Port |
Via RX RJ45 |
| RS-232 Extension Support |
Bi-directional |
| DDC / EDID emulation |
Yes |
| TX connectors |
RJ45 Female |
| RX connectors |
RJ45 Female |
| Cable media |
CAT5 |
| Power LED |
1 (Red) |
| Analog Display Resolution |
1920 x 1080 |
| DDC Emulation |
Yes |
| Operation Temperature |
0 ~ 40°C |
| Storage Temperature |
-20 ~ 60°C |
| Humidity |
0~90% RH, Non-Condensing |
| Power type |
2.5mm Power Jack |
| Weight |
520g |
| Dimension(L×W×H) |
152 x 135 x 26 mm |
| Safety / Emission |
FCC, CE |
