UNICLASS DX-231 CAT5 2 x DVI + USB 2.0 + Audio KVM Extenders over IP or 1:1 Cat-Cable
CAT5 DVI KVM Extender Over LAN
w/ Audio & Mic.
4 x USB 2.0 ports for keyboard, mouse and other USB 2.0 devices
2 x Digital Video Support Full HD 1080p up to 100M Extension
DX231
The CAT5 DVI KVM Extender Over LAN comprises two distinct Units, the Transmitter and Receiver Unit. It is allows fully access and complete control of your computing resources over the UTP cable. They are LAN based KVM Extender systems that allow access to a computer system from a remote console anywhere on your existing network infrastructure.
The CAT5 DVI KVM Extender offers the extension of keyboard, mouse, video, Mic. and USB equipment, use a single Cat5 cable transmission, up to 100M away from your local PC.
The KVMR Extender can support a dual head digital video with each resolution up to 1920 x 1200 @60Hz over 100M of Cat5e cable, while still keeping a satisfying video quality at the same time. Furthermore, the Dual Monitors DVI KVMR Extenders support Graphic Mode / Video Mode selection to suit your display requirements. Graphic mode is optimized for still graphic displays; while video mode is best for a dynamically changing video stream.
Features:
-
CAT5 DVI KVM Extender Over LAN
-
Extension distance up to 100M/ 330ft. over two Cat5 UTP cable segment.
-
Extending another 100M by adding the Gigabit Ethernet Switch through Cat5 cable between Transmitter and Receiver Units.
-
4 x USB 2.0 Ports with USB extension over LAN for keyboard, mouse and other devices.
-
Support Audio and Mic. extension over LAN
-
Each Digital Video resolution can support up to 1920 x 1200 up to 100M
-
Graphic Mode and Video Mode for selection
-
Fully compatible with USB HID device for any keyboard, mouse and USB devices
-
Supports multiplatform OS such as Windows /2000/XP/Vista/7/Windows 8 and Linux
-
Easy Plug-and-Play application, no configuration required
-
Optional IR remote control Unit accessories available
Specifications
|
Model No.
|
DX231-TX
|
DX231-RX
|
|
Component Units
|
1 x DX231-TX(Transmitter Unit)
|
1 x DX231-RX(Receiver Unit)
|
|
PC Connections
|
1
|
No
|
|
Connectors
|
2 x DVI-D Female
1 x Remote Out Jack
1 x USB Port (Type B)
1 x Mic. Jack
1 x Speaker Jack
1 x RJ45
|
2 x DVI-D Female
1 x Remote In Jack
4 x USB Port (Type A)
1 x Mic. In Jack
1 x Speaker Out Jack
1 x RJ45
|
|
LEDs
|
1 x Power (Red) 1 x Link (Green)
|
|
Switch Button
|
2 x Momentary Switch

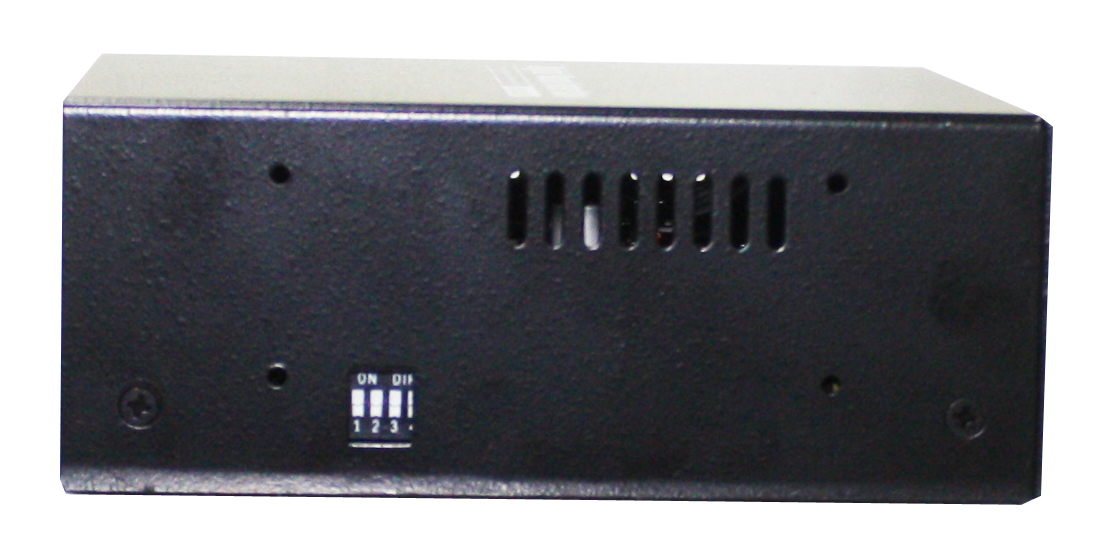

1 x 3 Position Dip Switch
|
|
DVI Video Resolution
|
1920 x 1080@60Hz/ Full HD 1080p – 100M/ 330ft.
Each Head
|
|
Operation Temperature
|
0 ~ 40?
|
|
Storage Temperature
|
-20 ~ 60?
|
|
Humidity
|
0~90% RH, Non-condensing
|
|
Weight
|
750g
|
750g
|
|
Dimension (L x W x H)
|
120 x 135 x 53.5 mm
|
|
Housing
|
Metal enclosure
|
|
Power Adapter
|
DC 9V/ 2A
|
|
Safety / Emission
|
FCC, CE
|
