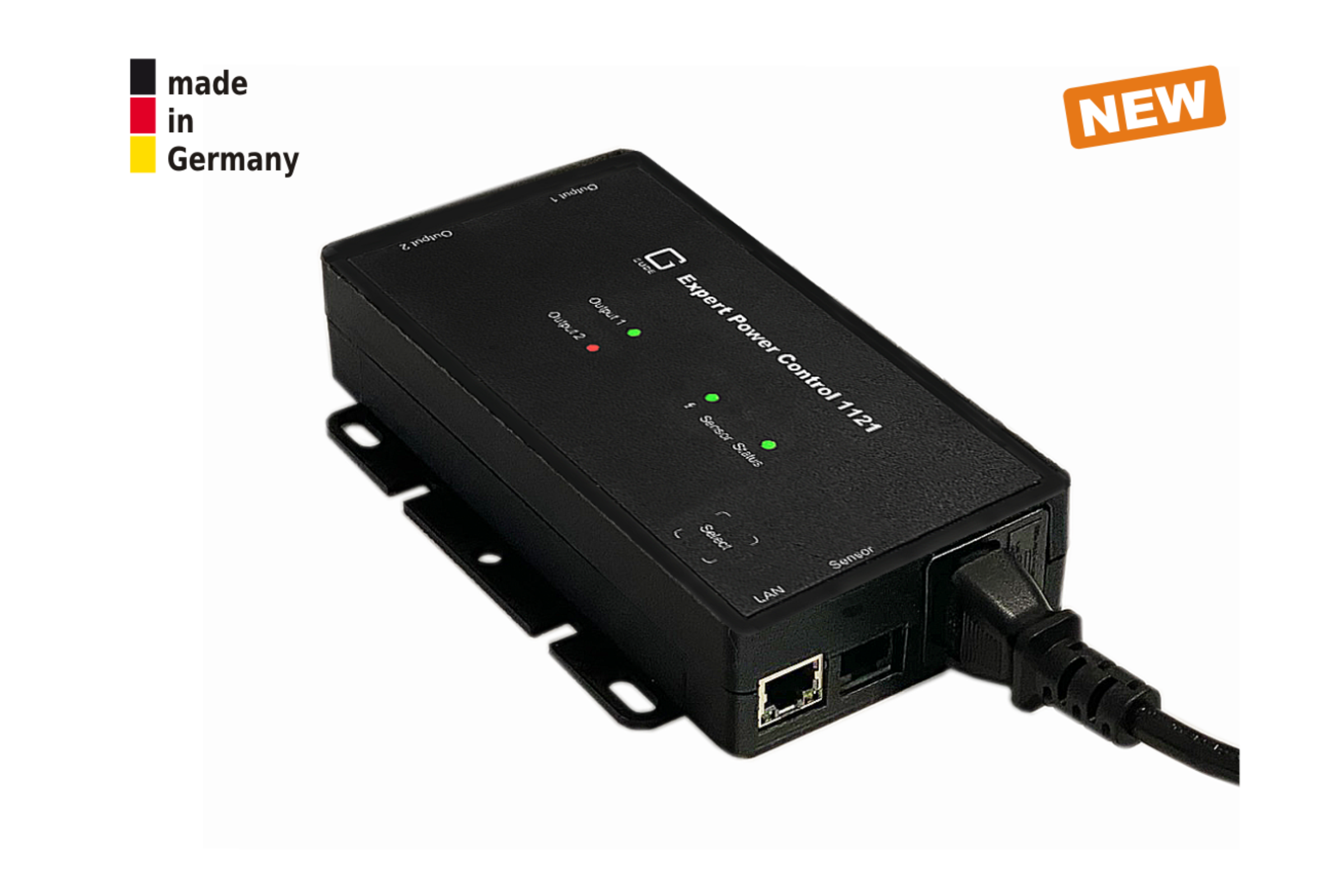

Small 2-fold switched and metered PDU 10 A, 2 x IEC C13, 1 x for Sensor, SSL, IPv6, SNMPv3, ÜSS, GUDE 1121-1

Small 2-fold switched and metered PDU 10 A, 2 x IEC C13, 1 x for Sensor, SSL, IPv6, SNMPv3, ÜSS, GUDE 1121-1

Locations

• AV environments: Huddle rooms, conference rooms, theaters, cinemas, marine environments, smart home, meeting rooms, courtrooms, lecture halls in universities, LED walls or digital signage systems (DooH)
• Industrial environments: Production facilities, solar installations, manufacturing rooms, warehouses or test labs
• IT installations: distributed infrastructures, equipment rooms, KVM, network closets, server racks, 19″ cabinets, data centers or server rooms

Application

• Switching of network or media devices by media controls of well-known AV manufacturers (AMX, Atlona, Barco, Crestron, Control4, Extron, Neets, QSC, Utelogy)
• Remote reboot of PCs, servers, routers and switches
• Reduction of power consumption and thus lower CO2 emissions from standby devices
• Network monitoring with with integration in monitoring software (PRTG, Icinga, Nagios, Power IQ, Tivoli)
• Switching and control of servers and IT devices in the server room and data center
• Environment monitoring with plug-and-play sensors (temperature, humidity)

Key Features

• Simple and quick mounting even in the smallest AV installation
• Event and schedule controlled switching
• Self-healing function
• Precise current metering of up to 9 electrical units and residual current
• Connector for plug-and-play sensors
• Lightweight and robust plastic housing
• Hybrid surge protection (SPD type 3)

Switching function

• Each power port can be switched via HTTP(S), SNMP, ModbusTCP or command line interface via Telnet, SSH or MQTT
• Programmable on/off sequences for remote reboots (Remote Reboot)
• Power ports can be switched when preset sensor thresholds are exceeded
• Self-healing function thanks to 2-channel watchdog: Each power port can be assigned its own Watchdog (ICMP/TCP), which initiates a fully automatic restart if necessary
• Switching state and switch-on delay up to 9999 seconds (166 minutes) individually adjustable for each output port after power failure
• Current peaks due to increased inrush currents are automatically prevented by sequential switch-on with a latency of 1 second

Metering function

• Power consumption metering (kwH) with 2 energy counters: one counter counts consistently, the other counter is resettable
• Metering of current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr)
• Connector for combined plug-and-play sensors (temperature, humidity and air pressure) to prevent often occurring physical hazards like overheating and increased humidity or air pressure

Security

• Integrated type 3 overvoltage protection prevents damage to the device and connected loads
• Long-life High-Inrush Relays prevent welding of relay contacts during inrush current peaks
• Generation of status messages and alarms (e-mail, syslog, SNMP traps MQTT, SSH, Telnet)
• Encrypted e-mails (SSL, STARTTLS)
• Access protection by IP access control
• Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
• Password protected access
• Beeper for audible alarm when sensor limits are exceeded/deceeded

Operation

• Easy-to-read LEDs displaying switching status of outlets and device status
• Firmware update via Ethernet during operation (no restart required)
• Simple and flexible configuration via web browser, Windows or Linux program
• Dynamic assignment of an IP address via DHCP or manual assignment of static IP address

Technical Details

• Integrated type 3 overvoltage protection (L-N, L/N-PE), status retrievable via network
• High-inrush relay: max. 4 sec: 30 A /max. 20 ms: 80 A
• Measurement of key electrical parameters: current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr)
• Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
• LxDxH: 168 x 86 x 34 mm (without mounting brackets)
• Weight: approx 450 g
• Operating temperature: 0-45 °C
• Storage temperature: -20 – 70 °C
• Relative humidity: 0 – 95 % (non condensing)

Electrical Connections

• 1 power supply IEC C14 (max. 10 A, 230 V)
• 2 power ports IEC C13 (max. 10 A)
• 1 Ethernet connector RJ45 (10/100 Mbit/s)
• 1 sensor connector (RJ45) for plug-&-play sensors

Order code

• 1121-1: 2x IEC C13

Scope of delivery

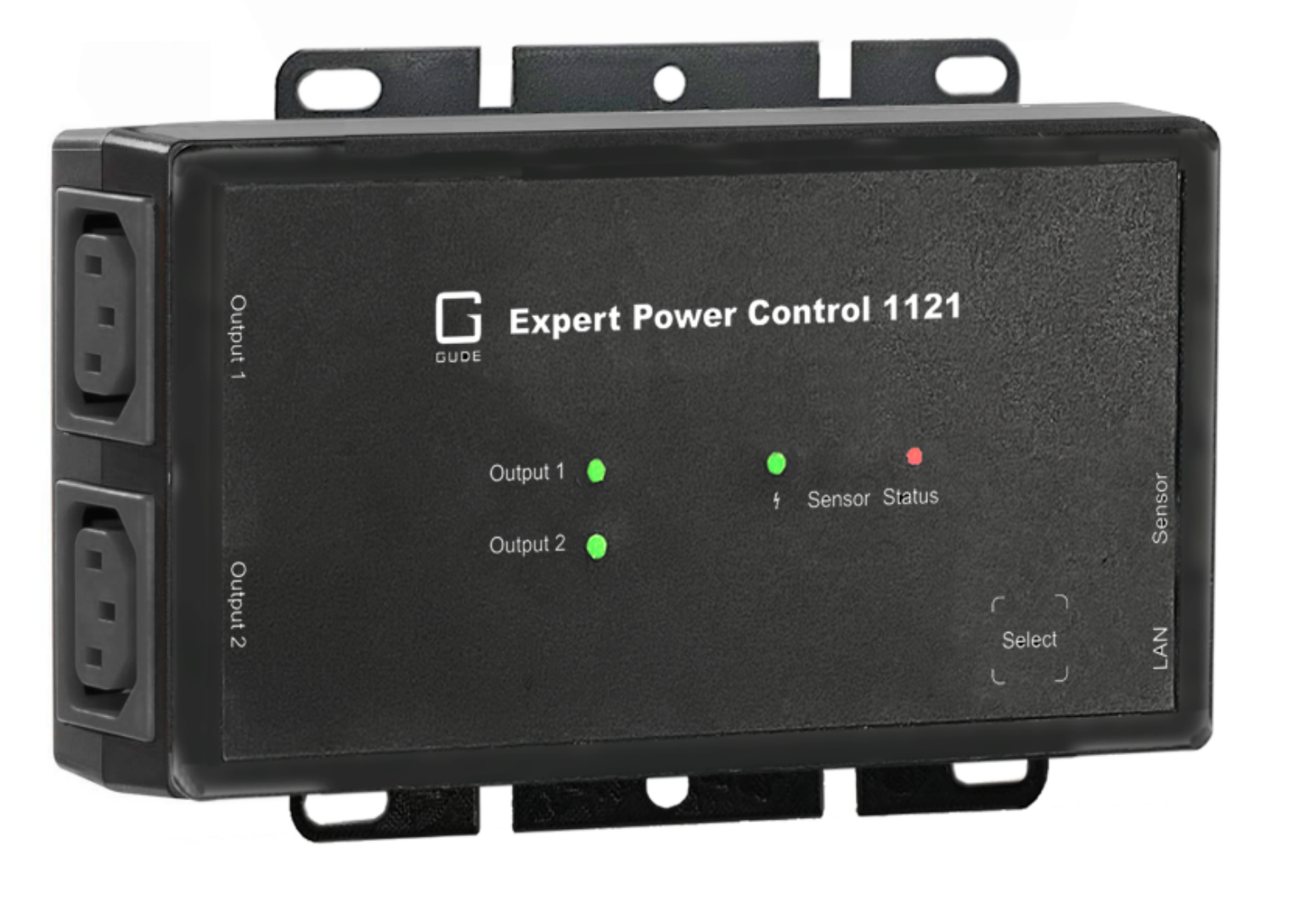

• Expert Power Control 1121-1
• 1 power supply cable (safety socket type F- IEC C13)
• Quick start guide
