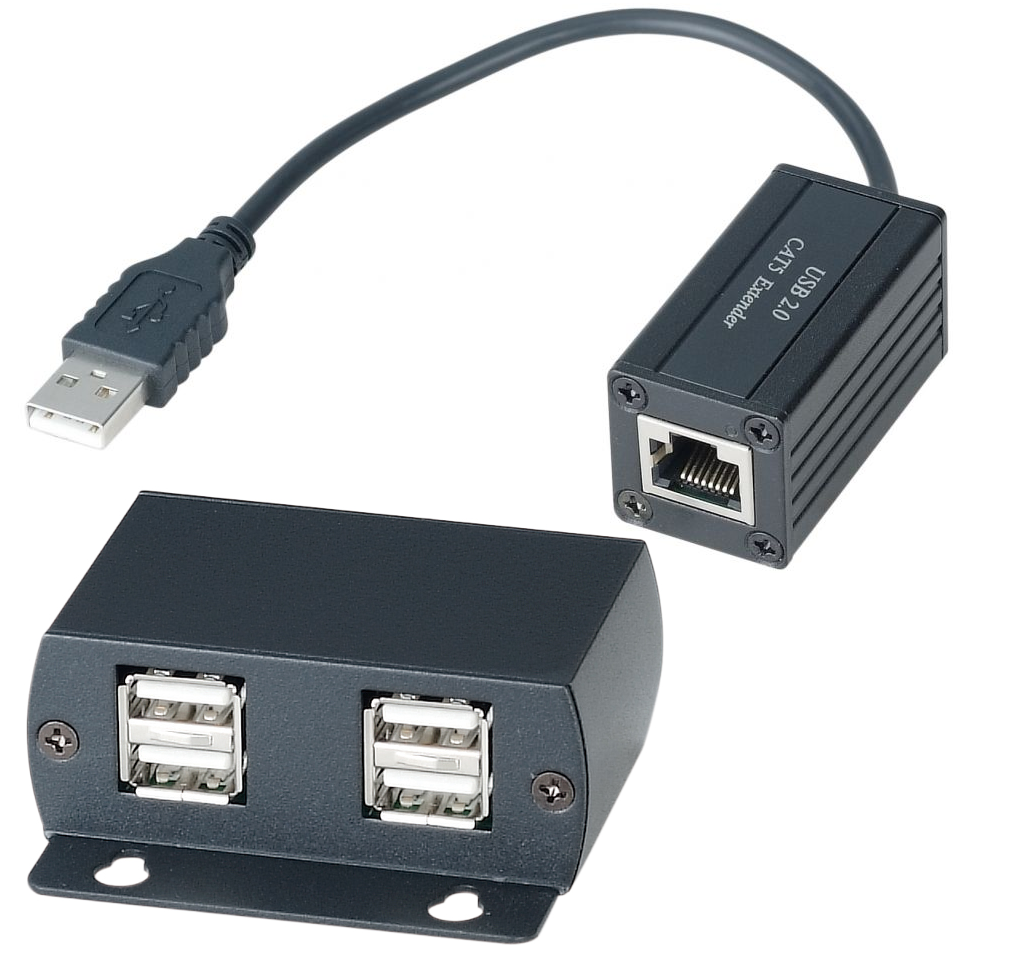

SC&T UE03-2 USB 2.0 CAT-Extender-Set with 4-Port USB 2.0 Receiver (up to 60 meters)
The UE03 USB extender design for extends 4 x USB device up to 60 meters from the location of your computer over CAT5/5e/6 UTP cable. It could eliminate the 5 meters distance limitation of USB. It is optimized for applications for digital signage, home network integration, industrial control, security USB camera, USB device sharing, and KVM extension. .
Features:
-
Extend four USB devices up to 60 meters over CAT5e cable.
-
Supports USB 2.0 high-speed and USB 1.1 (low-speed, full speed) devices.
-

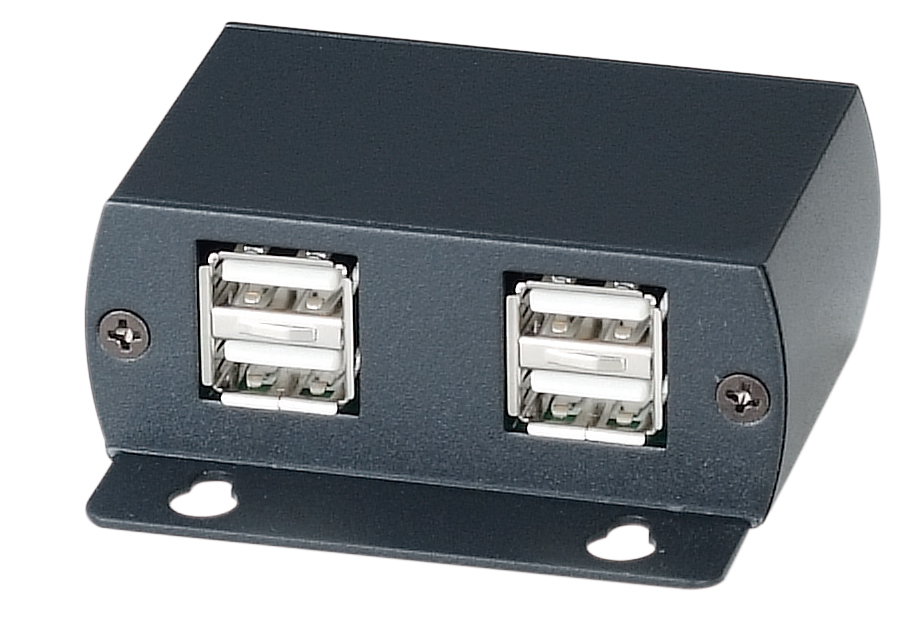

Remote unit built in 4 port hub to connect 4 USB devices.
-
Including local and remote unit, 1 x 5V external power supply.
-
Plug and play for easy operation.
-
Application for extending all USB 2.0 peripheral devices, such as USB camera, printer, scanner, USB Ethernet/VGA/HDMI adapter, mass storage device, keyboard, mouse, etc.

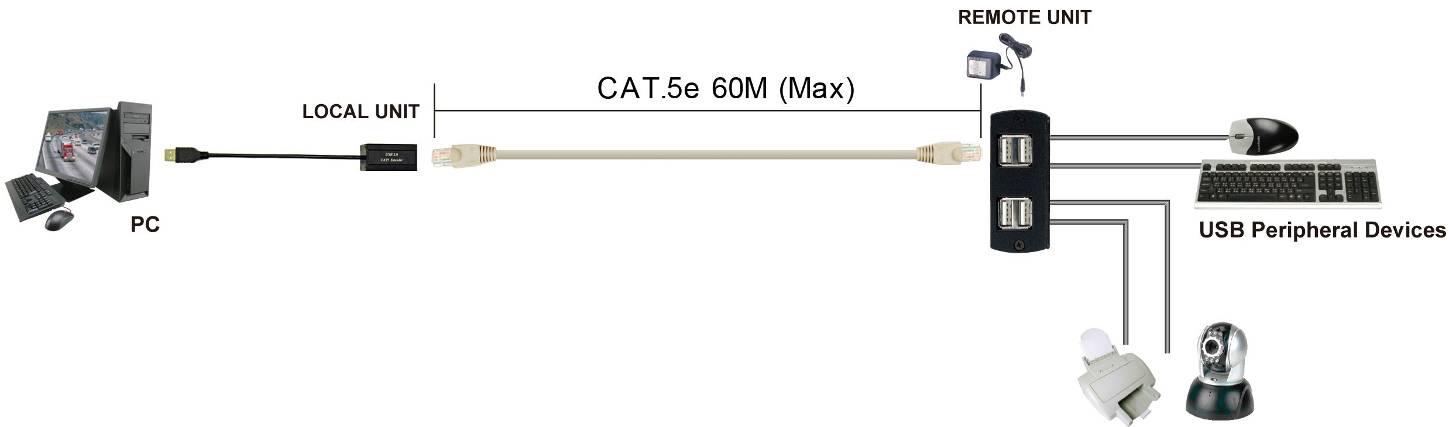

Installation View:
Cable:
Video Link cable use high quality CAT5E UTP or CAT6 UTP cable.
Please noted STP/FTP cable would less transmission range.
Caution:
UE03 device is not Ethernet product, do not to connect any Ethernet or PoE network with outside plant routing to avoid any damaged.
Specification:
|
ITEM NO. |
UE03T ( Remote Unit) |

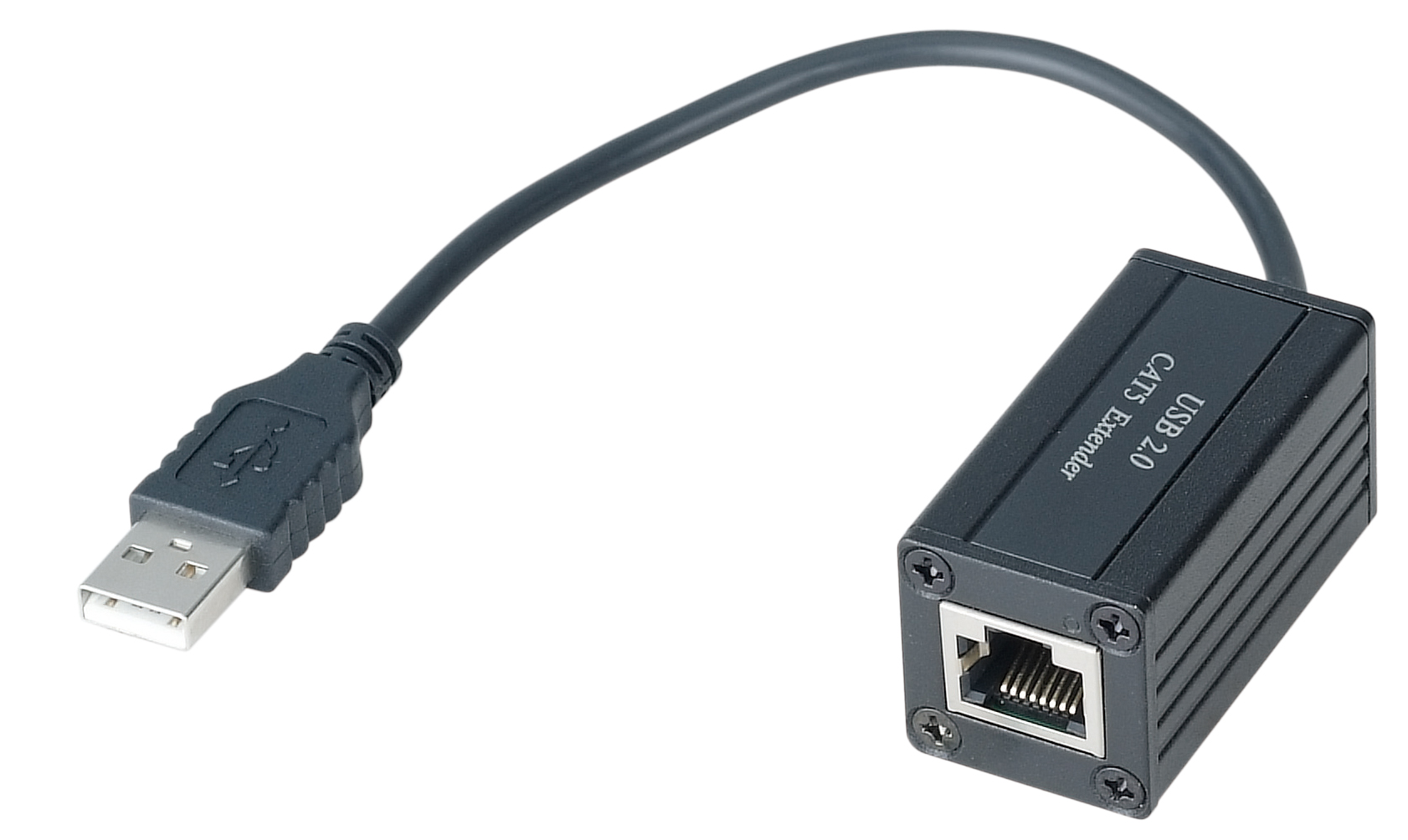

UE03R (Local Unit) |
|
Input / Output |
USB Type A x 4 (Female) |
USB Type A x 1 (Male) |
|

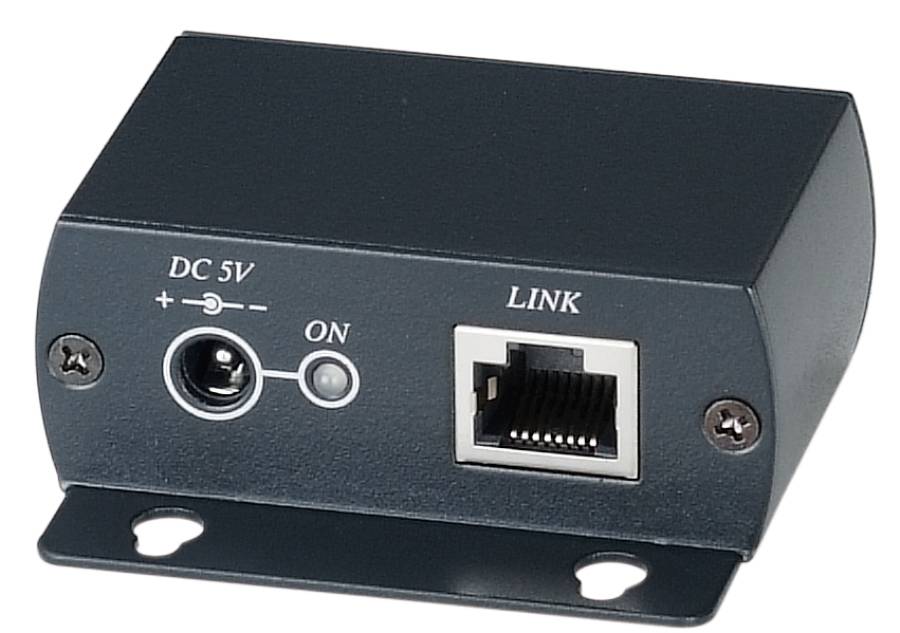

Link Connector |
RJ45 x 1 |
|
|
Cable |
CAT5/5e/6 cable |
|
|
Working Distance |
CAT.5e: 60M |
|
|
USB Device Support |
Hi-Speed (480Mbps), full speed (12Mbps), low-speed (1.5Mbps) |
|
|
Power Consumption |
4 Port USB Device Can Supply a Total of 1500 mA |
|
|
Power Adapter |
5V DC 2A Regulated (External) |
USB Internal Power Supply |
|
Temperature |
Operation: 0 to 55°C, Storage: -20 TO 85°C, Humidity: up to 95% |
|
|
Dimensions mm |
60 x 70 x 27 |
25.4 x 25.4 x 240 + 190mm USB Cable |
|
Weight g |
115 |
55 |
