NEW

Zero-Latency 8K HDMI KVM-Extender Set, HDMI 2.1 & HDCP 2.3, 4x USB 2.0, 100m, AV Access 8KEX100-KVM

Product No.:
8KEX100-KVM
Shipping time:
in stock (1 up to 2 days) in stock (1 up to 2 days) (abroad may vary)
price netto:
339,00 EUR
403,41 EUR

incl. 19% tax excl. Shipping costs

Description

Zero-Latency 8K HDMI KVM-Extender, HDMI 2.1 & HDCP 2.3, 100m Over Cat 6/6A/7, 4K/5K, Ultrawide Resolution, 4-Port USB 2.0, EDID, PoC & RS-232

With this groundbreaking HDMI 2.1 plus 4x USB 2.0, Audio/RS232 KVM extender, you can also separate modern control consoles from the computer with extremely high image quality.

● 8K UHD & Zero Latency: Transmits 8K@60Hz video and USB 2.0 signals over a single Cat6/6A/7 cable up to 100m/328ft with zero latency.
● Max. Resolutions: up to 8K60Hz 4:2:0, 4K120Hz 4:4:4 or 1080p 240Hz,
● USB 2.0 Extension: Remotely control your PC with up to 4 USB 2.0 Type-A ports.
● High Refresh Rate: Delivers ultra-fluid motion with support for 1080P@240Hz and 4K@120Hz video signals.
● One-Way PoC: Power both units from a single power adapter at the receiver.
● Bi-Directional RS-232: Remotely control displays, switchers, projectors, or other serial-based devices without additional wiring.
● EDID Management: Offers DIP-switch EDID management to ensure matched resolution, refresh rate, and audio between the transmitter and receiver.
● HDR 10: Delivers richer colors, deeper contrast, and more lifelike details in every frame.
● Plug & Play with Wide Compatibility: Works seamlessly with PCs, recorders, and other HDMI devices—no driver required.



8K@60Hz 4:2:0

Precision 8K Transmission with True Zero Latency

Experience real-time 8K visuals and zero-lag USB control at distances up to 100 meters. Stay seamlessly connected to your workstation from a remote location. Ideal for studios, hospitals, control rooms, and mission-critical 8K workflows.






Typical Applications




Hospitals & Healthcare

Stream 8K ultra high-definition video for live surgical demonstrations and remote diagnostics with the KVM-Extender, while USB ports enable easy remote PC control. This allows specialists to observe minute details and conduct smooth remote diagnostics in telemedicine.


Multimedia Classrooms

Enhance interactive learning with this KVM-Extender, offering high-definition visuals and zero-latency transmission for crisp images and reliable performance. Even with the server miles away, teachers can effortlessly control it using the classroom’s keyboard, mouse, speakerphone, and projector/monitor, significantly boosting teaching efficiency.


Film & Broadcast Production

The 8K KVM-Extender delivers high-quality live video from cameras to directors’ monitors or live switchers, ensuring consistent color and detail across displays without image distortion. Equipped with HDCP 2.3, it prevents unauthorized content copying to protect film and television copyrights. This makes it perfect for large-scale live events and post-production workflows.


E-sports Venues

From gaming PCs to tournament displays, this KVM-Extender supports high refresh rates up to 4K@120Hz, delivering smooth, lag-free gameplay with responsive visuals for competitive players and spectators. In gaming cafes or large e-sports venues, it allows for centralized, secure PC setups while providing a direct, high-fidelity video feed in 328ft (100m) over a Cat 6/6A/7 cable.

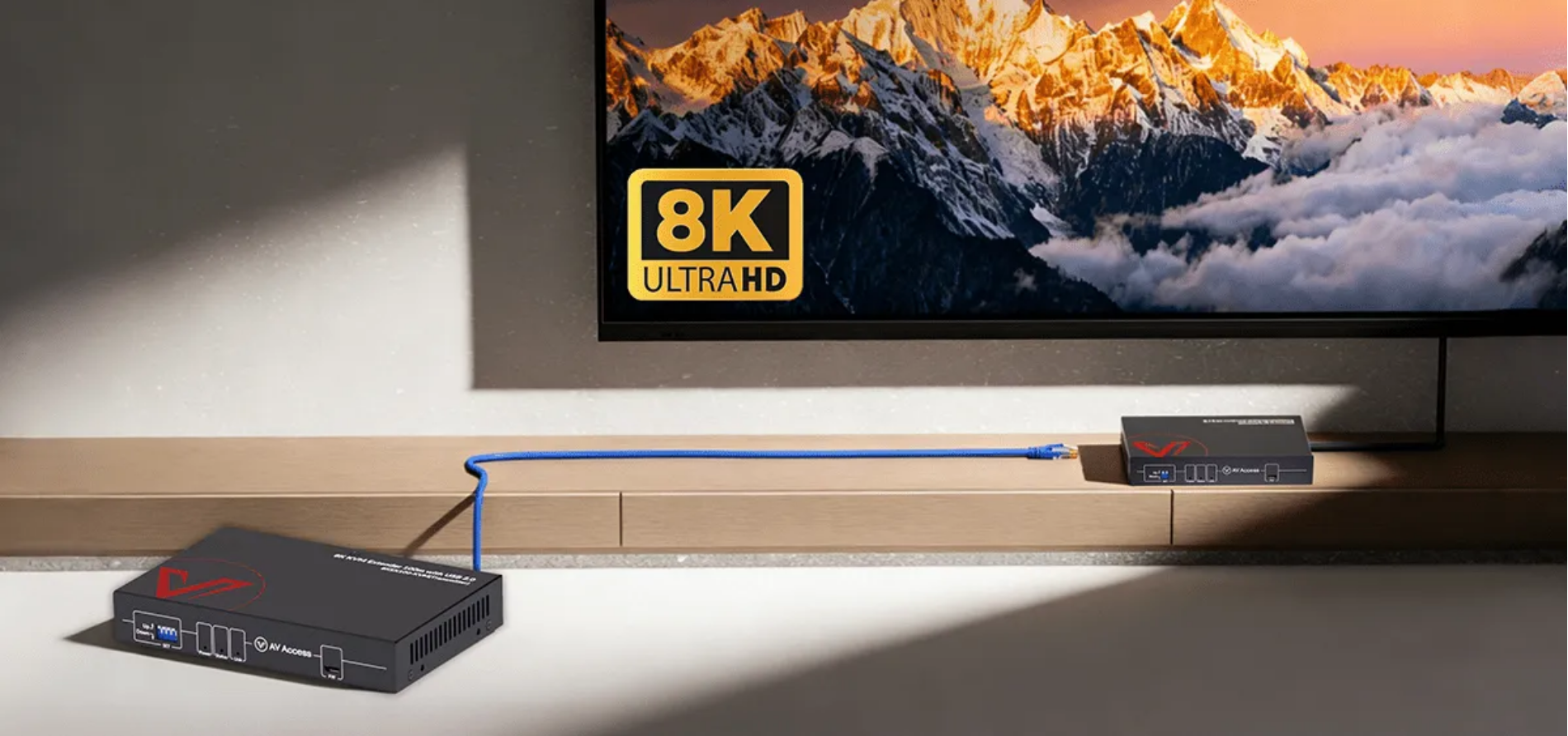

8K@60Hz 4:2:0

Enjoy an Immersive 8K Viewing Experience

Delivering stunning 8K@60Hz 4:2:0 visuals, this KVM-Extender supports the full suite of uncompressed HDMI 2.1 features—including Dolby Vision, VRR, and ALLM—for a smooth, lifelike, and truly immersive viewing experience.







HDR10

Experience True-to-Life Colors and Details

HDR10 delivers richer colors, deeper contrast, and enhanced brightness, ensuring every scene—or even every frame—appears with stunning detail and lifelike realism.



4K@120Hz

See Every Frame with Ultra-Smooth Motion

For e-sports and live broadcasting where every millisecond matters, a low refresh rate can lead to visible lag. This KVM-Extender supports 1080P@240Hz, 4K@120Hz, and 4096×2160@120Hz video input, delivering fluid motion and a truly responsive experience.






ZERO LATENCY

Up to 100m/328ft Range with Zero Latency

Transmits uncompressed HDMI signals over a single Cat6/6A/7 cable up to 100m/328ft with true zero delay, delivering stable long-distance performance for professional AV setups.

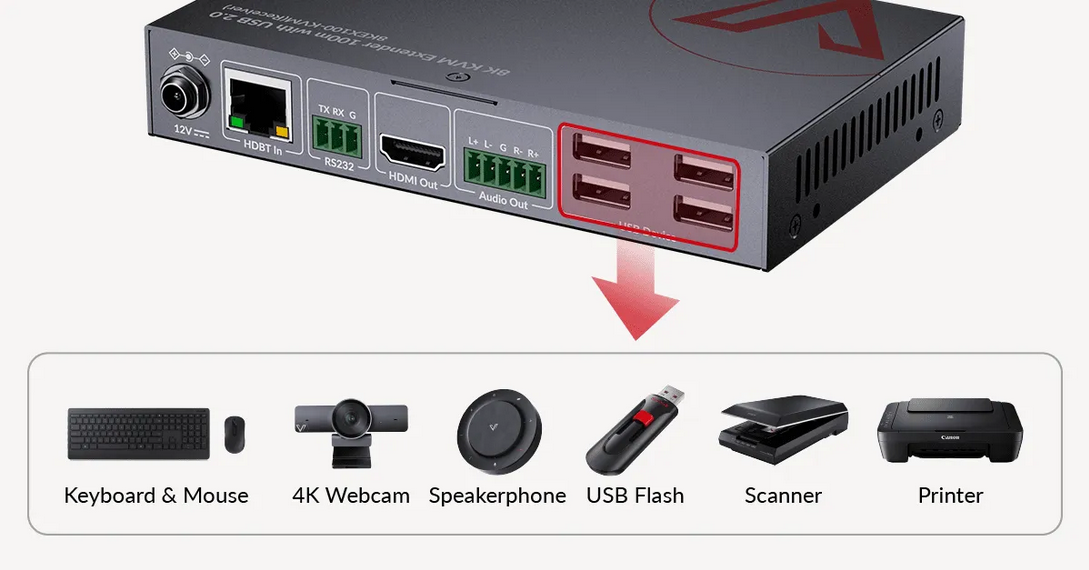

USB 2.0 EXTENSION

Remote Control with 4 x USB 2.0 Ports

This extender is designed with four USB 2.0 peripheral ports on the receiver, enabling easy control of a computer, PlayStation, or Xbox with a mouse, keyboard, microphone, camera, speakerphone, game controller, etc.

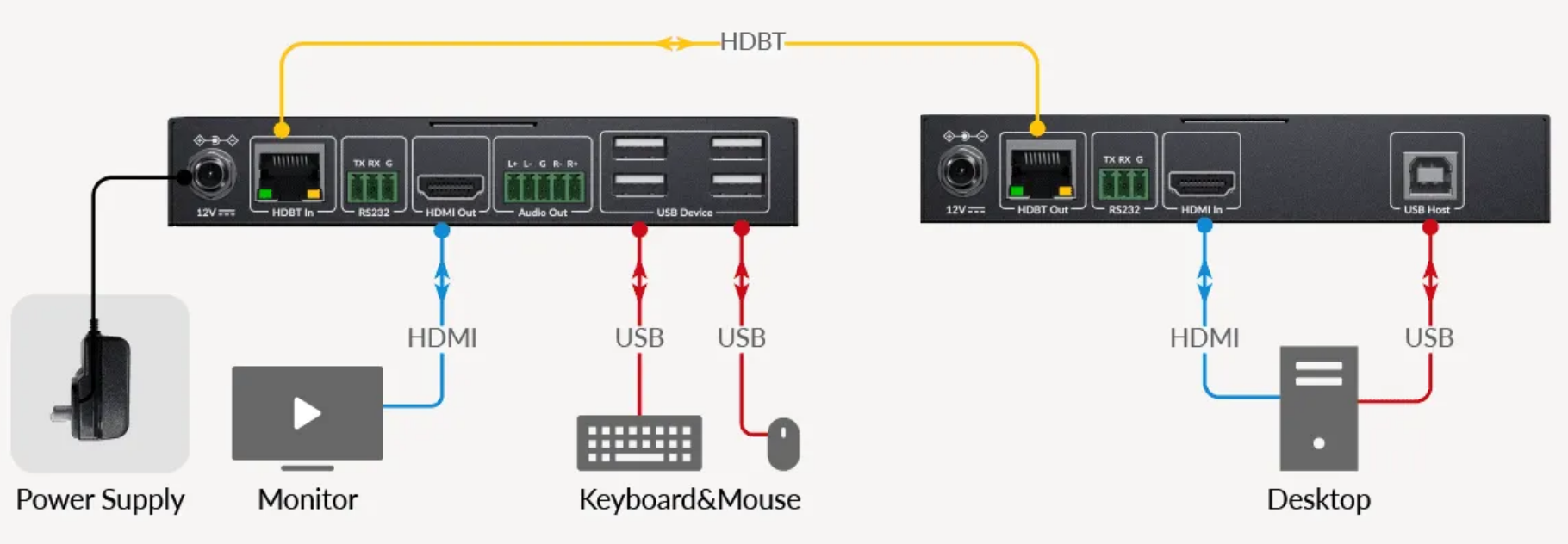

ONE-WAY POC

Simplified Power and Installation

With the built–in PoC (Power Over Cable) support, the extender powers the transmitter directly through the same Cat cable, reducing wiring clutter, simplifying installation and saving space in professional AV environments.

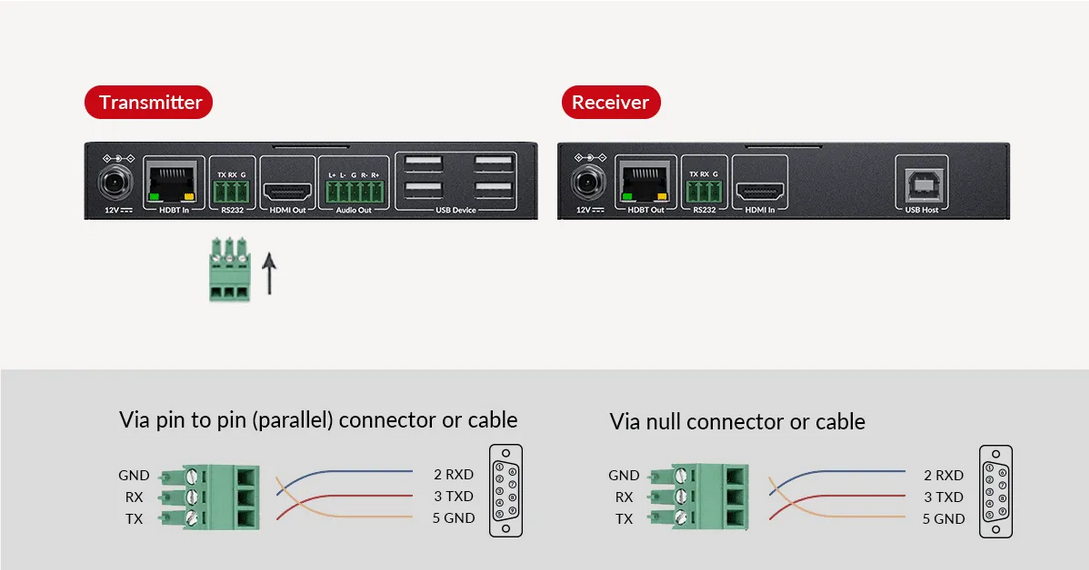

RS-232

Bi-directional RS-232 Passthrough

Supports bi-directional RS-232 transfer between transmitter and receiver, enabling seamless remote control of displays, switchers, projectors, and other serial-based devices without extra wiring—ideal for automation and professional AV integration.

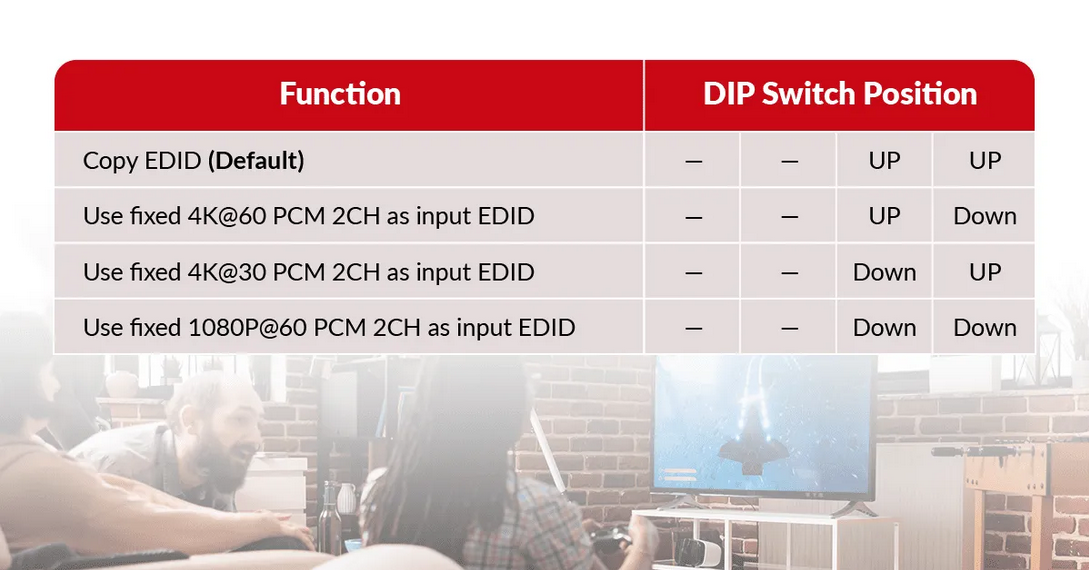

EDID

EDID Management Made Easy

Copy your display’s EDID automatically for plug-and-play convenience, or choose a fixed EDID for guaranteed compatibility with 4K@60Hz, 4K@30Hz, or 1080P@60Hz devices. Enjoy stable video and audio without setup headaches.

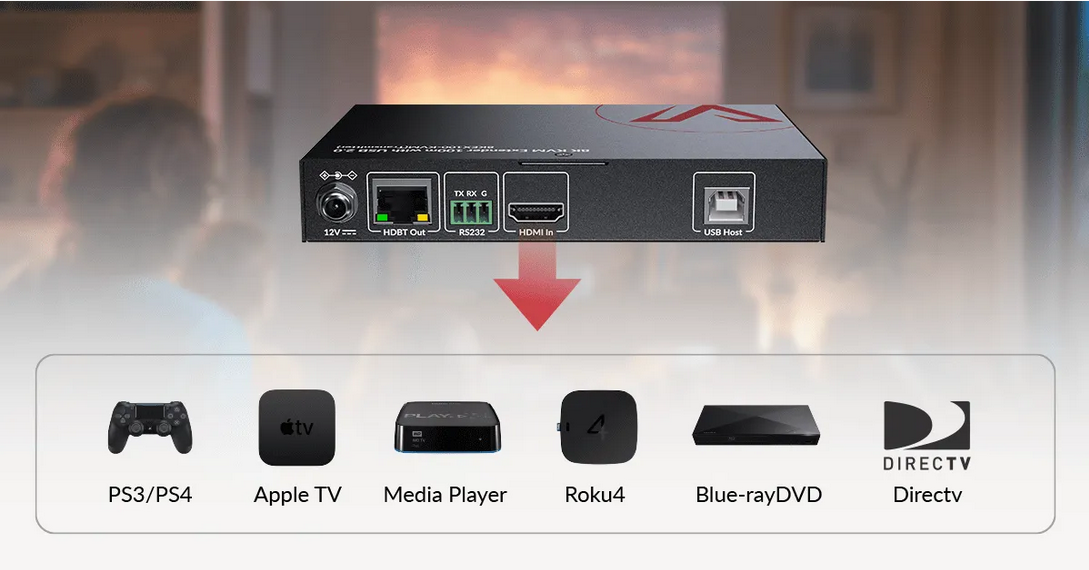

HIGH COMPATIBILITY

Freedom to Choose Multi-Format Video

Supports a wide range of HDMI devices—Apple TV 4K, Roku, Amazon Fire TV 4K, Cisco cable boxes, Comcast, Xbox One X, PS4 Pro, Vizio TVs, Sky Q, and more—ensuring seamless connectivity and reliable performance across your entertainment and professional setups.



PLUG & PLAY

Quick Setup, No Software Needed

Connect and go—no drivers or extra software required. Enjoy hassle-free installation and instant operation.




FAQs

Q: What's a KVM_Extender?
A: A KVM-Extender extends video and USB signals over long distances for remote control. This is particularly useful in environments like server rooms, where access to equipment may be limited.

Q: What's HDCP?
A: HDCP stands for High-bandwidth Digital Content Protection. This protocol is formed to protect digital audio and video content from being copied and distributed. This HDMI extender supprts HDCP 2.3.

Q: What's the highest resolution this KVM-Extender can handle?
A: This product supports video up to 8K@60Hz 4:2:0 and 8K@30Hz 4:4:4.
Or up to 4K@120Hz 4:4:4 (= true color)

Q: Can I connect any USB device or it just supports keyboard/mouse?
A: Yes, you can connect USB devices other than keyboard and mouse, as long as they are USB 2.0 standard.

Q: What's a DIP switch?
A: A DIP switch is a manual electric switch that is packaged with others in a group in a standard dual in-line package (DIP). DIP setting makes the routing easy – just toggle each set’s DIP switch to the same positions.
This product includes a DIP switch on each for RS-232 mode, HDCP and EDID configurations (HDCP & EDID apply to the transmitter only).

Q: Can I purchase the receiver/transmitter only?
A: No. this extender is a transmitter (TX) and receiver (RX) kit. We don’t sell them separately.


In the Box

  • Extender Set x 1
  • Power Adapter (DC 12V 3A) x 1
  • USB 2.0 Type-A to Type-B Cable x 1
  • 3.5mm 3-pin Phoenix Male Connectors x 2
  • 3.5mm 5-pin Phoenix Male Connector x 1
  • Mounting Brackets (with Screws) x 8
  • User Manual x 1

Specs
Technical
Input/Output Signal Type HDMI 2.1, HDCP 2.3
Input/Output Resolutions VESA:

800 x 6006, 1024 x 7686, 1280 x 7686, 1280 x 8006, 1280 x 9606, 1280 x 10246, 1360 x 7686, 1366 x 7686, 1440 x 9006, 1600 x 9006, 1600 x 12006, 1680 x 10506, 1920 x 12006, 2048 x 11526, 2560 x 14406

HDTV:

1280 x 720P5,6,7,8, 1920 x 1080P5,6,7,8,9,10,11, 3840 x 2160P1,2,3,4,5,6,7,8, 4096 x 2160P1,2,3,4,5,6,7,8, 7680 x 4320P1,2,3,4,5,6

1 = at 24 (23.98) Hz, 2 = at 25 Hz, 3 = at 30 (29.97) Hz, 4 = at 48 Hz, 5 = at 50 Hz, 6 = 60 (59.94) Hz, 7 = at 100Hz, 8 = at 120Hz, 9 = at 144Hz, 10 = at 165Hz, 11 = at 240Hz

Note: 7680 x 4320P @48Hz/50Hz/60Hz supports only YCbCr 4:2:0.

Maximum Data Rate HDMI: 40Gbps | USB 2.0: 255Mbps
Audio Formats Supported ‐ HDMI In/Out: Supports multichannel audio up to PCM 7.1, including PCM 2.0/5.1/7.1ch, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio and DTS:X

‐ Audio Out: PCM 2.0

General
Operating Temperature & RH 0°C to 45°C (32°F to 113°F), 10% to 90%, non-condensing
Storage Temperature & RH -20°C to 70°C (-4°F to 158°F), 10% to 90%, non-condensing
ESD Protection Human-body Model:

±8kV (Air-gap discharge) / ±4kV (Contact discharge)

Power Supply DC 12V 3A, PoC
Power Consumption 25W (Max, per pair via PoC)

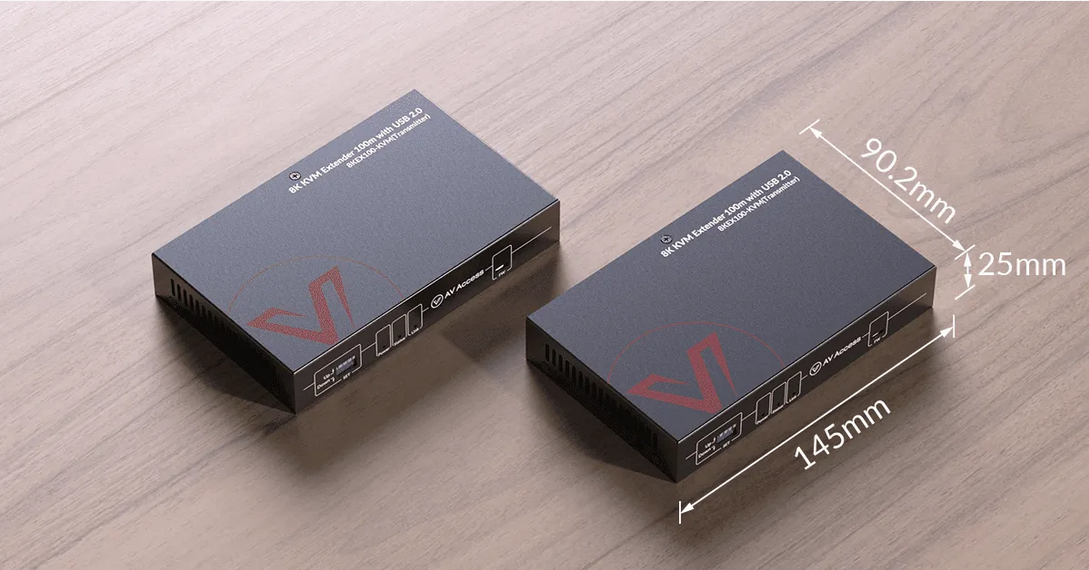

Device Dimensions

(W x H x D)

5.71” x 0.98” x 3.55” (145mm × 25mm × 90.2mm) per unit (TX/RX)
Product Weight 0.39kg/0.86lb per unit (TX/RX)

Transmission Distance

Note: A T568B straight-through Category cable is recommended.

Cable Type Range Supported Video
Cat 6/6A/7 328ft (100m) 8K@60Hz 4:2:0, 8K@30Hz 4:4:4
Cat 5e 295ft (90m) 8K@60Hz 4:2:0, 8K@30Hz 4:4:4
HDMI Input/Output: 33ft (10m) 4K@30Hz, 1080P@60Hz
Input: 16ft (5m)

Output: 33ft (10m)

4K@60Hz
Input/Output: 10ft (3m) 8K@60Hz 4:2:0
