4K HDMI/DP-in 1-to-2x2 Video-Wall Processor w/ Multiple Layouts, AV Acess 4KVW24
This is a versatile 2×4 4K HDMI & DP Video Wall Processor w/ Multiple Layouts, Cascaded up to 4×6, Bezel Correction, Wide-Screen Support.
● Flexible Video Wall Layouts: A single unit of the device supports various configurations like 2×2, 1×3, 2×1, 1×4, and more, including quick mode and standard mode (m*n).
● Advanced Cascading Capability: Multiple units can be cascaded to create up to 4×6 video wall (24 screens) for dynamic and immersive displays.
● 4K@60Hz UHD Video: Delivers crystal-clear 4K@60Hz 4:4:4 visuals and wide-screen resolutions like 3840×600, 5400×1920.
● Flexible Image Rotation: Offers advanced rotation angles (60°, 90°, 180°, 270°) to meet complex installation demands.
Note: When select 1×2 (60°) layout, the displays need to be connected to HDMI out 1 and HDMI out 3.
● Precise Bezel Correction: Compensates for display gaps, ensuring perfectly aligned and visually consistent video walls.
● Multiple Control Options: Supports front panel buttons and LAN control (telnet & web UI) for easy management.
● HDMI & DP Inputs: Easily switch between HDMI and DisplayPort inputs for diverse content requirements.
Note: Only one video source (HDMI or DP) can be displayed at a time; simultaneous display is not supported.
2×4 4K@60Hz Video Wall Processor
Transform Your Space With Stunning Visuals
Typical Applications
Ideal for shopping malls, advertisements, and exhibitions, the 4KVW24 delivers flexible, high-quality video wall displays with easy control and diverse layouts.
 |
|
 |
|
 |
| |
|
|
|
|
Shopping Mall
Create large-scale, captivating video walls to showcase promotions and ads in stunning 4K clarity. Flexible layouts, auto scaling, and cascading functionality allow seamless expansion for more impactful displays.
|
|
Advertisement Display
Support for various configurations and wide-screen resolutions ensures high-definition ads with powerful visual impact. Combine cascading capabilities with OSD features for remote management and extensive coverage.
|
|
Exhibition & Trade Shows
Build visually striking video walls with unique layouts like 1×4 (90°) or 2×2 flipped modes. Cascading multiple units enhances booth presence, while CEC auto power control simplifies operations for larger setups.
|
Versatile HDMI & DP Video Wall Processor
Featuring HDMI and DisplayPort inputs, a single unit of this processor creates a 4K video wall with customizable layouts (up to 4 screens) and independent scaling for each HDMI output. Multiple units can also be cascaded to create up to 4×6 video wall (24 screens) for dynamic and immersive displays.
Single-Mode:
Cascade Mode:
Multiple Video Wall Layouts

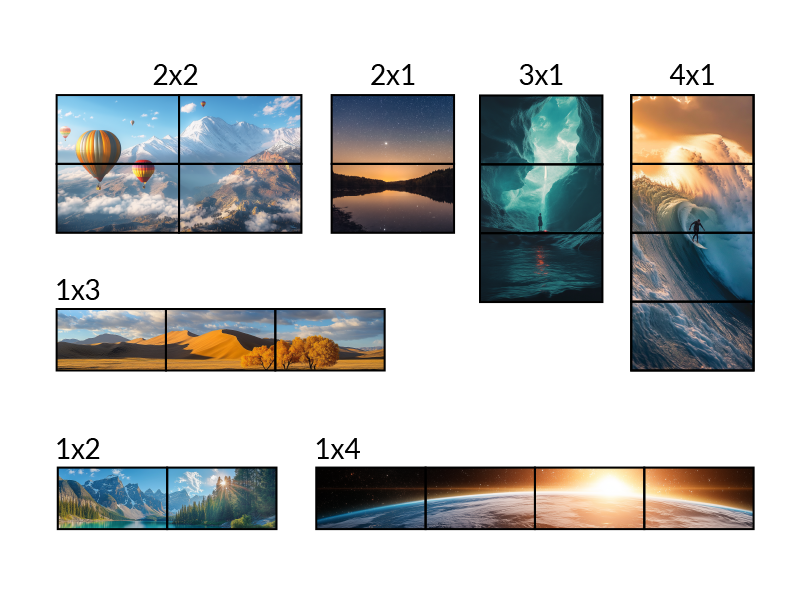

The 4KVW24 supports a variety of video wall configurations, including 2×2, 1×3, 1×4, 2×1, and more, with options for rotation and custom presets. This flexibility allows you to easily create the perfect display layout for any commercial setting, without complex setup.
Note: Multiple units can also be cascaded together to create a MxN video wall (up to 24 screens), like 4×4 or 4×6.
 (1).png) |
|
Perfect Alignment with Bezel Correction
With advanced bezel correction, this 4K video wall controller eliminates gaps between displays, delivering a smooth visual experience. This is ideal for professional presentations and dynamic displays, while each HDMI output also supports independent scaling to maintain the best video quality across all screens.
|
| |
|
|
|
Ultra-Wide Resolution for Expansive Content
Supports ultra-wide resolutions like 3840×600@60Hz and 5400×1920@30Hz, ideal for showcasing expansive content in large settings. Perfect for applications in conference rooms, exhibition halls, or shopping mall displays where wide-screen layouts are essential for delivering impactful visual presentations.
|
|
 |
| |
|
|
 |
|
User-Friendly Web UI for Effortless Control
Easily manage and customize settings through the intuitive Web UI. This feature allows for flexible control, making it simple to adjust configurations, monitor system status, and fine-tune display setups remotely, ensuring a seamless experience for both installers and end-users.
|
Downloads (external from the manufacturer):
● Download User Maunal
● Download Connection Diagram: A Single Unit
● Download Connection Diagram: Cascading Mode
● Download API Command Document
In the box:
- 1 x 4KVW24 Video Wall Processor
- 1 x Power Adapter (DC 20V/3A)
- 2 x Mounting Brackets (with Screws)
- 1 x User Manual
| Technik |
| Input/Output Video Signal |
4K x 60Hz 4:4:4 8bit, HDCP 2.3 |
| Eingabe-/Ausgangsauflösung |
Eingabeauflösung:
Breitbildauflösung: 5400x1920P 5;
800 x 600 88, 1024 x 768 88, 1280x720P 6,7,8, 1280 x 768 88, 1280 x 800 88, 1280 x 960 88, 1280 x 1024 88, 1360 x 768 88, 1366 x 768 88, 1440 x 8900 900 x 900 8900 8, 1600 x 81200 8, 1680 x 10508, 1920x1080P 6,7,8, 1920 x 81200 8 3840x2160P 2,3,5,8, 3840 x 60082,3,5,8
Ausgabeabwicklung:
Auto Scaler: Laut EDID des Displays, um die empfohlene Auflösung auszugeben.
Benutzer- und Schreibhandwerk 202P 66, 1280x720P 88, 1920-1080 6, 1920-1080 88, 3840 x 2160 55, 3840 x 2160 -8160 8-896'2160 55, 4096 x 2160 88
2 - bei 24 Hz, 3 x 25 Hz, 5 x bei 30 Hz, 6 x bei 50 Hz, 7 x 59,94 Hz, 8 x 60 Hz
|
| Audioformat |
DP In/HDMI In/HDMI Out: PCM 2.0
Audio raus: Stereo
|
| Maximale Datenrate |
18Gbps |
| Kontrollmethode |
Frontplattentasten, LAN (Telnet API & Web UI) |
| Generell |
| Temperatur |
0°C bis 45°C |
| Lagerung |
-20°C bis 70°C (-4°F bis 158°F) |
| Feuchte |
20% bis 90%, nicht kondensierend |
| ESD Schutz |
Modell des menschlichen Körpers:
8kV (Airgap-Entladung)/
4kV (Kontaktentladung)
|
| Stromversorgung |
DC 20V, 3A |
| Strombedarf (Max) |
26.2W |
| Gerätemaße (B x H x T) |
220mm x 42mm x 175mm/8.66" x 1,65" x 6,89“ |
| Produktgewicht |
0,99 kg/2,18lbs |
Entfernung der Übertragung
| Kabeltyp |
Range |
Unterstützte Video |
| HDMI |
Eingang: 15m/50ft
Ausgang: 10m/33ft
|
1080P 60Hz 24bpp |
| Eingang/Ausgang: 10m/33ft |
4K-30Hz 4:4:4 24bpp
4K-60Hz 4:2:0 24bpp
|
| Input/Ausgang: 5m/16ft |
4K-60Hz 4:4:4 24bpp |
FAQ:
1. Welche VideWall-Layouts unterstützt der Prozessor?
Der Prozessor unterstützt flexible Konfigurationen, darunter 2 x 2,3 x 2, 1 x 4 und benutzerdefinierte Layouts mit Rotations- und Skalierungsoptionen.
2. Wie verbessert die Blendenkorrektur dieVideowand?
Die Blendenkorrektur beseitigt Lücken zwischen den Bildschirmen, die eine nahtlose Ausrichtung und ein reibungsloses visuelles Erlebnis für professionelle Displays gewährleisten.
3. Kann der VideoWall-Controller mit ultrabreiten Auflösungen umgehen?
Ja, es unterstützt ultrabreite Auflösungen wie 3840 bis 600 x 60 Hz und 5400 bis 1920 x 30 Hz, perfekt für ausgedehnte Inhalte in großen kommerziellen Umgebungen.
4. Unterstützt der VideoWall-Controller Kaskadierungen für größere Videowände?
Absolut! Sie können mehrere Einheiten kaskadieren, um Videowände bis zu 4 x 6 Bildschirme zu bauen, die umfangreiche und dynamische Display-Lösungen für Einkaufszentren, Ausstellungen und Anzeigen bieten.
