2-Port Dual-Monitor PC DP+HDMI+USB3.0 and Laptop with USB-C KVM-Switch with Cable Remote Control, KCEVE KC-KVM202CDH

The USB-C (notebook) and HDMI+DP+USB3.0 (PC) KVM-Switch for 2 monitors allows you to use a single set of mouse, keyboard, and two monitors to control one laptop and one computer simultaneously. You can also switch devices such as USB audio adapters, printers, scanners, webcams, etc. USB-to-audio adapters (see accessories below) can also be switched.
You can press Windows+P to select Mirror mode or Extended screen mode (recommended).

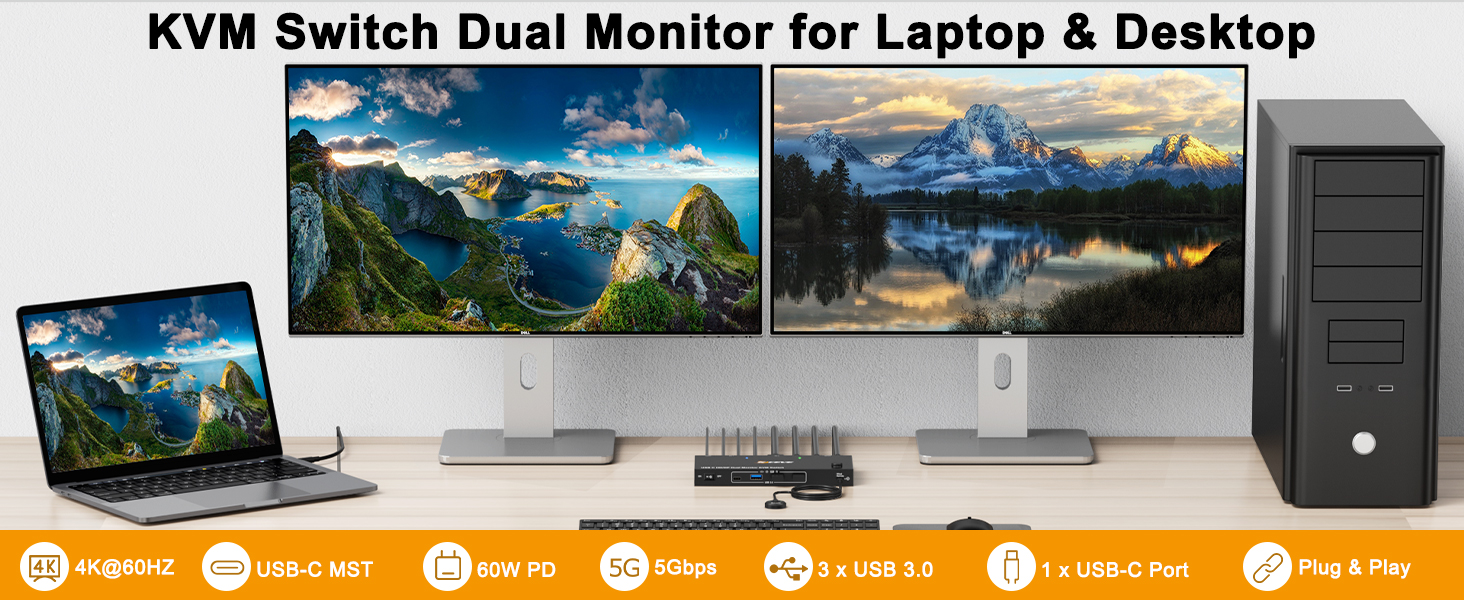

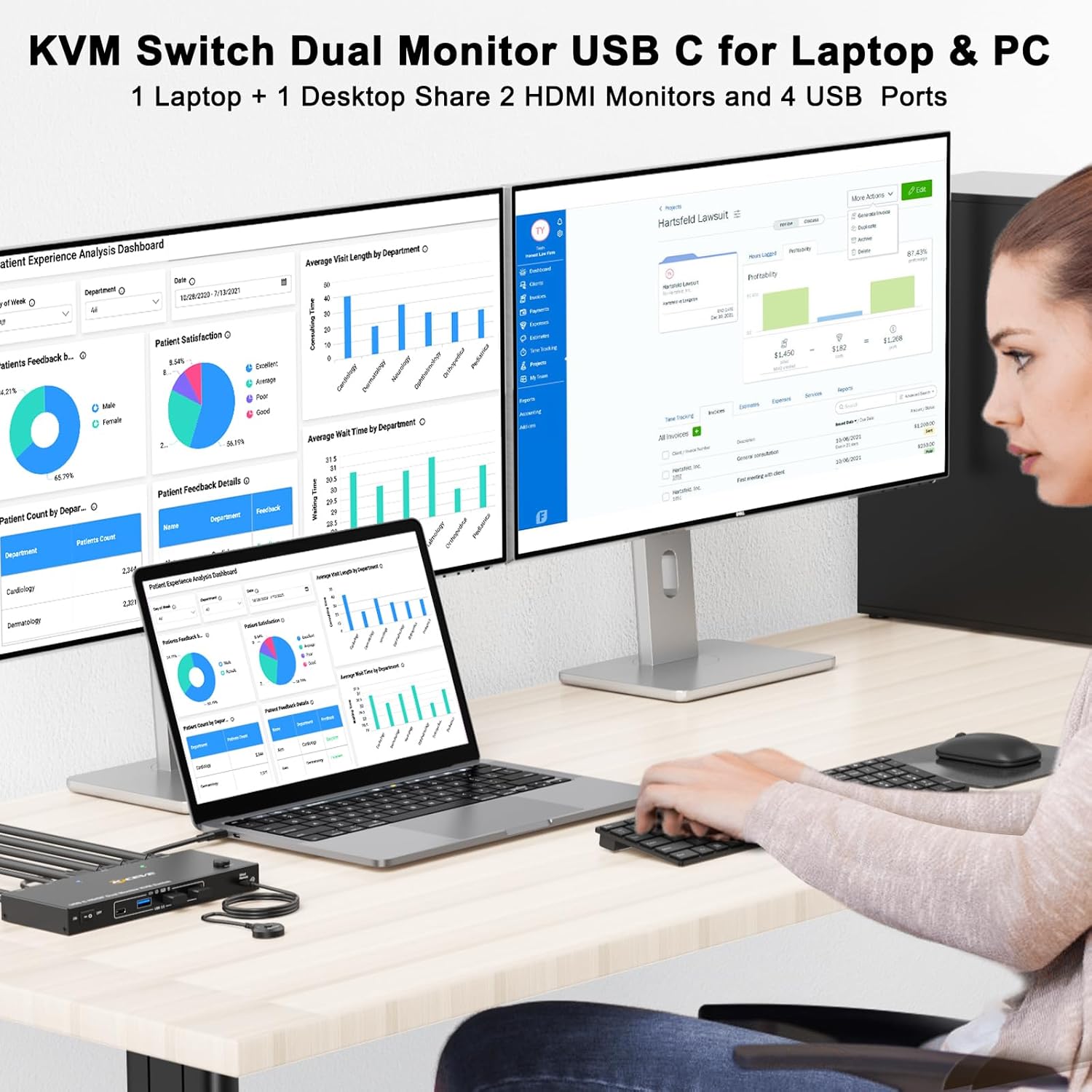

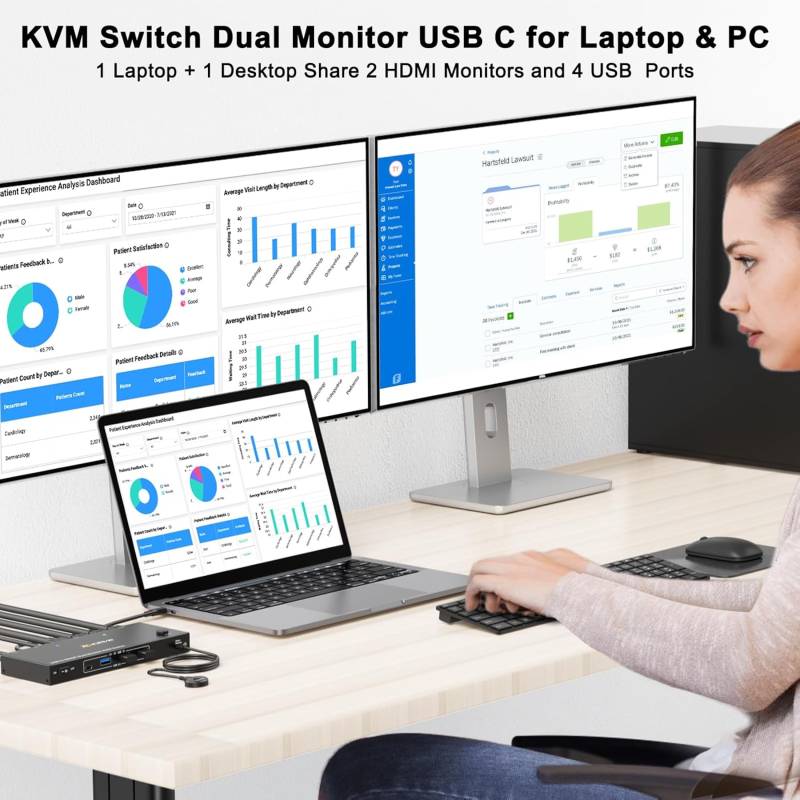

Dual-monitor KVM-Switch for laptops and PCs.
Shares four 5 Gbps USB ports and displays on two HDMI monitors.

Supports two 4K@60Hz HDMI displays.

Supports 60W PD charging to laptop (via optional 100W notebook charger).

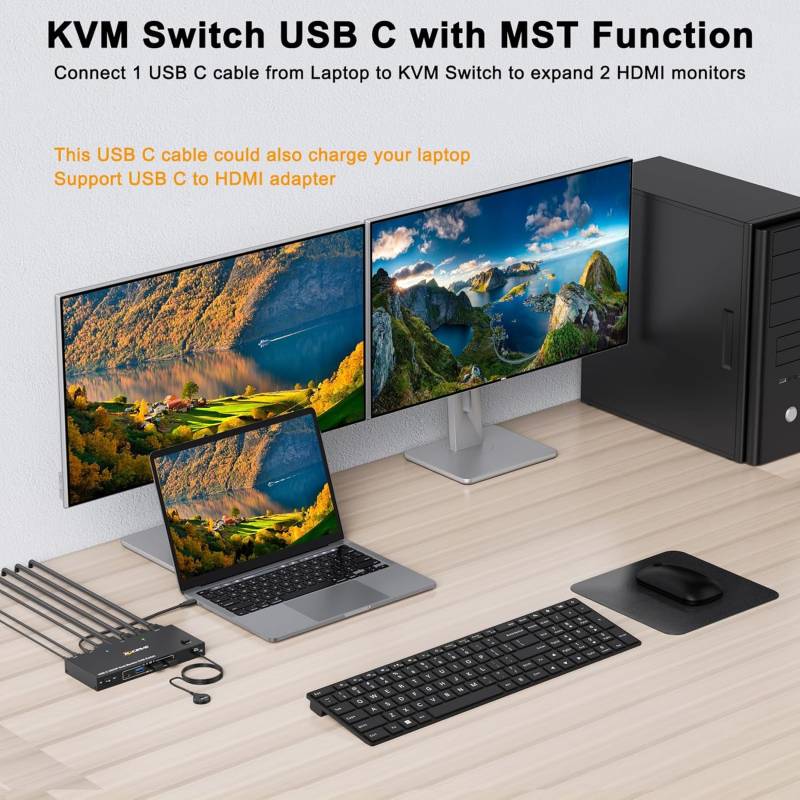

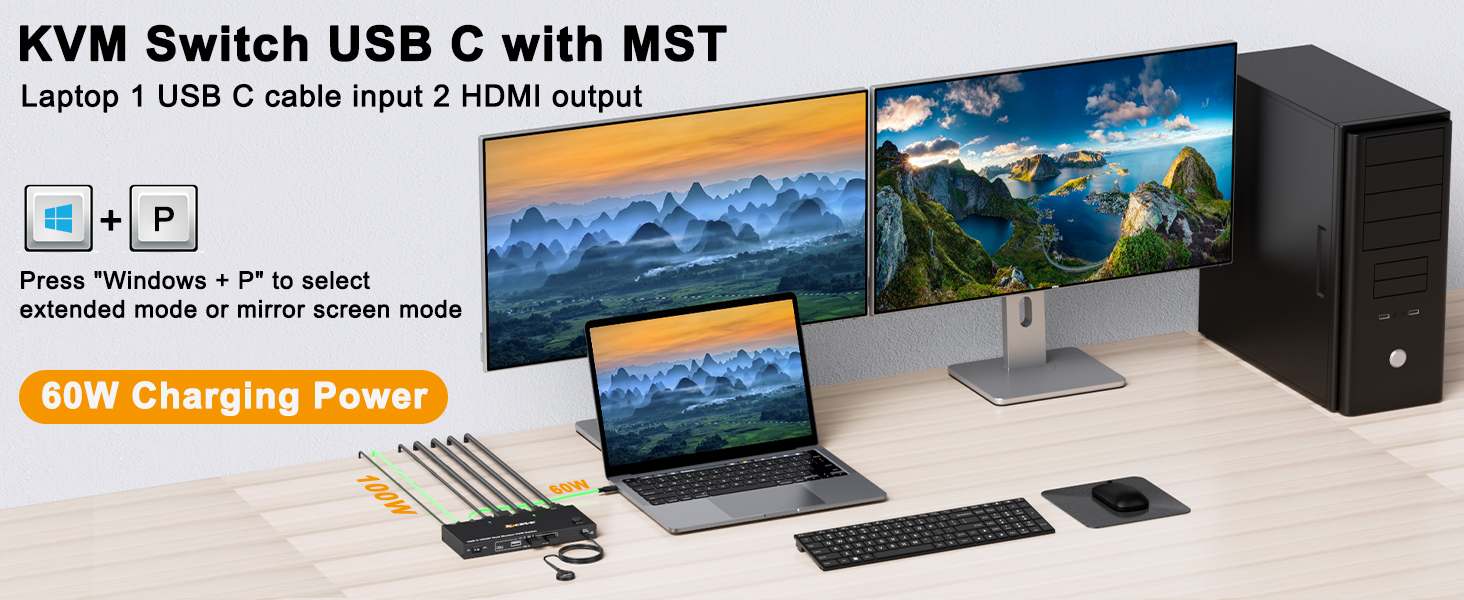

• USB-C with MST: Simply connect one Type-C cable (at least the included USB 3.1 Gen. 2 cable is required) between your laptop and the USB-C KVM-Switch, and you can display two different screens on two HDMI monitors.
• The USB-C port supports graphics output, USB 3.0, and 60W charging via the PD port when an optional 100W USB-C power adapter is plugged in. Make sure your laptop supports at least USB 3.1 Gen. 2 (DP Alt Mode) and thus has the ability to extend the display via USB-C.
• Connect your PC and KVM-Switch using one HDMI + one DisplayPort + one USB 3.0 cable.
• MST Type-C: Provides up to 4K 60Hz monitor output to notebooks from the PC world that have USB 3.1 Gen. 2 or newer. Note: Since Mac computers and notebooks use different technology, only two identical images would be displayed on a Mac.

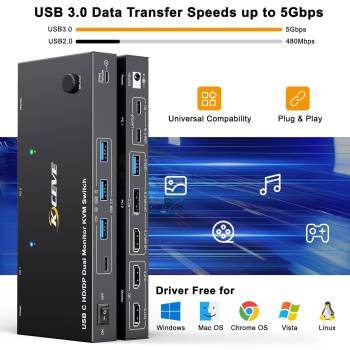

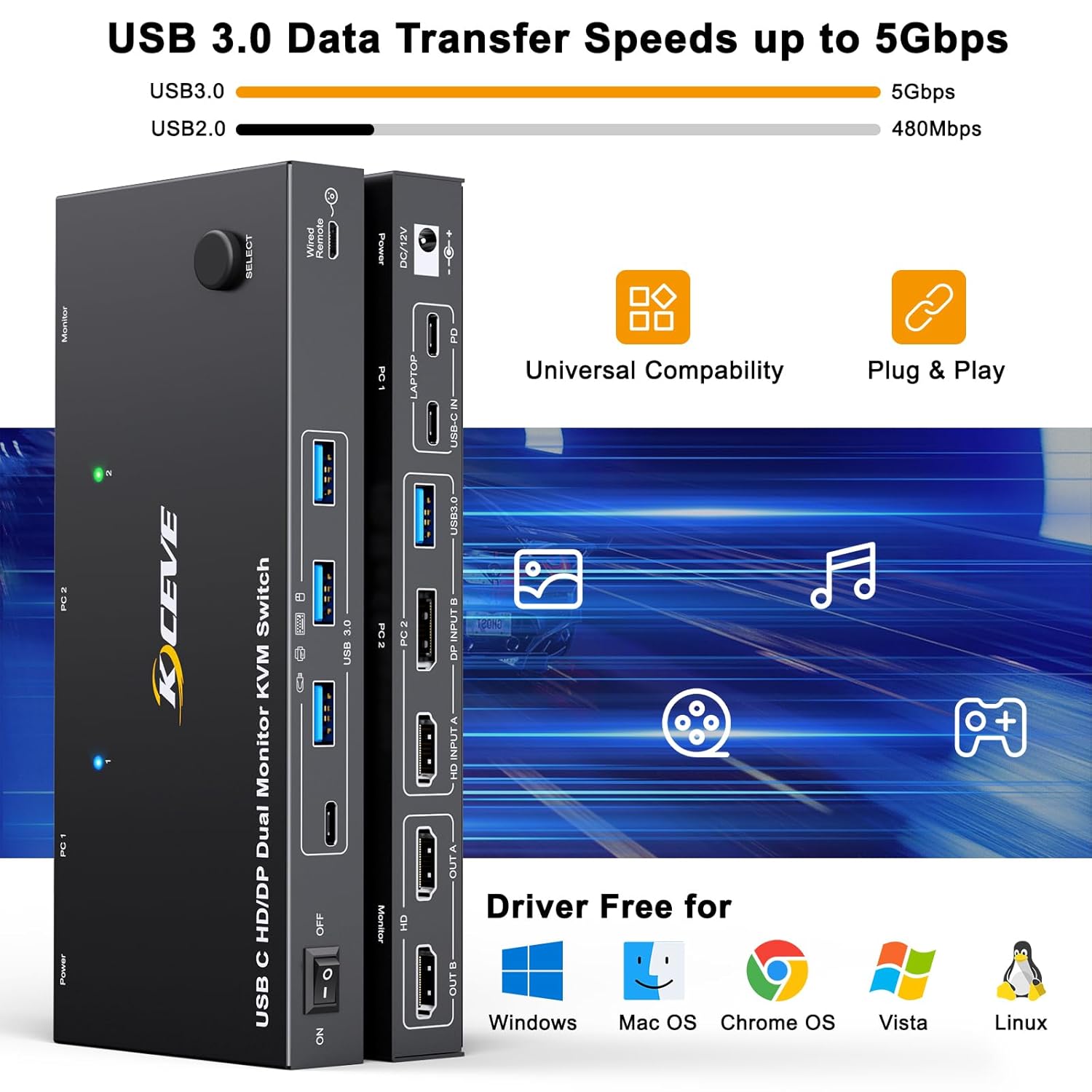

• Ultra-fast USB data transfer of 5 Gbps: The user has access to three USB 3.0 ports + one USB-C port (data only) for wireless or gaming keyboards/mouse, printers, scanners, and other USB devices.
• The KVM-Switch supports the HDMI 2.0, DisplayPort 1.4, Type-C 3.1 Gen.2, and USB 3.0 standards.

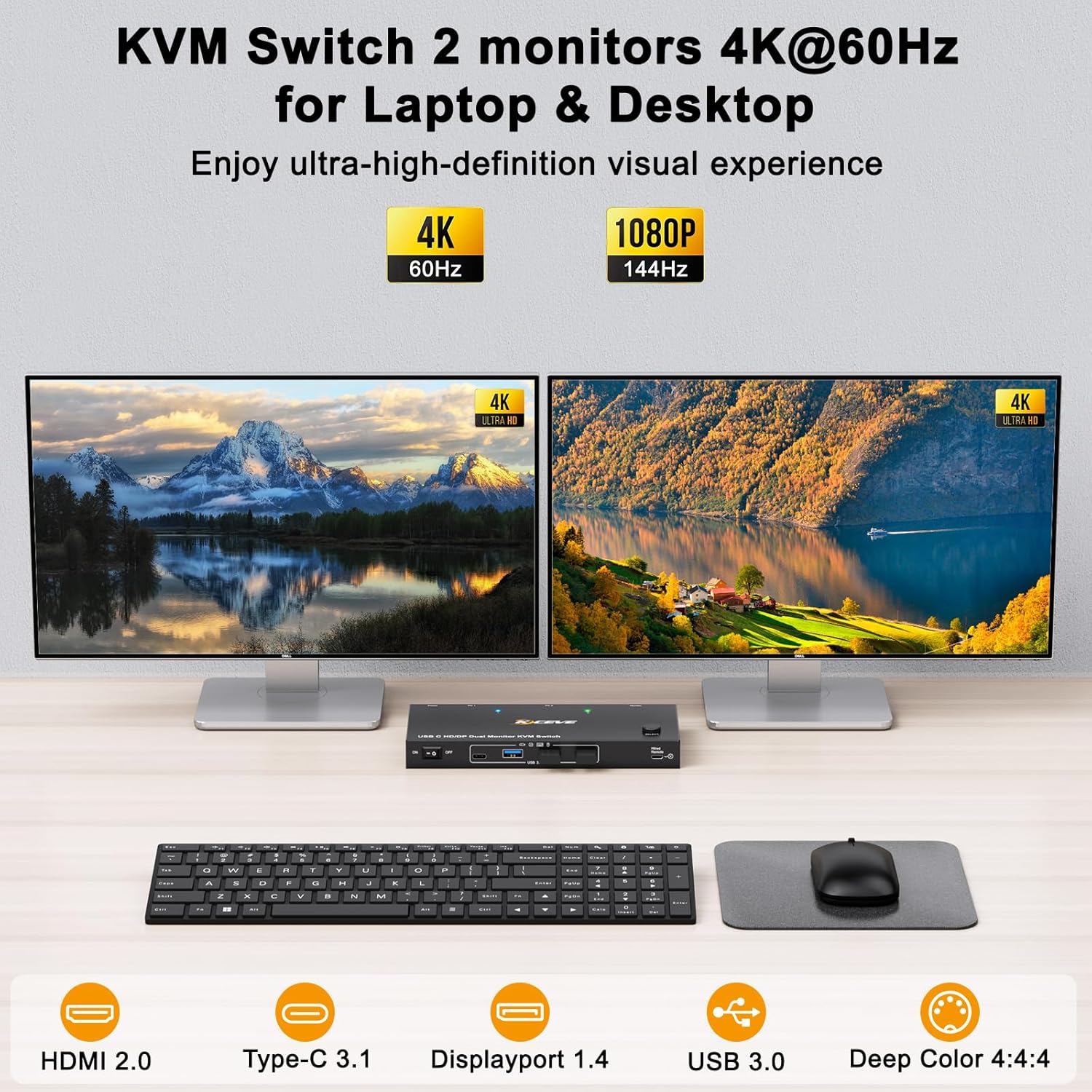

• Resolutions up to 4K@60Hz 4:4:4, 2K@144Hz, 1440P@144Hz, and 1920x1080@165Hz are supported, with backward compatibility.
• With the USB-C KVM-Switch, you can also connect two HDMI monitors with different resolutions. Make sure your laptop, monitor, and cables support 4K. Use short 8K cables to solve flickering or black screen issues.

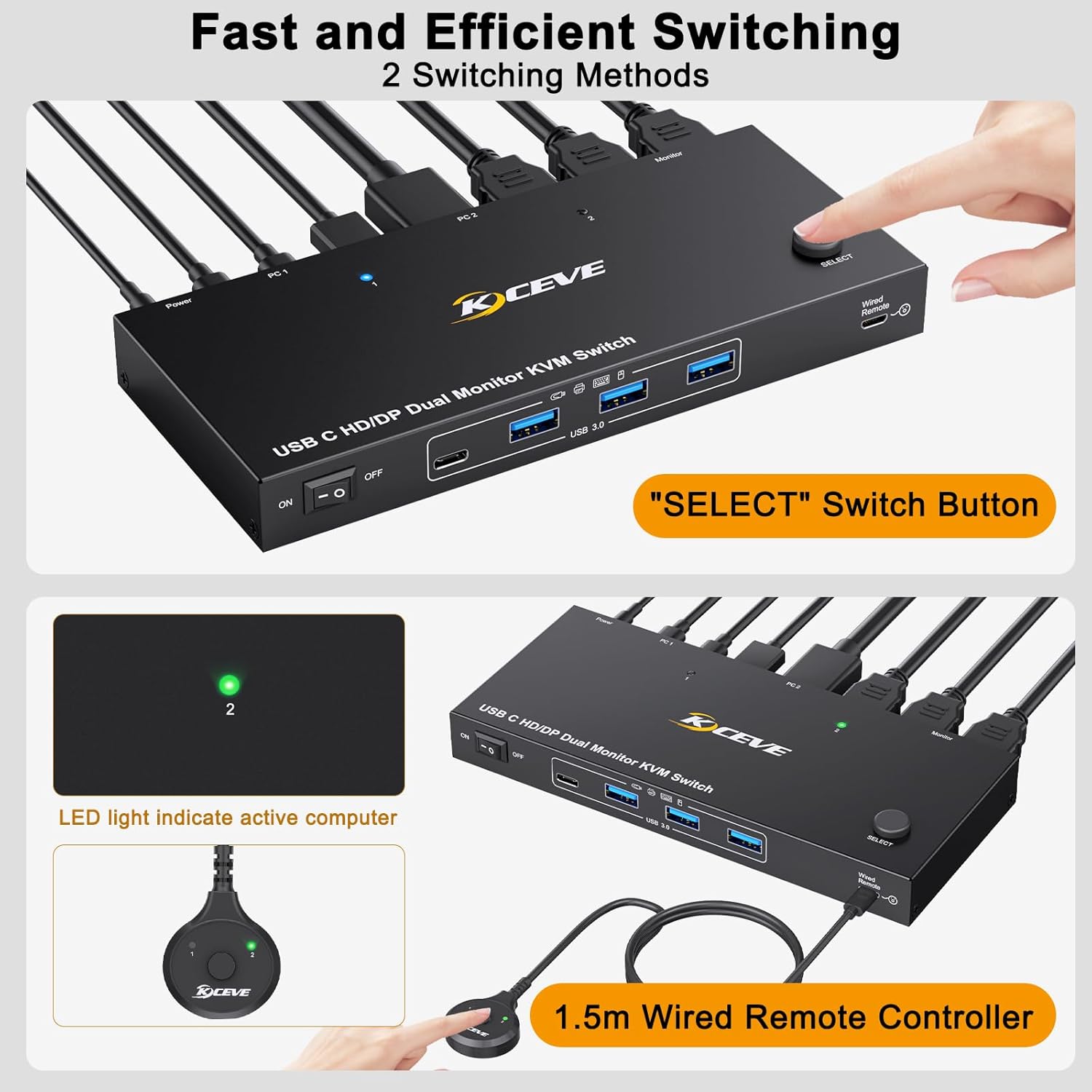

• Two switching methods are quick and efficient: Switch between notebook and PC using the button on the KVM-Switch or the 1.5 m long wired remote control (included).
• LED lights indicate which computer is active.
• Plug and play: No additional drivers are required.
• Please connect the included 12 V DC power adapter. Enjoy the convenience of switching between work and home entertainment with the dual-monitor KVM-Switch for laptop and PC.

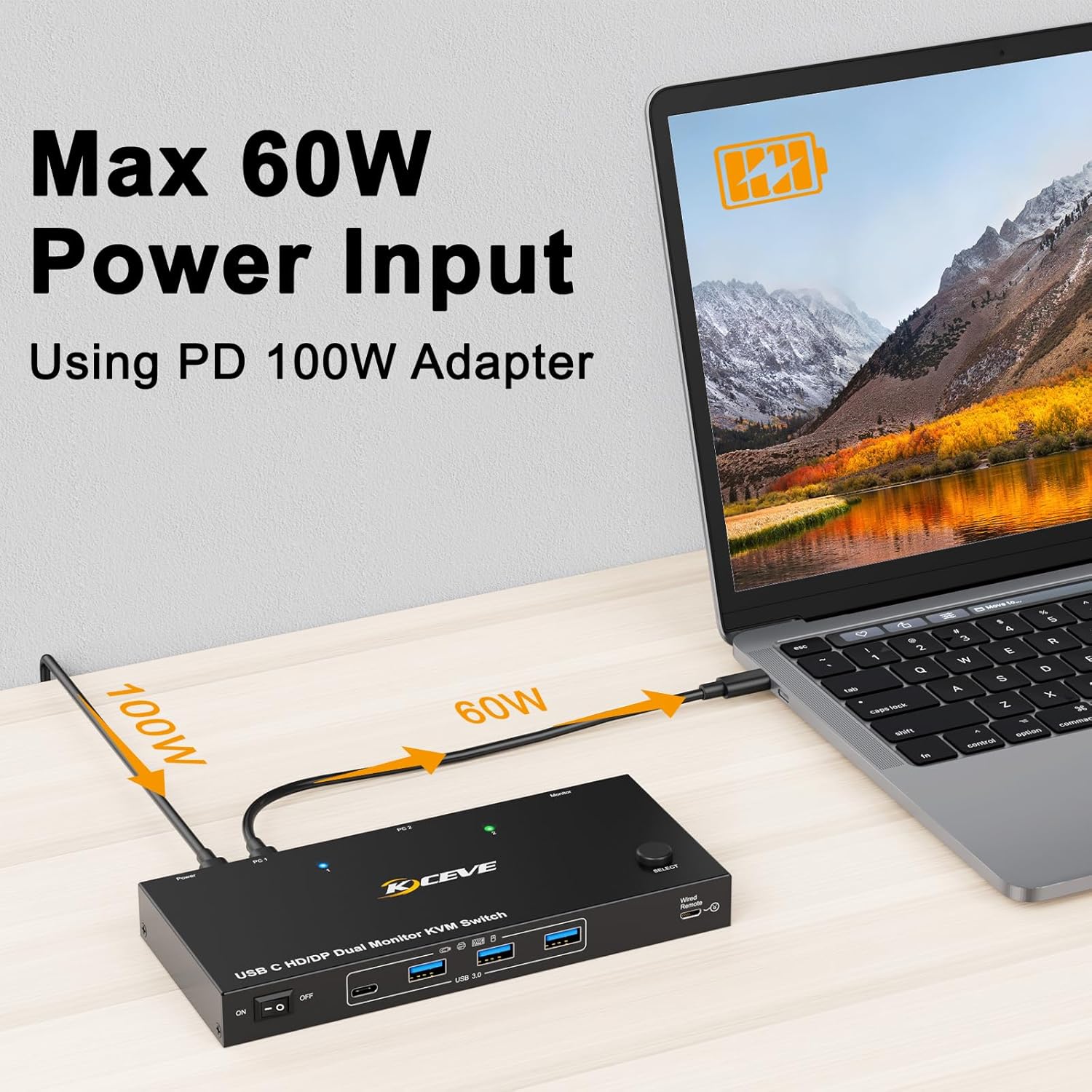

  Supports laptop charging with up to 60 W: The KVM-Switch can charge your laptop via a single USB-C 3.1 Gen. 2 cable. To do this, connect your laptop's Type-C charging cable (100W required) to the PD port of the USB-C KVM-Switch. Connect your laptop to the KVM USB-C port, and the dual-monitor KVM-Switch will provide your laptop with 60W of charging power.
• The KVM-Switch has an on/off switch. The KVM-Switch can be turned off at will.
• Strong compatibility and wide application: This KVM-Switch for 2 HDMI monitors is highly compatible with Windows, Mac OS (only 1 monitor or 2 identical content), Linux, and Chrome OS.
• Widely used in business offices, seminars, multimedia classes, personal use, etc.
• Dimensions: 20 x 7 x 3 cm, weight approx. 200g.
• Power supply power: up to 12 watts.

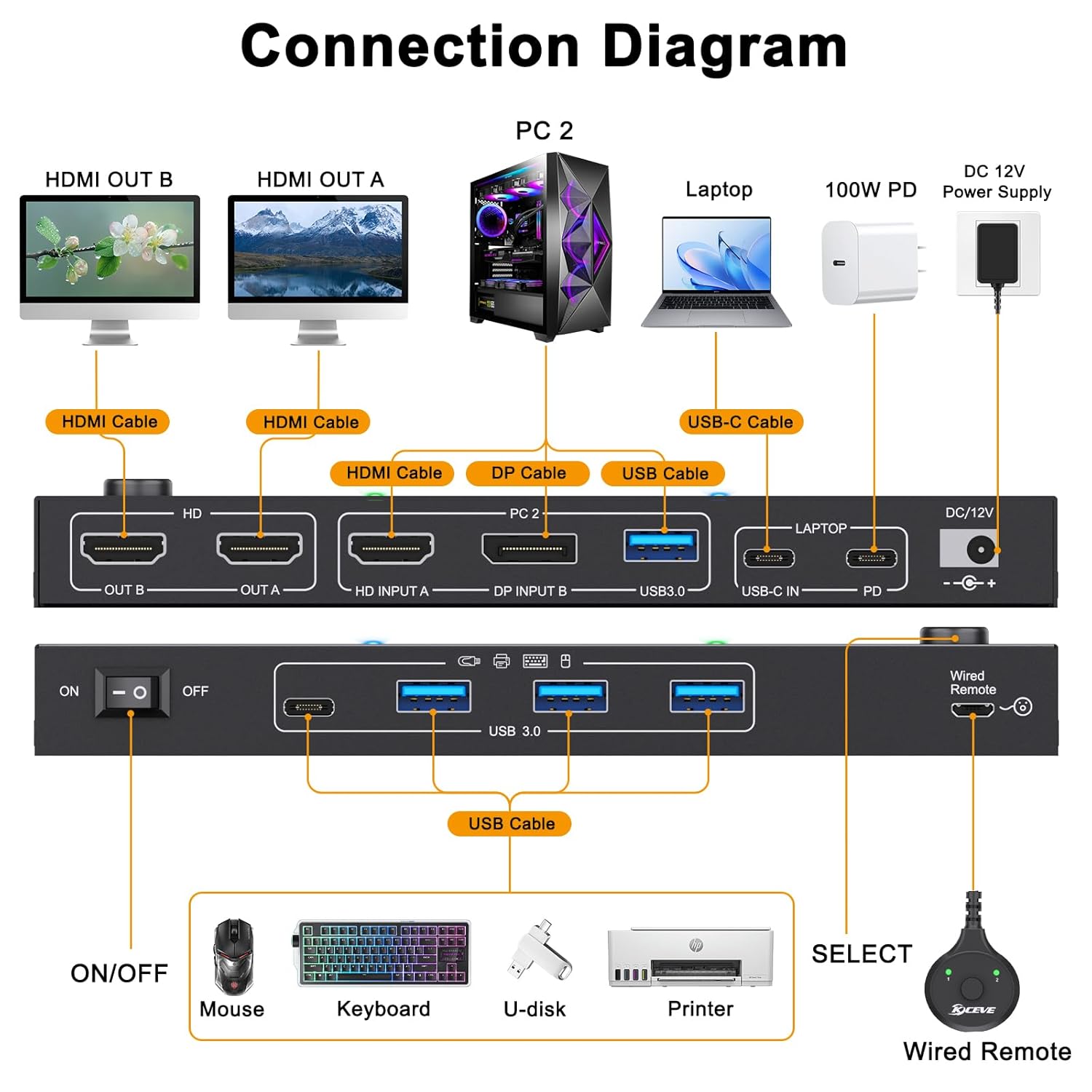

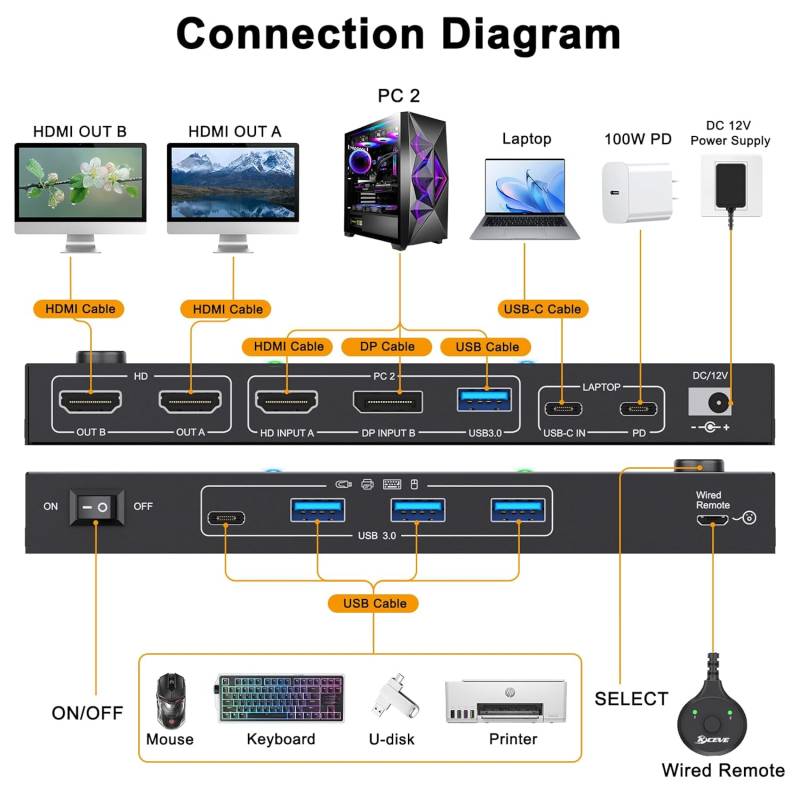

The KVM-Switch requires correct cable connections.

The laptop requires a USB-C cable to the KVM-Switch.
The PC requires an HDMI, a DP, and a USB cable to the KVM-Switch.
Output to two HDMI monitors

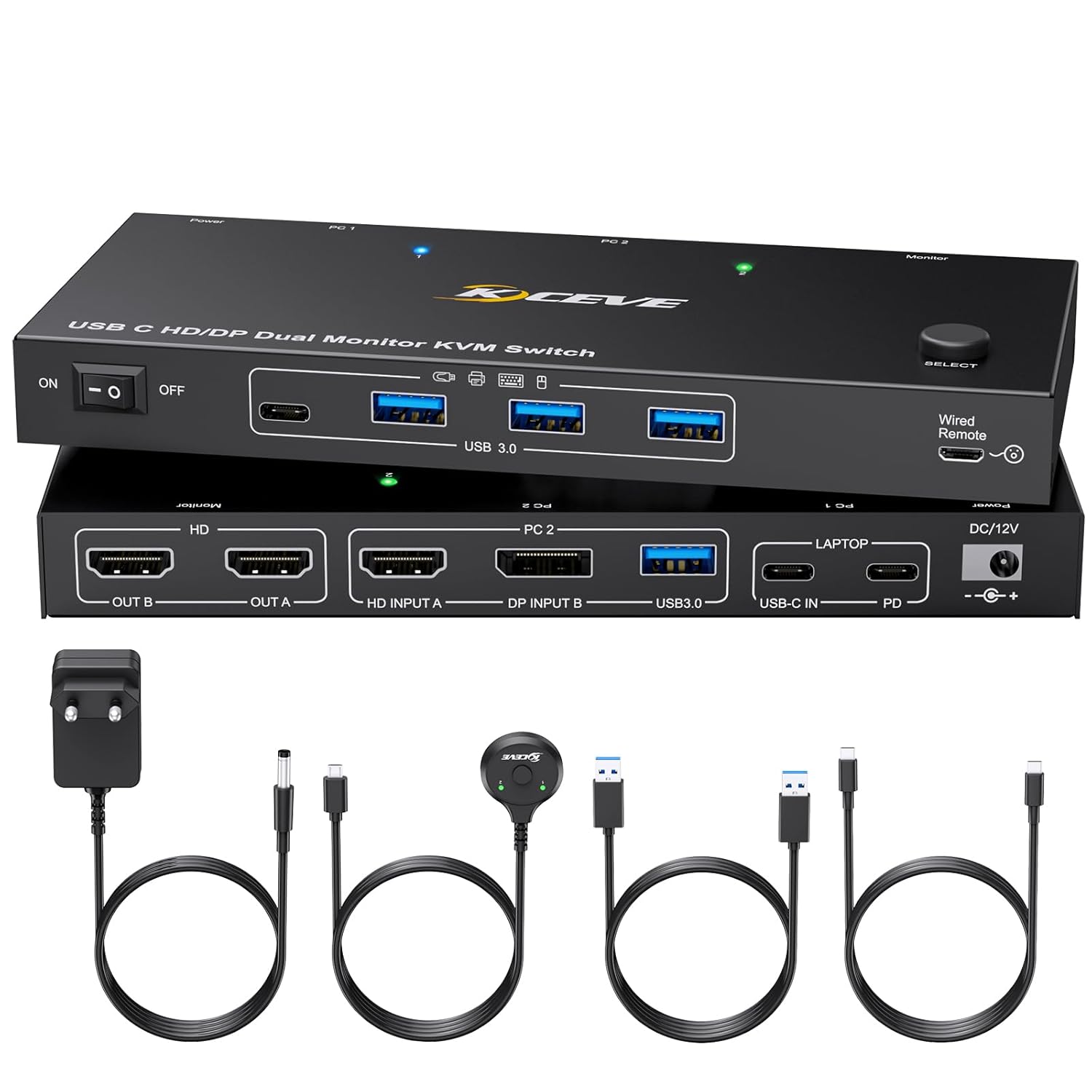

Package contents:
1x KC-KVM202CDH KVM-Switch
1x DC 12 V power adapter with EU plug
1x Wired remote control
1x USB 3.1 Gen 2 cable
1x User manual (English only)

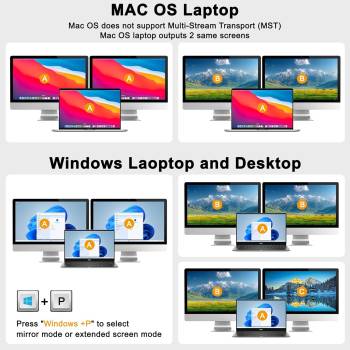

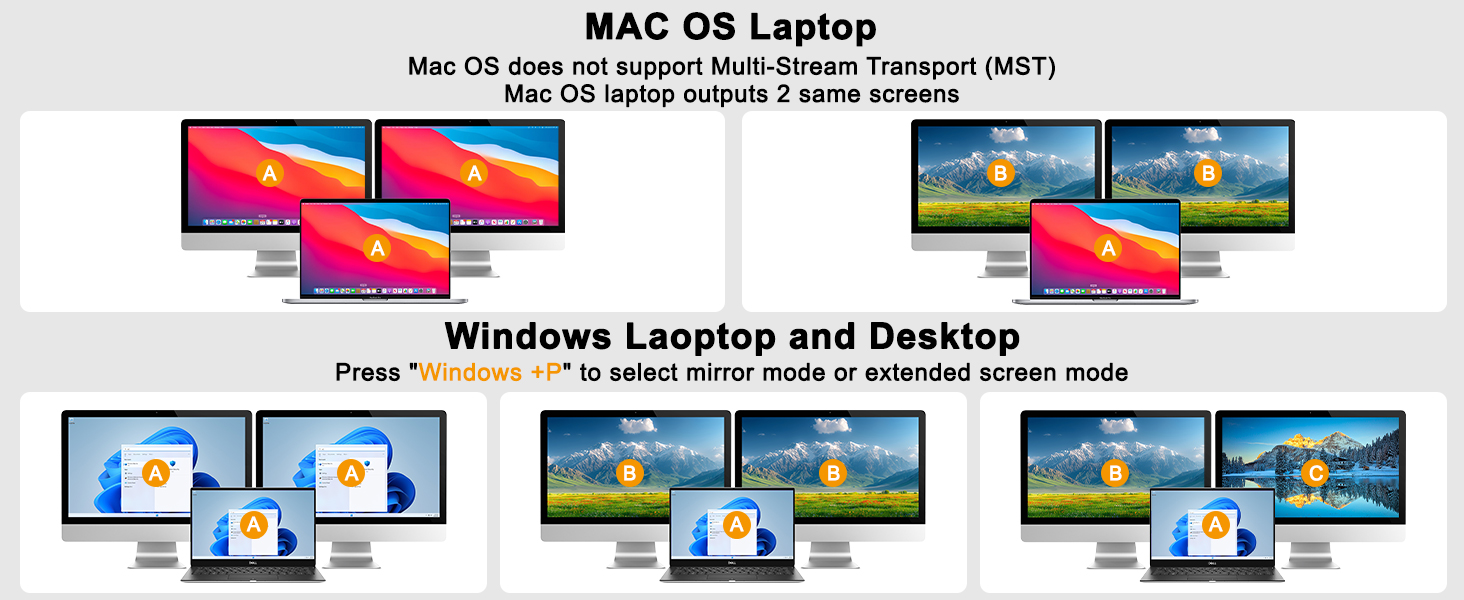

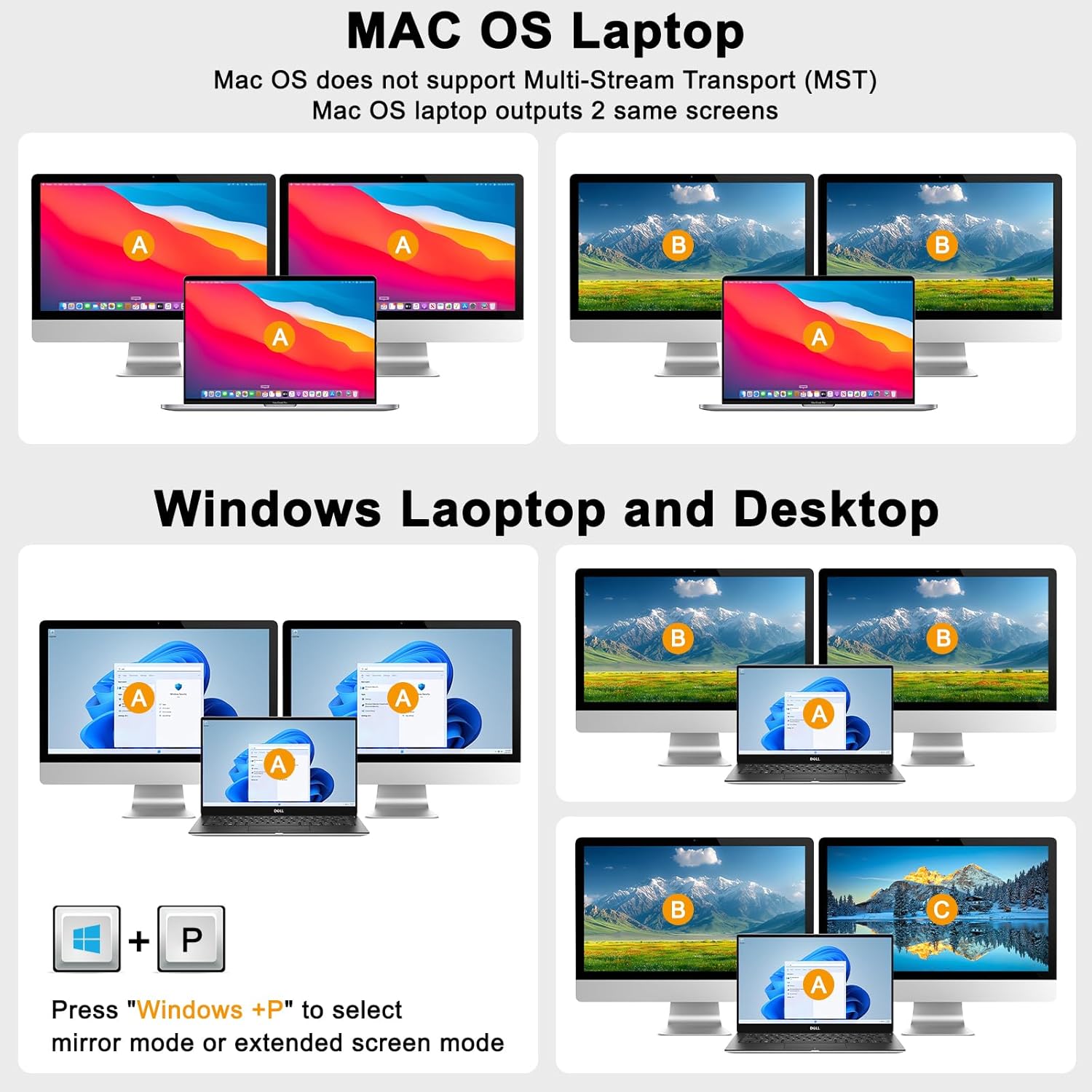

Mac OS laptops do not support MST and can therefore only output two identical screen contents to an MST device.

Windows laptops and desktops can output two different screens (extended desktop).

Supports laptops, desktop PCs, mini computers, Apple set-top boxes and other input devices with HDMI/DP or Type-C interfaces.

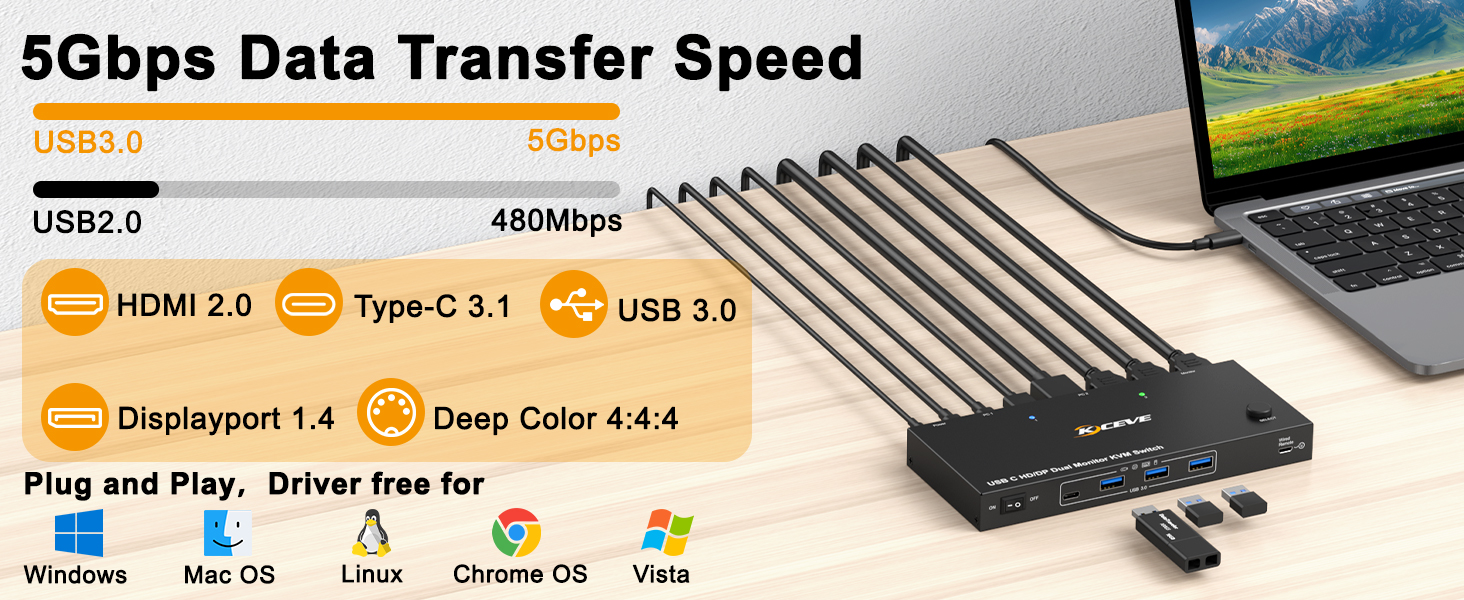

USB 3.0 supports transfer speeds of up to 5 Gbit/s

Plug and play. Supports mirroring and extended display.

Supports HDMI 2.0, Type-C 3.1 Gen.2, USB 3.0, and DisplayPort 1.4.

Plug and play, no additional driver required.

Press "Windows+P" to select extend mode.

Switching via buttons on the KVM-Switch and wired remote control (approx. 1.5 m).
