HKM02B-4K6G uses AV over IP technology to route up to 1000 4K60Hz HDMI sources to up to 60000 display over IGMP and jumbo frame protocol gigabit switches, which can achieve HDMI signal extending, distributing, switching and routing. Additionally, the boundless switching function allows you to use one mouse to operate multiple PCs by moving the mouse cursor across the monitor’s borders. HKM02B-4K6G is a multifunctional system that integrates multiple media. You can perfectly apply it to large-scale security rooms, classrooms, trading rooms, and many more.Features
- Resolution up to 4K60Hz 4:4:4.
- Signal extension up to 100m over CAT5e (or greater), 60km over fiber optic cable.
- Workable with Ethernet switches for HDMI extension, distribution, switching and matrix.
- Built-in loop out, an extra local HDMI display at Tx side.
- Built-in 4 USB ports for remote control.
- Supports SDR, HDR, HDR10, HDR10+ and Dolby Vision.
- Video sub-stream.
- Video Wall support.
- Video Resolution Hybrid Mode (simple scaling: 4K60/1080p in to 1080p/4K60Hz out).
- Image Rotation.

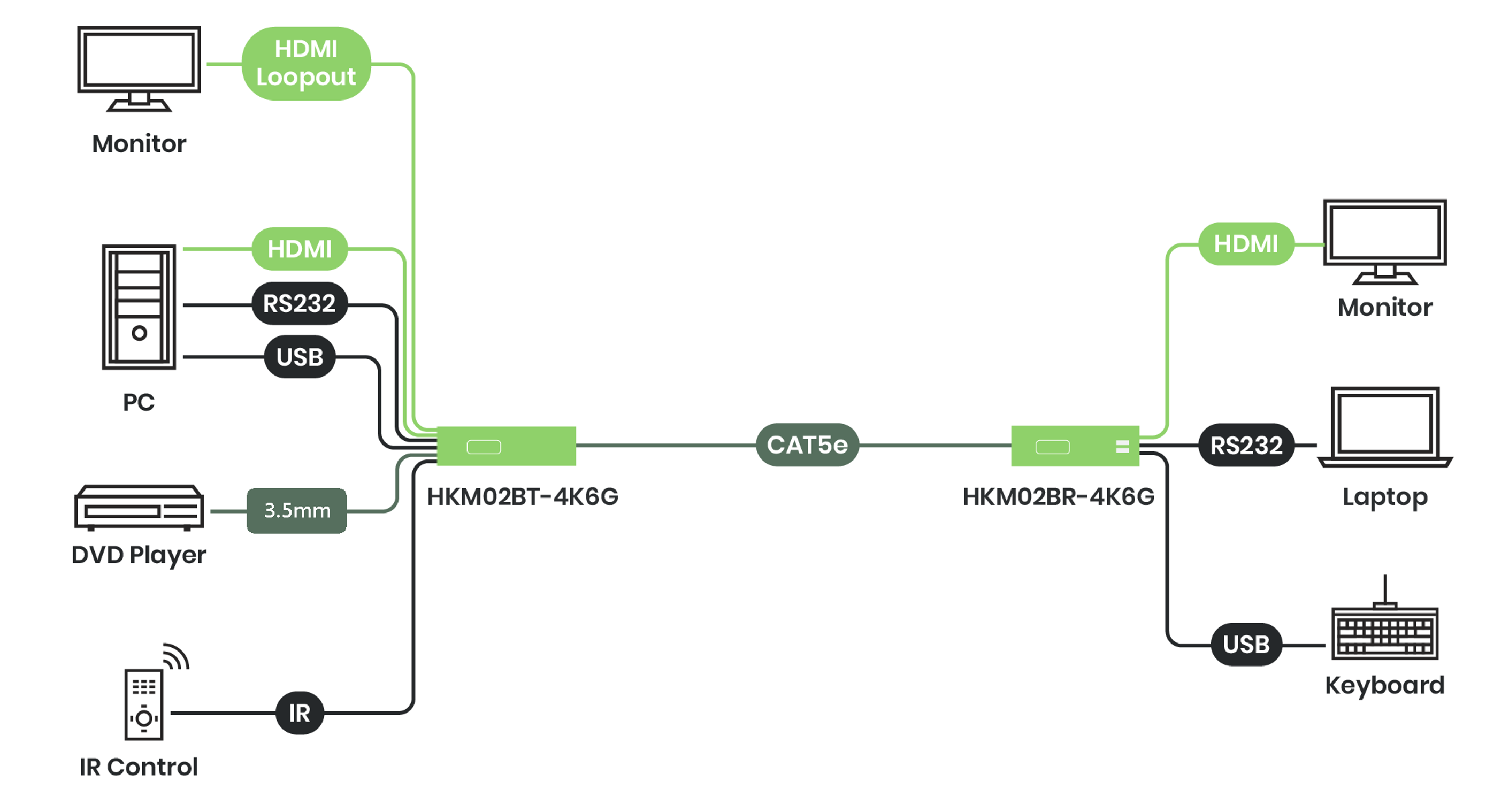

Scenario 1 (1 source to 1 operator)
Scenario 2 (x sources to x operators)
.png)

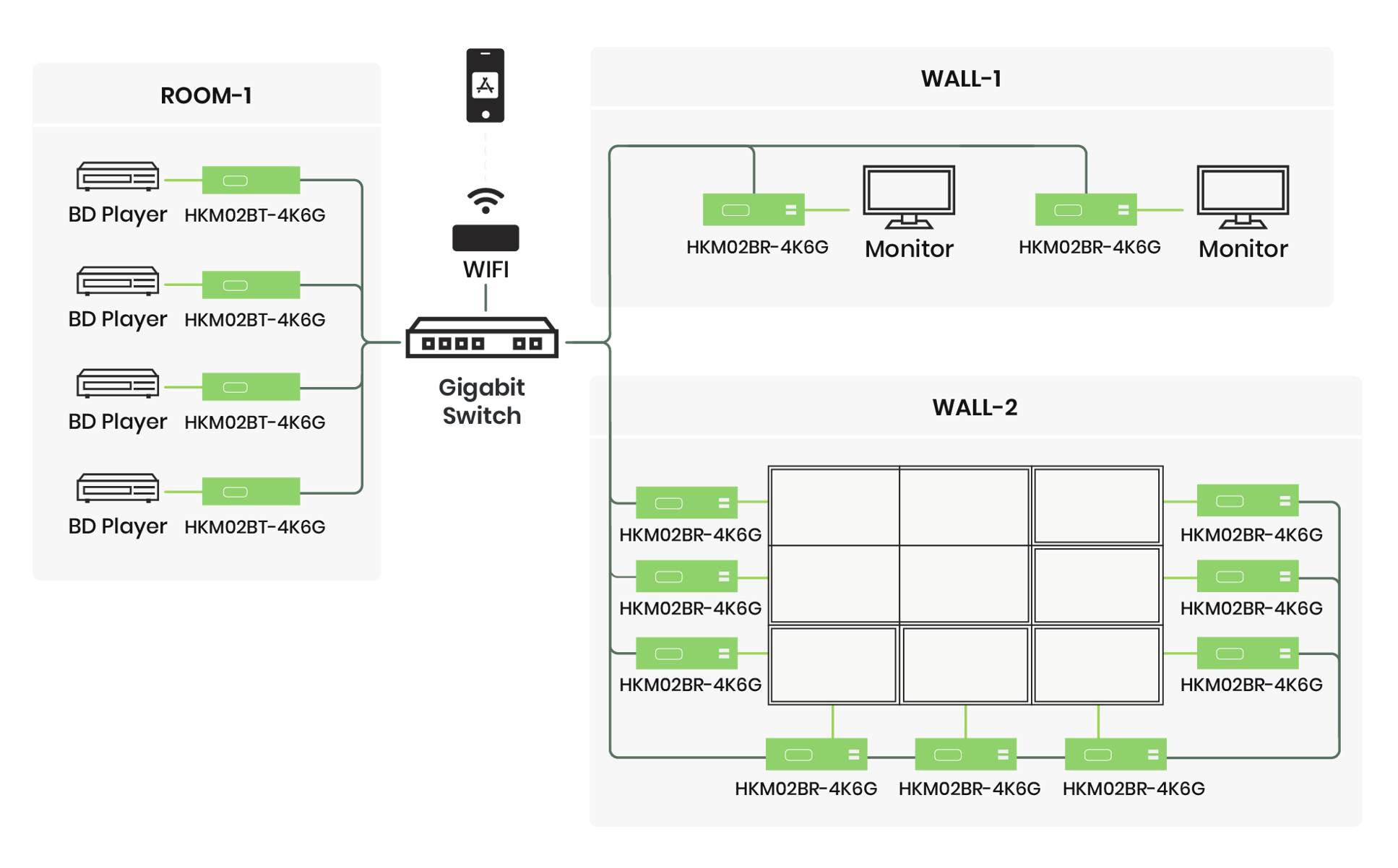

Scenario 3 (x sources to x operators/displays and video wall)
Technical Specification:
| HKM02B-4K6G | HKM02BT-4K6G | HKM02BR-4K6G |
| Compliance | ||
| Standard | HDMI 2.0 HDCP 2.2 |
|
| Video Resolution | 4K@60Hz 4:4:4 | |
| Audio | Dolby True HD、Dolby Atmos、Dolby D SUR、Dolby Digital 5.1、DTS-HD Master Audio、DTS: X Master Audio、DTS 2.0 ch、DTS 5.1 ch、Multi PCM 7.1 ch | |
| Transmission Distance | 100m 60km fiber |
|
| Ports & Interfaces | ||
| Video Input | 1 x HDMI Type-A | 1 x RJ45 1 x SFP |
| Video Output | 1 x RJ45 1 x SFP 1 x HDMI Type-A(Loop-out) |
1 x HDMI Type-A |
| Analog Audio Input | Line In 3.5mm Stereo Phone Jack | Mic In 3.5mm Mono Phone Jack |
| Analog Audio Output | Line Out 3.5mm Stereo Phone Jack | |
| USB | 1 x USB 2.0 Type-B | 2 x USB 2.0 Type-A 2 x USB 1.1 Type-A |
| IR | Internal Receiver: 20~60KHz / ±45° / 5M | |
| External Receiver: 3.5mm Stereo Phone Jack 20~60KHz / ±45° / 5M | ||
| External Transmitter: 3.5mm Stereo Phone Jack: 20~60KHz / ±45° / 5M | ||
| RS232 | 3.5mm Phone Jack | 3.5mm Phone Jack |
| Power Input | DC POWER JACK or PoE(optional) | |
| Power | ||
| DC JACK Power Supply | 12V 1.5A | 12V 1.5A |
| PoE (optional)Power Consumption | IEEE 802.3af | |
| Power Consumption | 7W (No include USB device) | 6.3W (No include USB device) |
| Ambient Temperature | ||
| Operation | 0 to 45°C | |
| Storage | -40 to 80°C | |
| Operating Altitude | 2000m | |
| Humidity | Up to 95% | |
| Physical Characteristics | ||
| Dimension | 123.4 x 188.6 x 41.8mm | 123.4 x 188.6 x 41.8mm |
| Weight | 838.2g | 838.6g |
This product, we will only accept orders from business customers and will only ship out to business customers.
