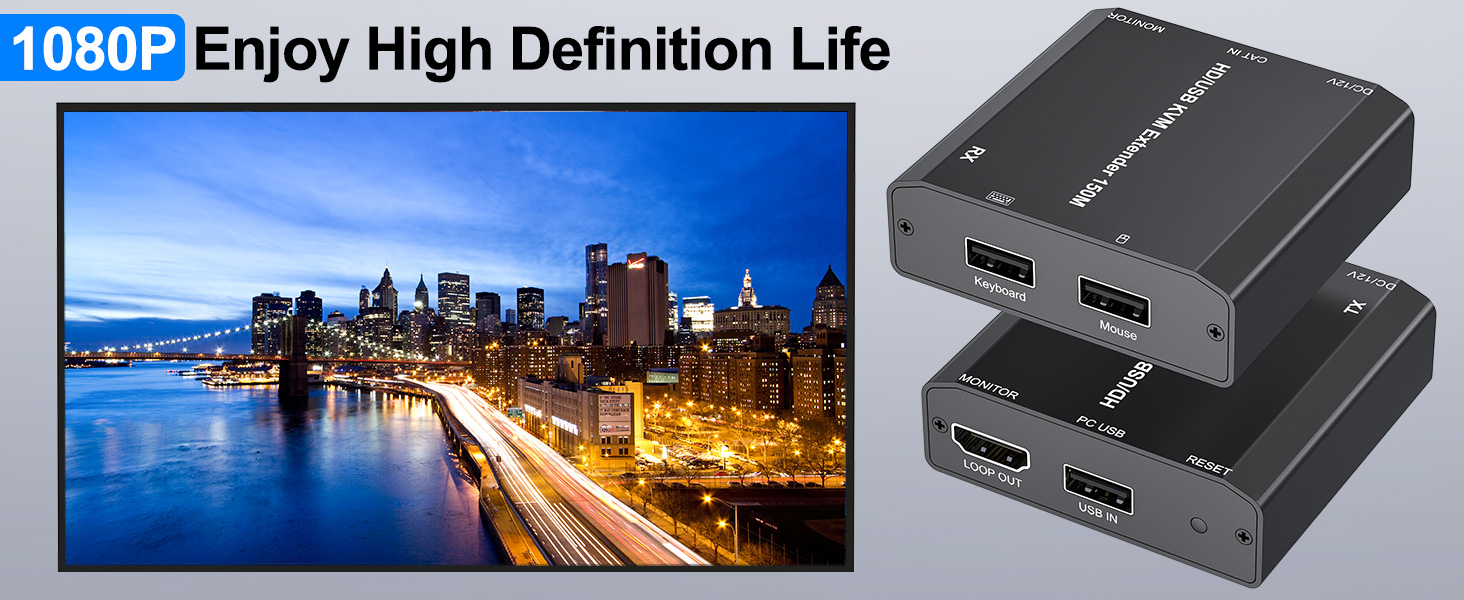

KVM-Extender Set HDMI 1080p 60Hz, Keyboard+Mouses up to 150m, PoC, with Loop Out Port, KCEVE KC-KVME150
KVM-Extender Set HDMI 1080p 60Hz, Keyboard+Mouses up to 150m, PoC, with Loop Out Port, KCEVE KC-KVME150
This 1080P@60Hz HDMI/USB KVM-Extender can transmit HDMI (including digital audio) and 2x USB signals (keyboard and mouse only) up to 150m over a single CAT6 cable without latency.
Thanks to PoC (Power over Cable), only a single power supply needs to be connected.
Since the HDMI Loop-Out port in the transmitter, a control monitor can also be connected to the computer; without the need for an additional graphics connection.
Thanks to PoC (Power over Cable), only a single power supply needs to be connected.
Since the HDMI Loop-Out port in the transmitter, a control monitor can also be connected to the computer; without the need for an additional graphics connection.
- With 2 keyboard/mouse USB ports: The HDMI+USB KVM-Extender receiver with 2x USB ports allows you to control a computer system via keyboard and mouse. By transmitting HDMI and keyboard/mouse data over just one CAT6 cable, you can easily control the signal source.
- In addition to the HDMI cable, please also use a USB cable to connect to the PC so that the KVM-Extender works properly.
- Local HDMI Loop-Out: This KVM extender via LAN cable (not IP) has an HDMI output port on the transmitter (TX), can connect an additional HDMI output screen that local loop-out live video for flexible monitoring options supports.
- POC (Power over Cable): This HDMI KVM extender uses PoC (Power over LAN cable) technology. Only one power adapter is required to connect to the receiver (RX port) to support the operation of the entire set more easily and conveniently. It is recommended to connect the included DC12V power supply to the power supply port on the RX side (receiver = monitor side).
- Range: up to 150 m LAN cable (not IP capable). The lower the AWG number of the LAN cable, the shorter the range. Each plug connection costs approx. 3-5 meters of range.
- Dimensions: 70 x 64 x 23 mm; approx. 85 grams per module.
Packlist:
HDMI+USB KVM-Extender Transmitter + Receiverr * 1
DC 12V/1A EU Power Adapter * 1
USB-Cable * 1
User Manual * 1
Not included:
LAN-Cable
HDMI-Cable
HDMI+USB KVM-Extender up to 150m/492ft
This HDMI USB KVM Extender supports 1080P, POC, and the transmission distance of up to 150m/492ft, can be used in multiple scenarios.
Note:
1. It is recommended to connect the power adapter to the RX.
2. Please connect the USB cable to the USB port of the TX and computer to obtain USB data.
3. Please use CAT6 or above network cable.
4. USB/HDMI KVM-Extender only supports HID USB (i.e. keyboard and mouse), not USB2.0 (cannot transfer data).
