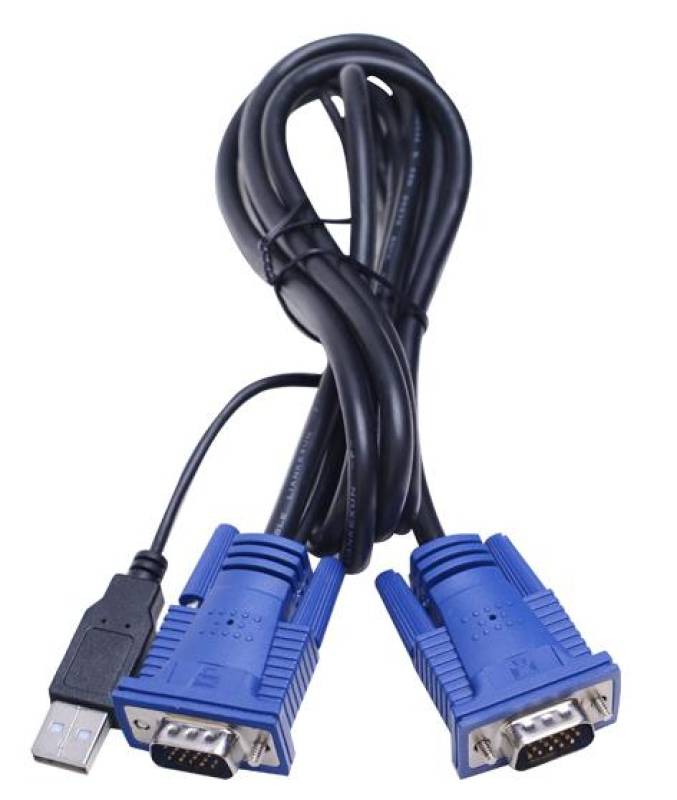

LANBE High-Resolution 18.5" LED-LCD IP KVM SWITCH in 8 ports, combo support (USB/PS.2), 8 x combo cable included, AS-9108ULS
VGA KVM control platform AS-9108ULS-IP is one with integrate a eight ports KVM switch, monitor, keyboard & mouse into 1U height. It controls 8 pcs computer with one platform (keyboard, mouse and monitor) and over IP by use a Windows Client.
Control Platform
- Control platform with FullHD LED LCD, keyboard, mouse and 8-port KVM switch.
- Control over IP up to FHD over Windows-Client
- 1U height, suitable for 19’’ standard cabinet installation and metal structure.
- 18.51” LED widescreen with high brightness, high clear and high resolution.
- Control platform can be totally pulled out from the cabinet and the LCD screen can be turned on to 120 degrees.
- Ultra thin keyboard with keypad.
- Mouse touch board with two function button.
- Front panel with lock to prevent damage by accident.
- External power adapter.
- Automatic power on/off. When pulling control platform out from cabinet, the power turns on automatically. When pushing it into the cabinet, the power turns off automatically.
- An easy to use OSD menu.
Switch
- One control platform can control eight computers by direct connection.
- Be compatible with PS/2, USB standard interface.
- Support VGA, SVGA, XGA video input.
- Accord with DDC, DDC2, DDC2B standard and VESA standard.
- Support maximum resolution of 1920 * 1080 (1366 * 768 native)
- Support multiple operating systems: WIN95/98/98SE/ME/200/XP?WIN 7, WIN 8.x, WIN 10, WIN NT, UNIX, LINUX...
Specification:
|
Type
|
AS-9108ULS-IP
|
| External Connection |
1 x RJ45 LAN for IP control
2 x USB for external keyboard/mouse |
| Computer Connection |
8 |
| CPU Port Selection |
Front panel buttons/OSD menu |
|
LCD monitor
|
monitor
|
18,51” SXGA Color LED-LCD
|
|
visible square
|
409.8(H)*230.4(V)mm
|
|
Resolution
|
800*600 @60Hz
1024*768 @60Hz
1280*720 @60Hz
1280*960 @60Hz
1360*768@60HZ
1366*768 @60Hz (native)
1920*1080 60 Hz (max)
|
|
color
|
16.7M colors (RGB 6-bits + Hi-FRC)
|
|
Luminance, White (5P)
|
250 cd/m2 (Typ.)
|
|
contrast
|
1000 : 1 (Typ)
|
|
backlight
|
LED
|
|
Pixel Pitch
|
0.3(per one triad)x0.3
|
|
LCD MTBF
|
50,000 hours
|
|
Input power
|
DC 12V
|
|
Keyboards
|
keyboard
|
100 keys
|
|
Compatible IBM/AT
|
WIN95/98/98SE/ME/2000/2008/XP, VISTA, WIN 7, WIN 8.x, WIN 10, WIN NT,UNIX,LINUX....
|
|
Port
|
Standard PS/2 & USB
|
|
Using life
|
>1,000,000 times
|
|
Mouse
|
X/Y resolution
|
1000 dots/inch 40x40/mm)
|
|
hardware connector
|
Standard PS/2&USB
|
|
Os support
|
WIN95/98/98SE/ME/2000/2008/XP, VISTA, WIN 7, WIN 8.x, WIN 10, WIN NT,UNIX,LINUX....
|
|
Using life
|
>1,000,000 times
|
|
Power built-in
|
Power input(AC)
|
~100V-230V
|
|
Using life
|
MTBF>60,000hours 25 °C
|
|
House color
|
black
|
|
House
|
Metal
|
|
Gross weight
|
19.5 KGS
|
|
Dimensions
|
611mm x 450mm x 42mm
|
|
Rack installation depth
|
800mm ~ 1200mm (adjustable)
|
|
Operating/storage Temp
|
0 ~ 50/-20 ~ 60 °C
|
|
PC ports
|
8
|
|
selections
|
Panel Buttons / OSD menu
|
|
VGA resolution
|
800*600 @60Hz
1024*768 @60Hz
1280*720 @60Hz
1280*960 @60Hz
1360*768@60HZ
1366*768 @60Hz (native)
1920*1080 60 Hz (max)
|
Note:
For Business user and Industrial user. only.
Not suitable for consumer user.
No sale to consumer customer.
