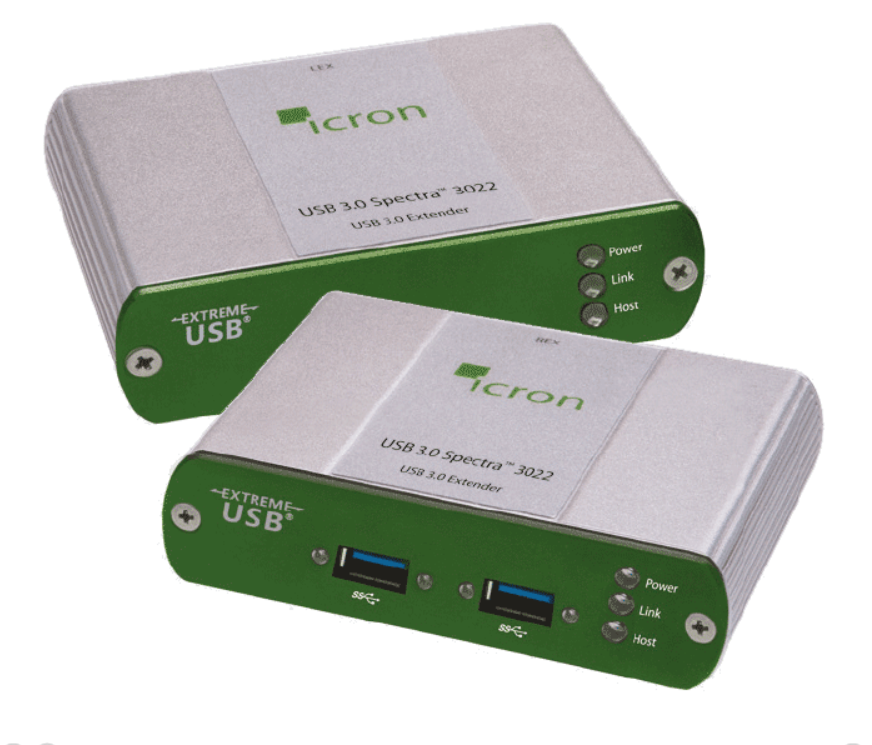

Icron 3022 - USB 3.0 Spectra™ 3022 Two-port Multimode fiber 100m Extender, 3022

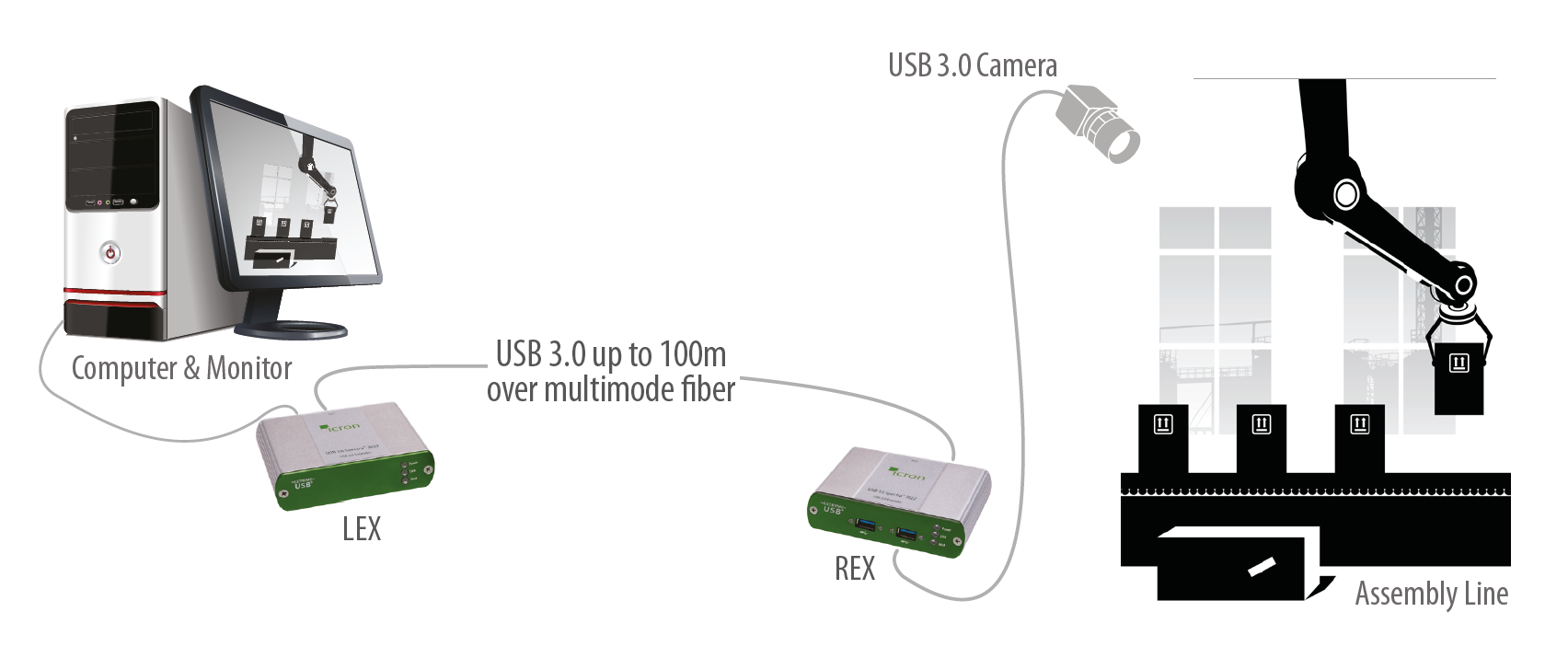

The USB 3.0 Spectra™ 3022 is a two port USB 3.0 SuperSpeed extension solution, enabling USB 3.0 connections at up to 5Gbps over 100m/330ft of multimode fiber optic cable. The Spectra 3022 features two locking USB 3.0 ports delivering 900mA power to each port perfectly suited for USB3 Vision camera applications, and comes with a two year warranty.
Note, backward compatibility to USB 2.0/1.1 is not supported.
- USB3 Vision compliant
- Extend USB 3.0 up to 100m
- Supports USB 3.0 throughputs up to 5Gbps
- Integrated 2 port hub
- Rugged locking USB and power connectors
- Delivers speed, isolation and security over multimode fiber (2 x LC Connectors each module)
- ExtremeUSB suite of features:
- Simplicity: True plug and play (no software drivers)
- Reliability: Patented USB extension
- Durability: Commercial grade, robust connections
- Compatibility: Works with all devices and operating systems
- 2 year warranty
- Rack mountable option
Specifications
RANGE
- Direct Connect: Up to 100m (330 ft)*
SPEEDS
LEX
- USB Connector: 1 x USB 3.0 Type B Locking Receptacle
- Link Connectors: 2 x LC Connectors
- Dimensions: 100mm x 76mm x 26mm (3.94″ x 2.99″ x 1.02″)
- Enclosure Material: Anodized Aluminum
REX
- USB Connectors: 2 x USB 3.0 Type A Locking Receptacles
- Link Connectors: 2 x LC Connectors
- Dimensions: 100mm x 76mm x 26mm (3.94″ x 2.99″ x 1.02″)
- Enclosure Material: Anodized Aluminum
- Available Current: 900mA for each USB Port
- Power Supply: 100-240V AC Input, 5V DC Output, Locking
ENVIRONMENTAL
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -20°C to 70°C (-4°F to 170°F)
- Operating Humidity: 20% to 80% relative humidity, non-condensing
- Storage Humidity: 10% to 90% relative humidity, non-condensing
COMPLIANCE
- Emissions: FCC (Class B), CE (Class B)
- Environmental: RoHS2 (CE)
- Machine Vision: AIA USB3 Vision
