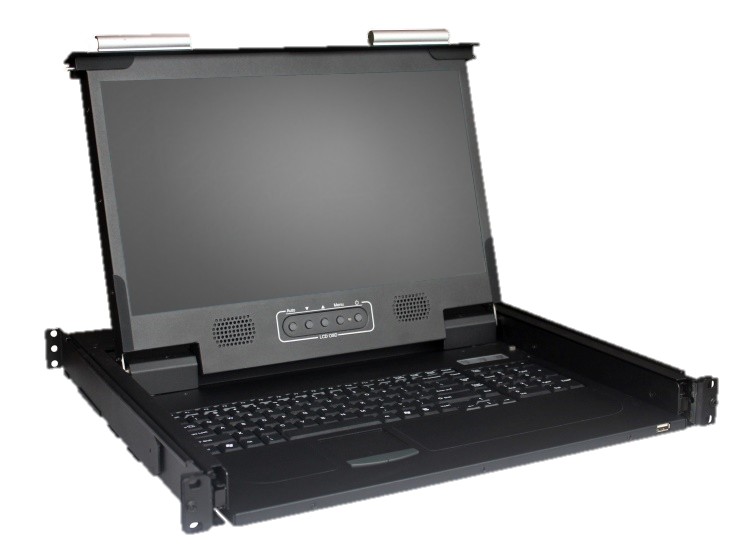

Short High-Resolution 1080p FullHD LCD-Console Drawer with DVI/VGA + USB, Audio, Hub, KVM-1701SWPD-M2
This is a very special LCD KVM drawer with a very large Screen and support of FullHD (native 1920x1080).
You can choise between DVI and VGA to connect to your server or KVM-Switch.
Easy to handle and use in a 600 mm deep or larger 19" cabinet.
Features
- 1U 17.3 inch widescreen LCD Console Drawer
- DVI & VGA Port
- 1920 x 1200 WUXGA Ultra high resolution
- Support FHD with 1080p resolution
- Front 1xUSB, Rear 2xUSB 2.0 Type A, Sharing USB peripheral Device for computer (ex, flash disk, hard driver, KB/Mouse)
- 104-key (German) keyboard with touch pad mouse
- USB 2.0 Keyboard & Mouse
- Self-locking and auto release rails for ultra convenience
- Build in 2x 2 watts speakers
Package Contents
- 1x KVM-1701SWPD-M2 DVI/VGA Full HD LCD Console with Standard Rack Mount Kit
- 1x 1.8 meter IEC Type Power Cord
- 1x 1,8 meter DVI cable
- 1x 1,8 meter VGA cable
- 1x 1,8 meter USB cable
- 1x 1.8 meter Audio Cable
- 1x User Instructions (english)
| Computer Connections |
1 |
| Rack Depth (rack cabinet front rails to rear rails) |
380 mm to 620 mm (600 mm Rack needs min)
|
| Connectors |
Input Ports |
USB 2.0 in |
1 x USB Type A Female |
| Monitor |
1 x DVI-D Female (White)
1 x HDB-15 (VGA) Female (Blue) |
| Speaker |
1 x Mini Stereo Jack Female (Green) |
| External Mouse / Peripheral |
USB |
1 x USB Type A Female (front) |
| USB |
2 x USB Type A Female (rear) |
| Power |
1 x 3-prong AC Socket |
| Switches |
Power |
1 x Rocker |
| LCD Power |
1 x Pushbutton |
| LCD Adjustment |
4 x Pushbutton |
| LEDs |
Power |
1 |
| Lock |
Num |
1 |
| Caps |
1 |
| Scroll |
1 (Green) |
| |
Keyboard / Mouse
Emulation |
USB |
| Video (DVI / VGA) |
1920 x 1080 @ 60Hz, DDC2B
(support resolution up to 1920*1200) |
| Size |
17.3 inch FULL HD display |
| Backlight |
LED |
| Resolution |
1920*1080 (support resolution up to 1920*1200) |
| Max. color |
262 K |
| Luminance |
3000 cd/m2 |
| View Angel (H/V) |
140 / 120 |
| Contrast Ratio |
650 : 1 |
| Power |
100-240V AC 50/60Hz via IEC Type power cord |
| Power Consumption |
230V, 20W |
| Environment |
Operating Temp. |
0-50°C |
| Shock: |
10G acceleration (11ms duration) |
| Vibration: |
17 to 500Hz 1G PTP |
| Storage Temp. |
-20-60°C |
| Humidity |
10 - 90% RH, Non-condensing |
Physical
Properties |
Housing |
Metal |
| Weight |
14 kg (net weight)
17 kg (gross weight) |

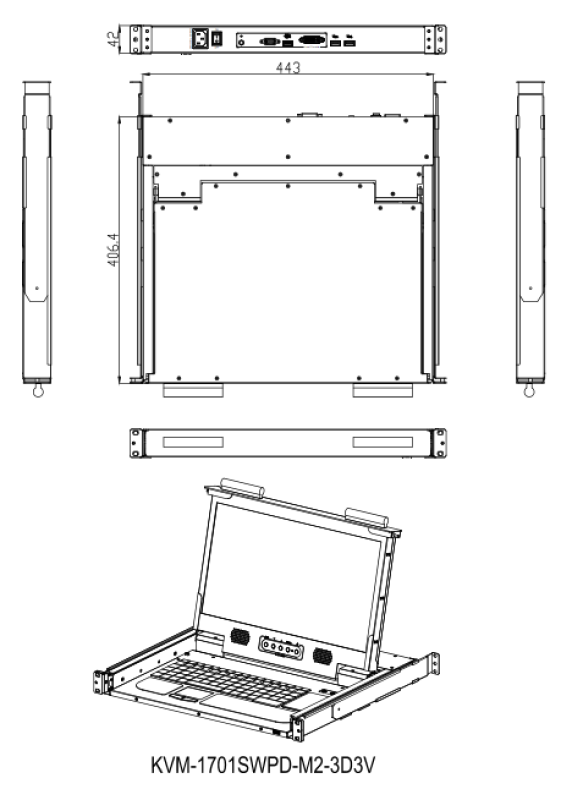

Physical Dimensions
(D x W x H) |
406,4 x 443 x 42 mm (product)
700 x 605 x 168 mm (carton) |
