2-Way Auto-Switch-Extender 4K60Hz HDMI and USB-C (DP ALT) Extender with 100W PD & PoC, SC&T HUE01-4K6G
The SC&T HUE01-4K6G is a professional-grade Pro AV extender designed for reliable, long-distance signal transmission over standard IT infrastructure. Using a single high-quality CAT6 cable, this system extends uncompressed 4K60Hz video up to 70 meters (230 feet) with near-zero latency.
- HDMI or USB-C Auto-Switch-Input
- Resolution up to 4K60Hz.
- Signal extension up to 70m over CAT6 (60m over CAT5e).
- Built-in USB Power Delivery up to 100W for laptop charging.
- Power over cable (PoC) transmission.
- With a 24V/5A power adapter for extender/PoC include.

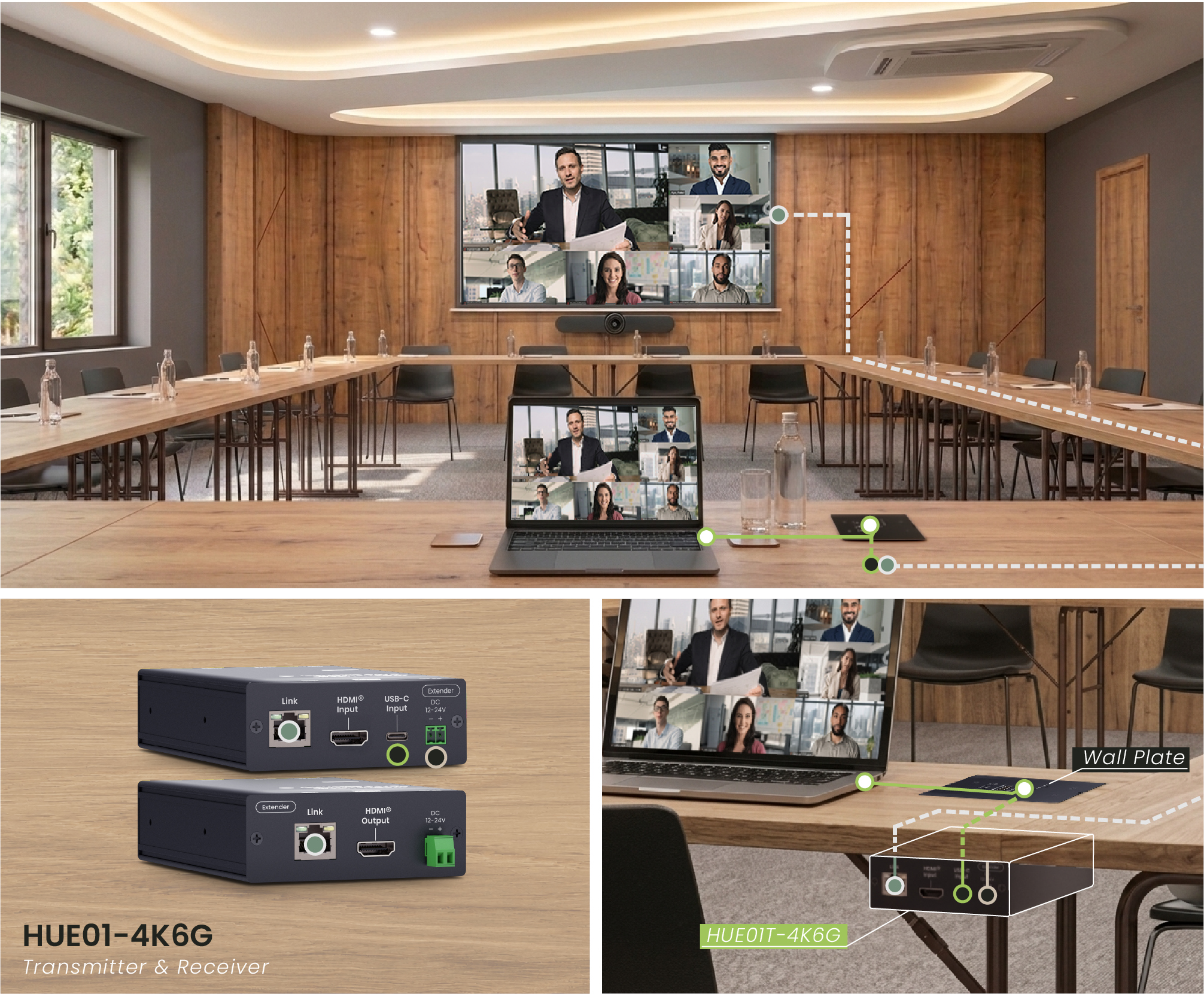

The transmitter features dual HDMI and USB-C inputs with intelligent auto-switching. To simplify clean-desk huddle rooms and corporate boardrooms, the USB-C port supports up to 100W USB Power Delivery (PD 3.0) to charge presentation laptops directly. With bidirectional Power over Cable (PoC) and serial RS-232 control extension, the HUE01-4K6G serves as a dependable core component for modern commercial AV system integration.
4K60Hz Ultra-HD Transmission Over Long Distances
Deliver flawless 4K60Hz (4:4:4) video data rates over a single cable run. Reach up to 70m (230ft) using standard CAT6 cable, or up to 60m (196ft) with CAT5e. The hardware ensures high-end, professional-grade transmission with near-zero latency (less than 1 frame) for critical real-time operations.

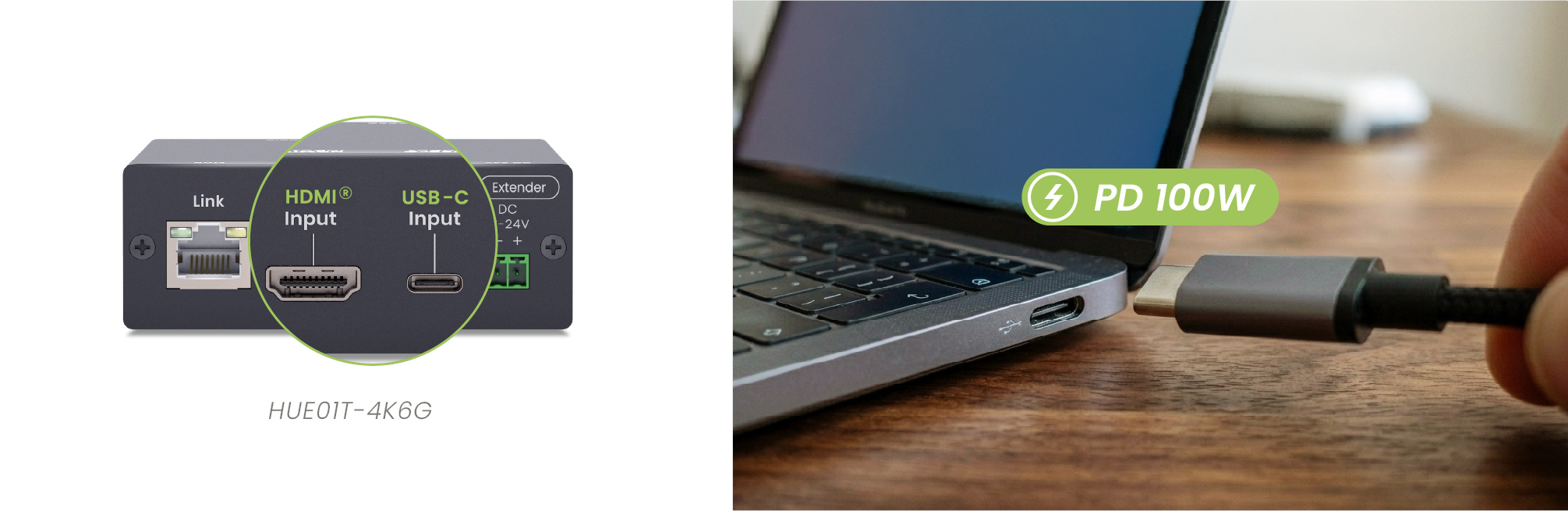

Dual-Input Auto-Switching with 100W Laptop Charging
The transmitter integrates HDMI 2.0 and USB-C (DisplayPort Alternate Mode) interfaces, supporting both manual control and auto-search detection. When connecting via USB-C, the system delivers up to 100W PD fast charging, eliminating the need for bulky laptop power bricks on the conference table.
Bidirectional PoC for Flexible Field Deployment
Equipped with Power over Cable (PoC) technology, the system requires only a single 12V/1A power supply. Field technicians can power the setup from either the transmitter or the receiver side, drastically reducing the hassle of finding or installing AC outlets behind displays or inside ceilings.
Independent Analog Audio Extraction and Embedding
Maximize audio routing flexibility with advanced audio extraction and embedding. Besides transmitting embedded digital audio from HDMI or USB-C, you can inject external analog audio via Phoenix terminals at the transmitter, or extract decoded audio at the receiver directly into professional amplifiers and Public Address speakers.
Commercial-Grade Control and Protocol Support
Fully compatible with HDCP 2.2 and dynamic HDR standards (including HDR10 and HDR10+). Features built-in EDID pass-through for seamless display resolution matching and supports 115200bps high-speed RS-232 serial commands, providing system integrators with stable, centralized device management.
Key Benefits
- Save Cable Costs and Conduit Space: Traditional long-distance HDMI cables are expensive, bulky, and fragile. This solution uses a single, highly flexible off-the-shelf CAT6 network cable, saving precious rack space, reducing conduit congestion, and cutting procurement costs.
- Eliminate On-Site AC Power Headaches: Thanks to single-ended PoC technology, installers do not need to pull dedicated AC lines to projector mounts or high ceilings. This true plug-and-play setup shortens labor times and lowers long-term maintenance costs.
- Pure Hardware Design, Zero Drivers Needed: The system works right out of the box with no software setup required. Immediate connectivity upon power-up completely avoids OS compatibility issues and preventable truck rolls.
- Rugged Durability with Flexible Mounting: Includes standard surface/rack mount brackets, making it simple to securely mount the compact metal chassis under tables, inside equipment racks, or directly behind displays.
Optional 1U Rack-Mount Kit
For control rooms and AV racks, the 1U rack panel helps keep multiple SC&T devices aligned and easier to maintain.
Designed for selected SC&T device sizes for cleaner rack organization
Easy installation with included screw set and illustrated manual
Standard 19" rack format, 1U height
View Rack Kit
Specifications
Compliance |
HUE01T-4K6G |
| Standard | HDMI® 2.0 HDCP 2.2 |
| Max. Video Resolution | 4K60Hz |
| Max. Transmission Distance | 70m over CAT6/ 60m over CAT5e |
| Dynamic Range Standard | SDR, HDR, HDR10, HDR10+ |
| Audio Format | PCM 2CH, 5.1CH, 7.1CH DTS 2CH, 5.1CH Dolby Digital (AC-3)2CH, 5.1CH |
| Analog Audio | Impedance: 500Ω Signal-to-noise Ratio (SNR): 114dB (A-weighted) Dynamic Range: 114dB THD+N: -94dB |
| RS232 Baud Rate | 115200 |
Ports & Interfaces
| HUE01T-4K6G | HE01R-4K6G | |
| Video Input | 1 x HDMI Type-A 1 x USB Type-C |
1 x RJ45 |
| Video Output | 1 x RJ45 | 1 x HDMI® Type-A |
| Analog Audio | Terminal Block 3-Pin | Terminal Block 5-Pin |
| RS232 | Terminal Block 3-Pin | Terminal Block 3-Pin |
Power
| HUE01T-4K6G | HE01R-4K6G | |
| Power Supply | DC 12~24V | DC 12~24V |
| Power Consumption | 3.12W | 1.32W |
| Power Saving | 0.96W | 0.48W |
Ambient Temperature
| Operation | 0 to 55°C |
| Storage | -40 to 80℃ |
| Humidity | Up to 95% |
| Operating Altitude | 2000m |
Physical Characteristic
| HUE01T-4K6G | HE01R-4K6G | |
| Dimension | 125 x 88 x 32mm | 125 x 88 x 32mm |
| Weigh | 246.2 g | 248.4 g |
Scope of delivery:
1x Receiver HUE01R-4K6G
1x 24V / 5A DC IEC power supply
1x Mounting clips/screws
1x USB-C 3.2 cable
User Manual:
CAD:
B2B Product - Designed for use in a commercial environment.
