HDMI 2.0 KVM-Extender-Set 4K60Hz with Loop-Out, USB-Keyborad/Mouse, HDR10, EDID and PoC, AV Access 4KEX70-KVM

HDMI 2.0 KVM-Extender-Set 4K60Hz with Loop-Out, USB-Keyborad/Mouse, HDR10, EDID and PoC, AV Access 4KEX70-KVM

• Extend 4K Video & USB Control Up to 70m: Send HDMI video plus USB 1.1 keyboard/mouse signals over a single Cat 6 cable—ideal for classrooms, kiosks, industrial PCs, security stations, and worship media desks.
• Smooth 4K60 Video for Professional Environments: Supports 4K@60Hz 4:4:4 and HDCP 2.3, ensuring compatibility with modern media players, signage controllers, and conferencing systems.
• Simple Single-Power Installation with PoC: Bi-directional PoC allows one power adapter to run both units, reducing outlet requirements and making cable management easier in podiums, racks, and wall installations.
• Full Multichannel Audio Support: Passes Dolby Atmos, DTS:X, and PCM 7.1, delivering rich audio for worship spaces, retail displays, conference rooms, and home AV setups.
• Slim, Installer-Friendly Design: Compact chassis fits behind displays, inside lecterns, or in tight rack spaces. Includes mounting brackets for clean, professional installations.
• Bi-directional PoC: Only one power adapter requiered. You can choose to connect it to transmitter or receiver.
• HDMI Version: 2.0
• HDCP Version: 2.3
• EDID: With EDID Montor emulation
• Loop-out Port: A local HDMI out supports a local monitor to connect at transmitter.
• USB-Ports: 2x only useable for default keyboard and mouse with HID protocol.

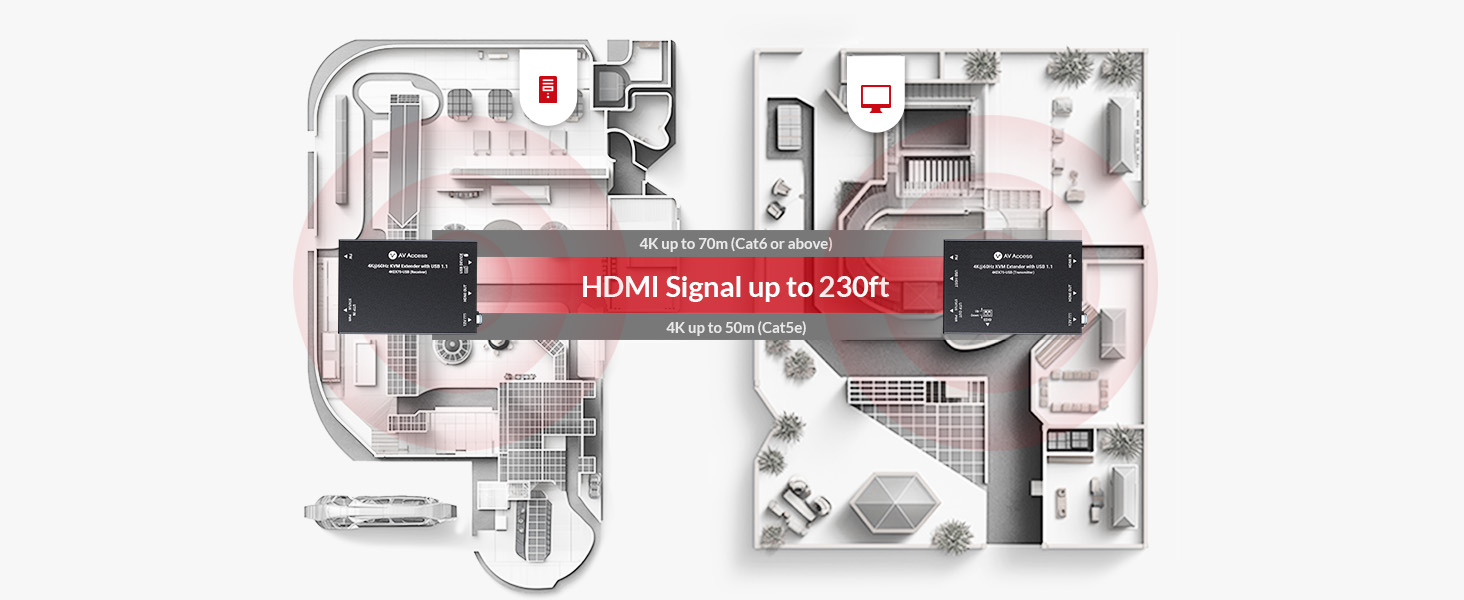

• Transmission Range: up to 70m by use CAT.6 above; up to 50m by use CAT.5e cable. It is not possible to use a network.
• Product dimensions: ‎ 10,16 x 5,08 x 2,54 cm; 907,18 Gramm








•
•
•
•
•





4K@60Hz 4:4:4 8bit HDR HDMI2.0/HDCP2.3 compliant with Bi-Directional PoC, Auto EDID, and support for PCM 7.1, Dolby Atmos, DTS:X.		HDMI signal transmit distance CAT5e up to 50m and CAT6/6A/7 up to 70m KVM Extender for stable long-distance transmission.		EDID Copy & Fixed Modes TX TX supports multiple EDID modes, including display EDID copy and fixed EDID for stable device compatibility.		HDCP 2.3 KVM HDMI Extender Supports HDCP 2.3 vs 2.2: enhanced security, wider compatibility, stable 4K@60Hz signal for all devices.










High Compatibility The extender is compatible with the latest HDMI source and display devices, such as Apple TV 4K, Roku 4, Amazon Fire TV 4K, Cisco cable box, Comcast, Xbox One X, PS4 Pro, Vizio TV, Sky Q.		Supports Multi-Channel Audio up to PCM 7.1 Compatible with PCM 2.0/5.1/7.1, Dolby Digital / Digital Plus / TrueHD / Atmos, and DTS 5.1 / DTS-HD / DTS:X for immersive home theater sound.

Package contents:
