GUDE Expert Power Control 8226-1 12-fold switched PDU with integrated current metering and monitoring per load outlet

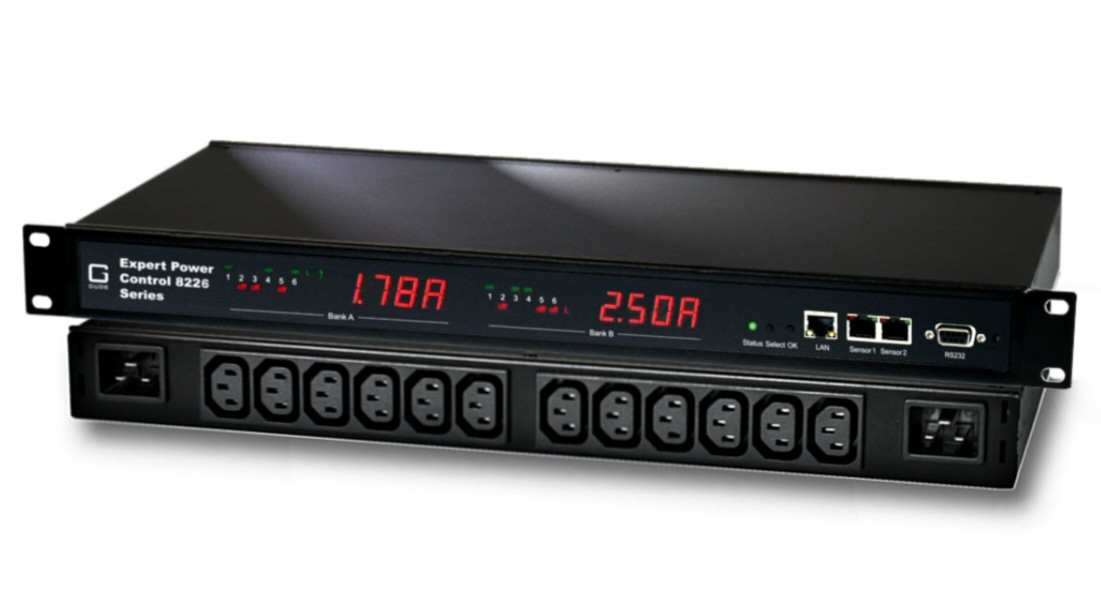

Expert Power Control 8226-1
12-fold switched PDU with integrated current metering and monitoring per load outlet
Expert Power Control 8226-1 enables switching and metering of electrical appliances through TCP/IP network or serial interface. The rear panel disposes of 12 load outlets (max. 10 A). These Power Ports are individually switchable through web interface, serial interface, SNMP or a button directly on the device. The Power Distribution Unit has SNMPv3, SSL, IPv6 and Telnet support integrated.
Six Power Ports each of Expert Power Control 8226-1 are pooled into a bank equipped with a separate 16 A fuse. Both banks as well as each load outlet dispose of two energy meters each. Various electrical dimensions are measured on the supply lines. Two seperate supply lines enable switching of 32 A resp. 7500 W (dual circuit). Sensor interfaces allow monitoring of ambient temperature and humidity.
Benefits
- 12 load outlets in 1 rack unit
- 2 independent banks of 6 load outlets
- Energy metering per bank and per load outlet
- Total switching power: 7500 W
- 2 interfaces for optional sensors
- SNMPv3, SSL and Telnet integrated
- IPv6 ready
Features
- 12 Power Ports individually switchable directly on the device, via HTTP, command line tool and RS232 serial interface
- 2 energy meters per bank and per port, one meter continuously, the other resettable
- Metering of energy, current, power factor, phase angle, frequency, voltage and active / apparent / reactive power
- Latency time of 1 second prevents simultaneous power-up of multiple Power Ports
- Paired switching of outlets possible, e.g. output 1 of bank 1 simultaneously with output 1 of bank 2
- Status and power-up delay individually adjustable for each Power Port after power blackout (0...9999 seconds)
- Programmable turn-on/turn-off sequence (batch mode) enabling automatic switching of Power Ports to previous state after configurable time period
- Previous state of Power Ports can be automatically restored after reboot of device
- 12-channel watchdog, an individual watchdog (ICMP/TCP) can be assigned for each Power Port
- 2 independent power inputs of 230 V for the same or different phases
- A clearly visible LED display per bank for total current, IP address, sensor data and error reports
- Dedicated high-inrush relays avoid welding of relay contacts at start-up peaks
- 2 interfaces for optional sensors (see Accessories)
- Integrated overvoltage protection prevents damage of device and connected consumers (L-N 10 kA)
- Free Android App and iPhone App allow access from anywhere
- Low internal power consumption
- Developed and manufactured in Germany
Network
- Dynamic IP address allocation by DHCP or manual allocation with static IP address
- IPv6-ready
- Firmware update over Ethernet during operations (without reboot of device or load outlets)
- HTTP/HTTPS, e-mail (SSL, STARTTLS)
- SNMPv1, v2c, v3 (Get/Traps)
- TLS 1.0, 1.1, 1.2
- Syslog support
- IP Access Control List
- Secure login through SSL
- Configuration and control via Telnet possible
- Comfortable configuration by web browser, Windows or Linux tool
- 10/100 Mbit/s
| Electrical Connections |
| 2 power supplies (IEC C20, max. 16 A, 230 V) |
| 2 x 6 load outlets (IEC C13, max. 10 A) |
| 1 Ethernet connector RJ45 (10/100 Mbit/s) |
| 1 serial interface RS232 (Sub-D, 9-pin) |
| 2 sensor inputs (RJ45) for optional sensors |
| Technical Details |
| 19 inch, 1 height unit |
| LxHxD: 43.9 x 4.4 x 19.5 cm (without brackets) |
| Weight: ca. 2.8 kg |
| Operating temperature: 0-50 °C |
| Storage temperature: -20 - 70 °C |
| Relative humidity: 0 - 95 % (non-condensing environment) |
| Scope of delivery |
| Expert Power Control 8226-1 |
| 2 connector cables (Schuko - IEC C19) |
| |
| Quick start guide |
