Main page » KVM-Extender » Fibre KVM-Extender » Fiber 4K30 HDMI+USB KVM-Extender over IP (max. 500m MM), Zero Latency, 3x USB 2.0, AV Access 4KIP500F-KVM

Preview: Fiber 4K30 HDMI+USB KVM-Extender over IP (max. 500m MM), Zero Latency, 3x USB 2.0, AV Access 4KIP500F-KVM

Fiber 4K30 HDMI+USB KVM-Extender over IP (max. 500m MM), Zero Latency, 3x USB 2.0, AV Access 4KIP500F-KVM

Mobile Preview: Fiber 4K30 HDMI+USB KVM-Extender over IP (max. 500m MM), Zero Latency, 3x USB 2.0, AV Access 4KIP500F-KVM

Fiber 4K30 HDMI+USB KVM-Extender over IP (max. 500m MM), Zero Latency, 3x USB 2.0, AV Access 4KIP500F-KVM

Product No.:: 4KIP500F-KVM
Shipping time:: in stock = 1-2 days (abroad may vary)
Stock:: pcs
price netto:: 250,00 EUR

297,50 EUR

incl. 19% tax excl. Shipping costs

Description

Description

Fiber 4K30 HDMI+USB KVM-Extender over IP (max. 500m MM), Zero Latency, 3x USB 2.0, AV Access 4KIP500F-KVM

● Up to 550M Transmission Range: Enjoy zero-latency, 4K ultra HD HDMI signal transmission over a distance of up to 550m (1800ft) using multi-mode optical fiber cable. Perfect for expansive spaces like large buildings, ensuring clear, high-quality visuals.
● Unmatched Stability with Fiber Optic: Our fiber optic connection eliminates electromagnetic interference (EMI) and provides optical isolation, guaranteeing uninterrupted and superior video transmission. Ideal for data control centers, university campuses, hospitals, sports arenas, and more.
● Plug & Play KVM Extender over IP: Easily connect up to 16 transmitter and receiver pairs through a standard Gigabit Ethernet switch without the need for VLAN configuration. Simple pairing with built-in DIP switches ensures quick setup.
● Effortless Remote PC Control: Featuring 3x USB 2.0 ports on the receiver, this device allows you to control your remote PC with ease using a keyboard, mouse, touch-screen panel, or other peripherals at high speeds of up to 480Mbps.
● Important Notes: This product is a KVM over IP extender kit. It doesn’t support matrix switching via a Gigabit switch. It is required to use an Ethernet switch with fiber ports to deploy multiple sets.
● 2x 850nm multi-mode SFP+ module are included in the package.

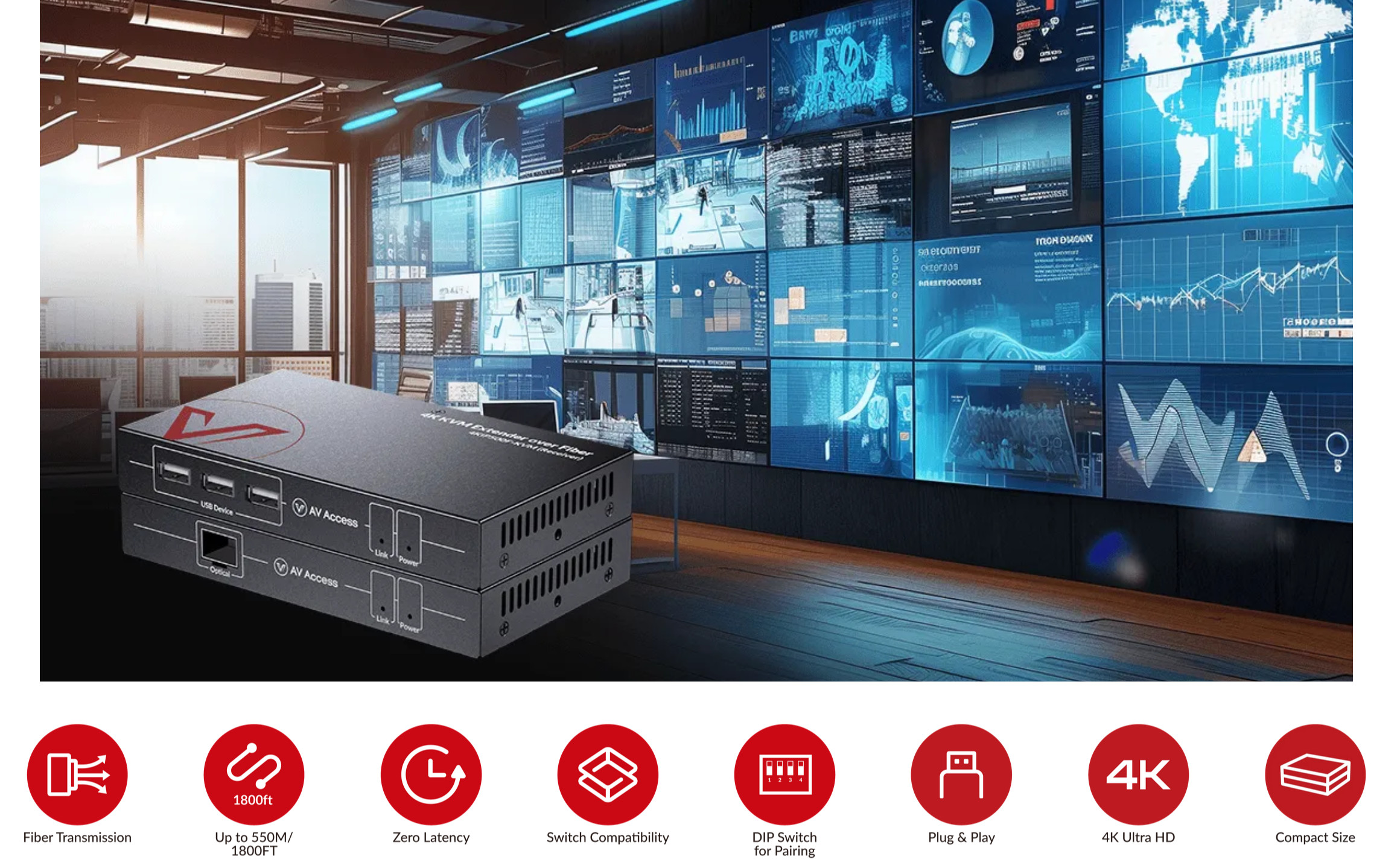

High-End 550m 4K Fiber KVM-Extender over IP

Enjoy Long-Distance and Zero-Latency Transmission

Typical Applications

The 4KIP500F-KVM can transmit 4K ultra HD HDMI signals up to 550m (1800ft) over multi-mode optical fiber with zero latency. It offers exceptional stability, reliability, and easy integration, making it perfect for various professional settings. Here are some typical applications:

Data Control Centers

Ensure efficient data monitoring with the Fiber KVM extender’s EMI-free, 4K video transmission. Seamless Ethernet integration allows easy scalability, making it perfect for military, traffic, and data control centers.

Hospitals & Healthcare

Stream high-definition video for telemedicine and remote diagnostics with the fiber optic KVM extender. Optical isolation ensures secure transmission, while USB ports enable easy remote PC control, essential for sensitive medical environments.

Colleges & Universities

Facilitate remote lectures and campus-wide broadcasts with the 4KIP500F-KVM’s stable, high-quality video and audio. Professors can control remote PCs using various peripherals, improving the educational experience.

Government Agencies

Stream HDMI sources to multiple displays in government offices using this fiber KVM Extender. Its robust connection and plug-and-play design ensure reliable communication and easy information management, enhancing citizen services.

Works Perfectly with Ethernet switch

With the capability to support up to 16 pairs of transmitter (TX) and receiver (RX) devices via a single Gigabit Ethernet switch, this fiber optic KVM extender offers seamless scalability and integration without the need for VLAN configuration.

Notes:
1. This product is a KVM over IP extender kit, which means one TX can only work with one RX at the same time. It doesn’t support matrix switching via a Gigabit switch. Please refer to 4KIPJ200 if you need an IP KVM matrix solution.
2. It is required to use an Ethernet switch with fiber ports to deploy multiple sets. A 10Gb uplink is necessary for transmission between two switches.

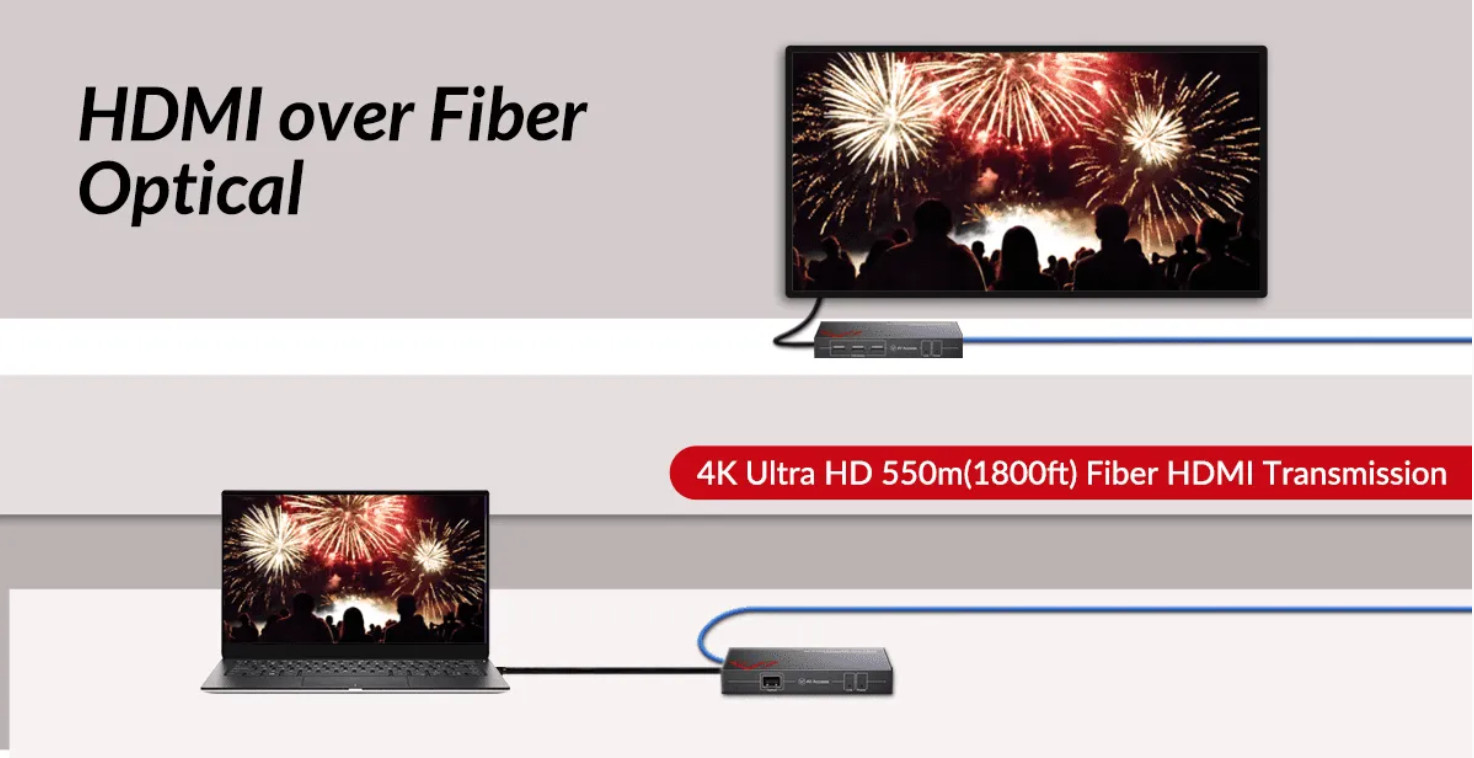

		Ultra-Long 550m Transmission Range This new HDMI KVM extender can transmit 4K@30Hz HDMI signal up to 550m (1800ft) via a fiber optic cable. With its ultra-long-range transmission, it is perfect for expansive spaces like large buildings, ensuring clear, high-quality visuals.

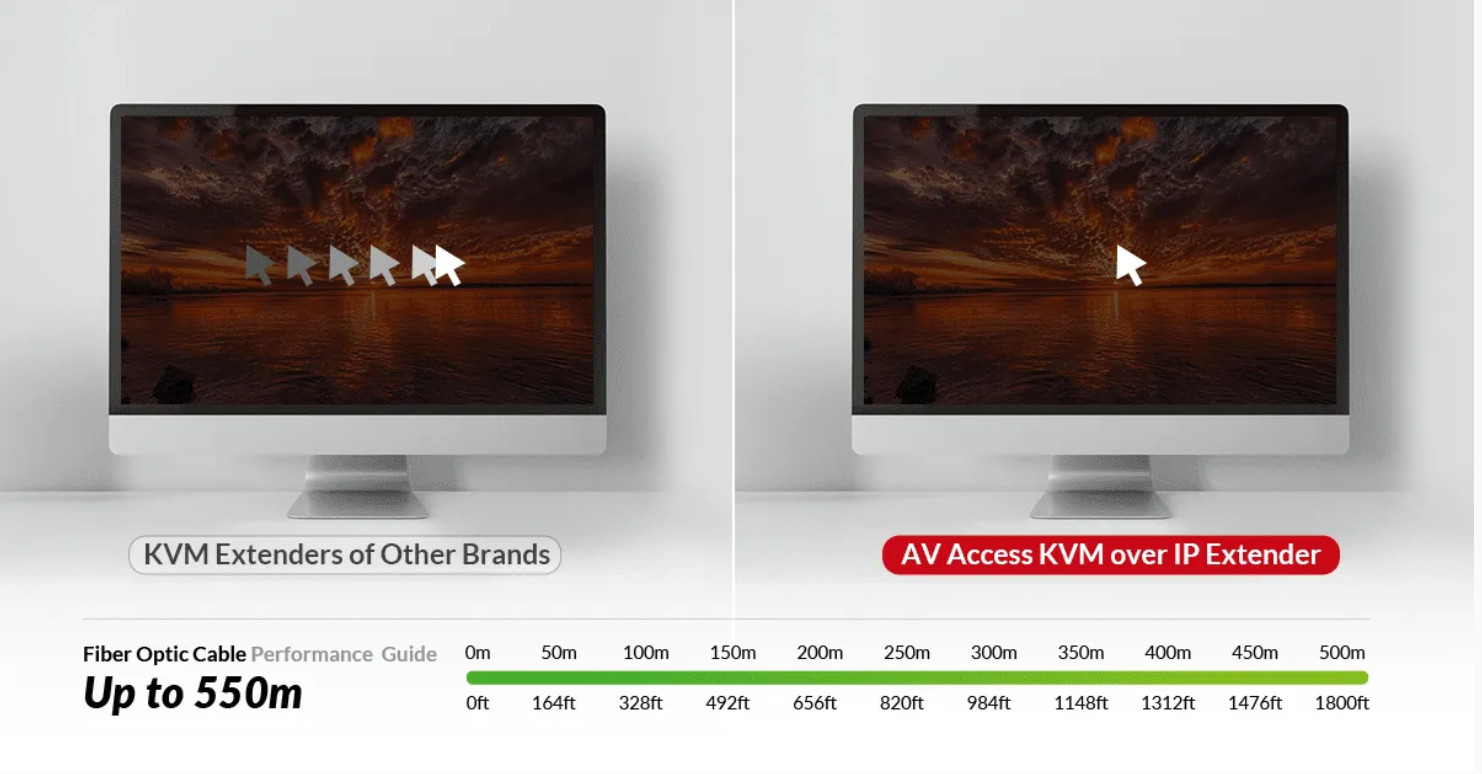

Fiber Optic Transmission with Zero Latency With the advanced fiber optic technology, this 4K KVM extender provides anti-electromagnetic interference and zero latency, ensuring uninterrupted and superior video transmission. It supports a maximum transmission distance of up to 10km when using a single-mode optical module and fiber.

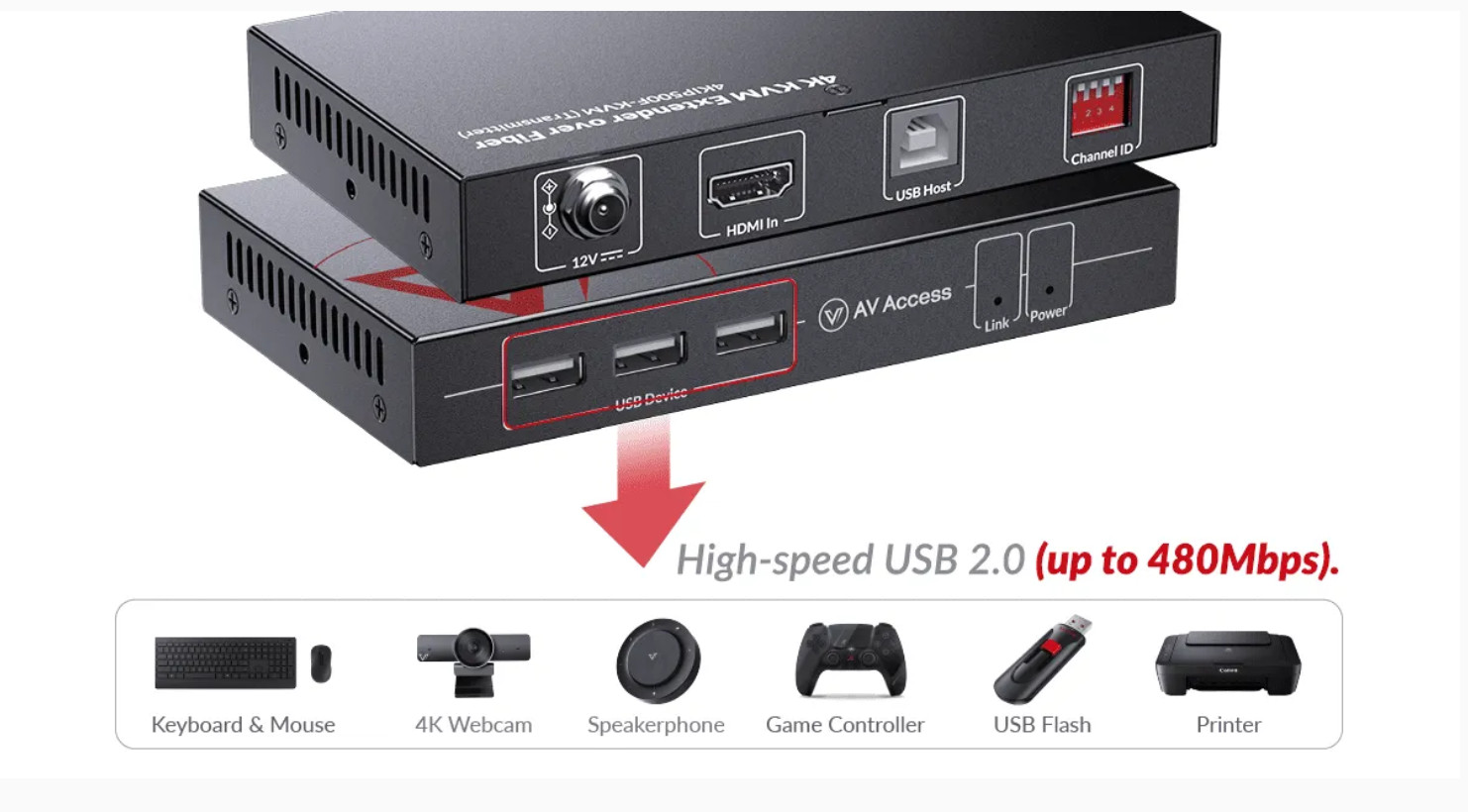

		Enhanced Remote Control Capabilities The fiber KVM extender is compatible with multiple peripherals, supporting USB 2.0 and USB camera transmission. It allows for remote computer control at rates up to 480Mbps, making it versatile for various applications such as data control centers, hospitals, and universities.

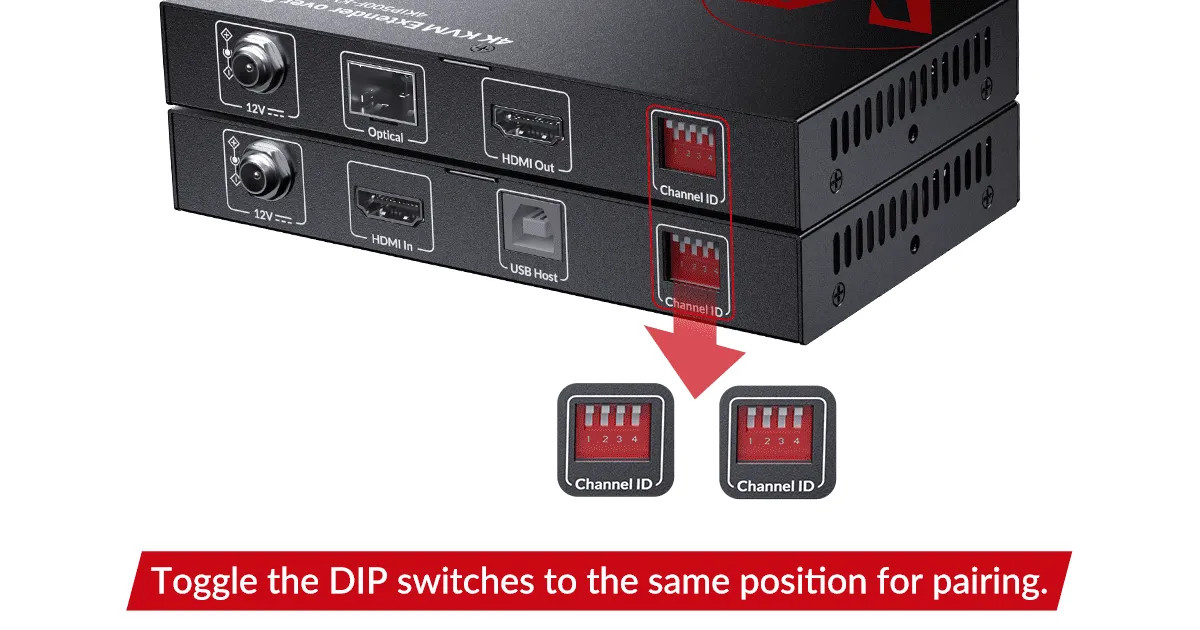

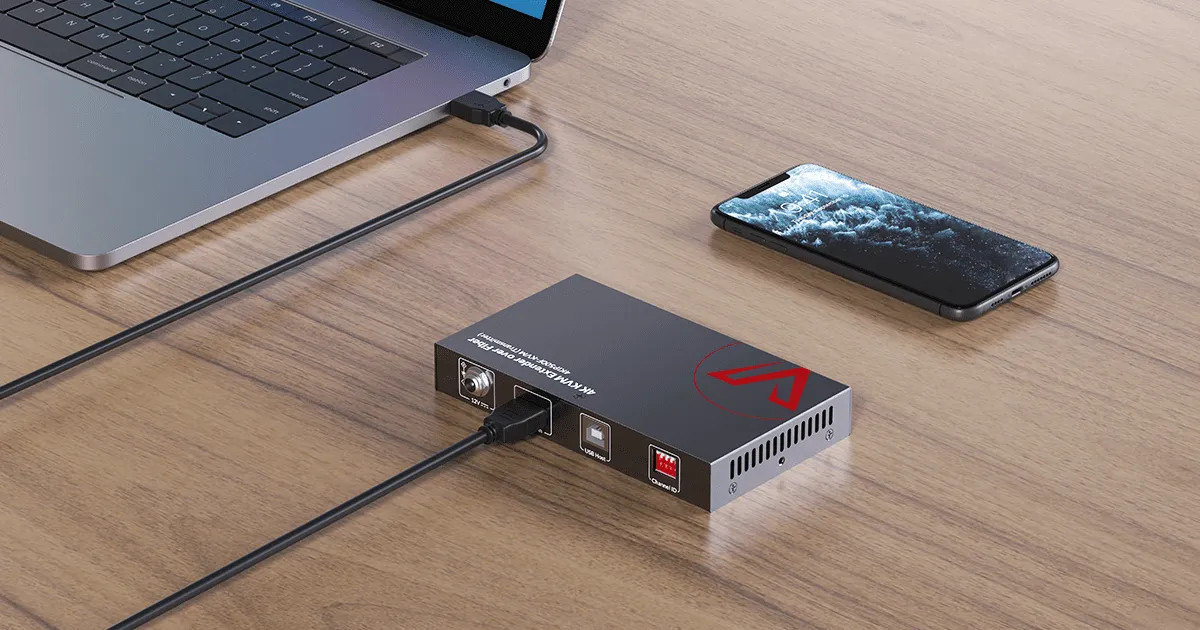

Simple Setup with DIP Switch Pairing Featuring DIP switch pairing, this 4K fiber optic KVM extender ensures quick and simple setup. The user-friendly feature eliminates complex configuration processes, enabling you to get your system up and running with ease.		Plug & Play, Compact Design The 4K KVM extender over IP is designed to be compact and lightweight, making it easy to install and portable. Its plug-and-play functionality means no additional software or drivers are needed, offering a hassle-free installation process for any user.

Downloads:

Transmitter

Technical
Input/Output	1 x HDMI IN (19-pin female HDMI Type-A), 1 x USB HOST (female USB Type-B), 1 x 4-Pin DIP Switch, 1 x DC 12V connector, 1 x Optical (1Gbps MM SFP module)
Input Signal Type	HDMI 1.4b
Input Resolutions Supported	640×480⁸, 800×600^8,10, 1024×768^8,10, 1280×720^6,7,8,9,10, 1280×768^8,10, 1280×800^8,10, 1280×960^8,10, 1280×1024^8,10, 1360×768⁸, 1366×768⁸, 1440×900^8,10, 1600×900⁸, 1600×1200⁸, 1680×1050^8,10, 1920×1080^{1,2,3,4,5,6,7,8,9,10}, 1920×1200⁸, 3840x2160P^2,3,5, 4096x2160P^2,3,5 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = at 100 Hz, 10 = at 120 Hz
Input Audio Format Supported	PCM 2.0/2.1/5.1/7.1, Dolby Digital 5.1ch, Dolby Digital Plus, Dolby TrueHD, DTS 5.1ch, DTS-HD High Resolution Audio, DTS-HD Master Audio
Output Signal Type	Compressed IP streams
Maximum Data Rate	9 Gbps
Maximum Pixel Clock	300 MHz
Fiber Optic Connector Type	LC to LC
Fiber Optic Type	Duplex Multi-mode 850nm OM4 Fiber
Maximum Transmission Distance	550m/1804ft

General
Operating Temperature	0 to 45°C (32 to 113 °F)
Storage Temperature	-20 to 70°C (-4 to 158 °F)
Humidity	10% to 90%, non-condensing
ESD Protection	Human Body Model: ±8kV (air-gap discharge)/±4kV (contact discharge)
Power Supply	DC 12V 1A
Power Consumption	2W (Max)
Unit Dimensions (W x H x D)	140mm x 21mm x 80mm / 5.51’’ x 0.83’’ x 3.15’’
Unit Net Weight (without accessories)	0.25kg/0.55lb

Receiver

Technical
Input/Output	1 x Optical (1Gbps MM SFP module), 1 x HDMI OUT (19-pin female HDMI Type-A), 3 x USB DEVICE (female USB Type-A), 1 x 4-Pin DIP Switch, 1 x DC 12V connector
Output Signal Type	HDMI 1.4b
Output Resolutions Supported	640×480⁸, 800×600^8,10, 1024×768^8,10, 1280×720^6,7,8,9,10, 1280×768^8,10, 1280×800^8,10, 1280×960^8,10, 1280×1024^8,10, 1360×768⁸, 1366×768⁸, 1440×900^8,10, 1600×900⁸, 1600×1200⁸,1680×1050^8,10, 1920×1080^{1,2,3,4,5,6,7,8,9,10}, 1920×1200⁸, 3840x2160P^2,3,5, 4096x2160P^2,3,5 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = at 100 Hz, 10 = at 120 Hz
Output Audio Format Supported	PCM 2.0/2.1/5.1/7.1, Dolby Digital 5.1ch, Dolby Digital Plus, Dolby TrueHD, DTS 5.1ch, DTS-HD High Resolution Audio, DTS-HD Master Audio
Maximum Data Rate	9 Gbps
Maximum Pixel Clock	300 MHz
Fiber Optic Connector Type	LC to LC
Fiber Optic Type	Duplex Multi-mode 850nm OM4 Fiber
Transmission Distance	550m/1804ft
USB Consumption	Recommended no more than 0.5A per USB port

General
Operating Temperature	0 to 45°C (32 to 113 °F)
Storage Temperature	-20 to 70°C (-4 to 158 °F)
Humidity	10% to 90%, non-condensing
ESD Protection	Human Body Model: ±8kV (air-gap discharge)/±4kV (contact discharge)
Power Supply	DC 12V 1A
Power Consumption	Max: 1.6W (USB Consumption not included)
Unit Dimensions (W x H x D)	140mm x 21mm x 80mm / 5.51’’ x 0.83’’ x 3.15’’
Unit Net Weight (without accessories)	0.25kg/0.55lb

--

B2B product - designed for use in commercial environments.

Hersteller Informationen

AV Access
AV Access Actions Distribution Limited
UNIT 2801 28/F, NO.88 HING FAT STR.
CAUSEWAY BAY
HONG KONG
https://www.avaccess.com/
