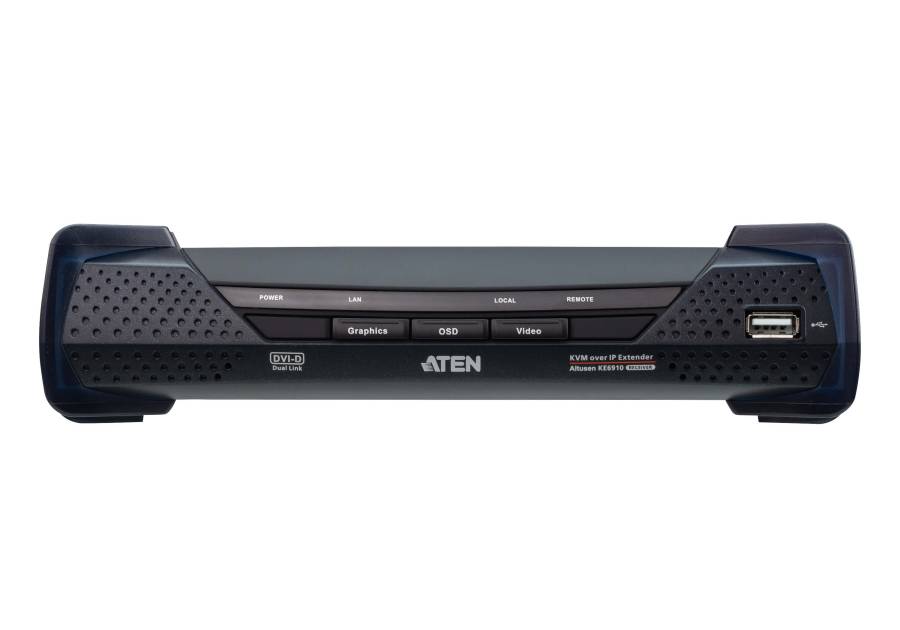

DVI-D Dual Link 2K KVM over IP Extender Receiver, Aten KE6910R
Note: This is an addidtional Receiver only to be used in conjunction with KE6910 Extender-Sets.
The KE6910 2K DVI-D Dual Link KVM over IP Extender consists of a high performance IP-based transmitter (KE6910T) that connects to the computer and receiver (KE6910R) that provides console access from a separate location. The KE6910 allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DVI monitor) over an intranet, enabling users to locate computers in a secure and temperature controlled environment, which is isolated from users’ workstation.
The KE6910 supports one DVI display at each end, providing video resolutions up to 2560 x 2048 @ 50Hz and flawless and lossless video compression quality with minimal latency. The extender also supports 2K x 2K video resolution (2048 x 2048 @ 60Hz), which is used widely in the Air Traffic Control (ATC) industry.

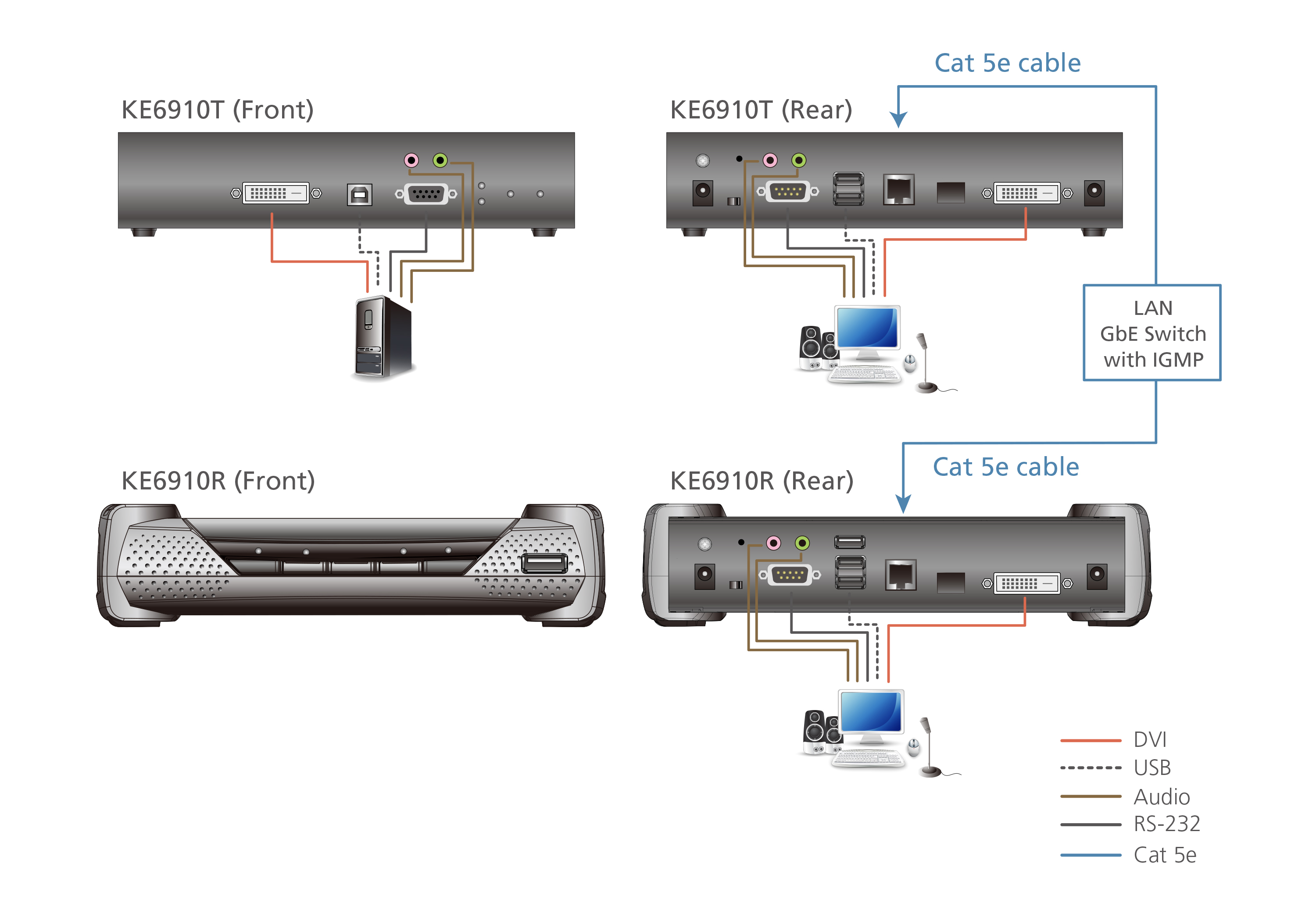

The KE6910 supports connections via an RJ-45 port or a SFP slot. The transmitter and receiver can be connected either directly to each other or via a high-speed network, over a copper-based or fiber-based LAN, ensuring 24/7 availability of remote access to servers. To connect via the SFP slot, the extender supports 1Gbps SFP fiber module* expansions, enabling connections via fiber optic network to extend transmission distances up to 10km. The KE6910 also provides dual power supplies for redundancy.
The KE6910 can be set on a desk, mounted on a wall or at the rear of a rack with its space-saving 0U rack-mount design. As an IP-based matrix extender, the KE6910 can be used as a point-to-point / point-to-multipoint / multipoint-to-point extender, or integrated into a KVM over IP Matrix System (multipoint-to-multipoint) when combined with the KE Matrix Management Software (CCKM), providing more flexible applications in different working environments.
When integrated with the KE Matrix Management Software, the KE6910 supports more advanced features such as authentication lock, adaptive fast switching, connection redundancy, disconnection alert, boundless switching, “Push” and “Pull”, video wall and multi-display setups, and profile scheduling that provide uninterrupted access with quick and easy control tools to use the KE6910 over a network.
More functions include auto detection of all KE Series extenders** in the same subnet for the sake of fast installation or configuration, username / password authentication and authorization, and the ability to define different types of connections that can be switched and shared. Security features also provide extra protection, supporting AES encryption for secured data transmissions, while RADIUS, LDAP, AD or remote user authentication provides an added layer of connection security; moreover, with an OSD, RS-232 support, and Auto MDIX, the KE6910 is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.
Whether you're monitoring, operating, controlling or extending computer access, the KVM over IP Matrix System is made adaptable, to fit an endless variety of working environments and workstation settings, to provide solutions in traffic management centers, retail surveillance centers, facility situation rooms, command control centers, utilities process control centers, broadcasting distribution monitoring systems, network operations centers (NOC), and many other industries where matrix extending is required.
*The SFP module (2A-136G / 2A-137G) is sold separately. Contact your ATEN dealer for product information.
-
Advanced Features*
-
Video Walls – create multiple video walls with up to 8 x 8 (64 displays max.) in each layout
-
Advanced Scheduling – improves efficiency and saves costs by allowing connections to be set based on time and date
-
Virtual Transmitter – independently streams video, audio, USB, and serial sources from different Tx
-
Supports both internal and external authentication – external authentication supports LDAP, Active Directory, RADIUS and TACACS+
-
Advanced User Authorization Settings – administrators can set four access modes of permissions on Tx devices for collaboration or to avoid interference among users
-
Configurable user and group permissions for access and control of KE devices
-
Tx grouping of up to 4 sets of KE transmitters to support multi-display applications
-
Rx access control – users at the Tx local console can enable / disable Rx access by simply pressing a control button**
*These advanced functions are supported when the KE devices are managed by KE Matrix Management Software (CCKM)
**The KVM over IP Access Control Box (2XRT-0015G) is sold separately. Contact your ATEN dealer for product information.
-
Hardware
-
Supports DVI-D Dual Link video resolutions up to 2560 x 1600 @60Hz and 2560 x 2048 @50Hz
-
Supports stereo speakers and stereo microphone
-
Supports Virtual Media or vUSB
-
Auto-MDIX – automatically detects cable type
-
Built-in 8KV/15KV ESD protection and 2KV surge protection
-
Fanless design for silent operations that are energy efficient
-
Supports connection via Gigabit Ethernet port (RJ-45) or 1Gbps SFP fiber module expansions*** for failover
-
Support 1Gbps SFP fiber module expansions*** up to 10 km
-
Power Redundancy – Dual DC Jack
-
Rack Mountable – Mounting options:
•2X-021G Dual Rack Mount Kit
•2X-031G Single Rack Mount Kit
***The SFP module (2A-136G / 2A-137G) is sold separately. Contact your ATEN dealer for product information.
-
Management
-
Centralized KE Series management software – KE Matrix Management Software (CCKM) allows users to easily administrator all KE devices with an intuitive web-based GUI
-
Dual console operation – controls your system from both the transmitter’s and receiver’s keyboard, monitor, and mouse consoles
-
Local console for emergency operation
-
OSD (On Screen Display) on the receiver configures both Tx / Rx devices
-
EDID Expert™ – selects optimum EDID settings to prevent video compatibility issue caused by different monitors
-
On-screen Preview – allows users to view the video of up to 36 displays on one screen
-
Video Compression Level – allows you to increase/decrease the video quality to adjust for appropriate network bandwidth
-
CLI – administrators can control all KE devices via RS-232 or Telnet by issuing commands
-
RS-232 serial ports – allow you to connect to a serial terminal for TextMenu, CLI, or serial devices such as touch screens and barcode scanners
-
Compatible with all KE devices
-
Security
-
Dedicated LAN port for KE direct connections – can be isolated from the corporate network
-
Secure data transmission – AES encryption to secure Video / Keyboard / Mouse / Data transmission
-
Supports industry standard Transport Layer Security (TLS) protocol
-
Virtual Media
-
Virtual Media mode enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
-
Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
-
Supports Smart Card/CAC Reader
|
Function
|
KE6910R
|
KE6910T
|
|

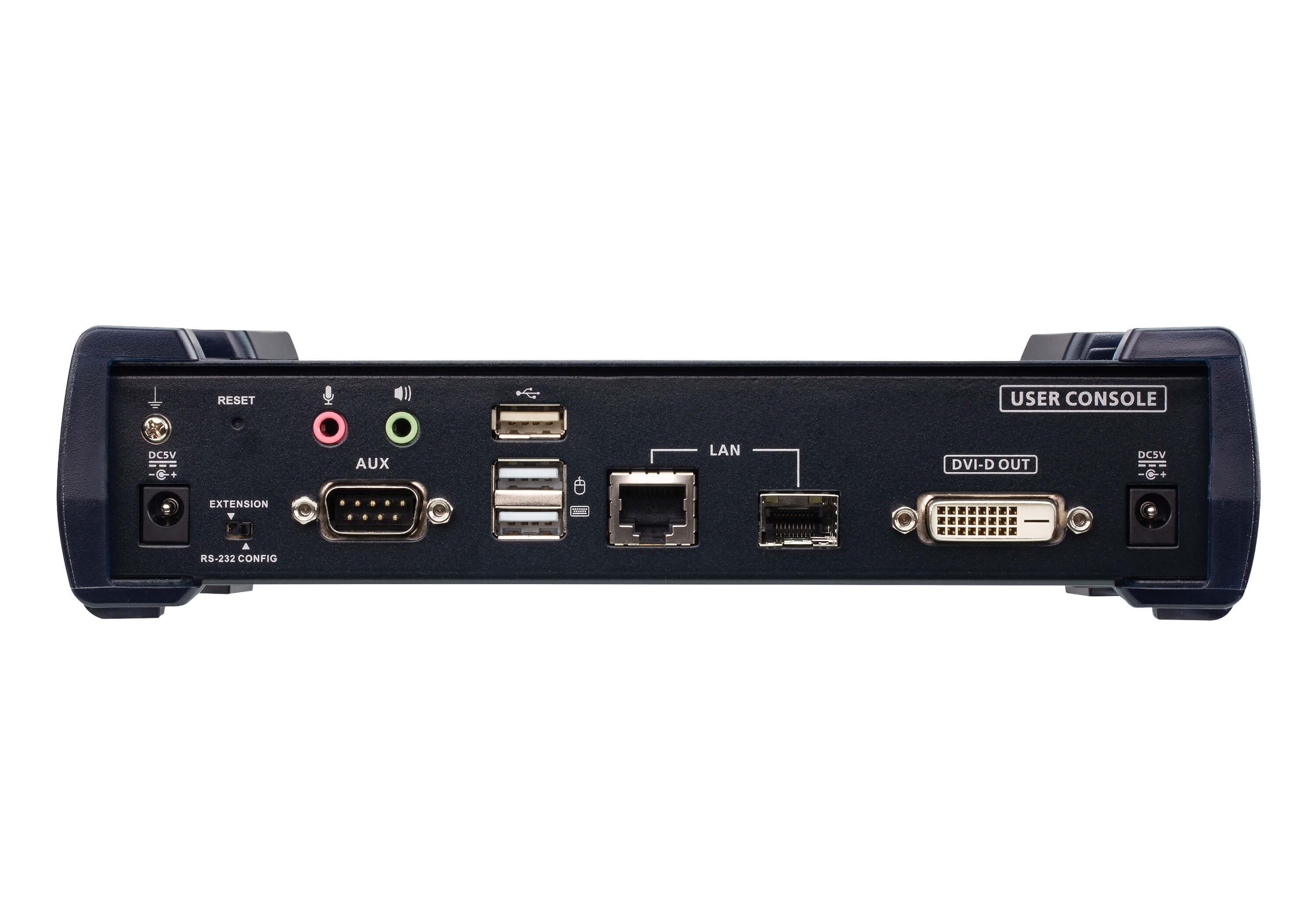

Connectors
|
|
Virtual Media
|
2 x USB Type A Female (White)
|
N/A
|
|
Console Ports
|
2 x USB Type A Female (White)
1 x DVI-D Female (White)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
1 x DB-9 Male (Black)
|
2 x USB Type A Female (White)
1 x DVI-D Female (White)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
1 x DB-9 Male (Black)
|
|
KVM Ports
|
N/A
|
1 x USB Type B Female (White)
1 x DVI-D Female (White)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
1 x DB-9 Female (Black)
|
|
Power
|
2 x DC Jack (Black)
|
2 x DC Jack (Black)
|
|
LAN Ports
|
1 x RJ-45 (Black)
1 x SFP Slot
|
1 x RJ-45 (Black)
1 x SFP Slot
|
|
Switches
|
|
OSD
|
1 x Pushbutton
|
N/A
|
|
Video
|
1 x Pushbutton
|
N/A
|
|
Graphics
|
1 x Pushbutton
|
N/A
|
|
Reset
|
1 x Semi-recessed Pushbutton
|
1 x Semi-recessed Pushbutton
|
|
Mode Selection
|
1 x Slide Switch (Extension, RS-232 Config)
|
1 x Slide Switch (Auto, RS-232 Config/Access Control, Local)
|
|
LEDs
|
|
Link 10 / 100 / 1000 Mbps
|
1 (10: Orange / 100: Orange & Green / 1000: Green)
|
1 (10: Orange / 100: Orange & Green / 1000: Green)
|
|
Power
|
1 (Blue)
|
1 (Blue)
|
|
Local
|
1 (Green)
|
1 (Green)
|
|
Remote
|
1 (Green)
|
1 (Green)
|
|
Emulation
|
|
Keyboard / Mouse
|
USB
|
USB
|
|
Power Consumption
|
DC5V:9.02W:68BTU
|
DC5V:10.02W:73BTU
|
|
Video Resolution
|
Up to 2560 x 2048 @ 50Hz/2560 x 1600 @ 60Hz
|
Up to 2560 x 2048 @ 50Hz/2560 x 1600 @ 60Hz
|
|
Environmental
|
|
Operating Temperature
|
0–50°C
|
0–50°C
|
|
Storage Temperature
|
-20–60°C
|
-20–60°C
|
|
Humidity
|
0–95% RH, Non-condensing
|
0–95% RH, Non-condensing
|
|
Physical Properties
|
|
Housing
|
Metal
|
Metal
|
|
Weight
|
1.26 kg ( 2.78 lb )
|
1.13 kg ( 2.49 lb )
|
|
Dimensions (L x W x H)
|
22.75 x 17.16 x 5.48 cm
(8.96 x 6.76 x 2.16 in.)
|
21.50 x 16.33 x 4.18 cm
(8.46 x 6.43 x 1.65 in.)
|
Package Contents
-
1 x KE6910T 2K DVI-D Dual Link KVM over IP Transmitter
-
1 x KE6910R 2K DVI-D Dual Link KVM over IP Receiver
-
2 x Power Adapters
-
2 x Power Cords
-
1 x KVM Cable (DVI-D dual-link, USB, Audio; 1.8m/6ft)
-
1 x Foot Pad Set (4 pcs.)
-
1 x Mounting Kit
-
1 x User Instructions
