Matrix 4K60 Dual-Monitor and Video-Swap KVM-Switch 4K HDMI + USB 2.0 + Audio with 1.2m PC-Cable, UNICLASS Ai-TA2i
The special feature of this model is new technology, with which you can display/operate/switch one monitor per PC as an alternative to switching both monitors completely.

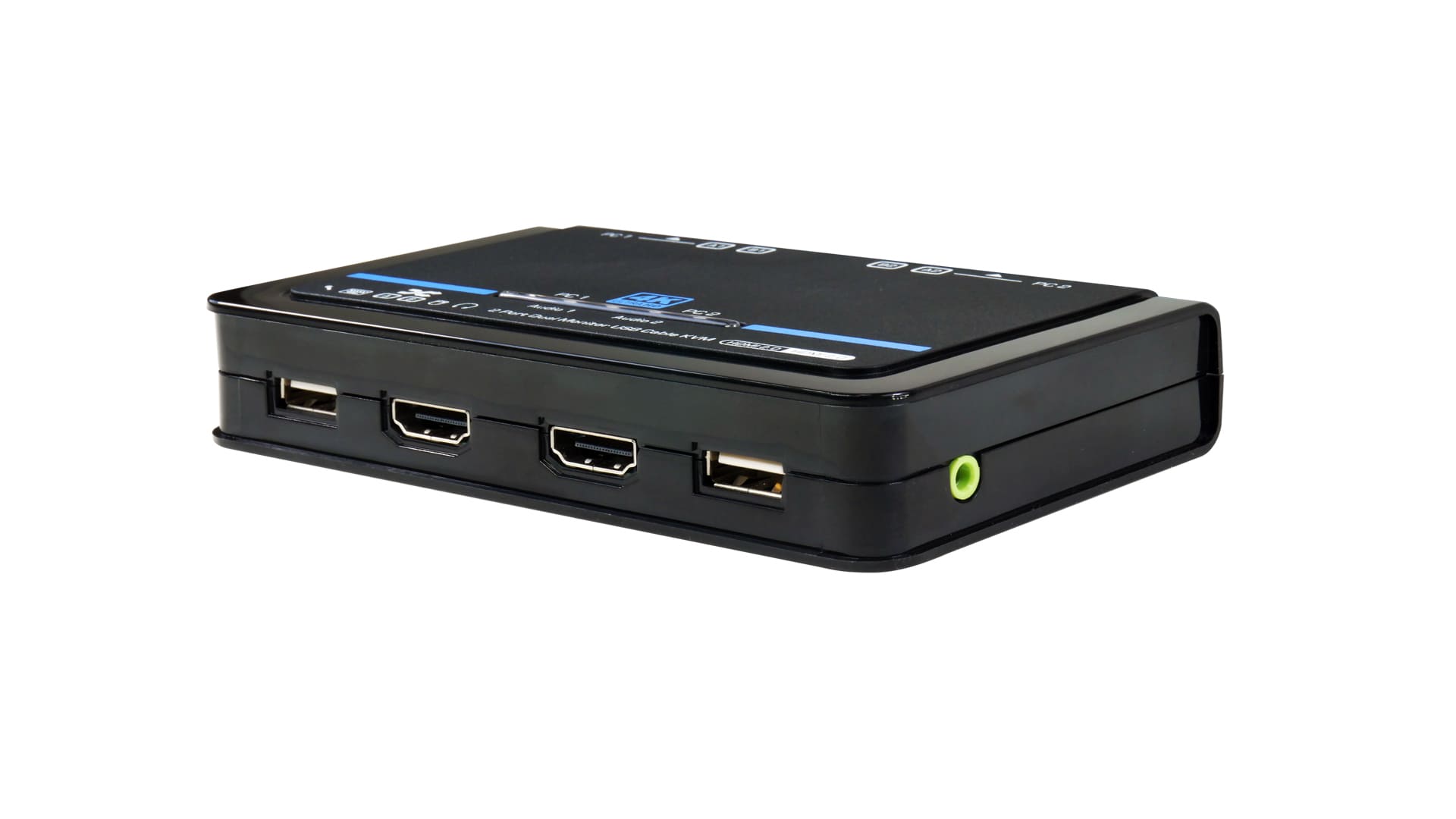

The UNICLASS 4K UHD KVM switch Ai-TA2i is a space-saving 2-port dual monitor HDMI 2.0 x2 / USB 2.0 x2 / audio KVM switch with two 1.2m long cable sets coming out of the KVM switch.
DEMO video link (external to YouTube) which shows how easily and quickly you can switch between the different switching variants and display variants with this KVM switch;
The Ai-TA2i disappears behind the table and only the small remote button (QuickSwitchTM button) for "only" dual-monitor switching is on the table.
In general, you can switch everything by pressing a key sequence (hotkey) on your keyboard.
The split mode functions (including the normal dual monitor switching) are controlled via hotkeys.
This means that you can switch and operate two multimedia PCs or notebooks with a docking station (so that 2x digital out is available) in all possible variations with just one keyboard/mouse/dual display/loudspeaker/microphone console.
HDMI 2.0 digital video up to 3840 x 2160 @ 60 Hz 4:4:4 for each monitor.
Gaming monitor support: up to 2560x1440 at 144 Hz possible.
With 2 x 1.2 meter long USB/HDMIx2/speaker/microphone cables coming out of the housing.
The video swap functions (including the normal dual monitor switching) are controlled via hotkeys.
1 x wired QuickSwitchTM button with 1.5m cable for instant switching (dual monitor) between two computers
Hotkey switching for all functions.
HDCP-Support up to HDCP 2.2
Display data mirroring for "booting" in the background: DDC/EDID signals = "who am I and what can I do" from the display is stored in the switch and made permanently available to both computers.
2 x fixed HDMI USB KVM audio / mic cables
Digital audio output via the HDMI signal for monitors with integrated speakers.
Switching of the audio signals independently/simultaneously from the PC switchover via hotkeys.
Hot-plugging: You can connect the PCs directly without restarting.
LED indicators for easy status monitoring
USB interface power: the power is supplied via just one USB plug to a PC = no extra power supply unit required.
Only one USB plug per PC is sufficient to feed the USB and power into the switch.
Supports all USB compatible operating systems
Notes:
a) Please also note that this and all other dual monitor KVM switches can only switch 2 monitors if each computer has 2 x digital out. You can adapt from DP or DVI to HDMI to the KVM switch. From/to VGA not.
b) For hotkey switching (split mode) you need a keyboard with the standard layout, which also has the "scroll" key. On some (e.g. some Logitech) keyboards this key is missing or is not transmitted with the appropriate protocol. In this case, a different keyboard must be used.
Hotkey switching:
a) With the hotkey 2x <Ctrl> or the QuickSwitch key you switch the complete console to the desired computer as usual.
b) Use the hotkey 2x <Pause> to switch the left monitor to the other computer.
c) With the hotkey 2x <Scroll> you switch the keyboard/mouse operation, which can only be active on one screen/computer in separate display mode, from one PC to the other PC.
d) With the hotkey 2x <Num> + <L> you switch the audio together with or with 2x <Num> + <U> the audio stays on the computer where it was currently.

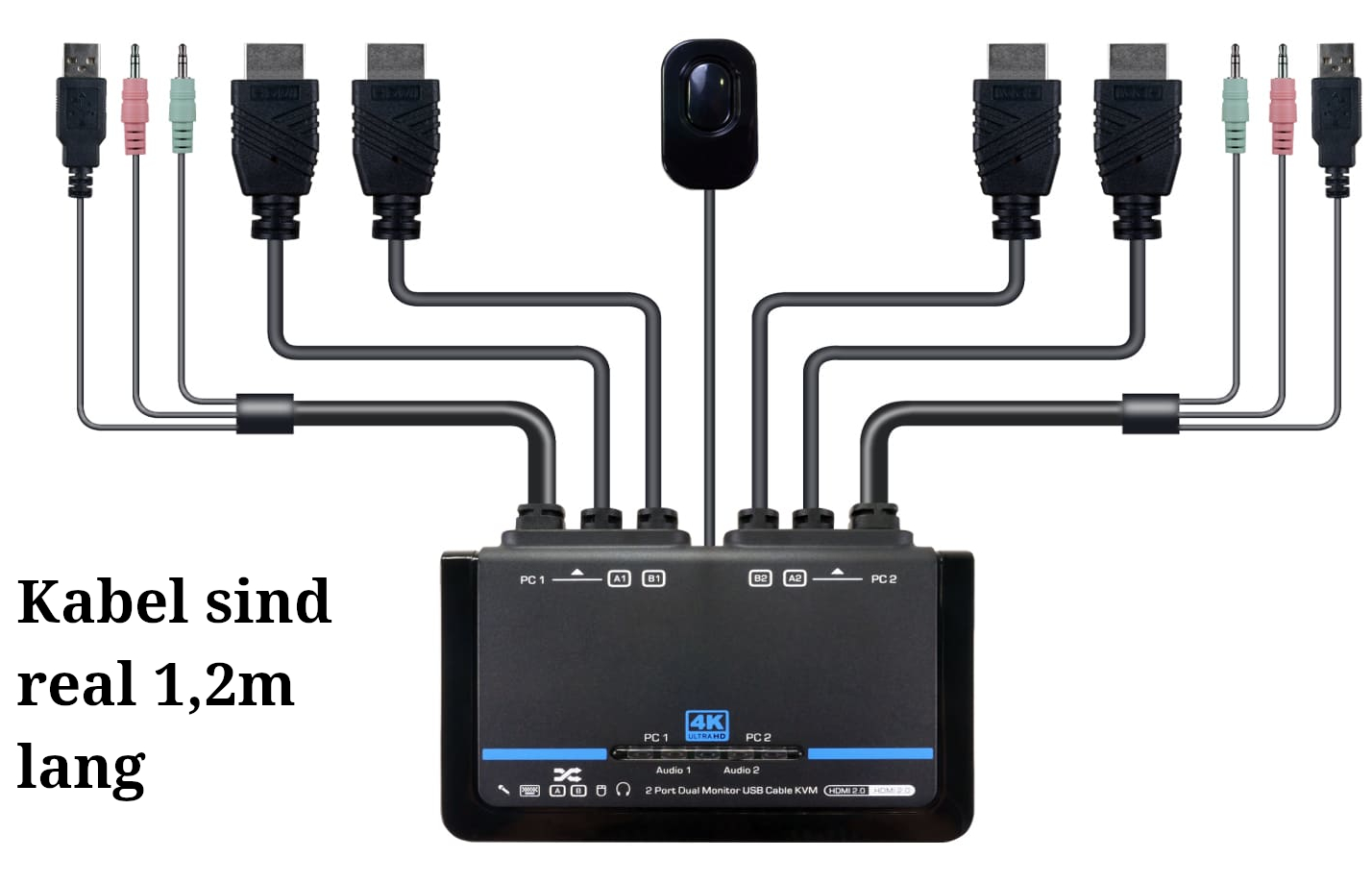

Cabling:
1 x QuickSwitchTM connected via a 1.5 m long cable (small button on a rubberized surface) for quick and easy "complete" switching.
2 x 1.2 m long KVM & audio cables permanently integrated in the KVM switch.
Specifications:
Model No.
Ai-TA2i
Product Description
2-Port 4K Dual Head HDMI USB Cable KVM Switch w/ Audio & Mic
Number of Ports
2
Number of Console
1
Console Keyboard Connector
USB 2.0 Type A Female
Console Mouse Connector
USB 2.0 Type A Female
Console Video Connector
2 x HDMI Female
Console Audio/Mic Connector
2 x 3.5mm Audio/Mic Jack Female
PC Keyboard/Mouse Connector
USB Type A Male for each PC
PC Video Connector
2x HDMI for each PC
PC Audio/Mic Connector
2 x 3.5mm Audio/Mic Jack Female for each PC
PC USB Port
USB Type A Male
PC selection
QuickSwitchTM button/Hotkeys/Switching Software for Windows & Mac
PC port LED
2 x blue
Digital Display Resolution
up to 3840 x 2160 each monitor
Cables
4 x fixed 1.2M HDMI + HDMI USB & audio/mic, 1 x 1.5M QuickSwitchTM Button
Keyboard & Mouse
USB True HID emulation
Operation Temperature
0 ~ 40 °C
Storage Temperature
-20 ~ 60 °C
Humidity
0 ~ 90 % RH, Non-Condensing
Power type
USB interface power
Weight
597 g
Dimension(L×W×H)
127 x 83 x 26 (mm)
Safety / Emission
FCC, CE, RoHS
B2B Product - Designed for use in a commercial environment.
