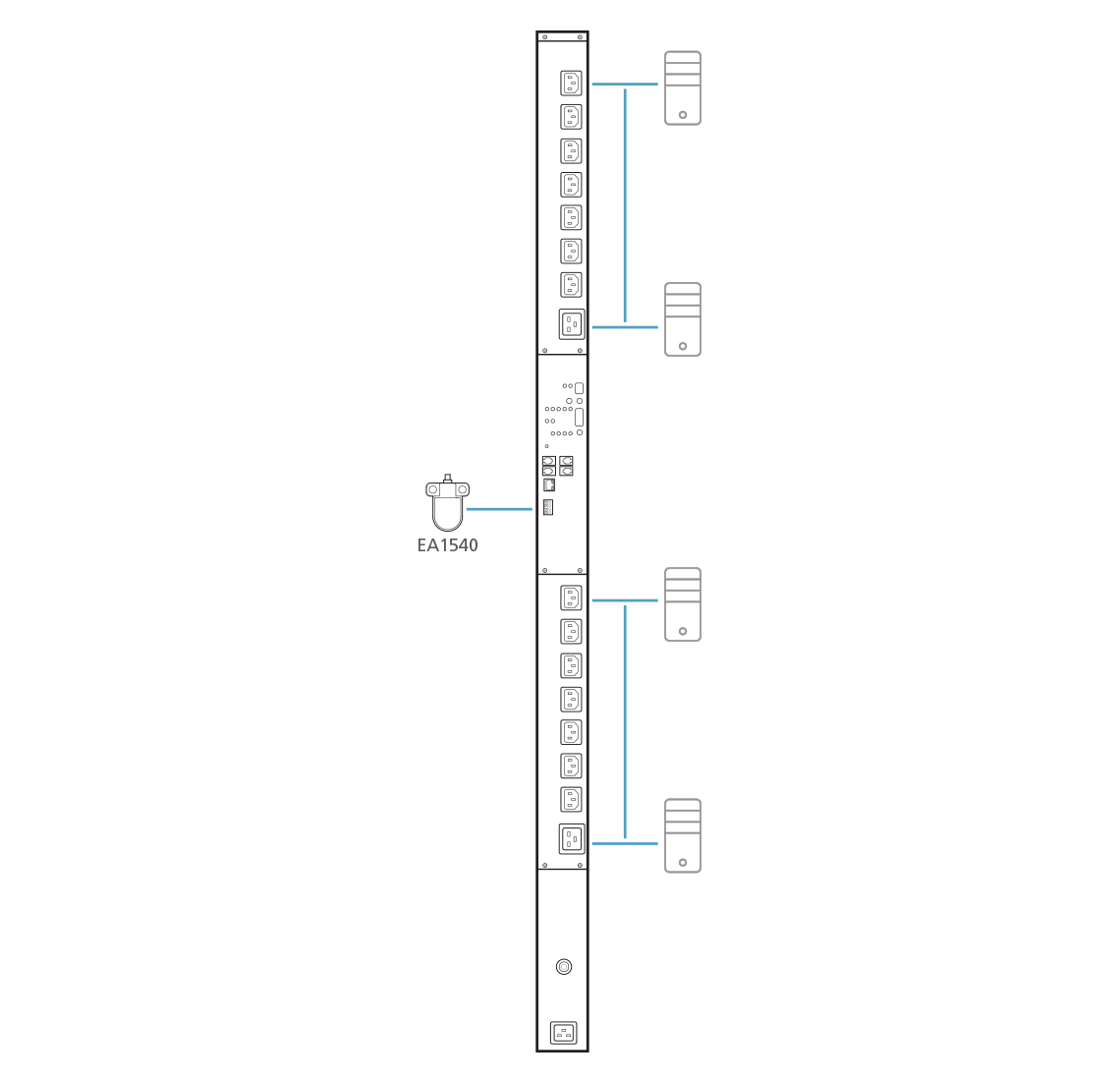

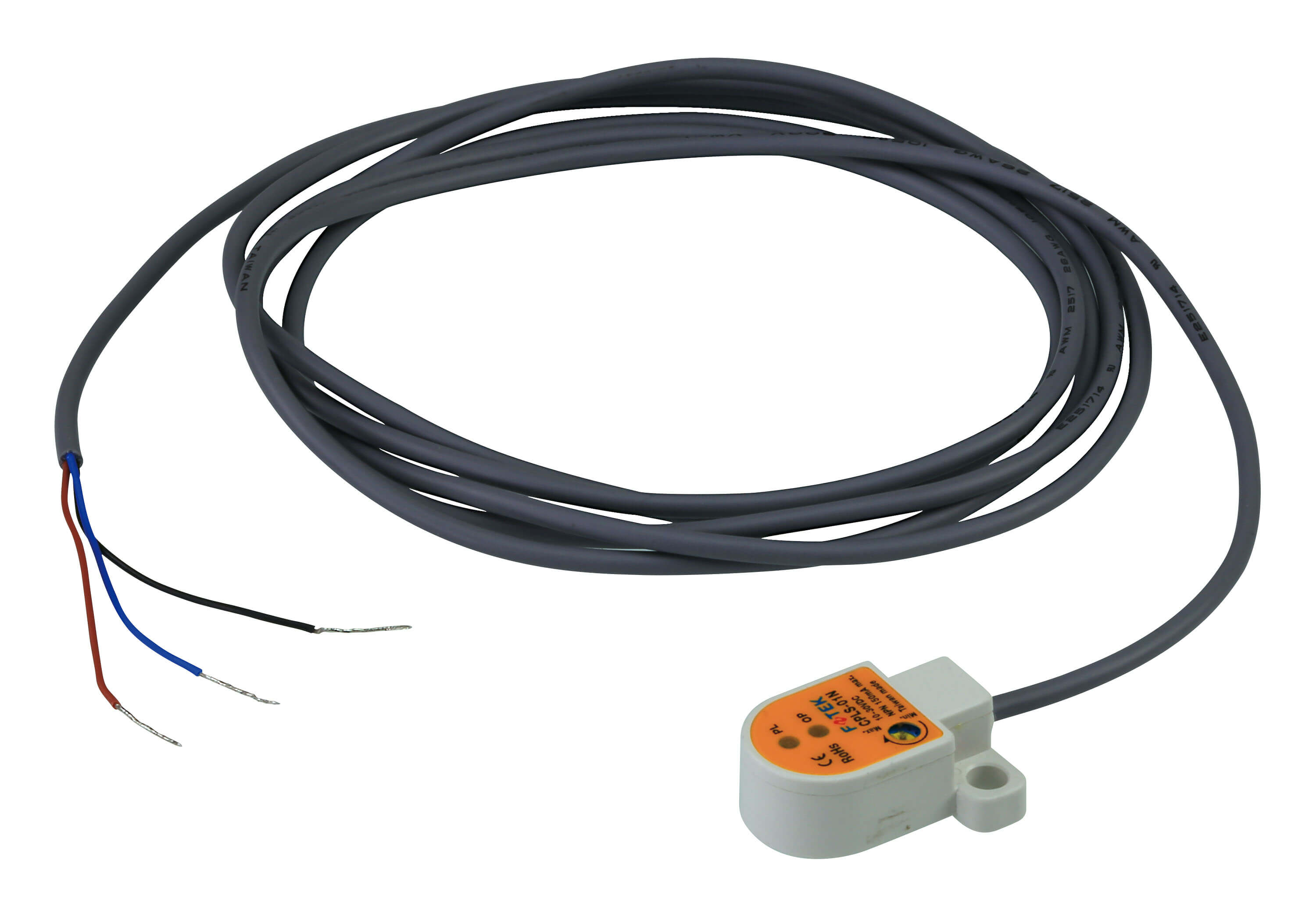

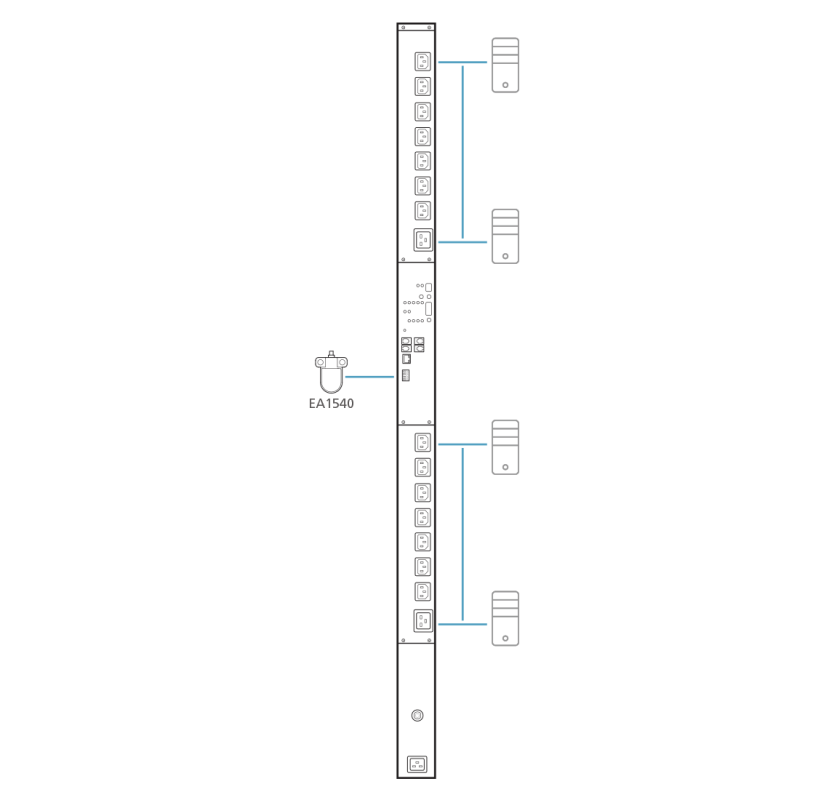

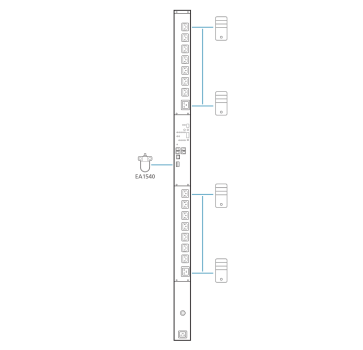

The EA1540 Capacitive Leakage Sensor can automatically detect and notify users of any liquid in close proximity with the connected PDU. When any liquid is detected, the EA1540's beeper sounds, and its red LED lights up, calling for immediate attention and response, thereby effectively decreases the risks of damages to both the PDU and powered devices. It is ideal for PDU installation environments such as subway data centers located underground.
Suitable for a wide range of applications, the EA1540 features a compact and anti-interference design, allowing it to avoid external signals from affecting its normal operations while saving valuable space for critical work. Built with corrosion-resistant materials, it is adaptable even to hazardous environments.
The EA1540 is the perfect solution for those who need to ensure PDU’s daily operations and prevent any potential risks of device damages in advance.
Highly reliable – instantaneous liquid detection and alert
Anti-interference – avoids external signals from affecting its normal operations
Durable – built with corrosion-resistant material
Package Contents
1 x Capacity Leakage Sensor
1 x Wiring Diagram
Protection
IP-66
Physical Properties
Housing
PP
Cable Type
3Φ/3c-2m（22AWG）
Insulation strength
100 MΩ / 500VDC
Dielectric strength
2.5kv per minute
Ripple of power
10﹪peak to peak
Operating voltage
10 ~ 30VDC
Current Consumption
20 mA max.
Output method
NPN
Output status
NO
Output current
150mA max.
Leakage current
0.1mA max.
Residual voltage
0.1V max.
Protection circuit
Short circuit & polarity reversed
Sensitivity adjuster
270° Trimmer
Hersteller Informationen
ATEN
ATEN INTERNATIONAL CO., LTD.
Address: 3F, No.125, Sec. 2, Datung Road,
Sijhih District, New Taipei City 221, Taiwan
