Aten VS162 2-Port DVI Video + Audio Splitter
Aten VS162 2-Port DVI Video + Audio Splitter
Preview: Aten VS162 2-Port DVI Video + Audio Splitter
Preview: Aten VS162 2-Port DVI Video + Audio Splitter
Aten VS162 2-Port DVI Video + Audio Splitter
Aten VS162 2-Port DVI Video + Audio Splitter
Aten VS162 2-Port DVI Video + Audio Splitter
Mobile Preview: Aten VS162 2-Port DVI Video + Audio Splitter
Mobile Preview: Aten VS162 2-Port DVI Video + Audio Splitter

Aten VS162 2-Port DVI Video + Audio Splitter

Product No.:
VS162
Shipping time:
3 - 5 days 3 - 5 days (abroad may vary)
price netto:
92,00 EUR
109,48 EUR

incl. 19% tax excl. Shipping costs

Description

Aten VS162 2-Port DVI Video + Audio Splitter

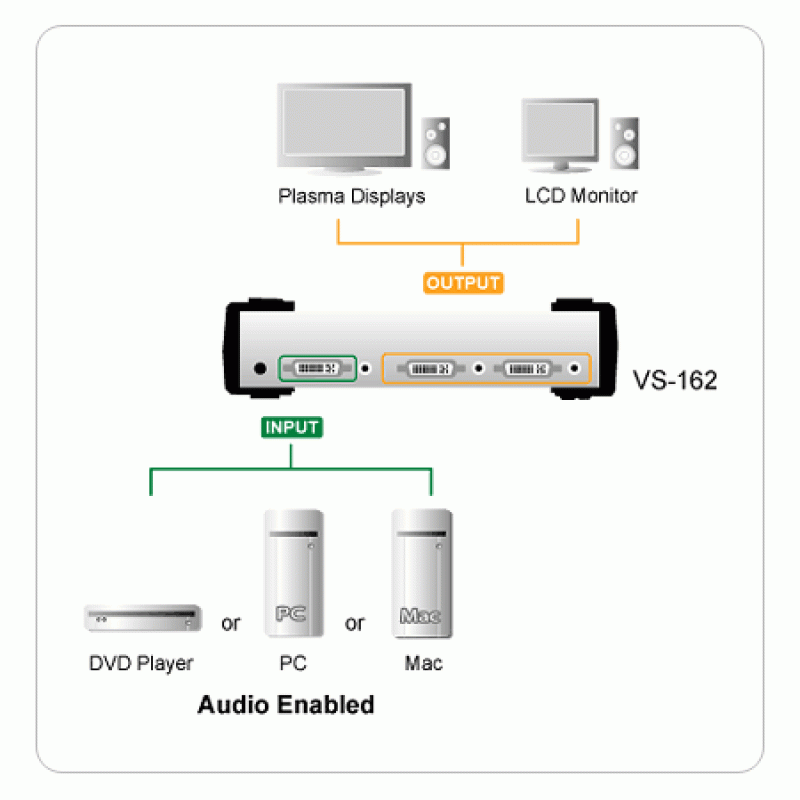

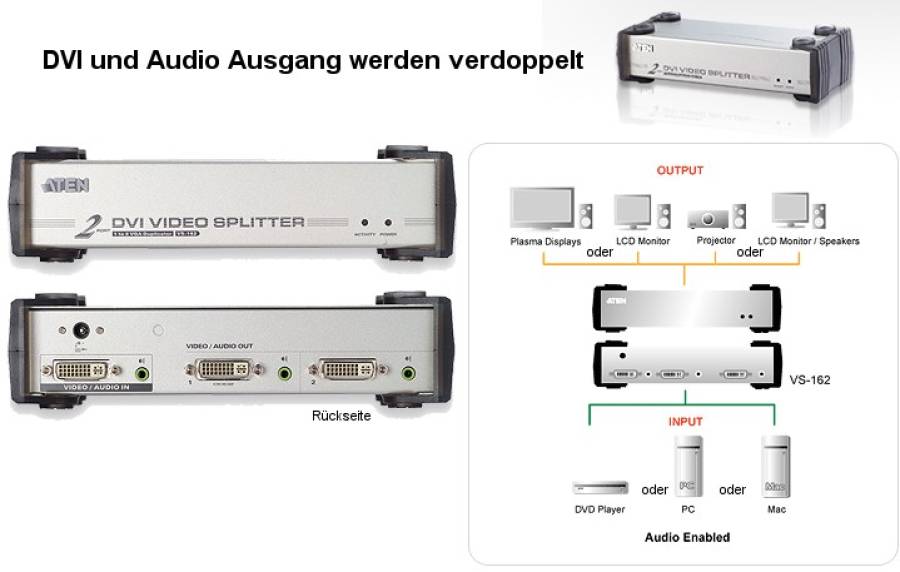

VS162 KVM Splitter provides DVI video and audio input signals to 2 DVI video and audio outputs after duplication and boosting. They are ideal for any type of broadcasting environment, classrooms, or by power computer users.

  Features
• Connects computers with DVI graphics to multiple DVI compatible monitors or projectors.
• Fully compliant with DVI-Digital and DVI-Analog.
• Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors.
• Speaker enabled for audio enjoyment.
• Cascadable to 3 levels - provides up to 8 video signals.
• Installs in minutes.
• Maintains highest single link video resolution (up to 1920 x 1200).
• DDC, DDC2, DDC2B Compatible (Port 1 only).
• OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
  Package Content
• 1x 2-Port DVI Video Splitter
• 1x Power Adapter
• 1x User Manual


  Specification
Computer Connections 2
Connectors Video In 1 x DVI Female (White)
Audio In 1 x Mini Stereo Jack Female (Green)
Video Out 2 x DVI Female (White)
Audio Out 2 x Mini Stereo Jack Female (Green)
Power 1 x DC Jack (Black)
LEDs Online 1 (Orange)
Selected 1 (Green)
Resolution 1920 x 1200 @60 Hz
Signal Range Up to 5m (15')
Power Consumption DC5.3V,3.4W (Max.)
Environment Operating Temp. 0-50?C
Storage Temp. -20-60?C
Humidity 0-80% RH, Non-condensing
Physical
Properties		 Housing Metal
Weight 0.62 kg
Dimensions ( L x W x H ) 21.00 x 8.70 x 5.50 cm

* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
