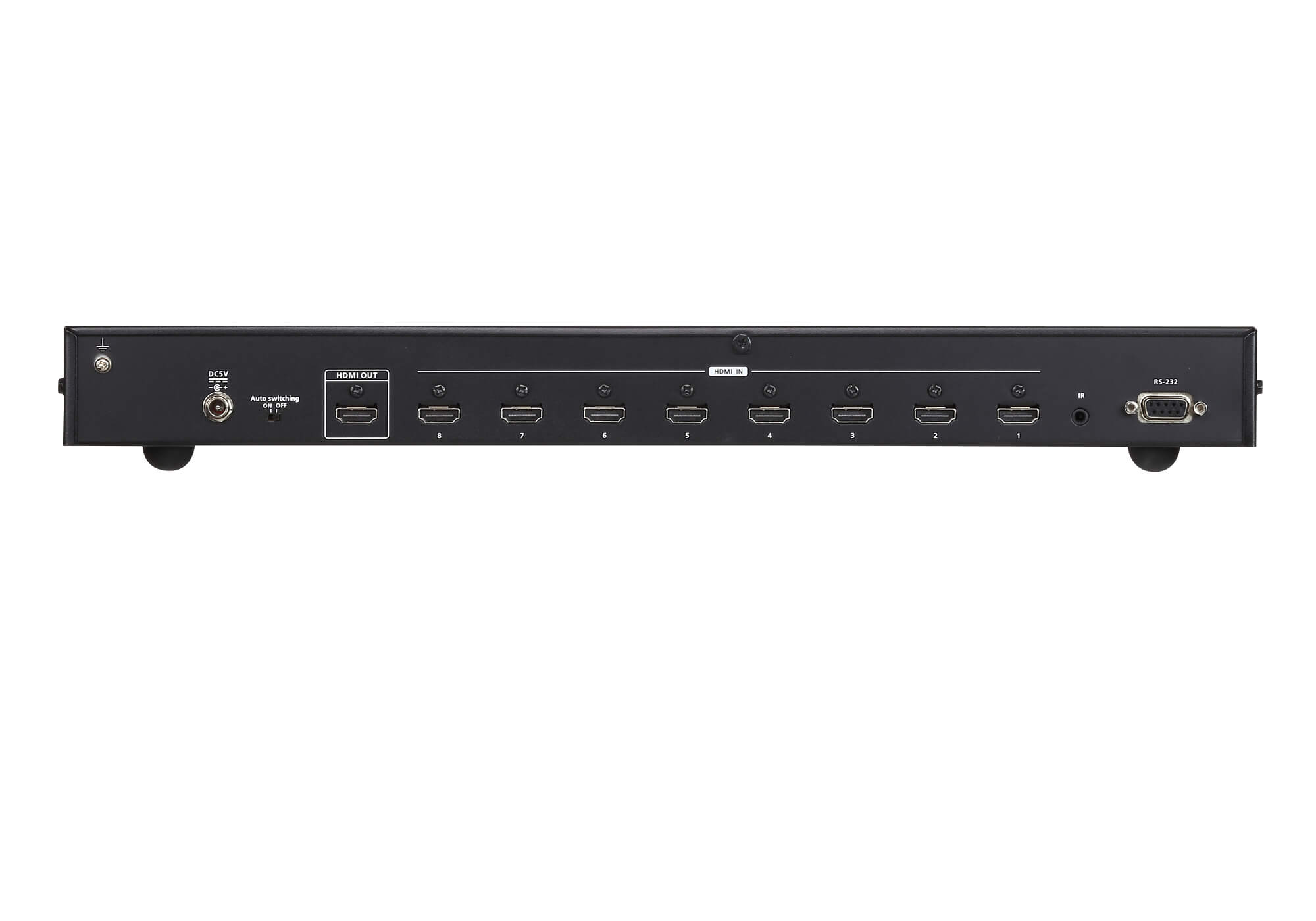

8-Port True 4K HDMI 2.0 Switch up to 4096 x 2160 with 60 Hz 4:4:4, Aten VS0801HB
The ATEN VS0801HB is designed for applications that require the routing of 8 sources to one compatible display device. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. The VS0801HB features Auto Switching modes for auto port selection and Instant Switching for a smooth video transition between HDMI ports. Multiple convenient control options include front panel pushbuttons, bi-directional RS-232, IR, and auto switch, allowing for easy integration.
Engineered to meet today’s demand of True 4K signal transmission and user-oriented design, the ATEN VS0801HB is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.
- Allows up to 8 HDMI sources to be connected to one HDMI display
- HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 compliant
- Superior video quality - True 4K resolutions of 4K x 2K @ 60 Hz (4:4:4) and standard 1080p (1920 x 1080 @ 60 Hz)
- Built-in bi-directional RS-232 serial port for high-end system control
- Auto switching modes for auto port selection
- Instant switching between HDMI input sources
- Supports IR extension
- Clear LED indication of device status
- Plug-and-play
- Rack Mountable
Package Contents:
1x VS0801HB 8-port True 4K HDMI Switch
1x IR Remote Control Unit
1x IR Receiver Cable
1x Power Adapter
1x Rack Mounting Kit
1x User Instructions
Specifications:
| Switches |
| DIP |
1 x Auto Switch ON / OFF |
| Video Input |
| Interfaces |
8 x HDMI Type A Female (Black) |
| Impedance |
100 Ώ |
| Max. Distance |
3M |
| Video Output |
| Interfaces |
1 x HDMI Type A Female (Black) |
| Impedance |
100 Ώ |
| Max. Distance |
3M |
| Video |
| Max. Data Rate |
18 Gbps (6 Gbps Per Lane) |
| Max. Pixel Clock |
600 MHz |
| Compliance |
HDMI 2.0 (3D, Deep Color)
HDCP 2.2
Consumer Electronics Control (CEC) |
| Max. Resolution |
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
| Max. Distance |
3M |
| Control |
| RS-232 |
Connector: 1 x DB-9 Female (Black)
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| IR |
1 x Mini Stereo Jack Female (Black) |
| Connectors |
| Power |
1 x DC Jack (with locking) |
| Power Consumption |
5 VDC, 14.84W |
| Environmental |
| Operating Temperature |
0 - 40°C |
| Storage Temperature |
-20 - 60°C |
| Humidity |
0 - 80% RH, Non-Condensing |
| Physical Properties |
| Housing |
Metal |
| Weight |
2.14 kg ( 4.71 lb ) |
| Dimensions (L x W x H) |
43.72 x 15.83 x 4.40 cm
(17.21 x 6.23 x 1.73 in.) |
| Carton Lot |
3 pcs |
| Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
