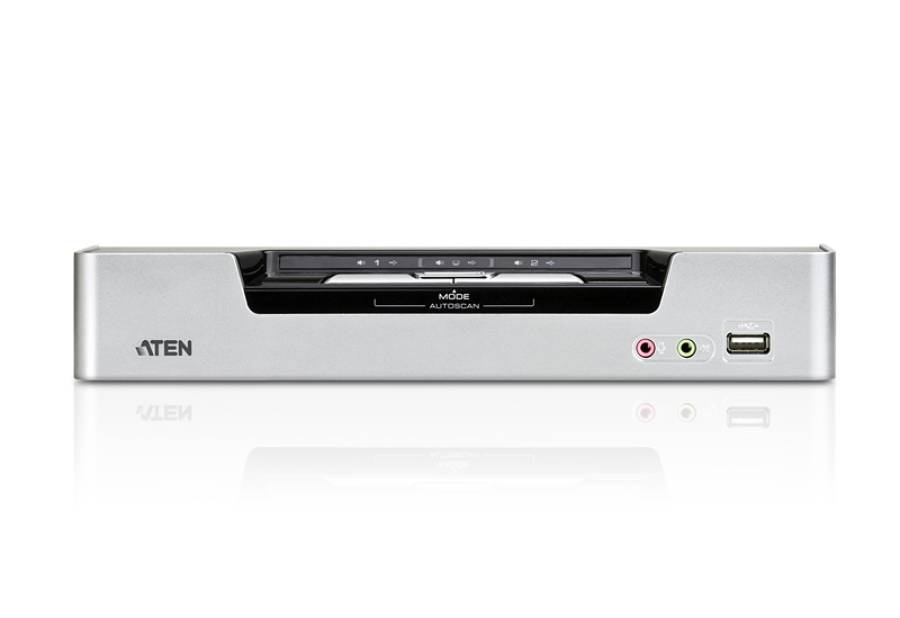

Aten CS1642A 2-Port USB 2.0 DL-DVI Dual View KVMP Switch incl. 1.8M Cable
The CS1642A 2-Port USB DVI Dual View KVMP™ Switch is a multi-application device that integrates a 2-port KVM switch with 2-port USB hub. The newest version now supports Quad-View functionality with two Dual View KVM Switches connected.
The new CS1642A features multi-view capabilities, which allow two switches to be daisy chained for a dual, triple, or quadview display across multi-monitor installations. The CS1642A supports advanced nVidia 3D Vision ready 120Hz 3D displaying,allowing you to manage various 3D visual effects. It allows you to manipulate all connected computers from a single console to save resources and work space. It enables each computer to access connected peripherals on a one-computer-at-a-time basis, making it ideal for users who need delicate visual effects and multi-tasking on several computers. The CS1642A is perfect for graphic designers, banking and financial consultants, gamers and medical professionals-demanding a high quality switch that provides stunning color, clarity and functionality.
- One dual-screen USB console controls two/four dual-screen computers and two additional USB devices
- Multi-View Display - Easily connect two CS1642A/1644A's units for a second dual-screen setup controlled through a single connection
- Superior video quality - 2560 x 1600 at 60Hz (DVI Dual link); and 3D displays up to 1920 x 1200 at 120Hz (DVI Single link)
- Supports widescreen resolutions
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support - fully compliant with DVI specifi cations; and HDCP compliant
- Multiplatform support - Windows 2000/XP/Vista, Linux *, Mac, Sun,and FreeBSD
- Sun/Mac keyboard support and emulation **
- Video DynaSync, exclusive ATEN technology, to eliminate boot-up display problems and optimizes resolution when switching between ports
* Supports Linux Kernel 2.6 and higher. The CS1642A has a builtin USB 2.0 hub, so will not support PCs or OS that do not support USB 2.0.
** PC keyboard combinations emulate Mac keyboards.
** Mac keyboards only work with their own computers.
Package Contents
- 1x CS1642A 2-Port USB DVI Dual View KVMP™ Switch
- 4x Custom DVI-D Dual Link Cable Sets
- 1x Power Adapter
- 1x User Instructions
| Computer Connections |
2 |
| Port Selection |
Mouse, Pushbuttons; Hotkeys |
| Connectors |
Console Ports |
Keyboard |
1 x USB Type A Female (White, rear panel) |
| Video |
2 x DVI-I Female (White) |
| Mouse |
1 x USB Type A Female
(White, rear panel) |
| Speakers |
1 x Mini Stereo Jack Female (Green) |
| Microphone |
1 x Mini Stereo Jack Female (Pink) |
| KVM Ports |
Keyboard / Mouse |
2 x USB Type B Female (white) |
| Video |
4 x DVI-I Female (white) |
| Speaker |
2 x Mini Stereo Jack Female (Green) |
| Microphone |
2 x Mini Stereo Jack Female (Pink) |
| DCC port |
1 x RJ-45 female connector (Rear panel) |
| Power |
1 x DC Jack |
| USB 2.0 Hub |
2 x USB Type A F (Black; 1 x front panel; 1 x rear panel) |
| Switches |
Selected |
3 x Pushbutton |
| DCC Mode |
1 x Slide switch |
| Emulation |
Keyboard/Mouse |
USB |
| Video |
DVI Dual Link: 2560 x 1600 at 60Hz; 1920 x 1200 at 120Hz (3D Display) |
| Scan Interval |
1-99 secs. (5 secs. default) |
| Power Consumption |
DC 5.3 V, 10.6 W |
| Environment |
Operating Temp. |
0-50°C |
| Storage Temp. |
-20-60°C |
| Humidity |
0-80% RH, Non-condensing |
| Physical Properties |
Housing |
Plastic + Metal |
| Weight |
0.56 kg |
Dimensions
(L x W x H) |
26.23x7.68x4.40cm |
