| Memory |
| SDRAM |
1GB |
| Flash |
8GB |

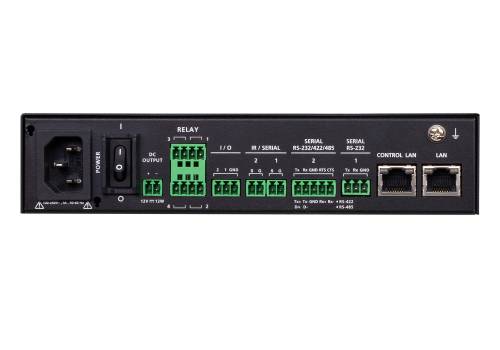

| Interfaces |
| Serial |
• 1 x Programmable Bi-directional RS-232/422/485 Port
(1 x 5-Pole Terminal Block Connector, configurable via pin assignments);
– Baud Rate: 300 to 115200 (default: 9600);
– Data Bit: 8 (default) or 7;
– Stop Bit: 1 (default) or 2;
– Parity: None (default), Even or Odd;
– Flow Control: None (default) or RTS/CTS
• 1 x Bi-directional RS-232 Port
(1 x 3-Pole Terminal Block Connector);
– Baud Rate: 300 to 115200 (default: 9600);
– Data Bit: 8 (default) or 7;
– Stop Bit: 1 (default) or 2;
– Parity: None (default), Even or Odd |
| IR/Serial |
• 2 x Programmable IR / Uni-directional RS-232 Port
(2 x 2-Pole Terminal Block Connector);
IR: TTL level (0 to 5 V)
– Carrier Frequency: 10KHz~455KHz;
Serial: Uni-directional RS-232 (0 to 5 V)
– Baud Rate: 300 to 115200 (default: 9600);
– Data Bit: 8 (default) or 7;
– Stop Bit: 1 (default) or 2;
– Parity: None (default), Even or Odd |
| Relay |
• 4 x Relay Channel (2 x 4-Pole Terminal Block Connector);
• Normally open, isolated Relays;
• Contact Rating: Max 24 VDC, 2A |
| I/O |
• 2 x Programmable Digital Input / Output Channel
(1 x 3-Pole Terminal Block Connector);
Digital Output:
300 mA sink from 24 VDC
Digital Input:
– VDC Mode
Input Voltage Range: 0 to 24 VDC;
Programmable Range: 1 to 24 VDC;
– Dry Contact Mode
Pull-up 2k ohms to + 12 VDC |
| Ethernet |
• 2 x RJ-45 Female, 10/100/1000Base-T
• Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
Control LAN:
• Support DHCP Server
• DHCP mode - The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0
LAN:
• DHCP mode - The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.1.60
Subnet Mask: 255.255.255.0 |
| VDC |
• 1 x 12 VDC Output Port (1 x 2-Pole Terminal Block Connector);
• Power Supply: 12 VDC, 1A Max |
| USB |
1 x USB Type A |
| Switches |
| Power |
1 x On/Off Switch |
| IR Learning |
1 x IR Receiver LED |
| Panel Spec |
| Size |
1.6" |
| Resolution |
128X64 |
| Pushbuttons |
| Select |
3 x Pushbuttons (Up, Down, Enter) |
| Reset Button |
1 x Semi-recessed Pushbutton |
| Power Consumption |
AC110V:4.7W:81BTU
AC220V:4.5W:81BTU |
| Power |
| Maximum Input Power Rating |
Internal Power: 100-240 VAC, 50-60 Hz |
| Environmental |
| Operating Temperature |
0 – 50°C |
| Storage Temperature |
–20 – 60°C |
| Humidity |
0 - 80% RH, Non-Condensing |
| Physical Properties |
| Housing |
Metal |
| Weight |
1.23 kg ( 2.71 lb ) |
| Dimensions (L x W x H) |
20.00 x 16.41 x 4.40 cm
(7.87 x 6.46 x 1.73 in.) |
| License |
| Basic (free) |
2 free licenses |
| Max. No. Allowed |
32 licenses |
| Note |
The ATEN Control Box comes with two free licenses which are stored in the device itself. Each time a mobile device connects to an ATEN Control Box for remote control, one license on the Control Box will be occupied. To purchase and add additional licenses to your ATEN Control Box, contact your local sales representative for more information. |
| Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
