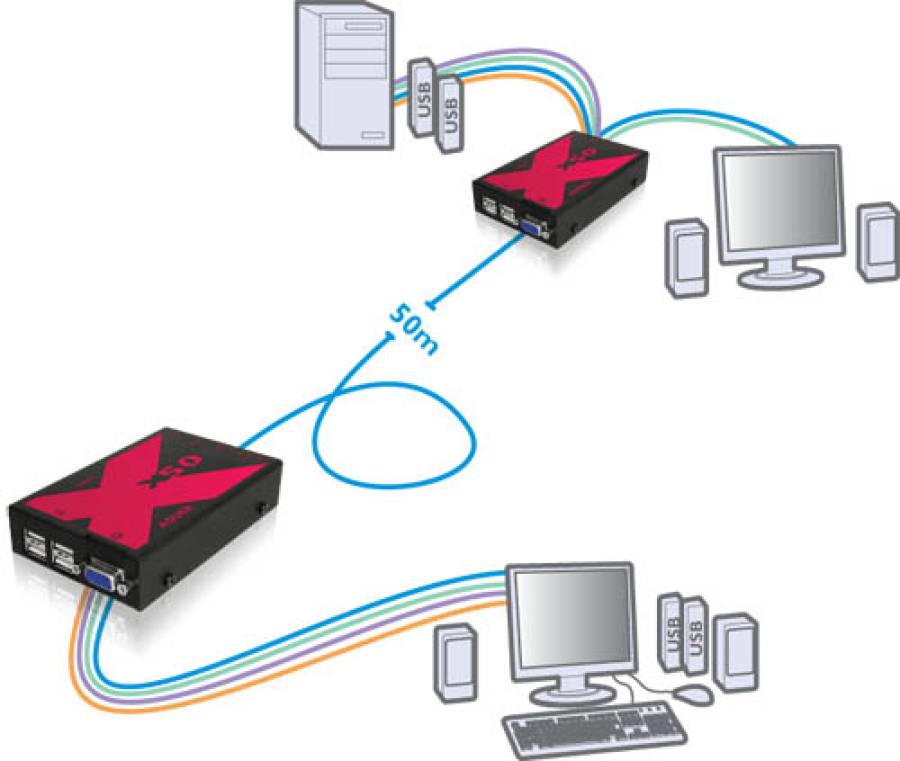

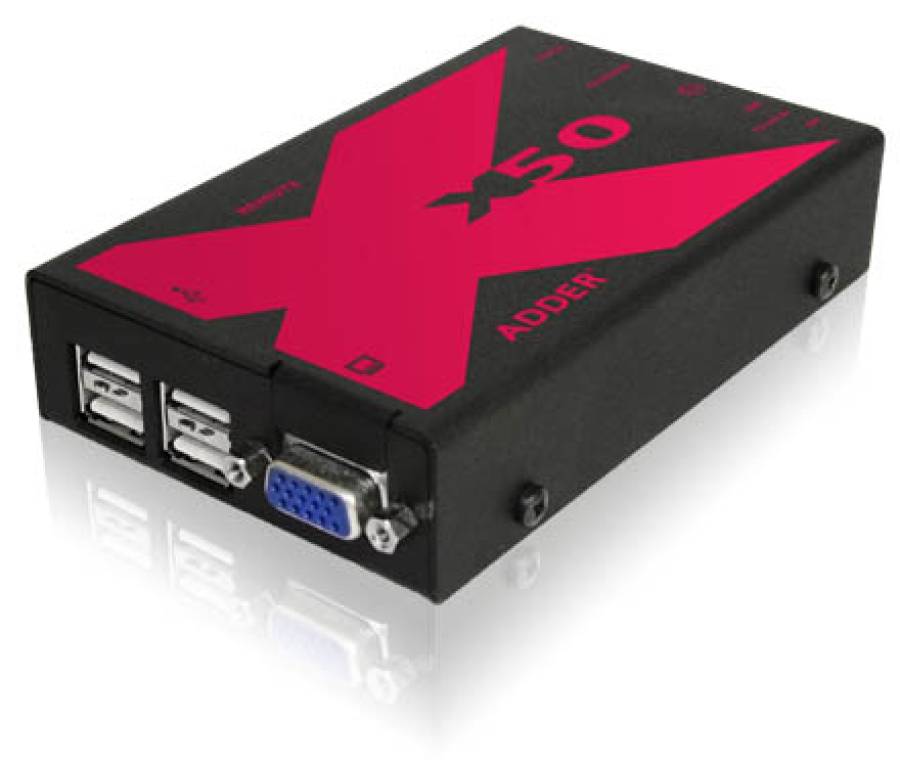

Fully featured, fully transparent low/full speed USB, high quality video and 44.1kHz digital stereo audio extender over a single CATx cable.
FEATURES:
Fully transparent low/full speed USB
Utilising a unique method of USB communication, the AdderLink X50 delivers the highest possible levels of USB compatibility. With an integrated 4 port hub the X50 supports all USB 1.1 and 2.0 low/full speed devices.
Video performance
Crisp, clear and industry leading video quality at very high resolutions of 1920 x 1200 to 50m (150 ft.)
Video compensation
The AdderLink X50 allows for a great range of very smooth and fine adjustments enabling the user to adjust the video picture to their exact preference.
True DDC Emulation
Unless an extender actively supports DDC some high performance video cards cannot be used at high resolutions. The AdderLink X50 fully supports 2-page DDC ensuring all possible resolutions are supported.
Fully platform independent
As the AdderLink X50 supports fully transparent USB connections it is able to support all common hardware platforms including PC, Sun and MAC and their associated peripherals.
Digital audio
Adder's unique digital transmission of audio signals means the AdderLink X50 delivers clickless, 44.1kHz CD quality, stereo audio without the need for an additional CATx cable.
Dual Access
For local control of extended computers the AdderLink X50 provides both a local video and audio output at the transmitter unit. (USB devices can be plugged directly into the computer).
Extended common mode input range
To ensure full operation in all environments and avoid problems such as screen blanking in industrial environments caused for example by large electrical equipment switching, the AdderLink X50 implements a special termination system that allows the common mode range to be extended.

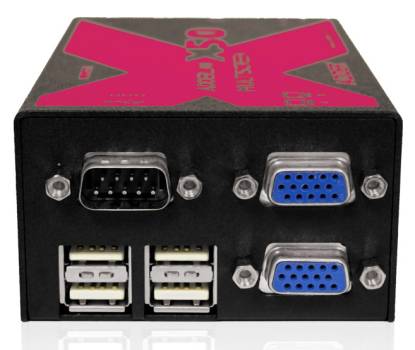

AdderLink X50-MultiScreen
The AdderLink X50-MultiScreen adds a second video and transparent, high speed RS232 up to baud rates of19200. This extra functionality adds to the diverse range of solutions for which the AdderLink X50 can be utilised including the extention of computers with dual monitors and allow it to be used in touch screen and interactive kiosk applications.
High density rack mount option
Being part of Adder's X series range of KVM extenders, the AdderLink X50 units can be mounted into a chassis that will allow 16 (X50) or 8 (X50-MS) units to be housed in 2U of rack space.
SPECIFICATION:
Video Resolution:
1920 x 1200 x 60Hz at distances up to 50m / 150 ft.
Extension Distance:
Up to 50m / 150 ft. using CATx cable (x=5,5e,6)
Devices Supported: Supports all computers with USB style keyboards and mice, HDD15 video
connectors and audio through 3.5 mm audio jack. Supports all USB devices.
O/S Compatability:
All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc.
Connectors (local / computer):
AdderLink X50: Video input/output: HDD15, Keyboard/Mouse/ USB devices USB type B, Audio input/output: 3.5mm jack, CATx: RJ45
connector, Power: 2.5mm DC jack
AdderLink X50-MultiScreen:
Same as X50 plus extra Video input/ output: HDD15 and Serial: DB9 Connectors (remote / console): AdderLink X50: Video: HDD15, Keyboard/Mouse/USB devices: USB Type A hub, Audio: 3.5mm jack, CATx: RJ45 connector, Power: 2.5mm DC jack
AdderLink X50-MultiScreen:
Same as X50 plus extra Video: HDD15 and Serial: DB9
Physical (local / computer):
AdderLink X50: All metal case, 120mm / 4.7'' (w) x 75mm / 3''(d) x 26mm / 1'' (h) 430g / 1 lb.
AdderLink X50-MultiScreen:
All metal case, 120mm / 4.7'' (w) x 75mm / 3''(d) x 44mm / 1.7'' (h) 430g / 1 lb.
Physical (remote / console):
AdderLink X50: All metal case, 120mm / 4.7'' (w) x 75mm / 3''(d) x 26mm / 1'' (h) 430g / 1 lb.
AdderLink X50-MultiScreen:
All metal case, 120mm / 4.7'' (w) x 75mm / 3''(d) x 44mm / 1.7'' (h) 430g / 1 lb.
Power (remote only):
100 - 240VAC, 10W , 50-60Hz
Operating temperature:
0 deg C to 40 deg C / 32 deg F to 104 deg F
Approvals:
CE, FCC
