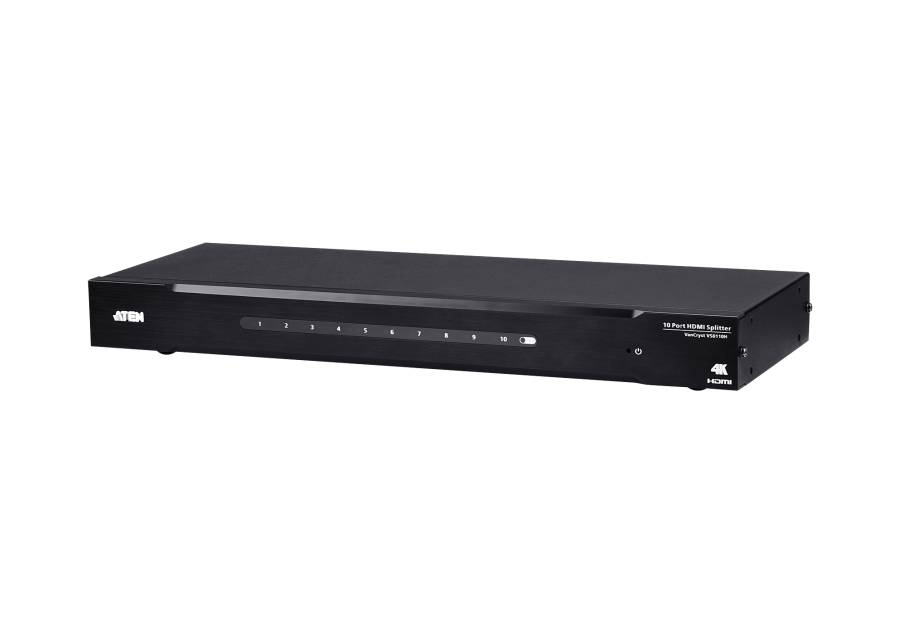

10-Port 4K HDMI Splitter 10 x up to 4K 4096 x 2160 with 60 Hz; 4:2:0, HDCP 1.4, Aten VS0110HA
The VS0110HA 4K HDMI Splitter is a perfect solution for applications that require sending one source of high-definition 4K video to ten displays at the same time. The HDMI interface caters to most mainstream sources and sinks, such as DVD players, satellite set-top boxes, and any HDMI displays. Featuring ATEN EDID technology, the VS0110HA guarantees continuous EDID communication with connected devices and maintains optimum video outputs.
The VS0110HA 4K HDMI Splitter is HDCP (High-bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
Features:

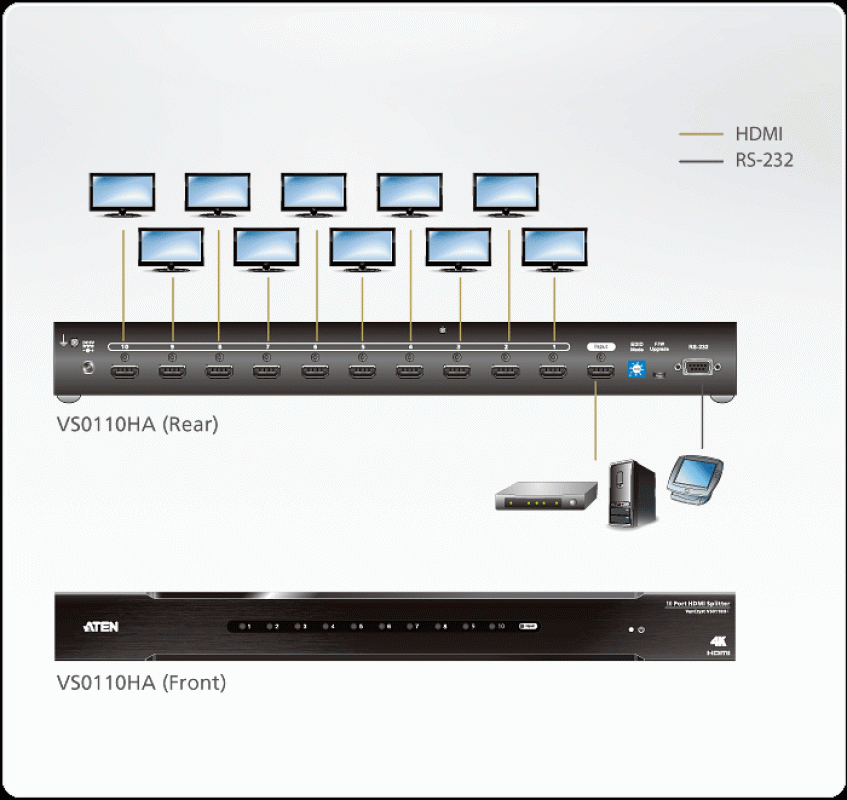

- Connects one HDMI source to up to ten HDMI displays at the same time
- HDMI (3D, Deep color, 4K); HDCP 1.4 compliant
- Superior video quality – up to 4K resolutions (4096 x 2160 @ 60Hz; 4:2:0)
- Long distance transmission from source to output - up to 15 m
- Built-in bi-directional RS-232 serial control port for high-end system control
- Clear LED indication of device status
- EDID Expert™ – Selects optimum EDID settings for smooth power-up, high quality display and use of the best resolution across different screens
- Plug-and-play
- Rack-mountable (1U design)
Package Contents:
1x VS0110HA 10-Port 4K HDMI Splitter
1x Power Adapter
1x Mounting Kit
1x User Instructions
Specifications:
| LEDs |
| Power |
1 x LED (Green) |
| Input |
1 x LED (Green) |
| Video Output |
10 x LED (Green) |
| Video Input |
| Interfaces |
1 x HDMI Type A Female (Black) |
| Impedance |
100 Ώ |
| Max. Distance |
5m (at 4K resolution) |
| Video Output |
| Interfaces |
10 x HDMI Type A Female (Black) |
| Impedance |
100 Ώ |
| Max. Distance |
10m (at 4K resolution) |
| Video |
