SC&T VDKM02BT-2: DVI+VGA + USB 2.0 + Audio + RS232 + IR over IP Transmitter
HDV over IP series include HDMI, DVI, VGA KVM, USB with Analog audio, RS232, and IR CAT5 extender design for extends and distribute all signals over one CAT5 up to 100 meters, with local HD monitor output. It provides superior video quality up to 1920 x 1200 (HDMI 1080P up to 1920 x 1200 and 1920 x 1080) resolutions, and using cost effective Cat5e cable, instead of HDMI, RS232 cables, for an easy, neater and reliable installation. The local and remote units can be connected together for a Point-to-Point connection via CAT5e/6 cable or a Point-to-Many connection via a managed network switch. Any combination of HDMI, DVI, and VGA transmitters and receivers can be used, easy to increase more sources or monitor for a flexible application. It is optimized for applications at broadcasting system, multimedia display and multi-data sharing, digital signage, home network integration, and industrial control, hospital, education, security, Matrix network system and system control over RS232 and equipment control over IR.
Features:
- Extend and distribute DVI + VGA, RS232, IR and USB signals over one CAT5E/CAT6 cable or LAN.
- Supports resolutions up to 1920 x 1200 and 1080p Full HD 32bpp@ 60 Hz.
- Transmission range up to 100M over CAT5e, CAT6 or CAT7.
- Support window based management software, using PC computer for easy setting input/output link.
- Support Android/iOS APP control.
- Receiver input source select could be from IR remote control or front panel button.
- Built in RS232 distribution function, to send RS232 signal from one TX to multiple RX.
- Supports 2-way RS232 commands at baud rate 115200 (control software on a PC, or other automated control system hardware) to control devices attached to the matrix using RS232. Full Duplex data communication.
- HDMI 1.4 compliant.
- Built in Bi-Directional analog audio.
- Built in Bi-Directional IR.

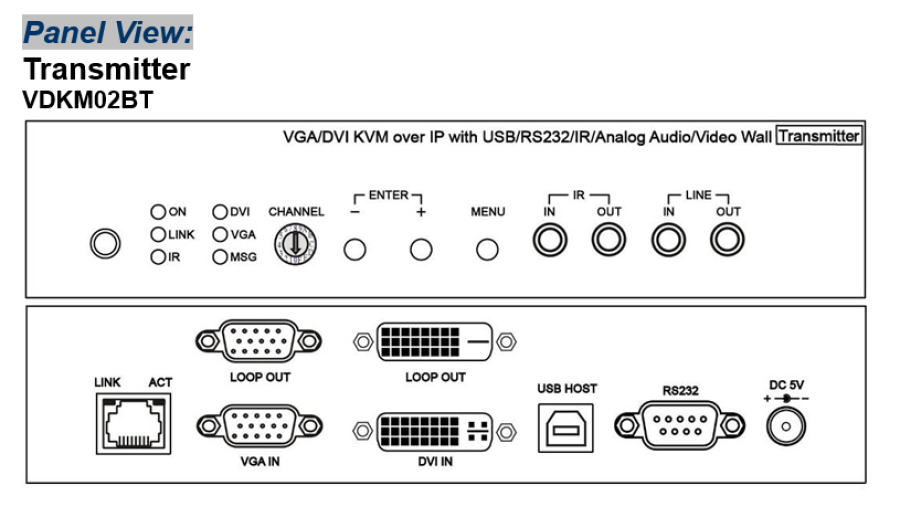

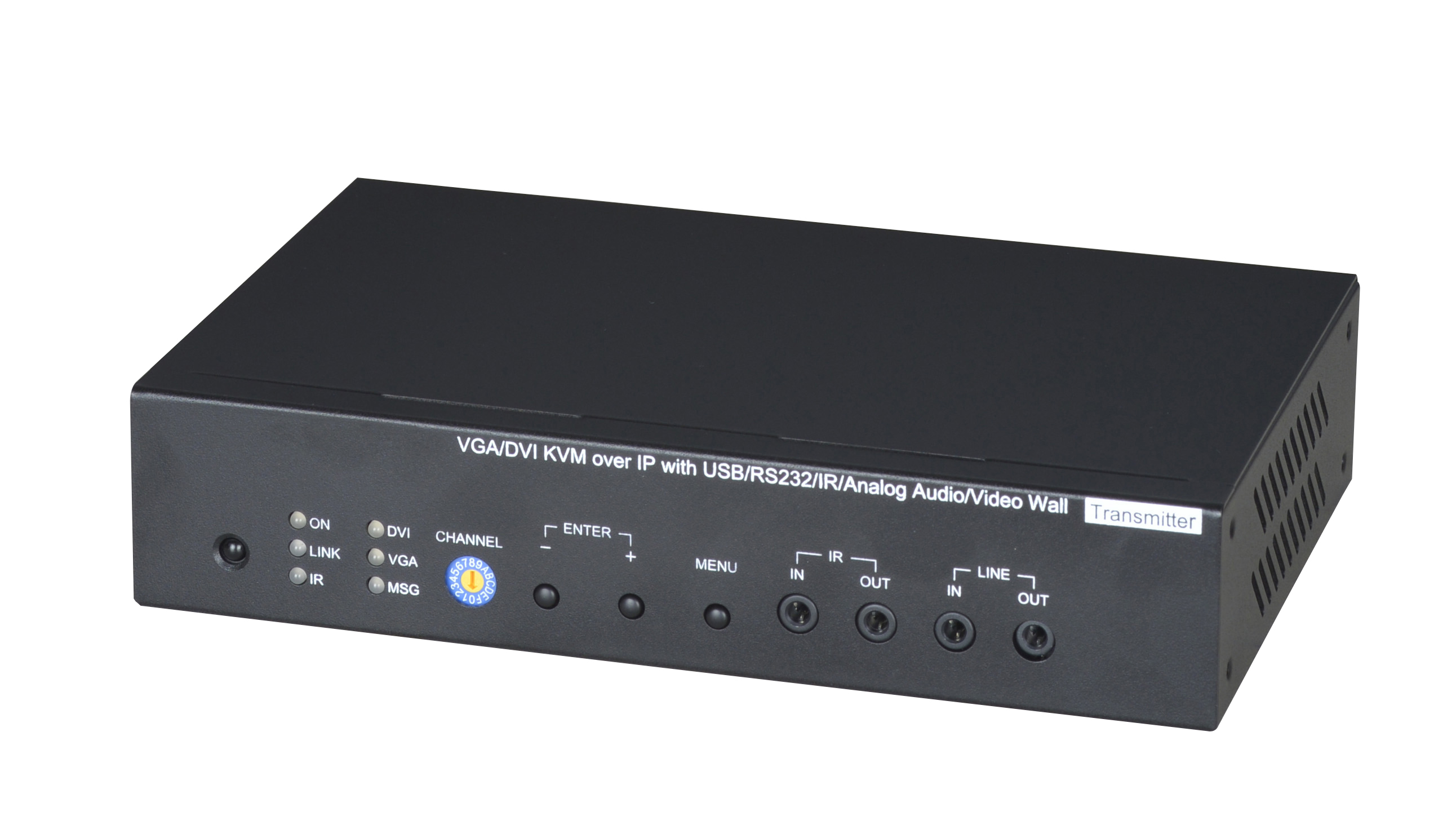

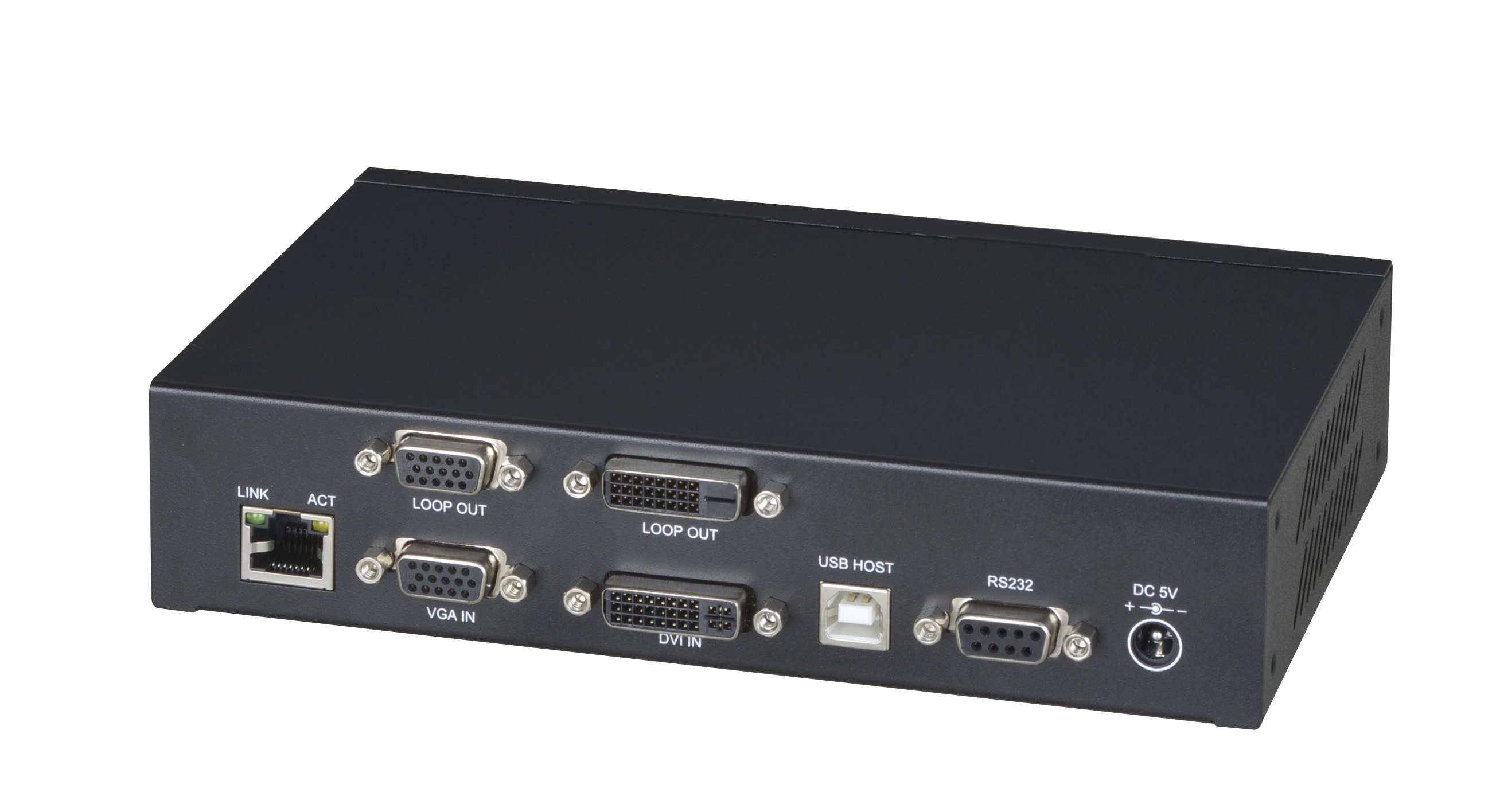

- VDKM02BT transmitter unit with built in VGA and DVI local loop outputs.
- VDKM01BR receiver unit with 4 ports USB devices (2 port USB 1.1 & 2 Port USB 2.0), to extend USB peripheral devices, such as flash disk, hard disk, keyboard, mouse, etc.
- Support point to point and multiple source devices to multi-display connections via Gigabit network switch.
- Use IGMP and Jumbo frame protocol Gigabit Switch Hub to do HD signal distribution and transmission.
- Perfect to extend console from PC or to control remote machines and security monitoring systems, digital signage applications.
Point-to-Point -- direkte Verbindung: (Extender):
Ein TX zu Multiple RX über Gigabit-Ethernet-Switch:
Multible TX zu einem RX über Gigabit-Ethernet-Switch:
Multiple TX zu Multiple RX über Gigabit-Ethernet-Switch:
Specifications:
ITEM NO.
|
VDKM02BT
|
VDKM02BR
|
Support Resolution
|
1920 x 1200, 1920 x 1080p 32bpp@ 60 Hz
|
Transmission Distance
|
CAT5e, CAT6, CAT7: 100M (Max)
|
HDMI Connector
|
DVI (Female) x 2
VGA (Female) x 2
|
DVI (Female) x 1
VGA (Female) x 1
|
USB Connector
|
USB Type B x 1
|
USB Type A x 4
|
RS232 Connector
|
DB9 (Female) x 1
|
DB9 (Male) x 1
|
Link Connector
|
RJ45 x 1
|
Audio Connector
|
3.5 mm Phone Jack x 2
|
IR Connector
|
3.5 mm Phone Jack x 1
|
IR Receive/Emit Angle
|
Horizontal ± 45, Vertical ± 35 / ± 30
|
IR Receive/Emit Distance
|
5 M
|
Power Supply
|
DC 5V 2A
|
Power Consumption
|
800 mA (Typical)
|
550 mA (Typical, no USB device) |
Temperature
|
Operation: 0 to 55°C, Storage: -20 TO 85°C, Humidity: up to 95%
|
Dimensions / mm
|
190 x 128.5 x 40
|
167 x 103.5 x 40 |
Weight / g
|
650
|
480 |
