USB + Audio + DVI Extender Set: 1920x1200 / 1080p 60 Hz, HDCP 1.4 + USB 2.0 + Audio + RS232 Transmitter+Receiver (Set), SC&T DKM01-2
The DKM01-2 DVI & USB with Analog audio and RS232 CAT extender design for extend all signals over one CAT5e/6/7 up to 140 meters, transmitter unit with local DVI monitor output.
It provides superior video quality up to 1920x1200 resolutions, and using cost effective CAT cable, instead of DVI, USB, Audio and RS232 cables, for an easy, neater and reliable installation.
It is optimized for applications at industrial control, hospital, education, security and system control over RS232 and USB.
Features:
- Extend DVI, USB, RS232 and Audio signals over one CAT5e/CAT6/CAT7 cable.
- Transmission range up to 140M over CAT6/CAT7, 120M over CAT5e.
- DVI video resolutions up to 1080p Full HD and 1920 x 1200@ 60Hz.

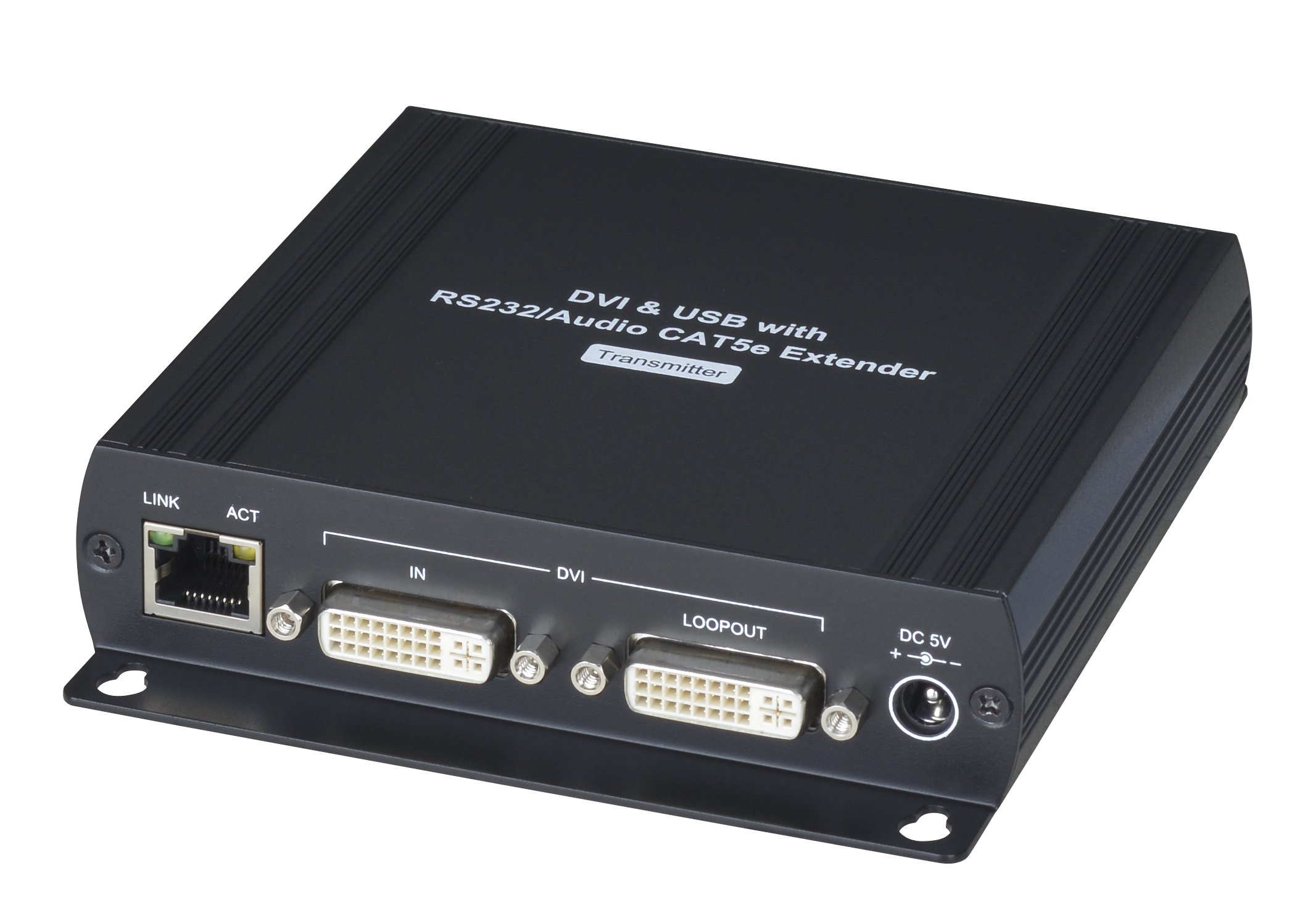

- DKM01T transmitter unit with DVI local loop output.
- HDCP 1.4 compliant.
- Built in Bi-directional analog audio extender function.
- Support USB 2.0 and compatible with 1.0, 1.1.
- Support Bi-directional RS232.
- Built in EDID copy.

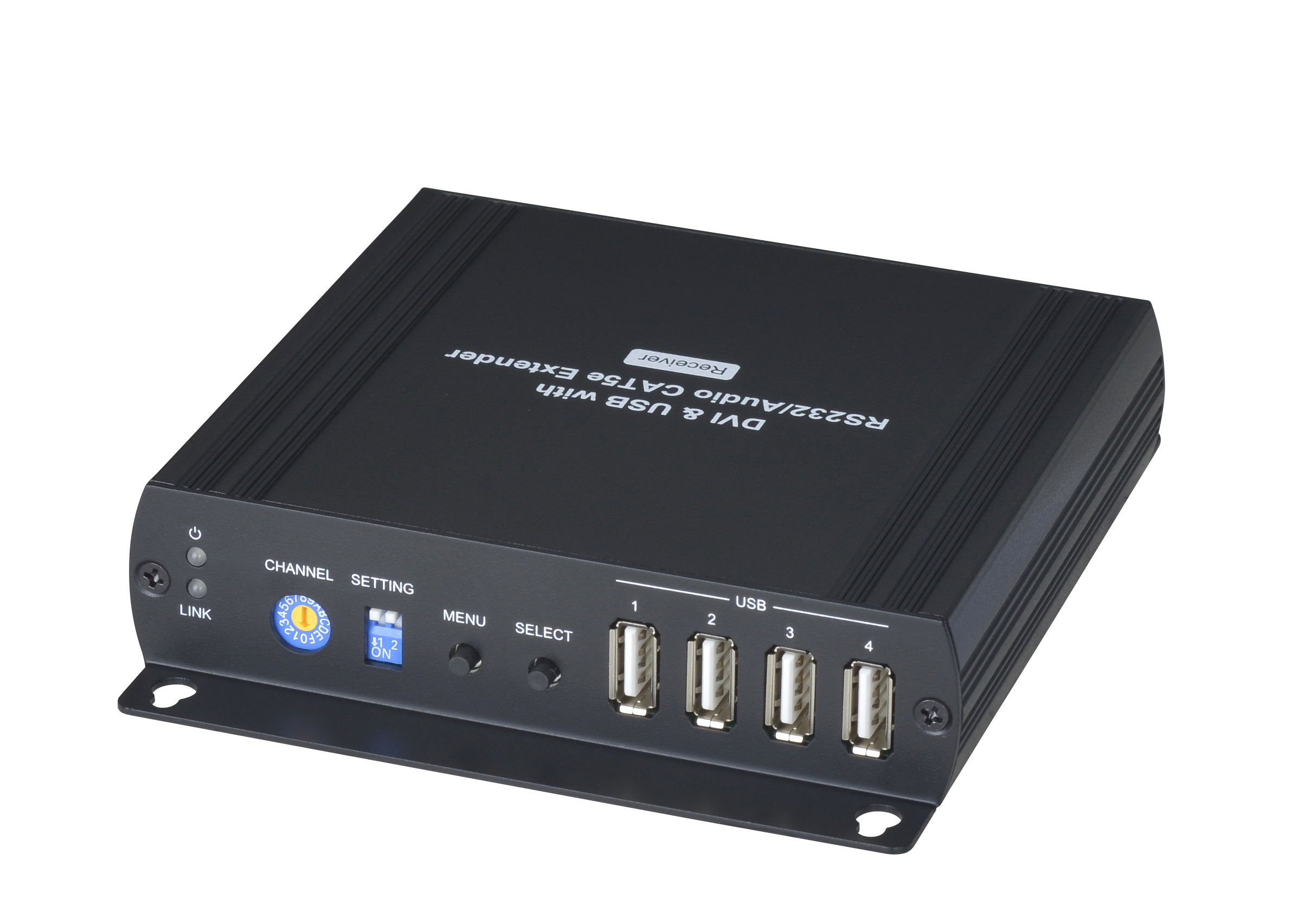

- Receiver unit with 4 ports USB 2.0 devices, to extend USB 2.0 peripheral devices, such as flash drive, hard drive, mass storage device, keyboard, mouse, etc.
- Perfect for control remote machines and security monitoring systems, digital signage application.

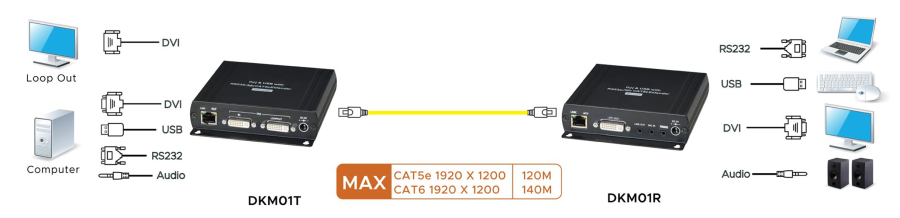

Point to Point Direct Connection: (Extender)
Specifications:
ITEM NO.
|
DKM01T
|
DKM01R
|
Support Resolution
|
1920 x 1200, 1920 x 1080p @ 60 Hz,
|
Transmission Distance (LAN cable)
|
CAT5e: 120 m (max),
CAT6, CAT7: 140 m (max)
AWG 24 cable or lower AWG number recommended for long distances
|
DVI Connector
|
DVI female x 2 (only digital)
|
DVI female x 1 (only digital)
|
USB Connector
|
USB Type B x 1
|
USB Type A x 4
|
RS232 Connector
|
DB9 (Female) x 1
not support hardware handshake
|
DB9 (Male) x 1
not support hardware handshake
|
Link Connector
|
CAT cable: RJ45 x 1
|
Audio Connector
|
3.5 mm Phone Jack x 2
|
HDCP Compliant
|
HDCP 1.4
|
Power Supply
|
DC 5V 2A
|
Power Consumption
|
1000 mA (max)
|
400 mA (max, no USB device) |
Temperature
|
Operation: 0 to 60°C, Storage: -20 to 85°C, Humidity: up to 95%
|
Dimensions / mm
|
125 x 140 x 30
|
Weight / g
|
400
|
385 |
