16-Port IPLCD KVM-Konsole with 17" LCD incl. 16 x Cable, Haitwin AK-1716-IP

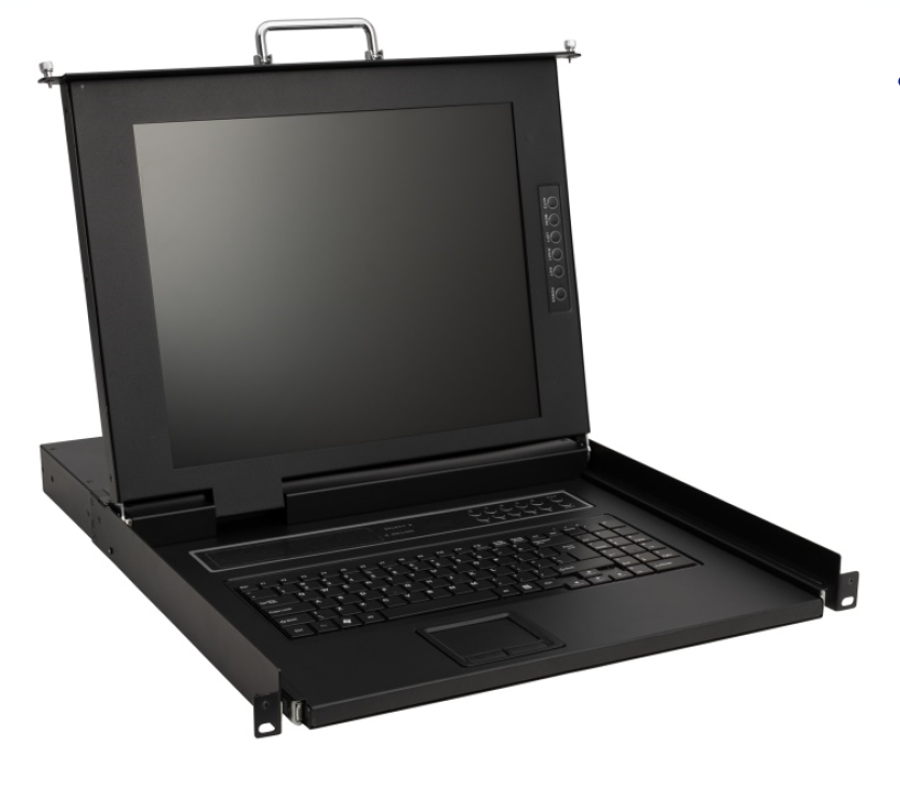

AK-1716-IP is a 17“ Monitor-Keyboard-Drawer with LED backlight.
The device is shipped with installed IP module for IP remote access.
A value keyboard with number block and touchpad and the integrated 16-Port Combo VGA KVM-switch are completing the external design.
The casing conforms the 1U Standard, is easily installed and mountable with the included mounting kit.
Properties
- 17“ LCD Monitor with LED Backlight
- 16-Port KVM-switch USB / PS/2
- Operation on the LCD console and over IP is competing
- The IP operation is of course also possible when the console is inserted
- The IP operation is via a client software for Windows or Mac OS

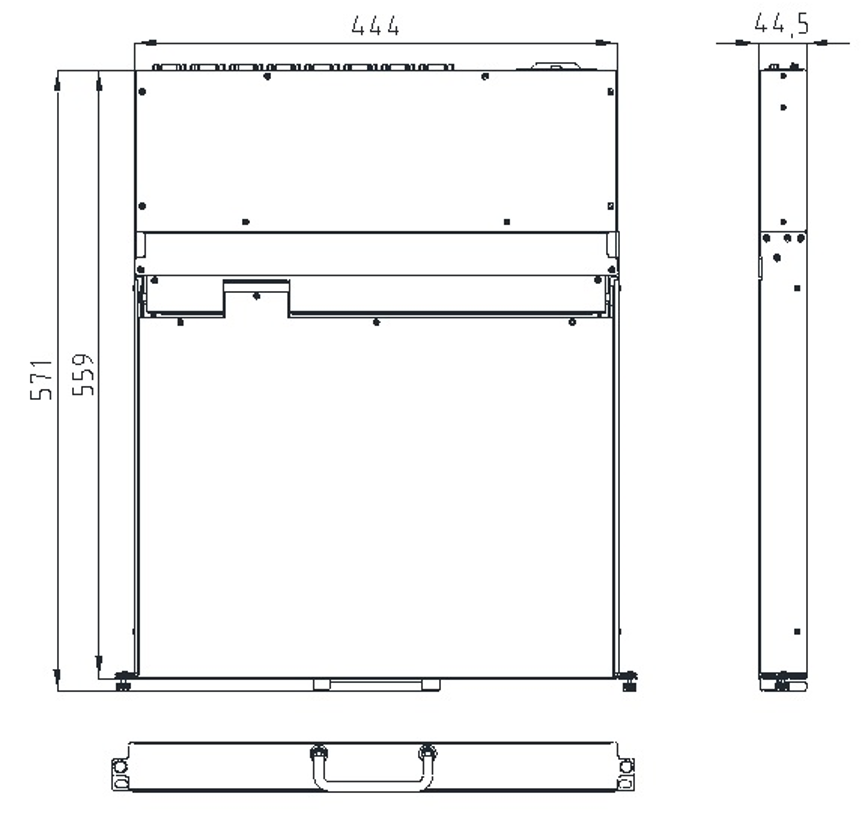

- Depth: 559 mm only (without handle)
- 1U 17“ LCD console, 571 mm total depth
- Stepless, adjustable angle from 0 to 105° with high quality torque hinges
- Easy one-man-assembly with the included installation angles
- Integrated 16-port Combo VGA KVM-switch
- Adjustable depth: 560 mm to 900 mm (Standard)
- Chromed metal handle
- Practical knurled screws
- Graphic resolution, up to 1280 x 1024 with 60Hz
Specifications
- The corresponding dongle are included with delivery
- Cascadable up to a port capacity of 256 ports by tree-chaining
- Computer selection by push buttons, Keyboard -Hotkeys and OSD-Menu
- On-Screen-Display und system notification as a Pop-Up
- Automatic Power ON/OFF pushing the console back to the rack
- Supports all USB suitable operating systems: for example DOS, Windows Series / Server 2008 / Server 2013, Linux, MacOS, etc.
- Numeric LED status indicators for clear display of port status
Keyboard versions:
- In default order we do ship out with German (DE) keyboard layout.
- Orders with additional extensions by use for US-English (US), UK-English (UK), French (FR), Spanish (SP), Italian (IT). Swiss / German (CH) and swedish / finnish (SWE/FI).
- Versions available on request : Turkish (TK) and Russian (RU).
Technical Data:

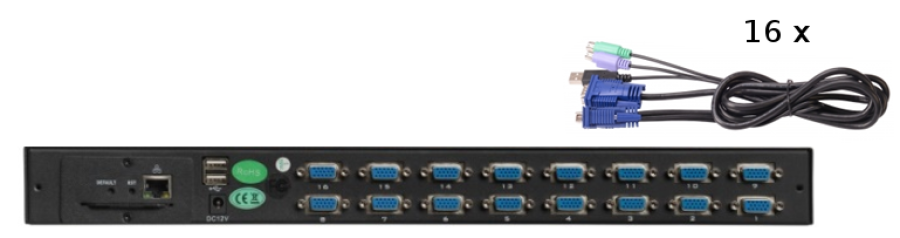

| Connections KVM |
Graphic |
16 x HDDB-15 |
| |
Console(remote) |
1 x RJ-45 (IP version) |
| |
Console (local) |
2 x USB-A |
| |
Power supply |
1 x DC-12V |
| Connection cable (Standard) |
2x PS/2 / USB / VGA Combo, |
16 x KD-KAB-102-4 (1.8m) |
| 4in1 Combo cable |
| Additional supply |
2x PS/2 / USB / VGA Combo, |
KD-KAB-103-4 (3,0m) |
| 4in1 Combo cable |
KD-KAB-105-4 (5,0m) |
| Switch |
LCD settings |
5 Pressure switch |
| ON / OFF |
1 Pressure switch |
| OFF (LCD folded) |
1 Semi-covert pressure switch |
| LED-Display panel |
Operation |
1 x green/red |
| Number |
1 x blue |
| Capital letters |
1 x blue |
| Scroll |
1 x blue |
| LED-Display KVM |
Port selection |
16 x green |
| Emulation |
Keyboard/ Mouse |
USB / PS/2 |
| Display |
Yes |
| Port selection |
Push Button / Hotkey / OSD |
| Graphic |
17“ LCD |
1280 x 1024 |
| Colors |
16,2 Mio. |
| Frame Rate |
H: 31,0 KHz. – 81,0 KHz. |
| V: 56,0 KHz. – 76,0 KHz. |
| Viewing angle |
H: 140° / V: 130° |
| Bandwith |
140 Mhz. |
| Brightness |
300 cd/m² |
| Contrast |
700:01:00 |
| Reaktion time |
4 ms. |
| Pixel pitch |
0,264mm (H) x 0,264mm (V) |
| Backlight |
LED |
| Input values |
100 V. – 240 V. AC, 48 Hz – 62 Hz |
| Output values |
DC 12V., 4,16A |
| Power consumption |
230 V / 16,8 Watts |
| Certification |
RoHS, RoHS2, CE |
| Environment |
Operating temperature |
-10 - 50°C |
| Storage temperature |
-20 – 60°C |
| Humidity |
0 – 80% relative humidity (non condensing) |
| Physical properties |
Casing |
High performance steel |
| Color |
RAL 9005 |
| Weight |
16.8 kg incl. angles |
| Dimension (L x W x H) w/o handle |
555 x 450 x 44,5mm (19“ / 1U) |
| Dimension (L x W x H) w. handle |
567 x 450 x 44,5mm (19“ / 1U) |
| Packaging |
Weight |
19.1 kg |
| Dimension (L x W x H) |
74 x 62 x 18 cm |
