extra short 19" LCD Keyboard-Drawer with 17" LCD HDMI+USB+PS/2 for Racks above 600mm, Haitwin AK-1701-HDMI

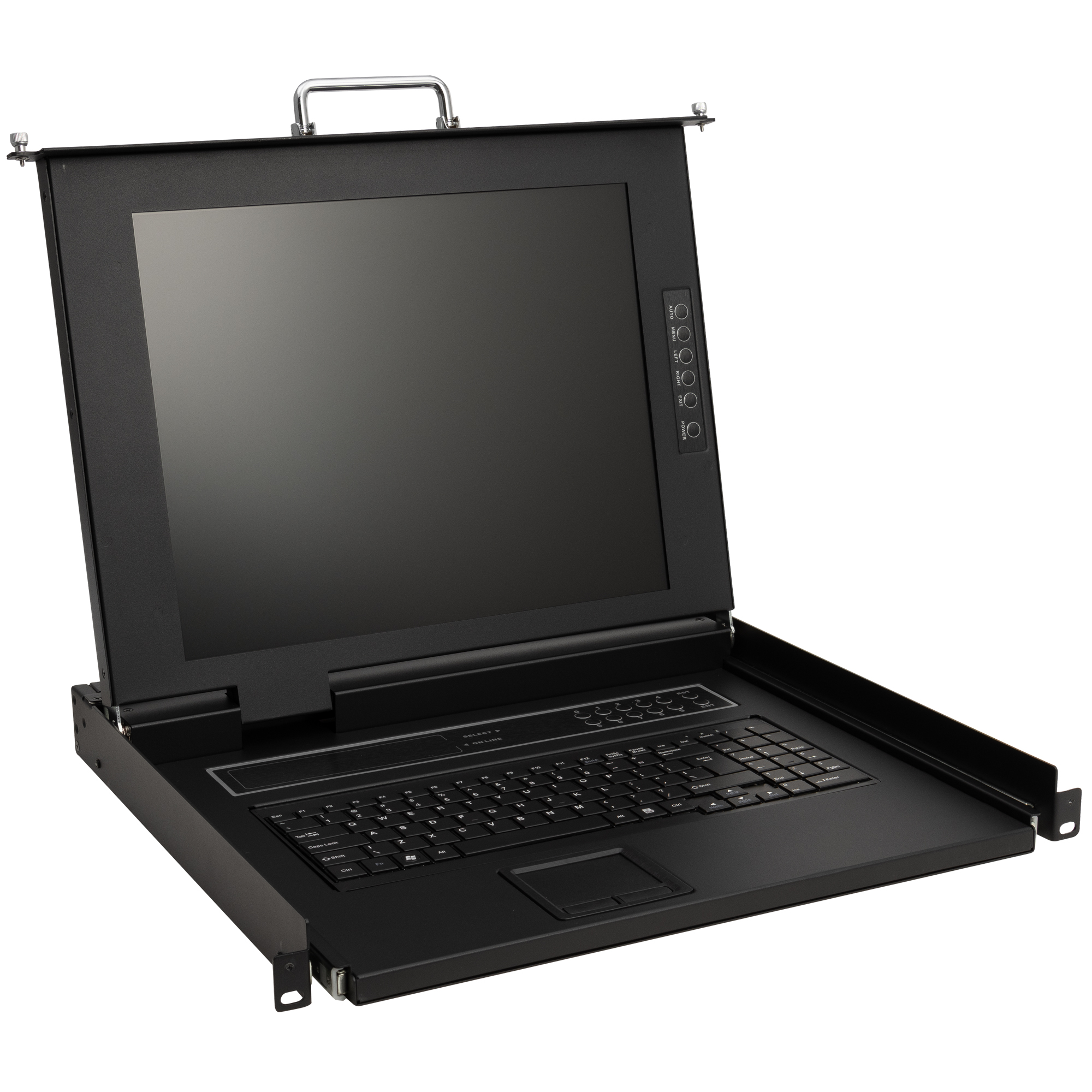

AK-1701-HDMI is a 17“ Monitor-Keyboard-Drawer with LED Backlight. A value keyboard with number block and touchpad completes the external design and makes it an allrouder device. The casing conforms the 1U Standard, is easily installed and mountable with the included mounting kit.
Specifications:
• Practical DB-37 Combo connector, combined with our included cable HLS-H01-1 (1 x HDMI, 1 x USB and 2 x PS/2)
• compatible with the most PS/2-KVM and USB KVM-switches
• Support friendly external power supply
• Supports all USB suitable operating systems: for example DOS, Windows Series / Server 2008 / Server 2013, Linux, MacOS, etc.
• Permanent Keyboard /Mouse emulation for safe function on all computers and operating systems
Properties:
• 1U 17“ LCD console, 422mm total depth
• Stepless, adjustable angle from 0 to 105° with high quality torque hinges
• Easy one-man-assembly with the included installation angles

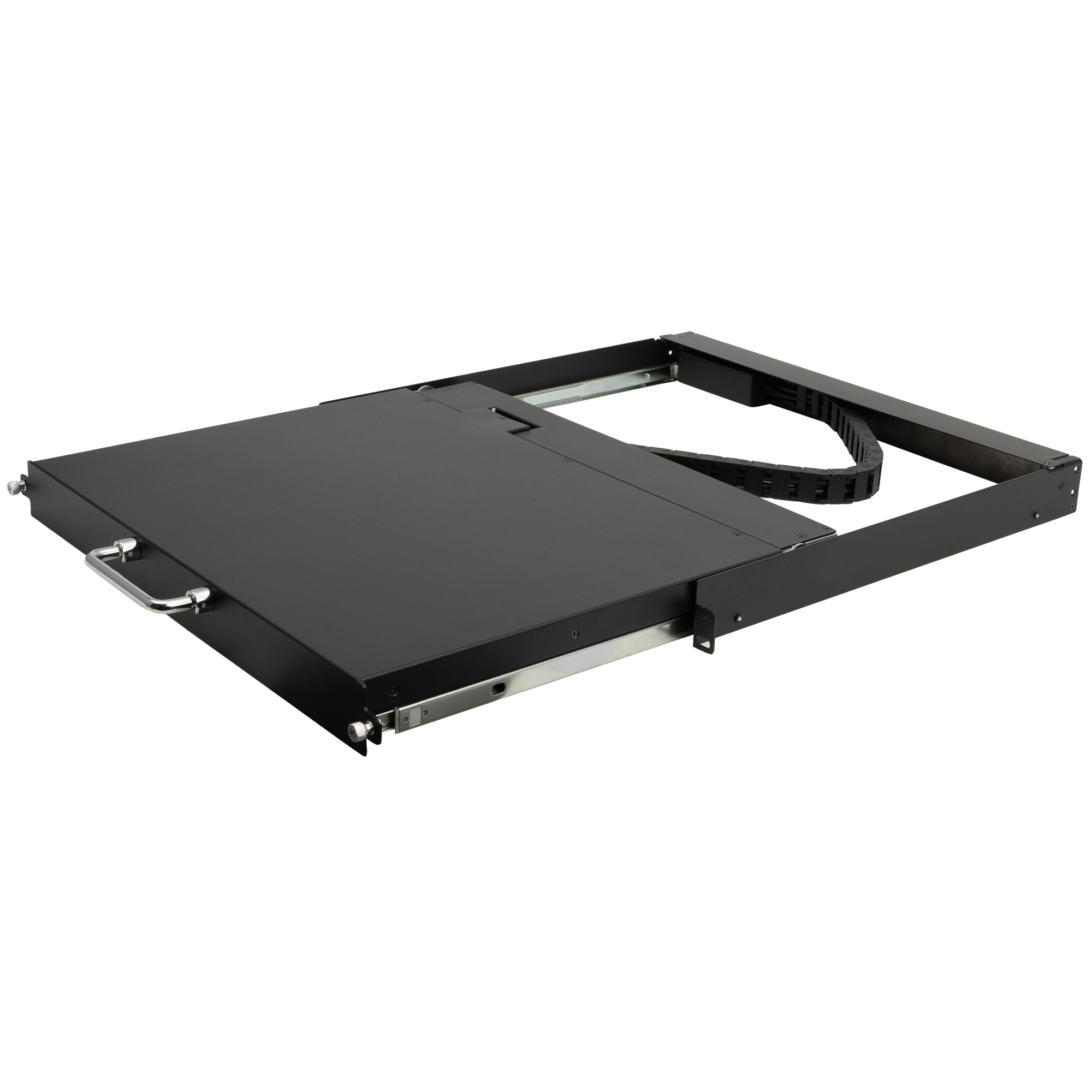

• Adjustable depth: 411mm to 650mm (Standard) Optional: conversion kit for 560mm to 900mm
• Chromed, hinged metal handle
• Practical knurled screws
• High graphic resolution, up to 1280 x 1024 with 60Hz
Keyboard versions:
- By Default this item wil be shipped with German (DE) keyboard layout.
- Orders with additional extensions by use for US-English (US), UK-English (UK), French (FR), Spanish (SP), Italian (IT). Swiss / German (CH) and swedish / finnish (SWE/FI).
- Versions available on request : Turkish (TK) and Russian (RU).
Technical data:

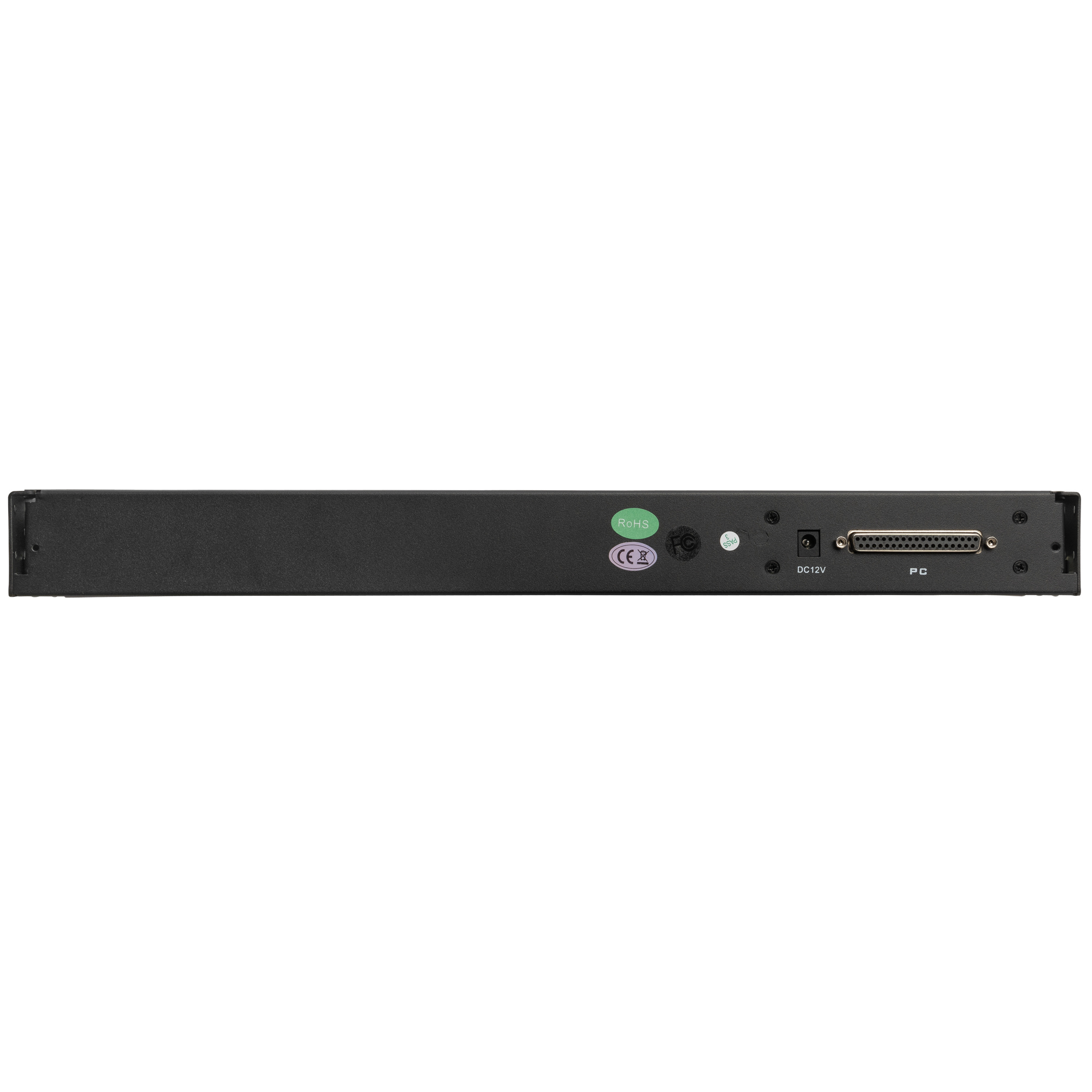

| Connections |
Graphic / Keyboard / Mouse |
1 x HDDB-37 |
| Power supply |
1 x DC-12V |

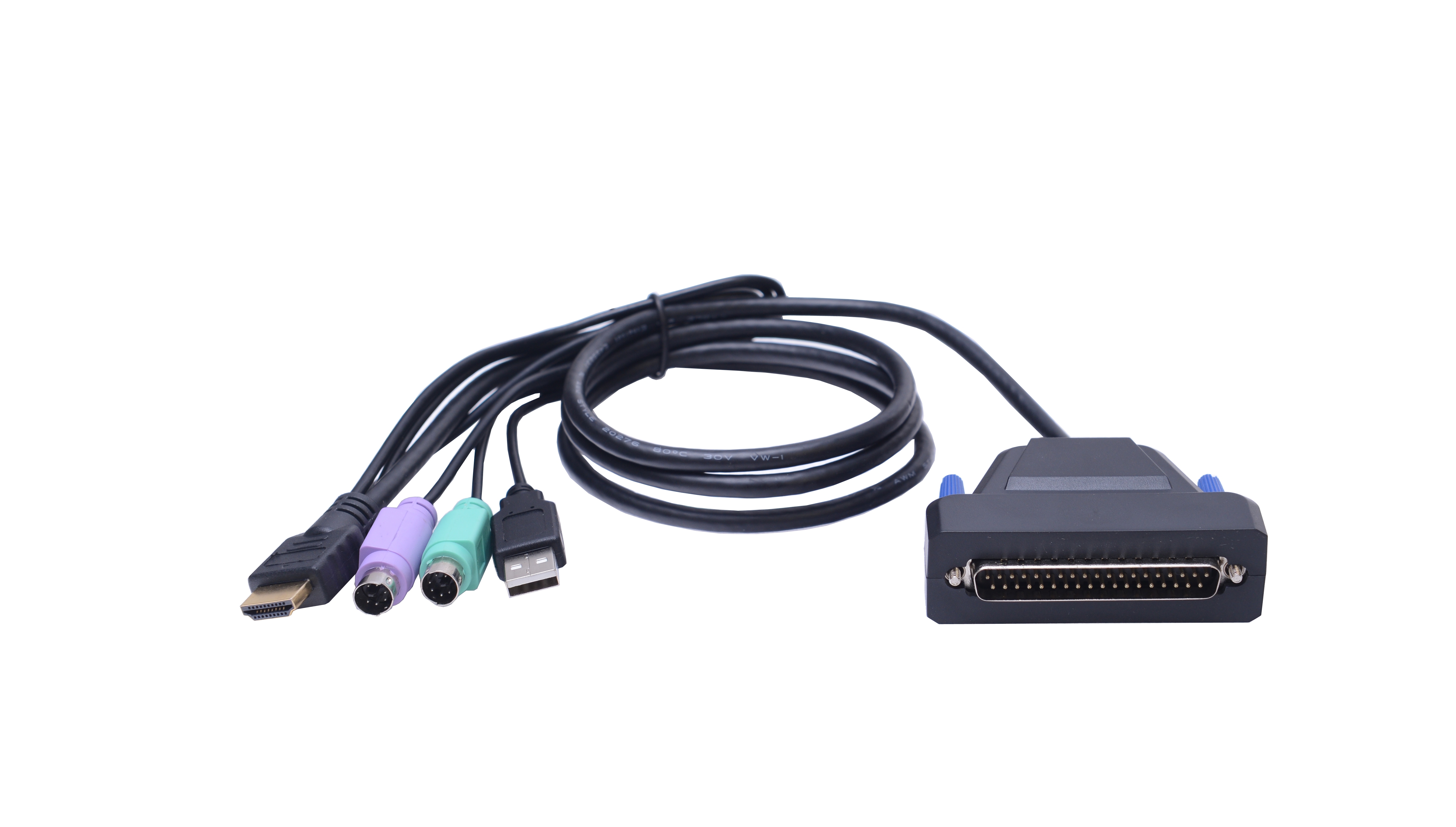

| Connection cable (included ) |
HDMI / PS/2 / USB Combo |
HLS-H01-1 (1.2m) |
| Switch |
LCD settings |
5 Pressure switches |
| ON / OFF |
1 Pressure switch |
| OFF (LCD folded) |
1 Semi-covert pressure switch |
| LED-Display panel |
Operation |
1 x green/red |
| Number |
1 x blue |
| Capital letters |
1 x blue |
| Scroll |
1 x blue |
| Emulation |
Keyboard/ Mouse |
USB and PS/2 |
| Display |
Yes |
| Graphic |
17“ LCD |
1280 x 1024 |
| Colors |
16,2 Mio. |
| Frame Rate |
H: 31,0 KHz. – 81,0 KHz. |
| V: 56,0 KHz. – 76,0 KHz. |
| Viewing angle |
H: 140° / V: 130° |
| Bandwith |
140 Mhz. |
| Brightness |
300 cd/m² |
| Contrast |
700:01:00 |
| Reaktion time |
4 ms. |
| Pixel pitch |
0,264mm (H) x 0,264mm (V) |
| Backlight |
LED |
| Input values |
100 V. – 240 V. AC, 48 Hz – 62 Hz |
| Output values |
DC 12V., 4,16A |
| Power consumption |
230 V / 18,8 Watt |
| Certification |
RoHS, RoHS2, CE |
| Environment |
Operating temperature |
-10 - 50°C |
| Storage temperature |
-20 – 60°C |
| Humidity |
0 – 80% relative humidity (non condensing) |
| Physical properties |
Casing |
High performance steel |
| Color |
RAL 9005 |
| Weight |
14.0 kg incl. angles |

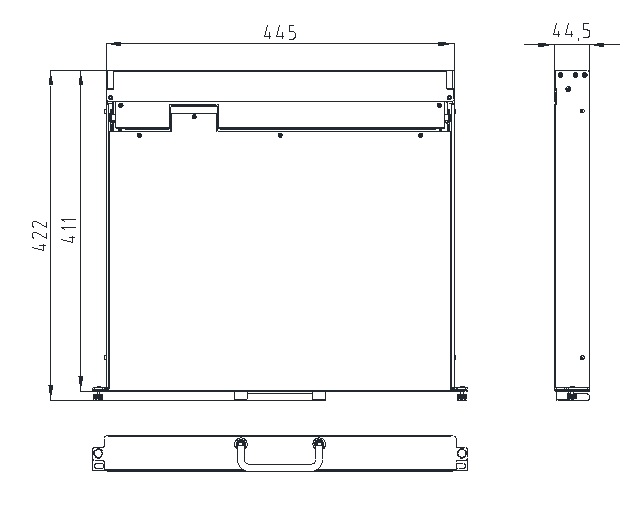

| Dimension (L x W x H) w/o handle |
410 x 450 x 44.5mm (19“ / 1U) |
| Dimension (L x W x H) w. handle |
422 x 450 x 44,5mm (19“ / 1U) |
| Packaging |
Weight |
15.0 kg |
| Dimension (L x W x H) |
74 x 62 x 18 cm |
