Short 8-Port 4K HDMI 19" LCD-Console with 17" LCD 3840x2160, ANNSO KVM-1708SWHD-M2-4K
This is a very special 4K LCD KVM 8-Port drawer with a very large Screen and support of UHD (native 3840x2160).
You can connect up to 8 server to the integrated KVM-Switch via HDMI/VGA.
The self-locking rails when in the fully extended open positionandthe ultra convenient auto lock release when the LCD panelis closed, make for simple and hassle-freeoperation.
Easy to handle and use in a 600 mm deep or larger 19" cabinet.
Features

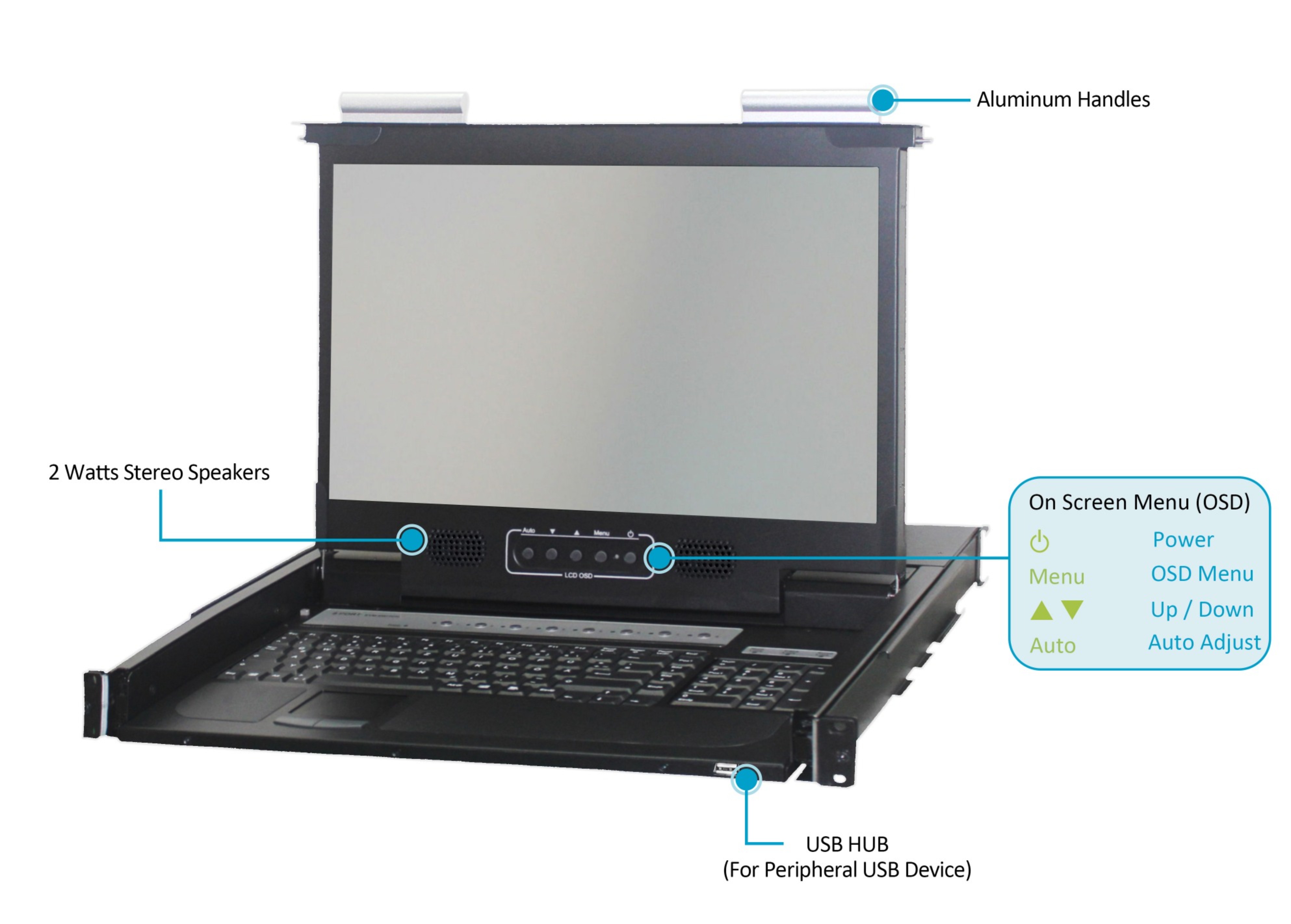

- 1U 17.3 inch widescreen 4K LCD Console Drawer
- HDMI and USB for keyboard/mouse
- 4K 3840 x 2160 Ultra high resolution
- Support FHD with 1080p and 1920x1200 resolution
- 8 ports HDMI 2.0 input
- Front 1x USB,Rear 1x USB 2.0 Type A,Sharing USB peripheral Device for computer (ex, flash disk, hard driver)
- Additional two USB console port to add local KB/Mouse
- Buildin 2x 2 watts stereo speakers
- Port selection via push buttons or Hotkey
- 104-key (German) keyboard with touch pad mouse
- Self-locking and auto release rails for ultra convenience
Package Contents
- 1x KVM-1708SWHD-M2-4K UHD 8-Port LCD Console with Standard Rack Mount Kit
- 1x 1.8 meter IEC Type Power Cord
- 1x User Instructions (english)
Note: below this product description, you can find matching HDMI+USB cable and adapter from DP or DVI
Specifications:

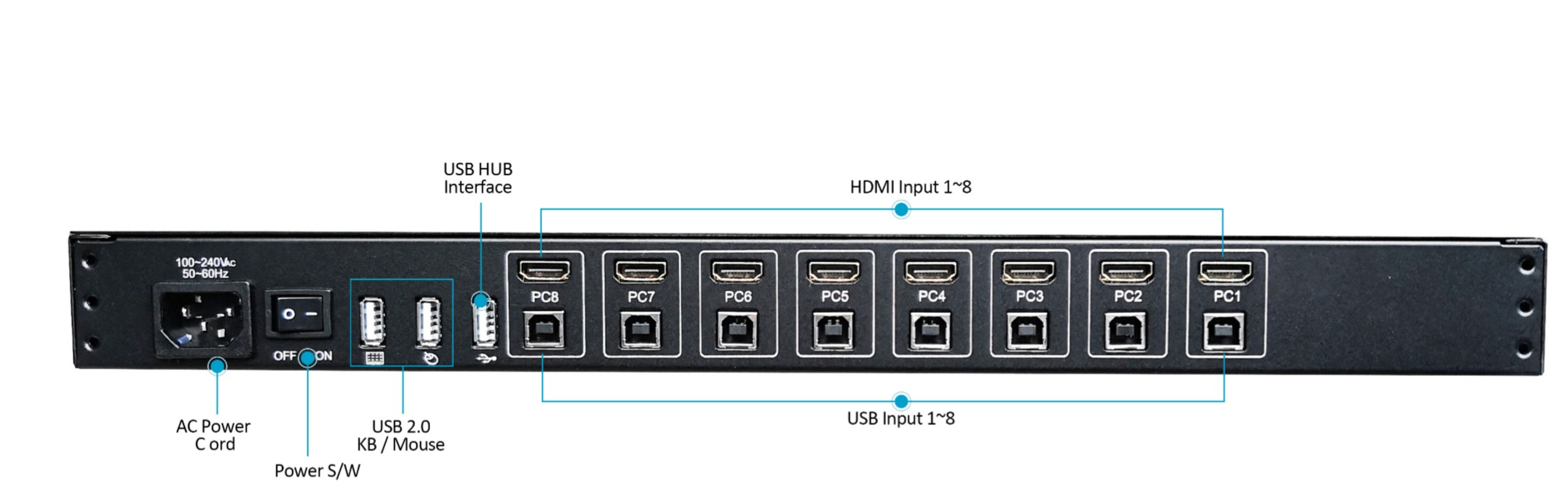

| Computer Connections |
8 (HDMI/USB) |
| Rack Depth (rack cabinet front rails to rear rails) |
450 mm to 600 mm (600 mm Rack needs min)
|
| Connectors |
Input Ports |
USB and Monitor |
8 x HDMI socket
8 x USB Typ B socket |
| Power |
1 x 3-prong AC Socket |
| Switches |
Power |
1 x Rocker |
| LCD Power |
1 x Pushbutton |
| LCD Adjustment |
4 x Pushbutton |
| Port-Selection |
8 x Pushbutton |
| LEDs |
Power |
1 |
| Lock |
Num |
1 |
| Caps |
1 |
| Scroll |
1 (Green) |
| Port-Selection |
8 |
| |
Keyboard / Mouse
Emulation |
USB |
| Video (VGA) |
3840 x 2160 @ 60Hz, DDC2B
(support resolution 1920*1080 and 1920*1200) |
| Size |
17.3 inch 4K display |
| Backlight |
LED |
| Resolution |
3840 x 2160 (native) |
| Max. color |
16.7M |
| Luminance |
400 cd/m2 |
| View Angel (H/V) |
178 / 178 |
| Contrast Ratio |
1000 : 1 |
| Power |
100-240V AC 50/60Hz via IEC Type power cord |
| Power Consumption |
230V, 20W |
| Environment |
Operating Temp. |
0-50°C |
| Shock: |
10G acceleration (11ms duration) |
| Vibration: |
17 to 500Hz 1G PTP |
| Storage Temp. |
-20 - 60°C |
| Humidity |
10 - 90% RH, Non-condensing |
Physical
Properties |
Housing |
Metal |
| Weight |
11 kg (net weight)
16.5 kg (gross weight) |
Physical Dimensions
(D x W x H) |
457,2 x 443 x 42 mm (product)
710 x 620 x 190 mm (carton) |
