4K60Hz USB-C + HDMI Dual-Video-in Wall-Plate Extender-Set up to 60m, SC&T HUW01-4K6G

4K60Hz USB-C + HDMI Dual-Video-in Wall-Plate Extender-Set up to 60m, SC&T HUW01-4K6G

Streamlined Signal Extension for Modern AV Spaces

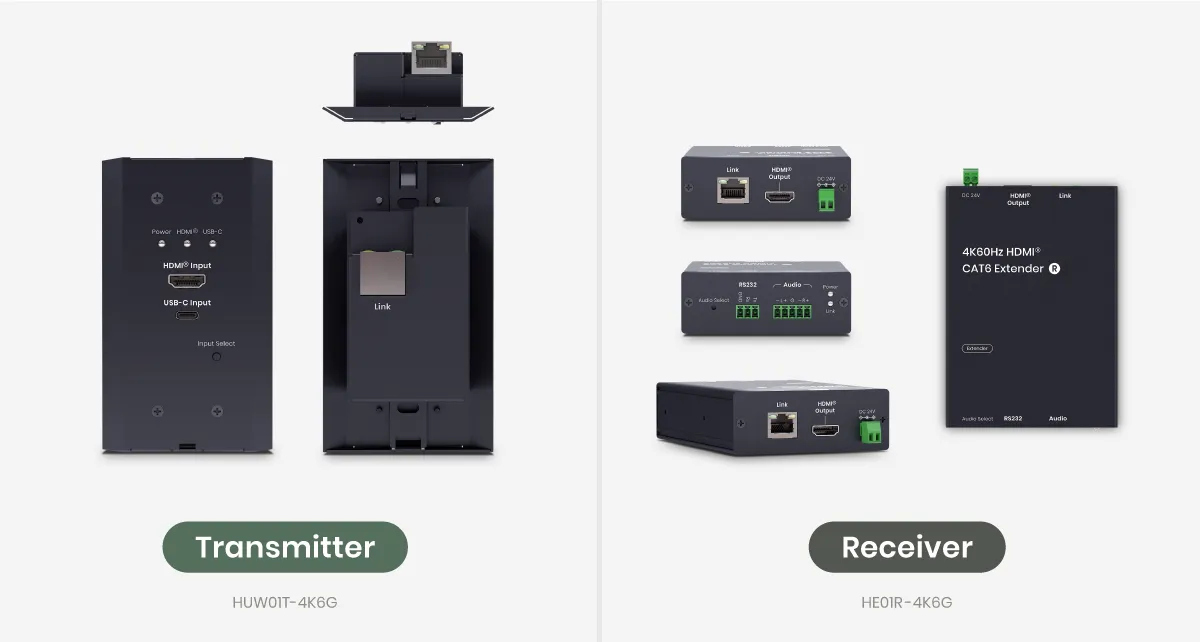

The SC&T 4K60Hz HDMI & USB-C Wall Plate Extender is designed for conference rooms, classrooms, and presentation spaces. It allows users to connect video sources directly from the wall and extend the signal to a remote display. This model supports 4K@60Hz video transmission and is compatible with USB-C DP Alt Mode. Using a single CAT6 cable, the wall plate extender transmits up to 60 meters, providing a clean and efficient cabling solution. Its in-wall design integrates seamlessly into the environment, promoting a tidy and professional workspace.

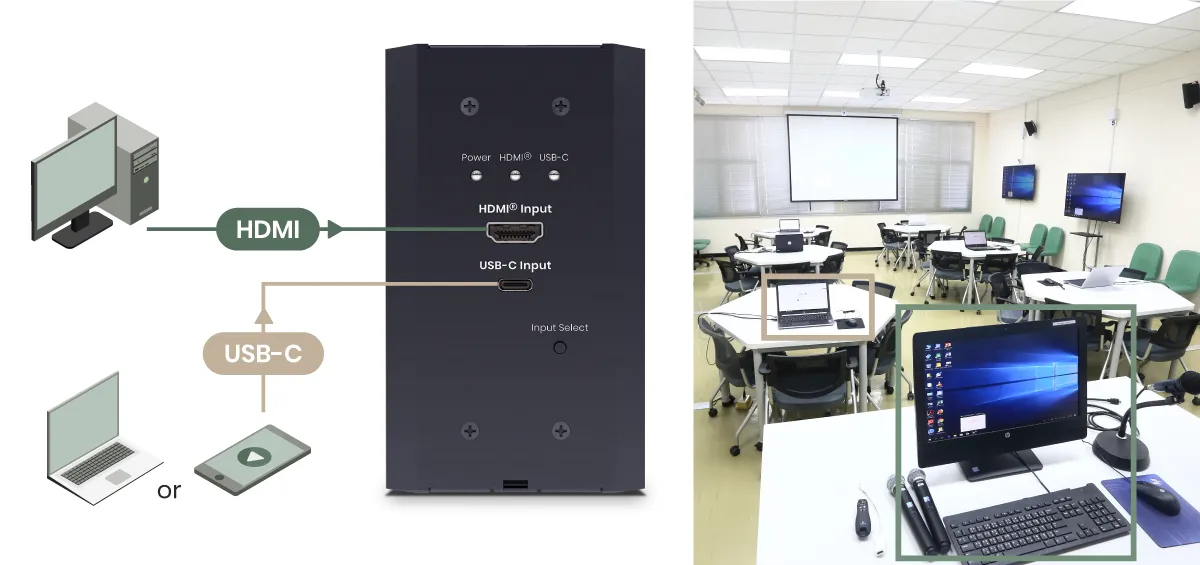

Dual HDMI and USB-C Input Support

This wall plate extender features both HDMI and USB-C (with DisplayPort Alt Mode) input ports, allowing users to connect different types of AV devices. It is compatible with modern laptops, media players, and mobile devices, providing increased flexibility and convenience in shared environments.

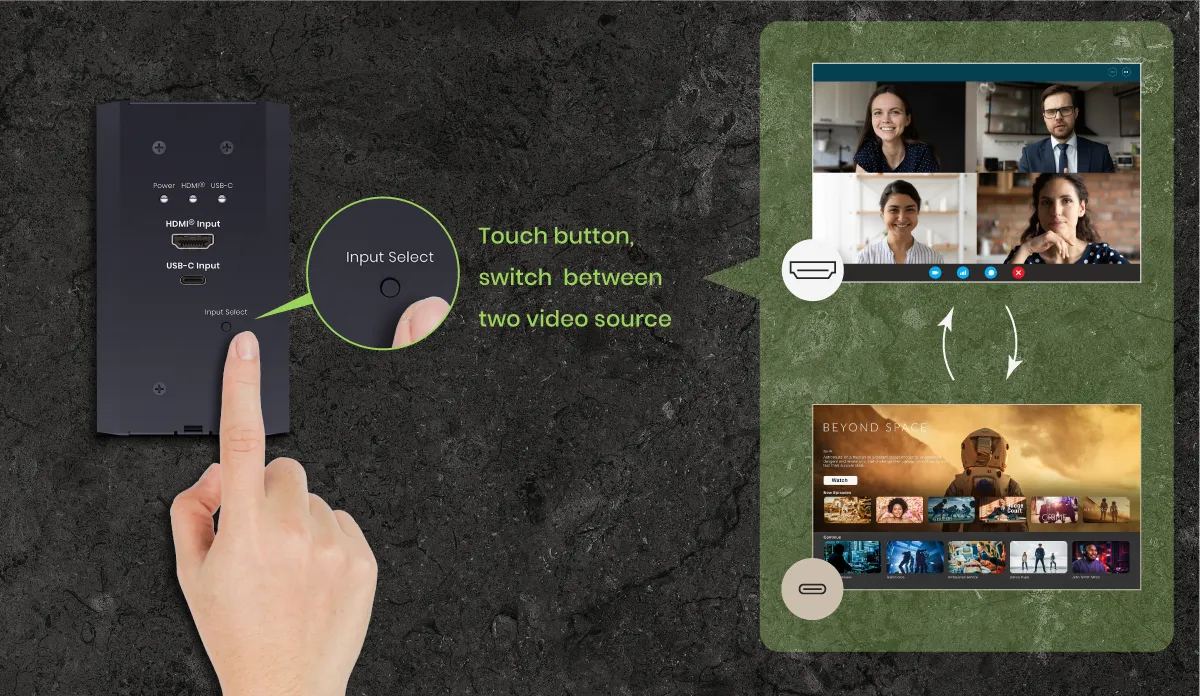

Easy Source Switching

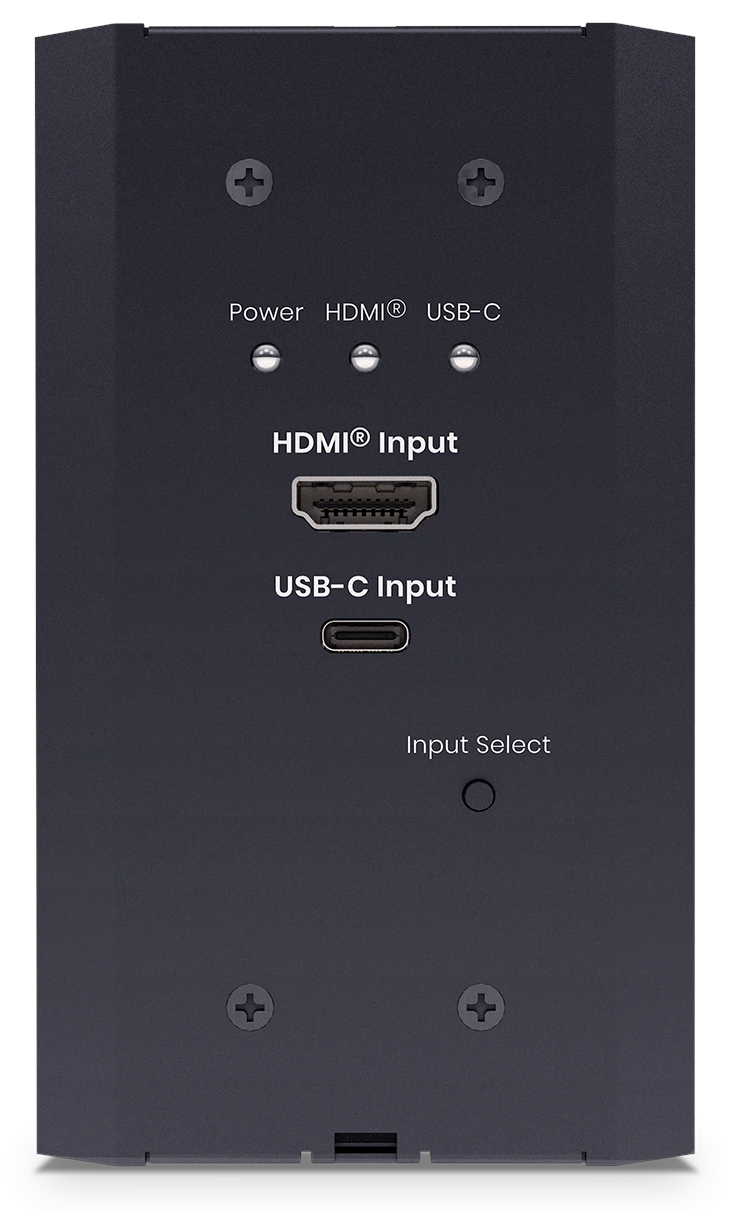

The front panel includes a physical button that allows users to switch easily between HDMI and USB-C input sources, without the need to constantly plug and unplug cables. An indicator light shows the currently active input, making operation simple and intuitive.

Whether using a laptop for presentations or a mobile device for media playback, users can switch sources with a single press, greatly improving flexibility and on-site efficiency in environments where multiple devices are used in rotation.

Ultra HD 4K60Hz Video Quality

With support for 4K@60Hz (4:4:4) resolution, the USB-C/HDMI wall plate extender ensures high-definition video output with smooth motion and accurate color. It is ideal for professional AV applications such as business presentations, digital signage, and interactive displays.

Transmission over CAT6 Up to 60m

Using a single CAT6 cable, this extender supports transmission distances up to 60 meters. This makes it well-suited for mid-sized to large AV installations where cable routing efficiency and cost are important.

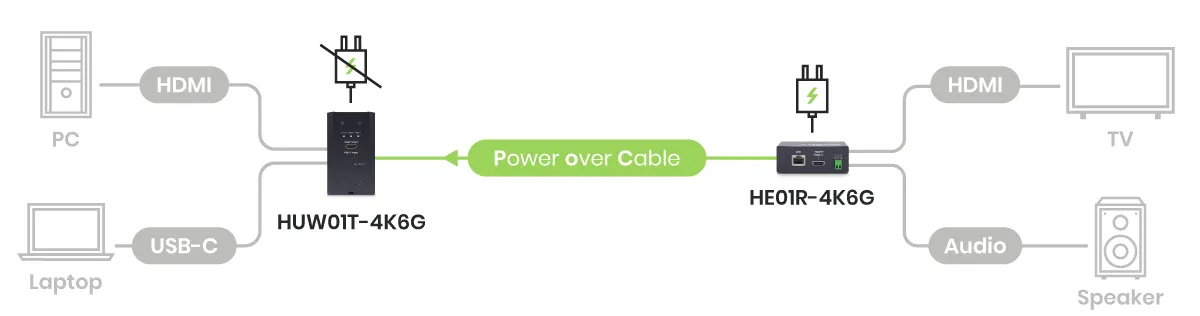

Power over Cable (PoC) Technology

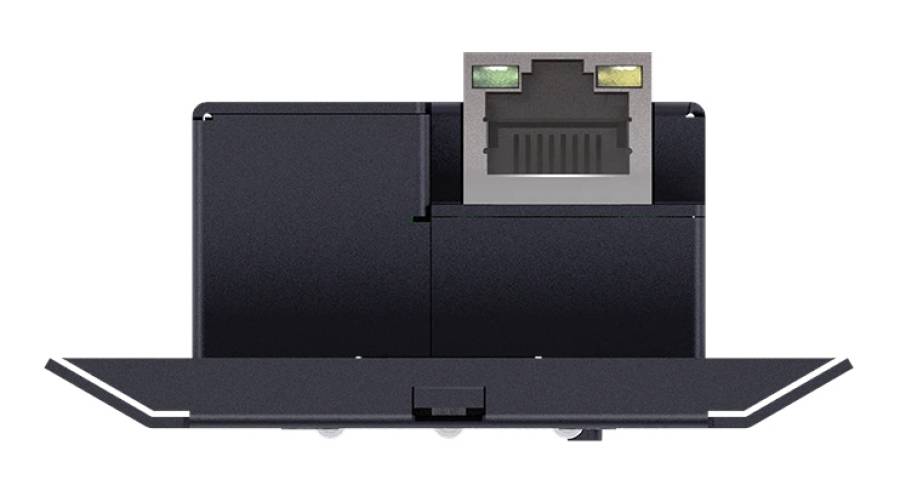

The extender uses PoC technology to supply power to the HDMI wall plate transmitter through the same CAT6 cable. Only the receiver needs to be connected to a power adapter. This greatly simplifies installation and keeps wall surfaces clean and unobstructed.

*Note: The USB-C input does not support Power Delivery and cannot charge connected devices.

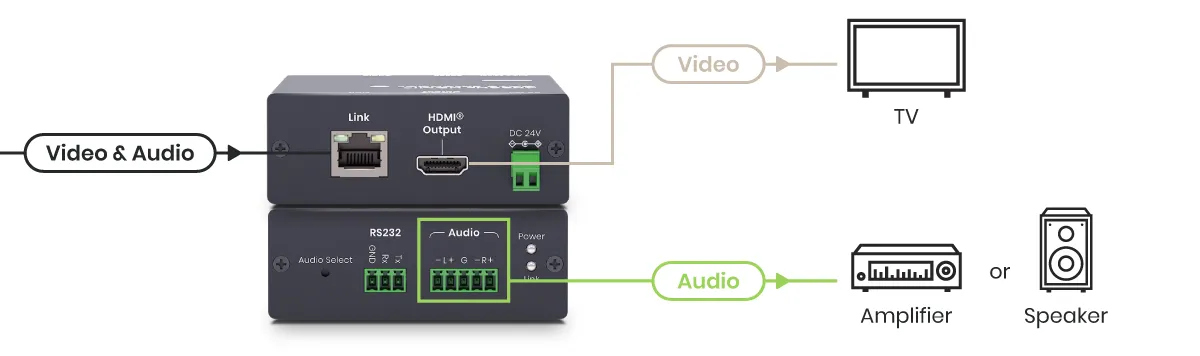

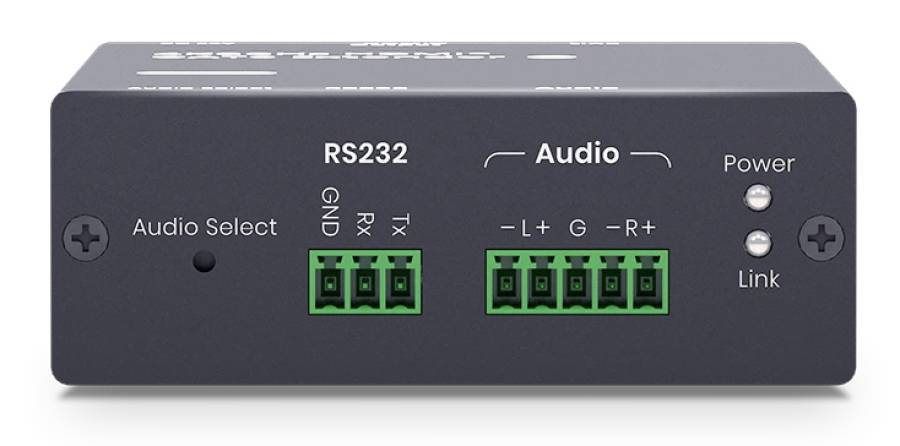

Audio Extraction via Terminal Block

This device supports audio extraction, allowing audio signals from HDMI or USB-C inputs to be output separately. The extracted audio is delivered through a 5-pin Phoenix (Euroblock) terminal, making it easy to integrate with commercial amplifiers or professional sound systems. This function is particularly useful for AV integrators deploying systems in conference rooms, classrooms, and other public or commercial environments.

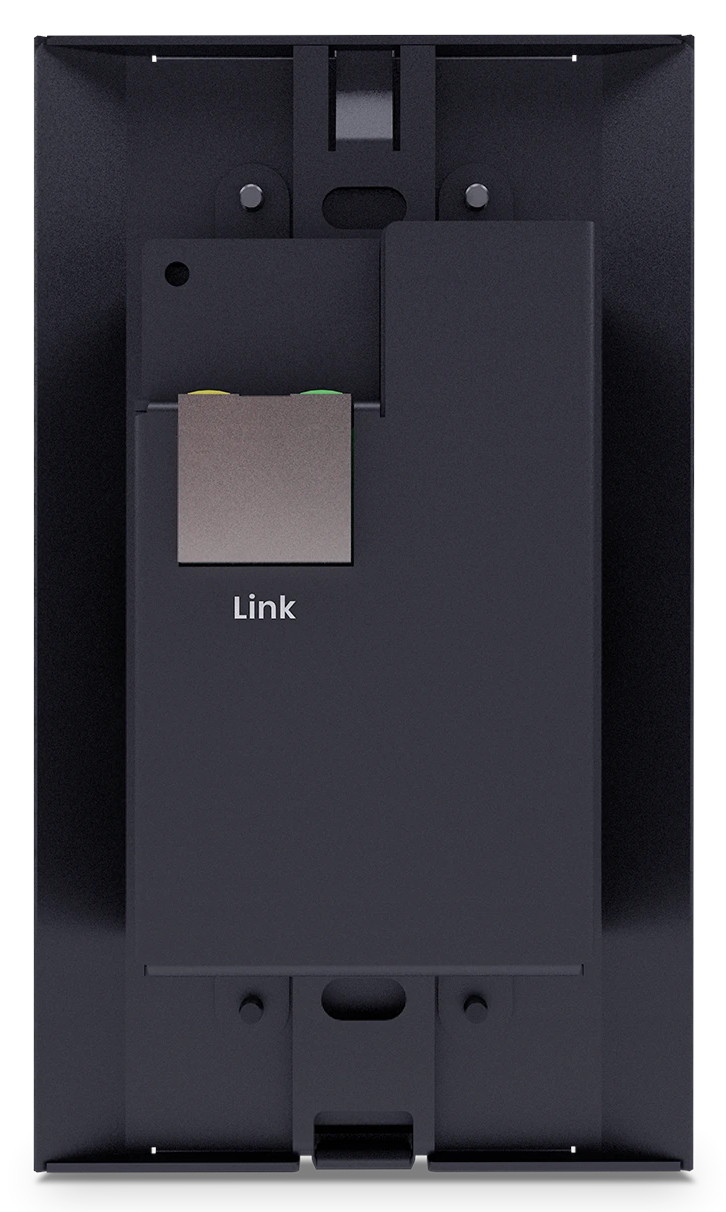

US Wall Plate

The wall plate follows the US 1-Gang standard, making it compatible with common wall boxes in the United States, Canada, and many other regions. This design ensures broad installation compatibility across international markets.

US 1-Gang Wall Plate Standard

• Standard Dimensions: Approx. 114 mm (H) × 70 mm (W)
• Mounting Hole Distance: Approx. 83.3 mm
• Applicable Regions: United States, Canada, Taiwan, and parts of Central/South America and Asia
• Typical Features: Square-edge frame; compatible with metal or plastic electrical back boxes
